Sanhuan Shitong Haolong 4.3L Diesel 240 hp 6X2(8 wheels) Fast Gear 10-Speed 6.8m Dump Truck

Export reference
MSRP N/A
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 6.7ton
Wheelbase:: 1850+3000mm
Tire Size:: 10.00R20 18PR
Model code (announced):: STQ1249L10Y3D6
Sanhuan Shitong Haolong 4.3L Diesel 240 hp 6X2(8 wheels) Fast Gear 10-Speed 6.8m Dump Truck exterior
View more photos (9)
Rated payload: 17.07ton
Drive 6X2 (8 wheels)
Horsepower 240
Cargo box type: Dump type

Overview

The Sanhuan Shitong Haolong 4.3L Diesel 240 hp 6X2(8 wheels) Fast Gear 10-Speed 6.8m Dump Truck is a Heavy truck featuring 17.07t payload, 24.5t GVW, Dump type cargo body and 6X2 (8 wheels) drive. On the powertrain side, it comes with a YuchaiYCS04240-66 engine, 240 hp, Fast Gear transmission and Diesel fuel.

240 Diesel 6X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): STQ1249L10Y3D6
Drive type: 6X2
Wheelbase: 1850+3000mm
engine: YuchaiYCS04240-66
transmission: Fast Gear 10-Speed
Rear Axle Ratio: 5.92
Cab length: 9.24m
Cab width: 2.55m
Cab height: 3.2m
Front track width: 1940/1940mm
rear track: 1860mm
Curb Weight: 6.7ton
Rated payload: 17.07ton
GVWR: 24.5ton
Origin: Shiyan, Hubei
tonnage class: Heavy truck
Approach angle: 15°
departure angle: 12°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YCS04240-66
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.295L
Max output power: 173kW
Max hp: 240Horsepower
Transmission Parameters
Transmission Model: Fast Gear 10-Speed
Transmission Brand: Fast Gear
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 6.8m
Cargo box width: 2.4m
Cargo box height: 0.8m
Cab parameters
Cab: Sleeper cab
seating capacity: 3Personnel
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle allowable load: 11500kg
Axle ratio: 5.92
Leaf spring count: 9/9/10+8
Tire
Tire Size: 10.00R20 18PR
Number of tires: 8pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Multimedia features
Bluetooth / hands-free calling:
Radio:
smart configuration
Cruise control (CCS):

Photos

Exterior3

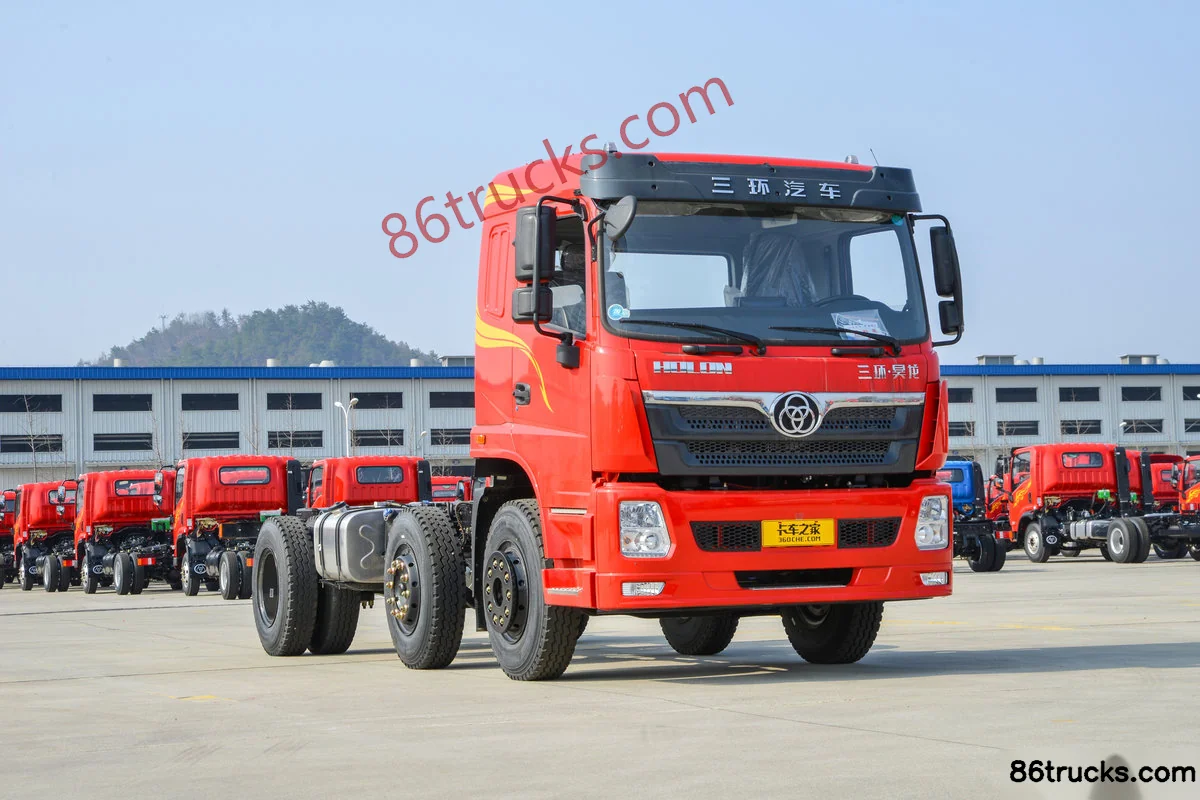

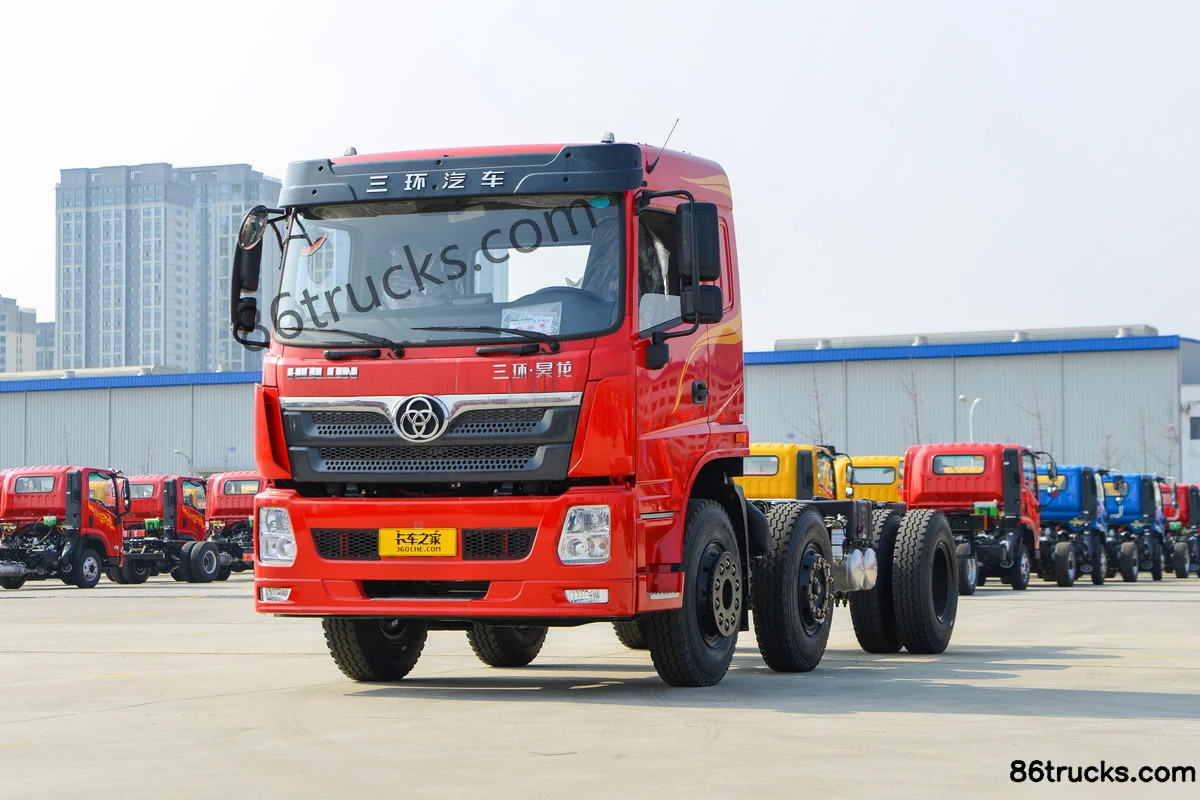

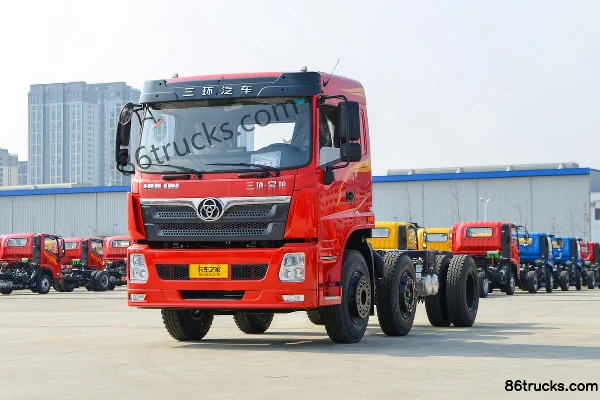

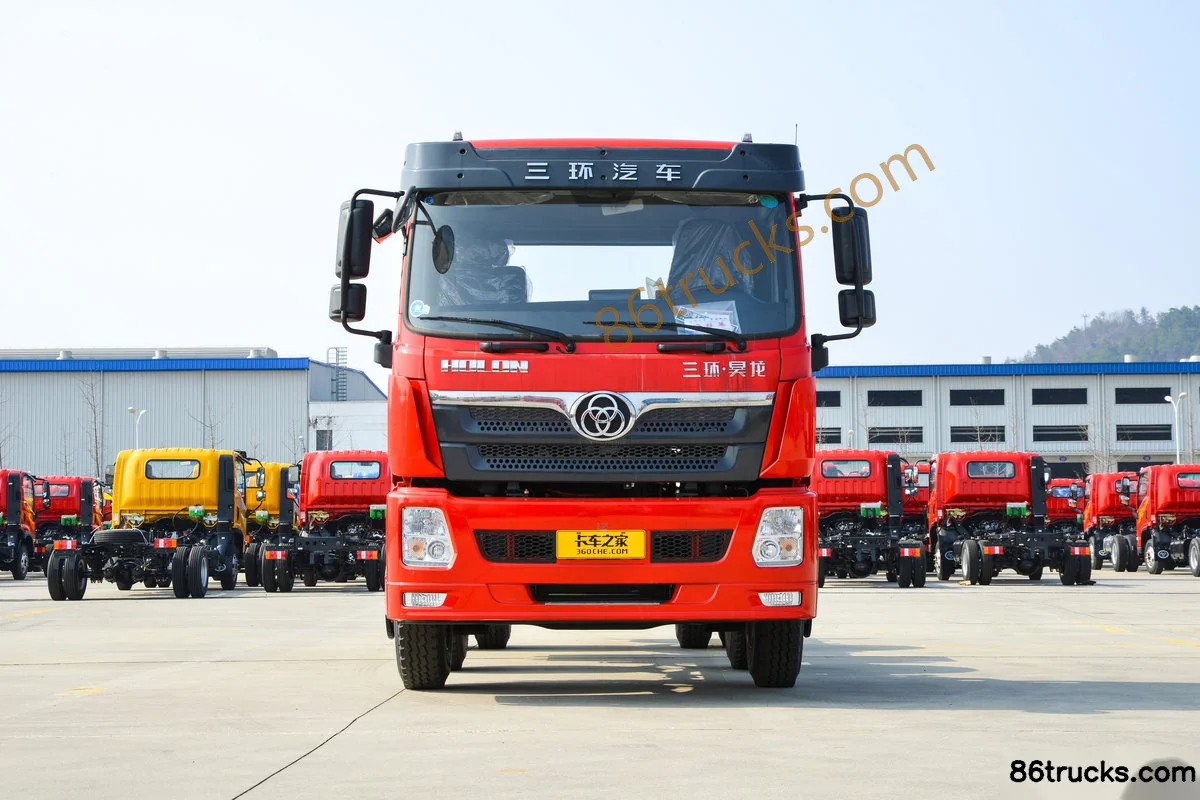

Sanhuan Shitong Haolong 4.3L Diesel 240 hp 6X2(8 wheels) Fast Gear 10-Speed 6.8m Dump Truck Exterior (1) | 86Trucks Sanhuan Shitong Haolong 4.3L Diesel 240 hp 6X2(8 wheels) Fast Gear 10-Speed 6.8m Dump Truck Exterior (2) | 86Trucks Sanhuan Shitong Haolong 4.3L Diesel 240 hp 6X2(8 wheels) Fast Gear 10-Speed 6.8m Dump Truck Exterior (3) | 86Trucks

Cab3

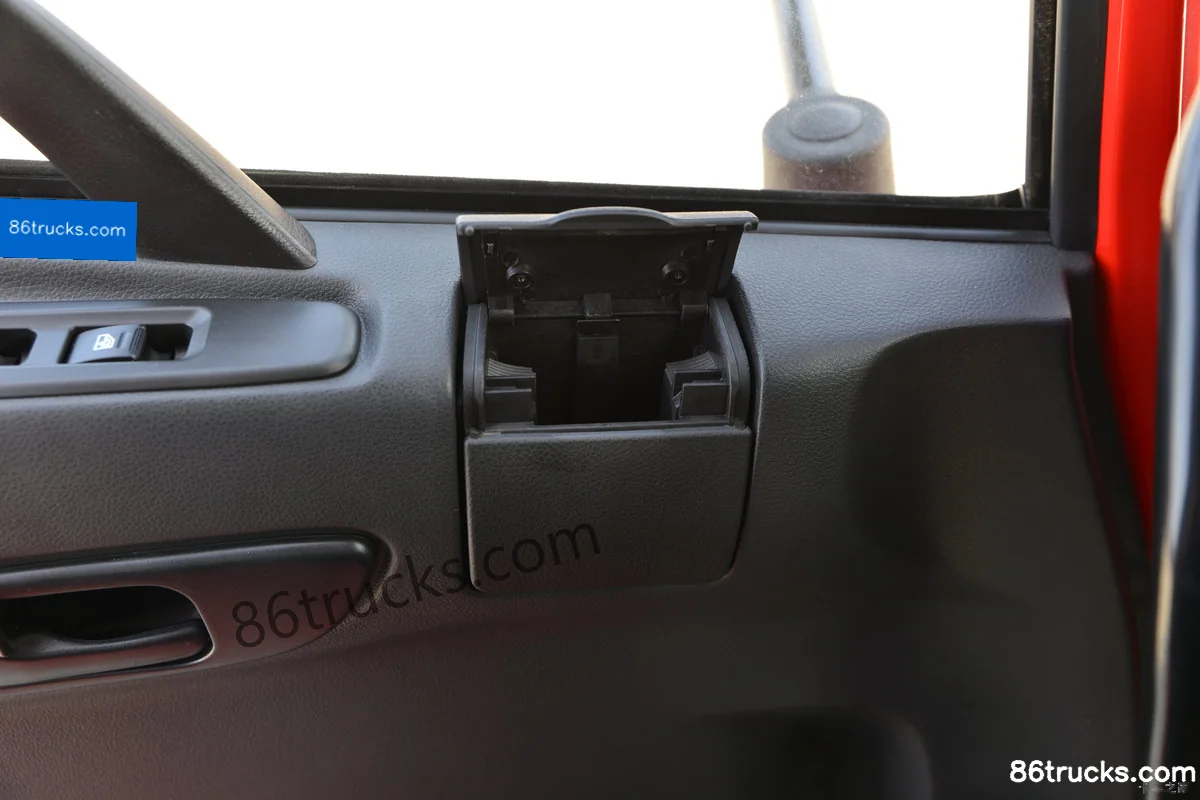

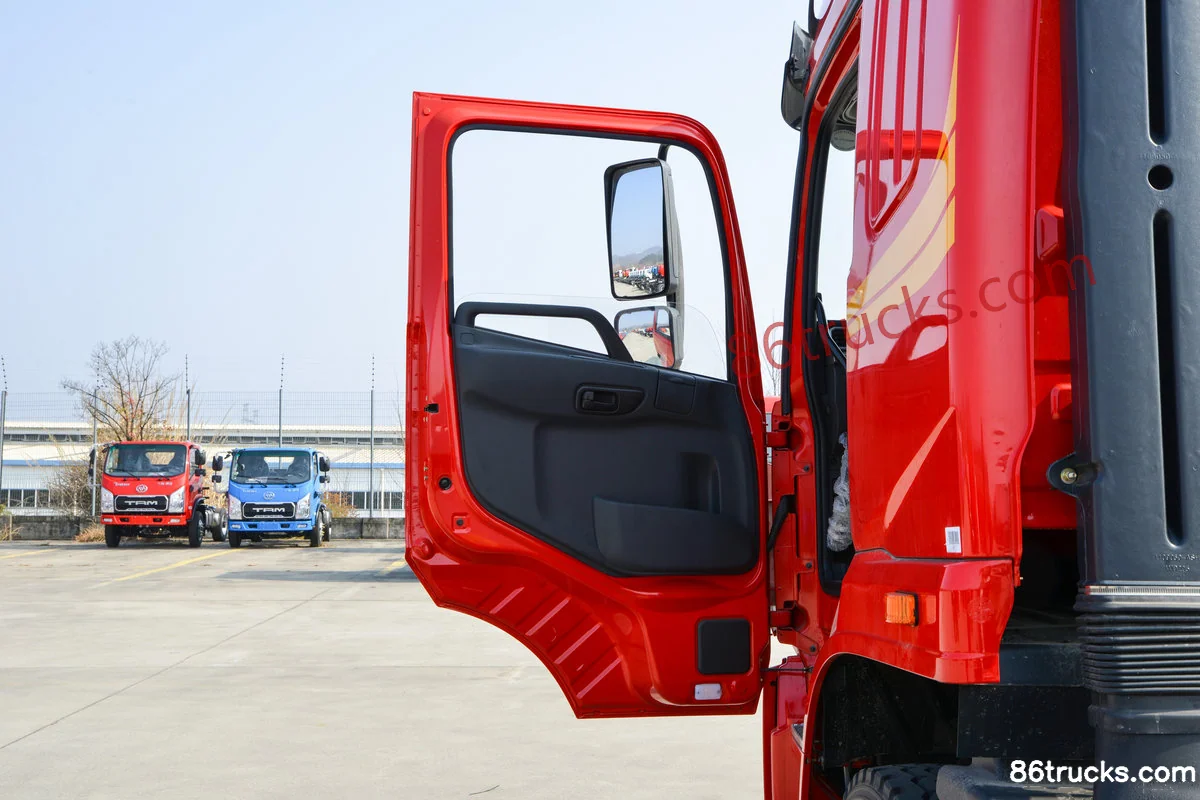

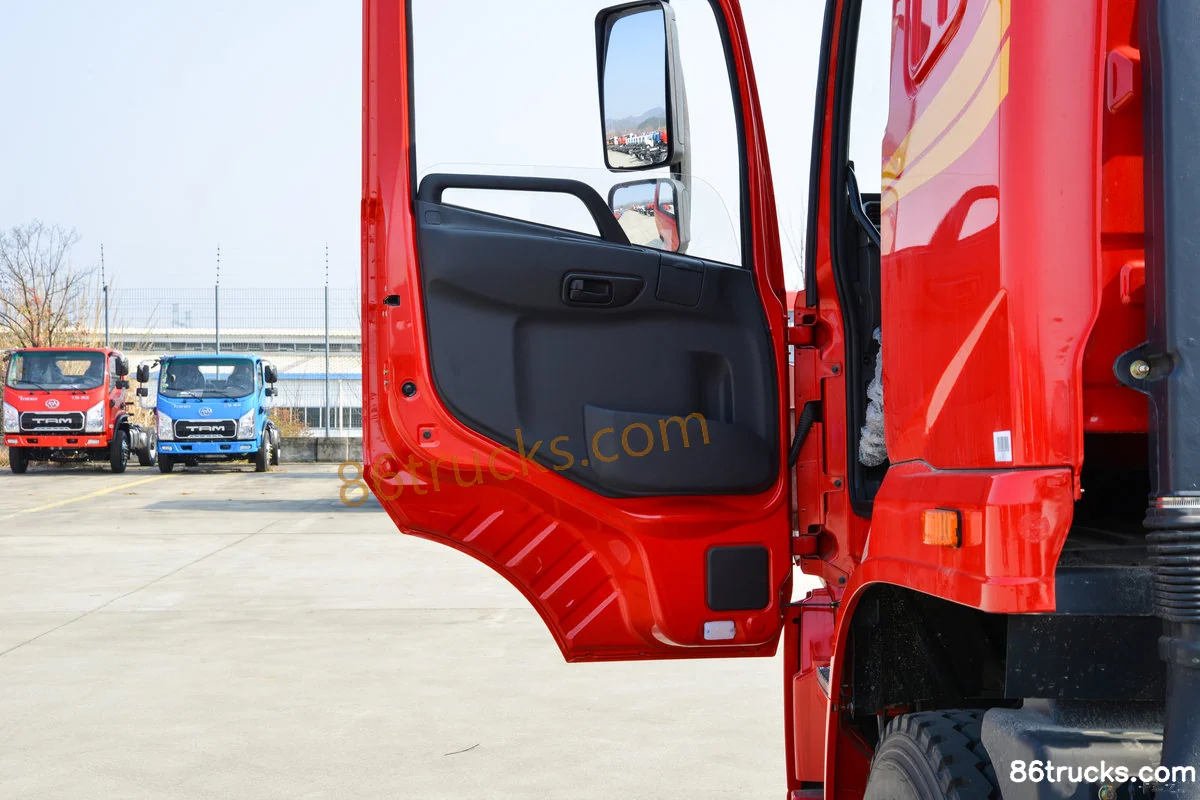

Sanhuan Shitong Haolong 4.3L Diesel 240 hp 6X2(8 wheels) Fast Gear 10-Speed 6.8m Dump Truck Cab (1) | 86Trucks Sanhuan Shitong Haolong 4.3L Diesel 240 hp 6X2(8 wheels) Fast Gear 10-Speed 6.8m Dump Truck Cab (2) | 86Trucks Sanhuan Shitong Haolong 4.3L Diesel 240 hp 6X2(8 wheels) Fast Gear 10-Speed 6.8m Dump Truck Cab (3) | 86Trucks

Chassis3

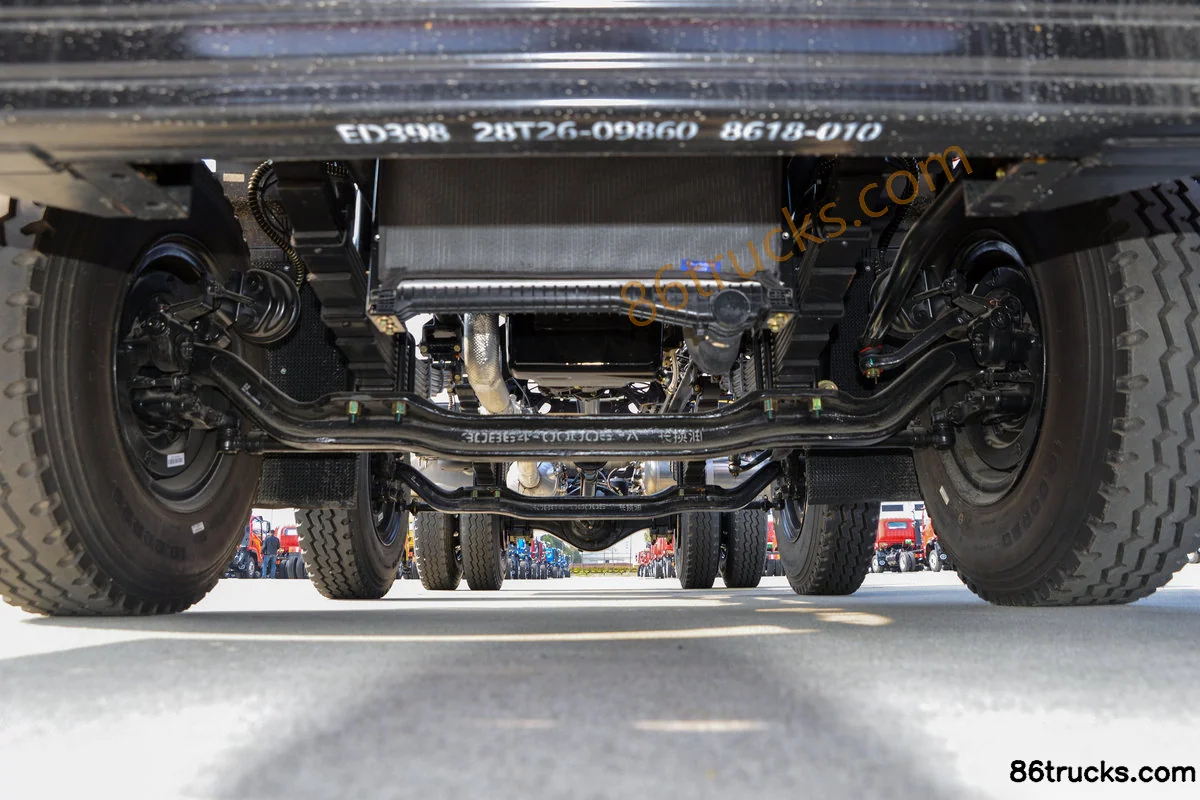

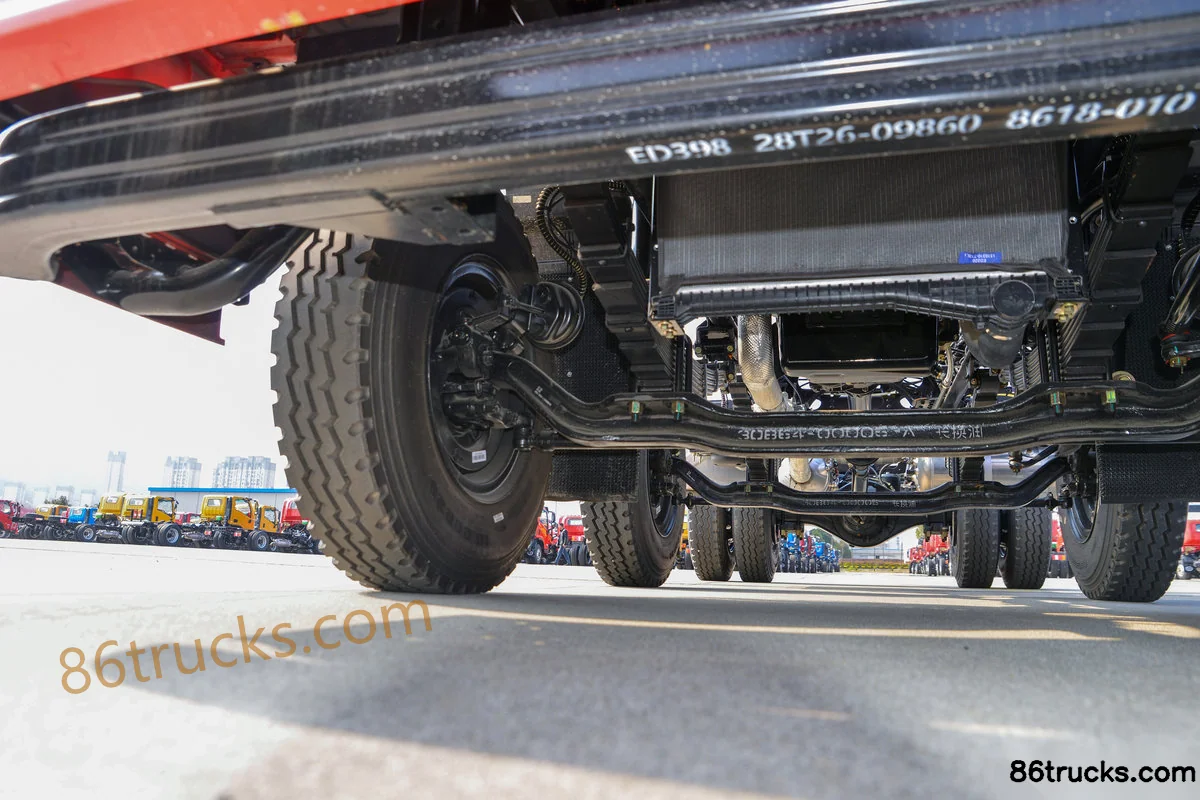

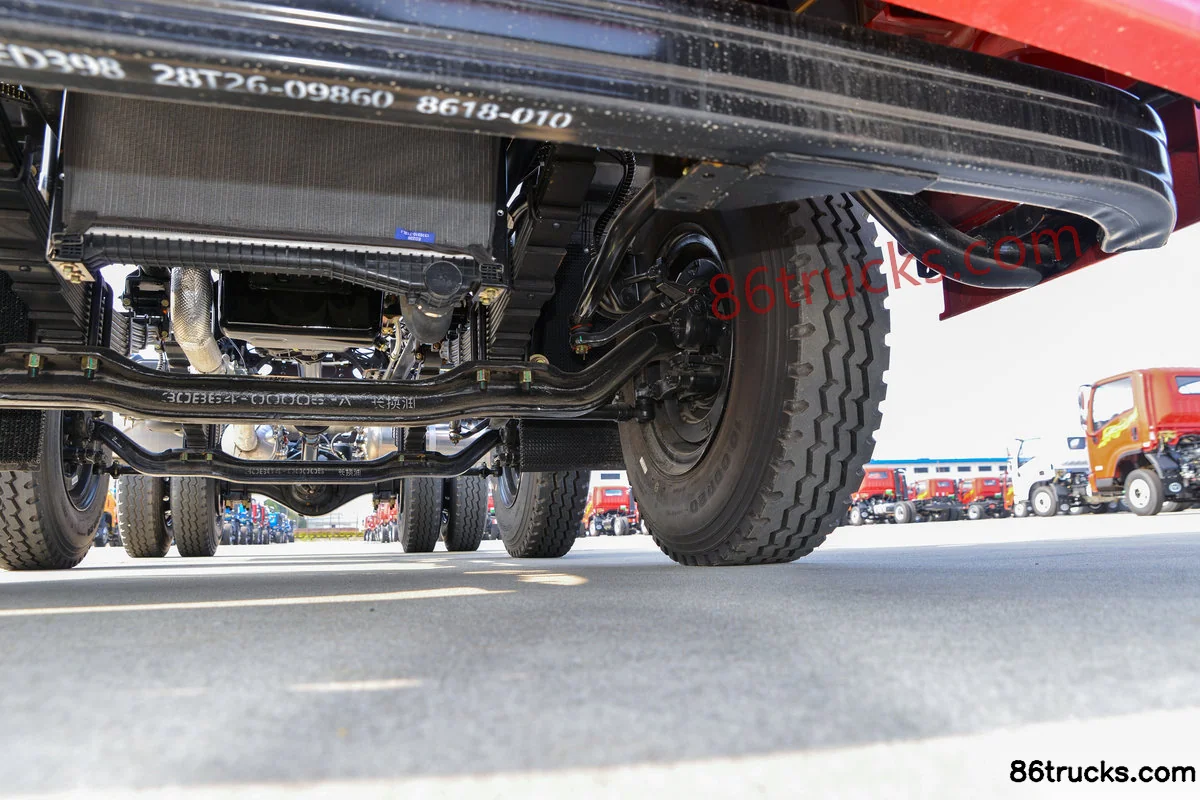

Sanhuan Shitong Haolong 4.3L Diesel 240 hp 6X2(8 wheels) Fast Gear 10-Speed 6.8m Dump Truck Chassis (1) | 86Trucks Sanhuan Shitong Haolong 4.3L Diesel 240 hp 6X2(8 wheels) Fast Gear 10-Speed 6.8m Dump Truck Chassis (2) | 86Trucks Sanhuan Shitong Haolong 4.3L Diesel 240 hp 6X2(8 wheels) Fast Gear 10-Speed 6.8m Dump Truck Chassis (3) | 86Trucks

9 photos

FAQ

What are the key specs of Sanhuan Shitong Haolong 4.3L Diesel 240 hp 6X2(8 wheels) Fast Gear 10-Speed 6.8m Dump Truck?

Key specs of Sanhuan Shitong Haolong 4.3L Diesel 240 hp 6X2(8 wheels) Fast Gear 10-Speed 6.8m Dump Truck: Drive: 6x2; Horsepower: 240 hp; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sanhuan Shitong Haolong 4.3L Diesel 240 hp 6X2(8 wheels) Fast Gear 10-Speed 6.8m Dump Truck suited for?

Sanhuan Shitong Haolong 4.3L Diesel 240 hp 6X2(8 wheels) Fast Gear 10-Speed 6.8m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sanhuan Shitong Haolong 4.3L Diesel 240 hp 6X2(8 wheels) Fast Gear 10-Speed 6.8m Dump Truck differ from other variants in the same series?

Sanhuan Shitong Haolong 4.3L Diesel 240 hp 6X2(8 wheels) Fast Gear 10-Speed 6.8m Dump Truck belongs to Sanhuan Shitong Haolong Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sanhuan Shitong Haolong 4.3L Diesel 240 hp 6X2(8 wheels) Fast Gear 10-Speed 6.8m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sanhuan Shitong Haolong 4.3L Diesel 240 hp 6X2(8 wheels) Fast Gear 10-Speed 6.8m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
