Sanhuan Shitong Haolong 6.2L Diesel 200hp 4X2(6 wheels) Fast Gear 8-speed 4.2m Half-row Dump Truck (New Exterior)

Export reference
From $29,167
MSRP ¥21M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 7.87ton
Wheelbase:: 3650mm
Tire Size:: 10.00R20 16PR
Rated payload: 7.925ton
Drive 4X2 (6 wheels)
Horsepower 200
Cargo box type: Dump type

Overview

The Sanhuan Shitong Haolong 6.2L Diesel 200hp 4X2(6 wheels) Fast Gear 8-speed 4.2m Half-row Dump Truck (New Exterior) is a Medium-duty truck featuring 7.925t payload, 15.99t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYCS06200-60 engine, 200 hp, China VI emissions and Fast Gear transmission.

China VI 200 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): STQ3163L04Y4N6
Drive type: 4X2
Wheelbase: 3650mm
engine: YuchaiYCS06200-60
transmission: Fast Gear 8-speed
Rear Axle Ratio: 5.143
Cab length: 6.69m
Cab width: 2.55m
Cab height: 3.2m
Front track width: 1880mm
rear track: 1750mm
Curb Weight: 7.87ton
Rated payload: 7.925ton
GVWR: 15.99ton
Origin: Shiyan, Hubei
tonnage class: Medium-duty truck
Approach angle: 15°
departure angle: 16°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YCS06200-60
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.23L
Emission standard: China VI
Max output power: 147kW
Max hp: 200Horsepower
Max torque: 750N·m
Max torque speed: 1200-1700rpm
Rated speed: 2300rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear 8-speed
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.2m
Cargo box width: 2.3m
Cargo box height: 0.8m
Cab parameters
seating capacity: 3Personnel
Chassis Specs
Front axle allowable load: 5590kg
rear axle allowable load: 1040kg
Axle ratio: 5.143
Leaf spring count: 9/10+8
Tire
Tire Size: 10.00R20 16PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Multimedia features
GPS/Beidou driving recorder:
lighting configuration
Headlight height adjustment:
Service brake
Parking brake: Spring brake

Photos

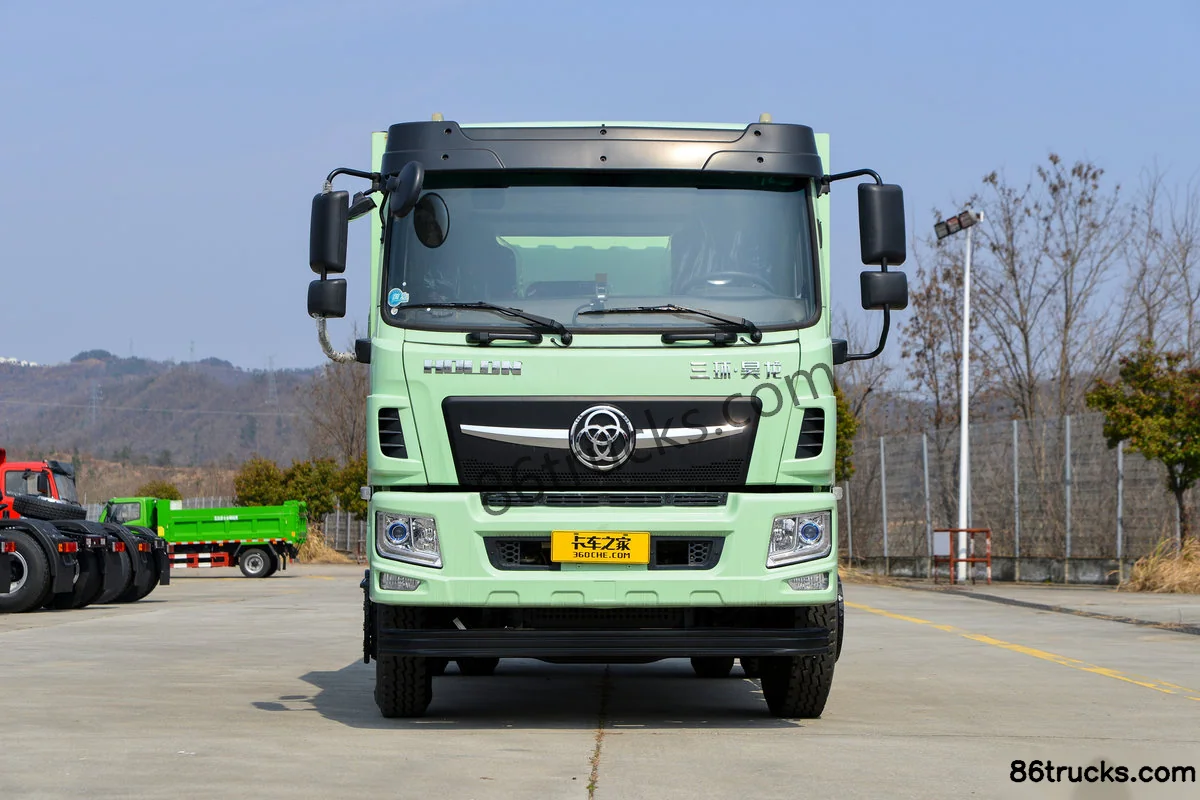

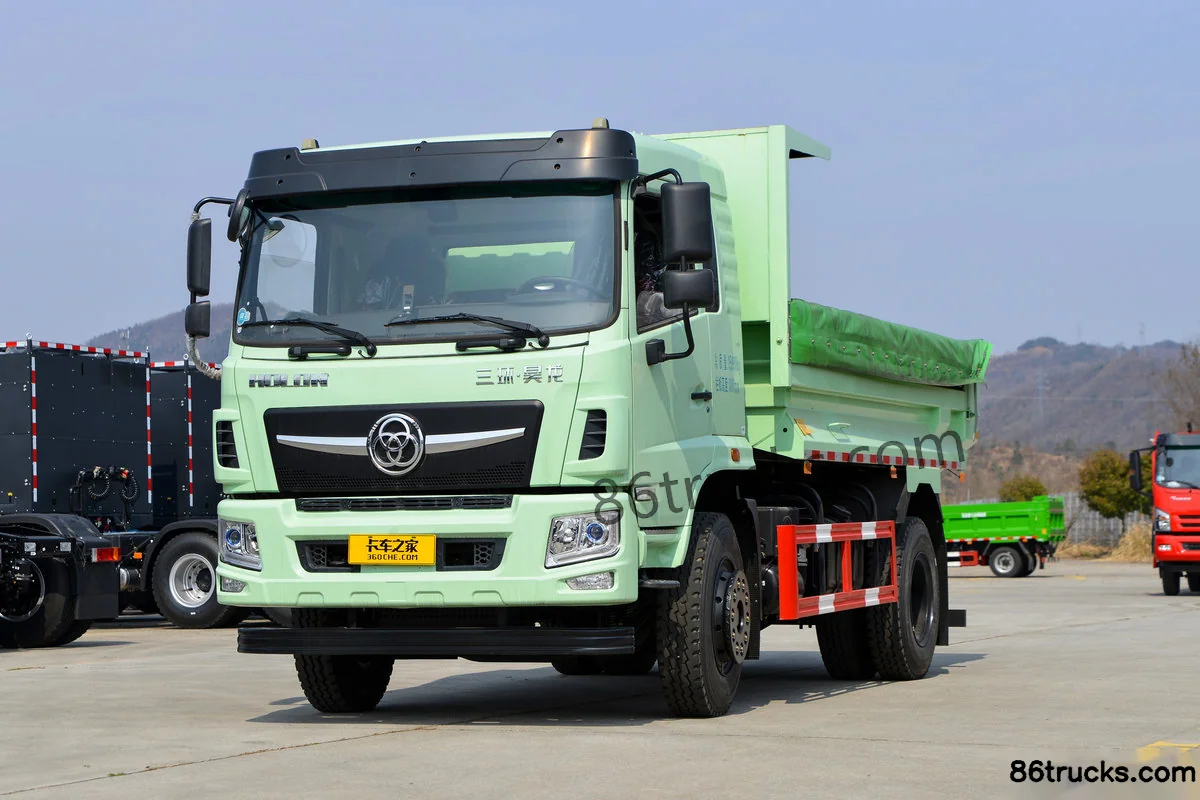

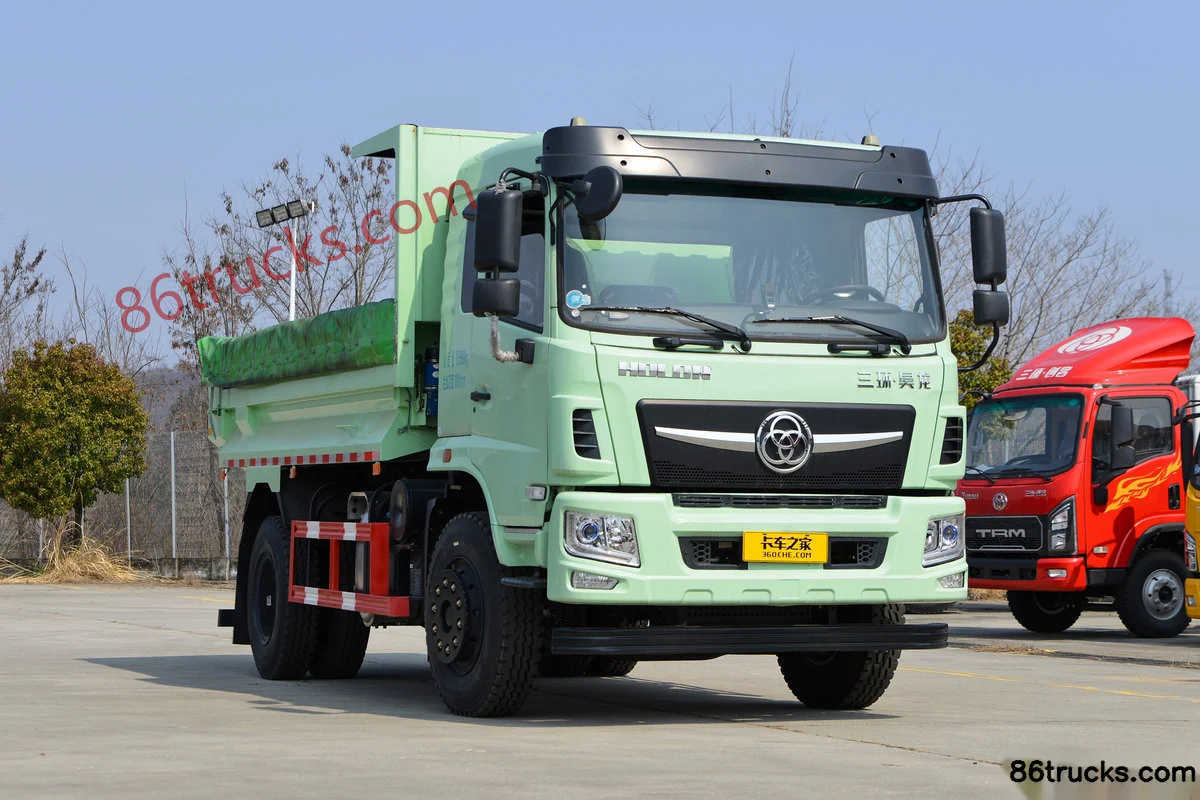

Exterior3

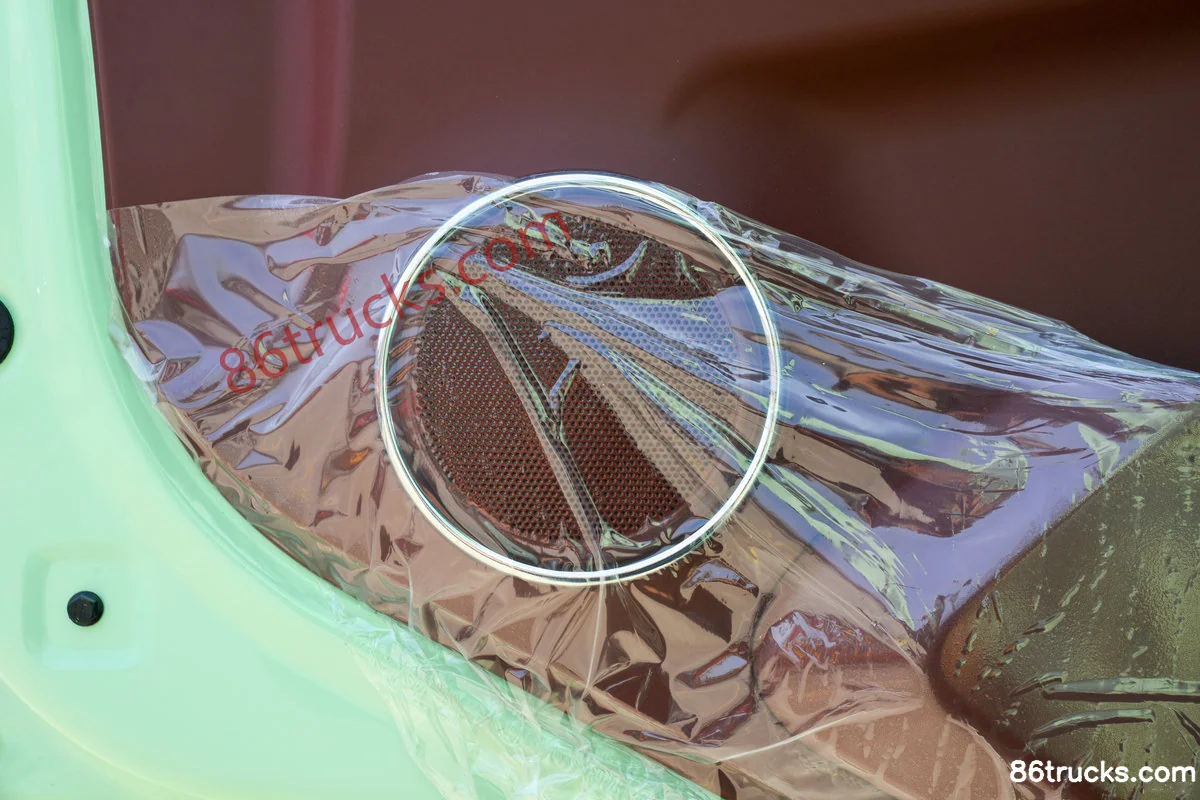

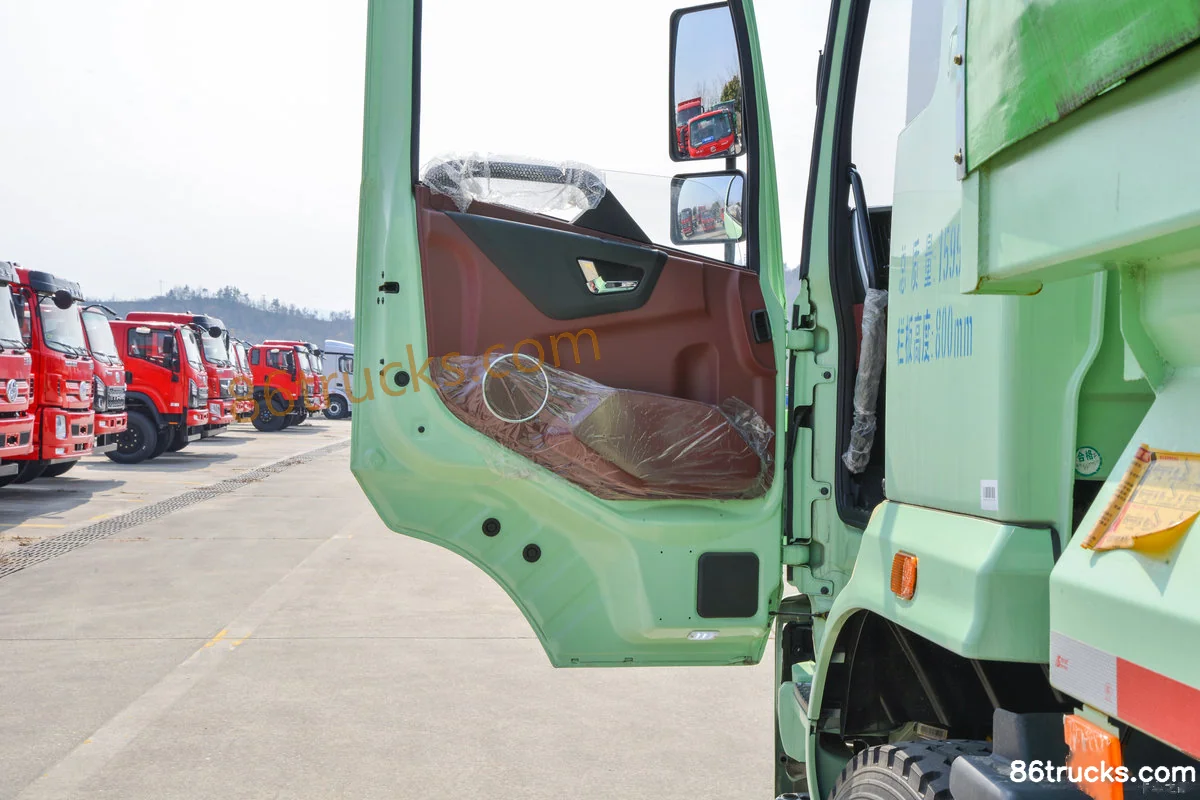

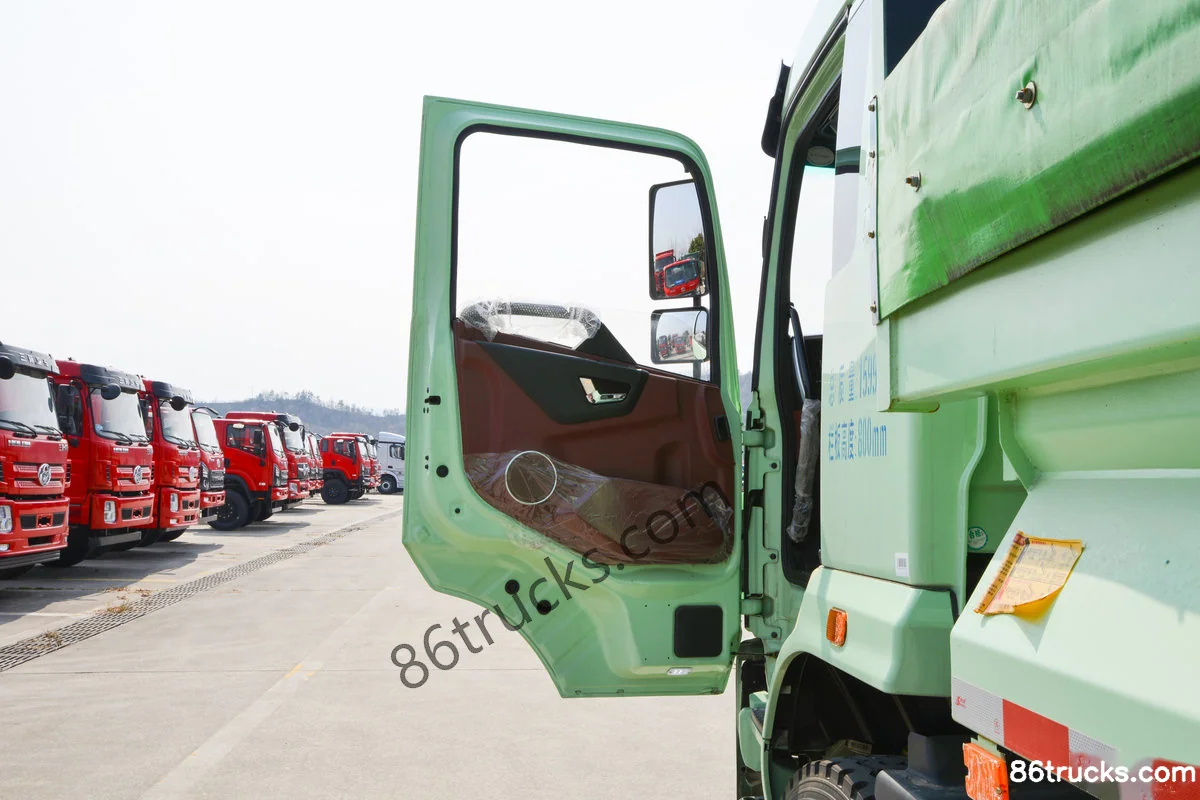

Cab3

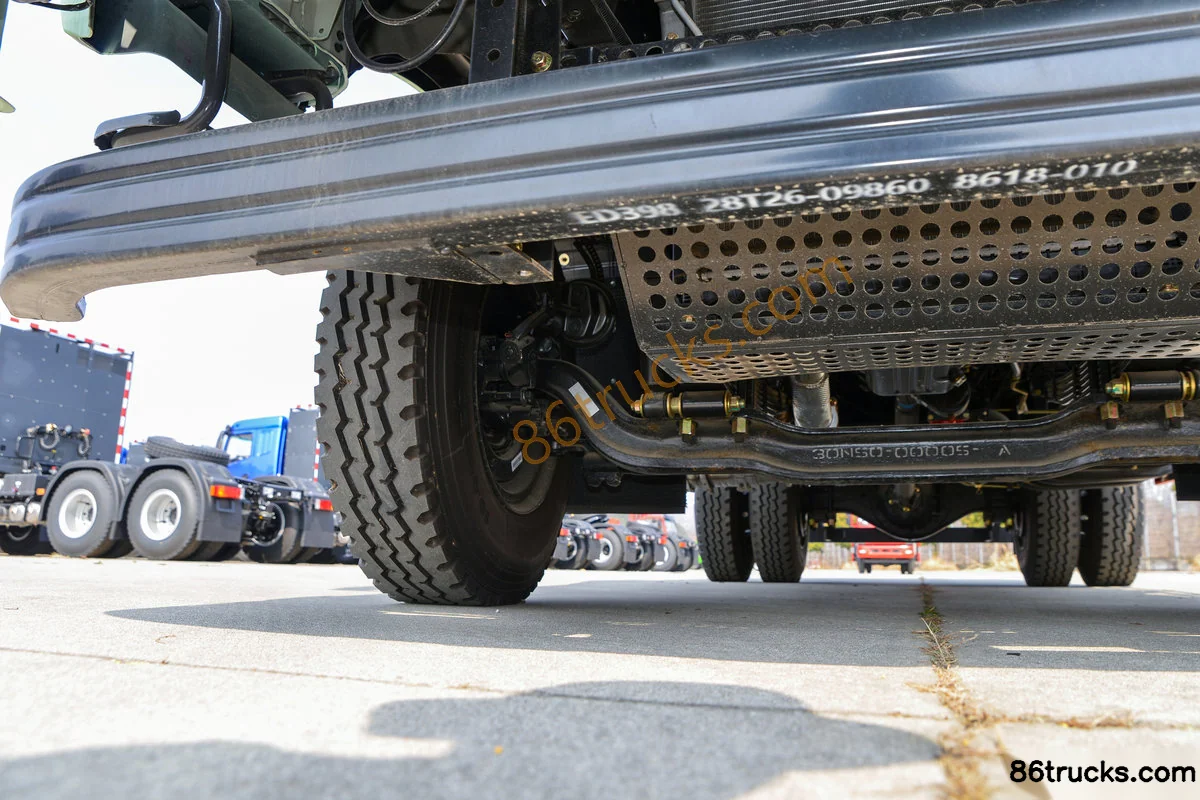

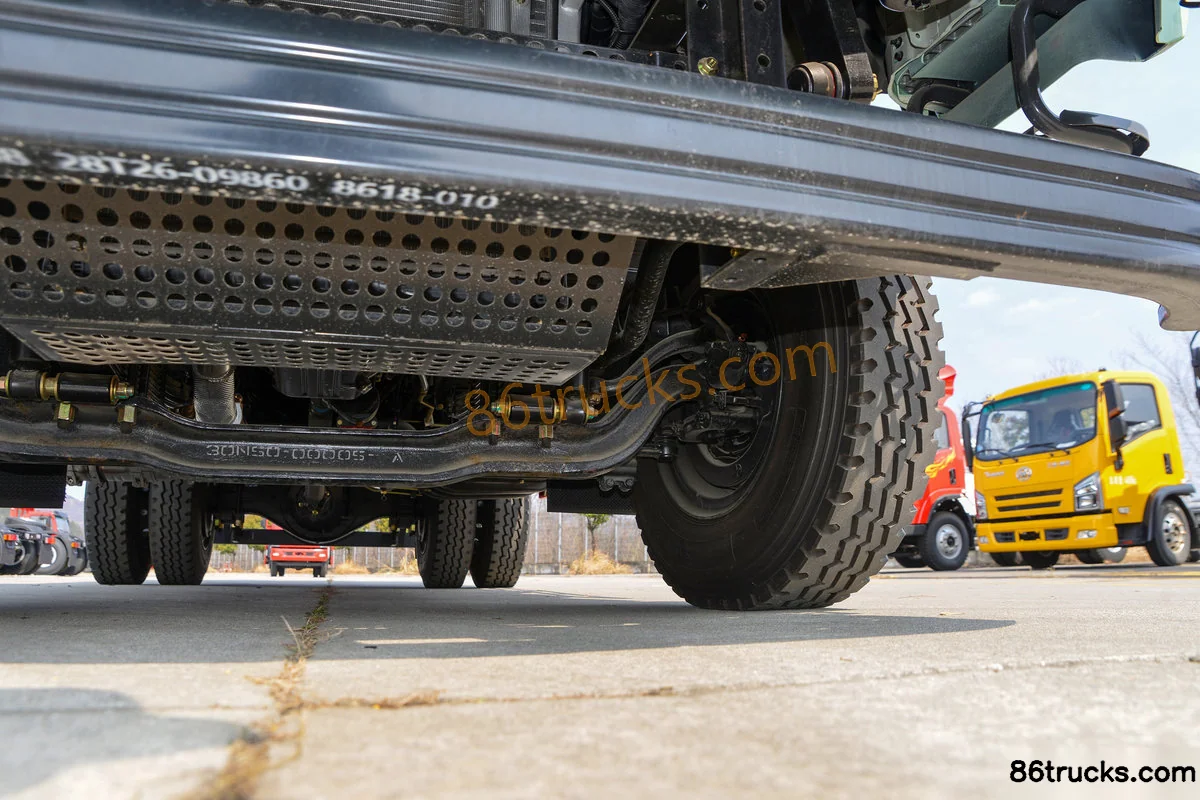

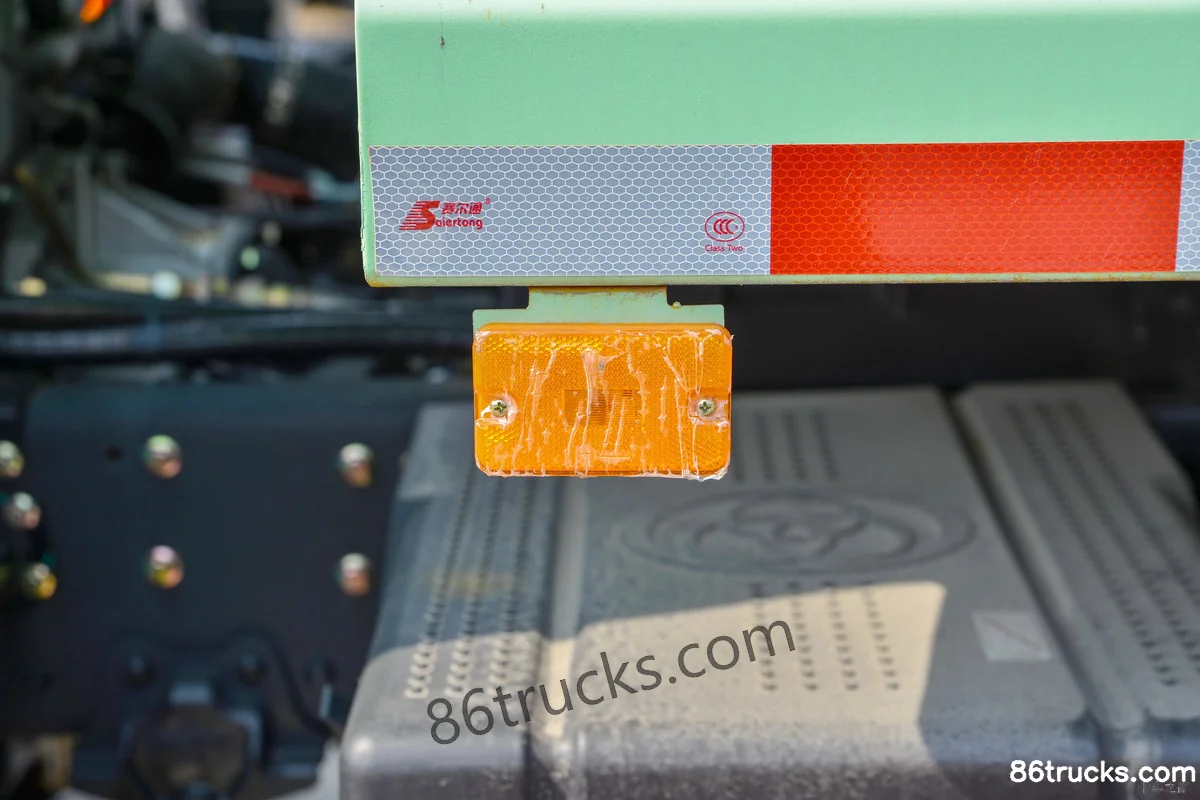

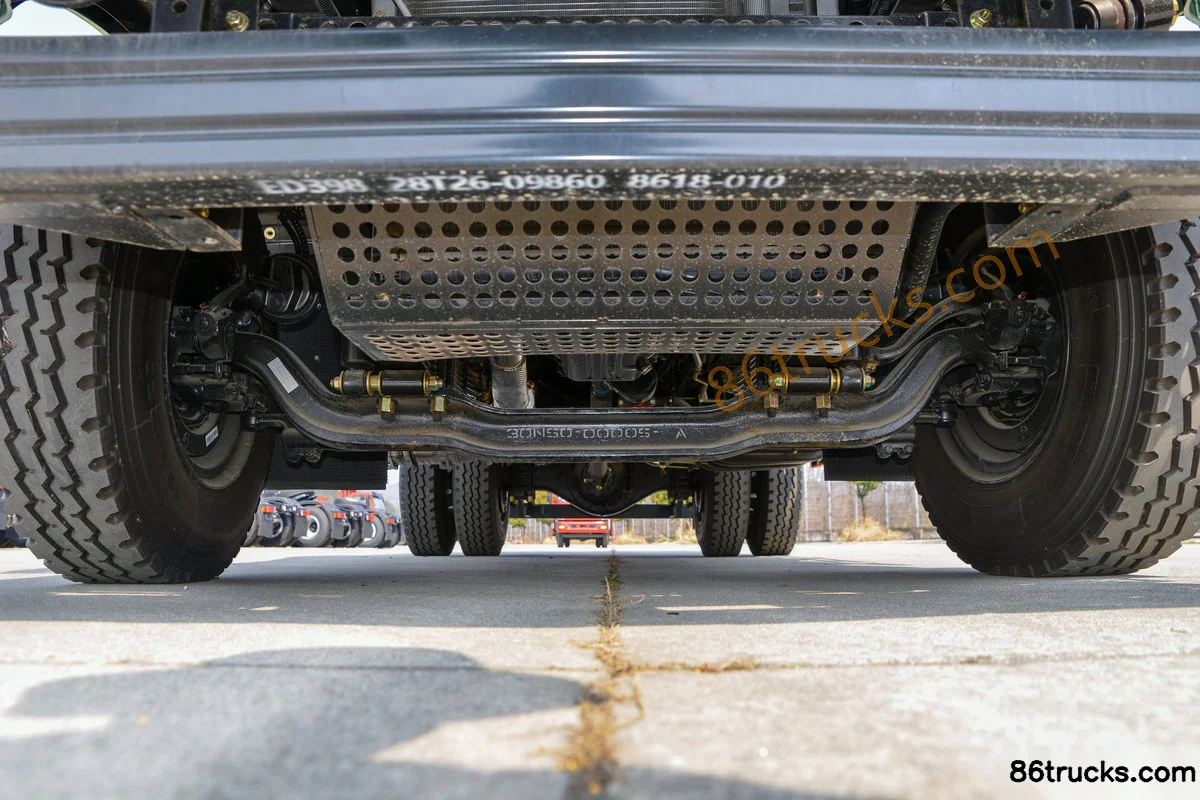

Chassis3

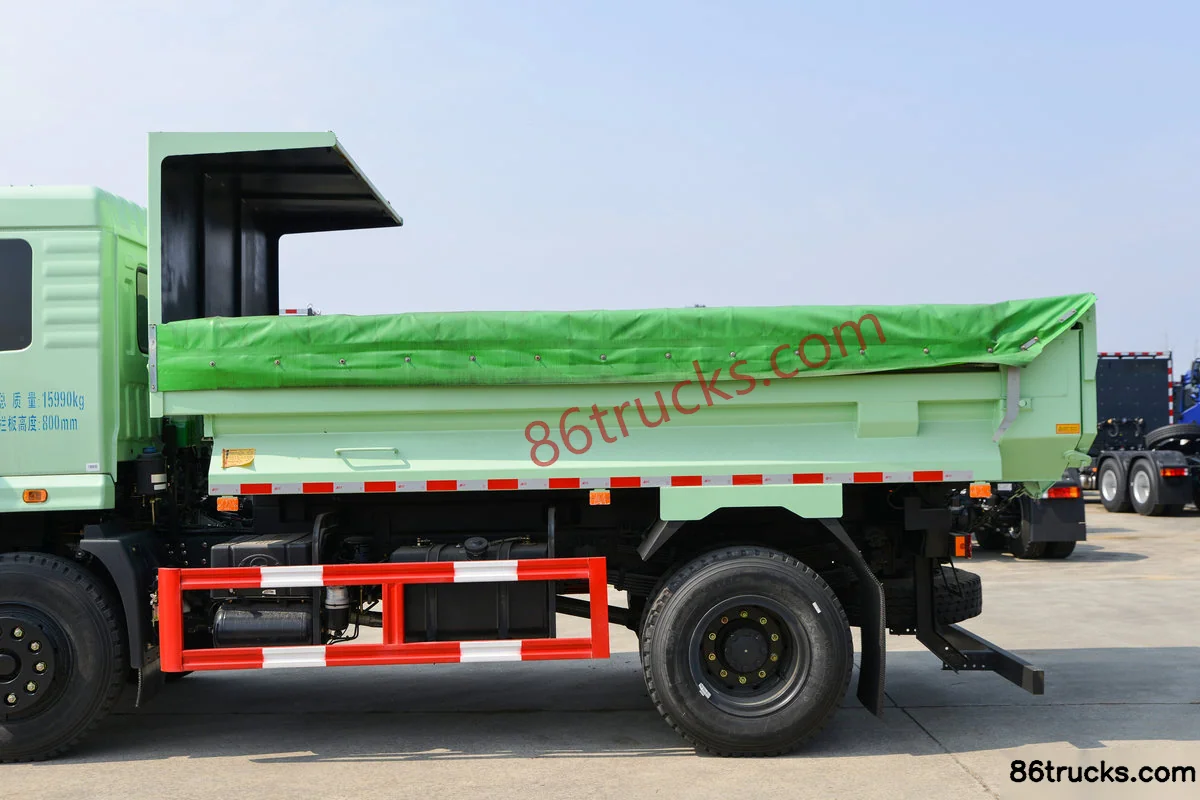

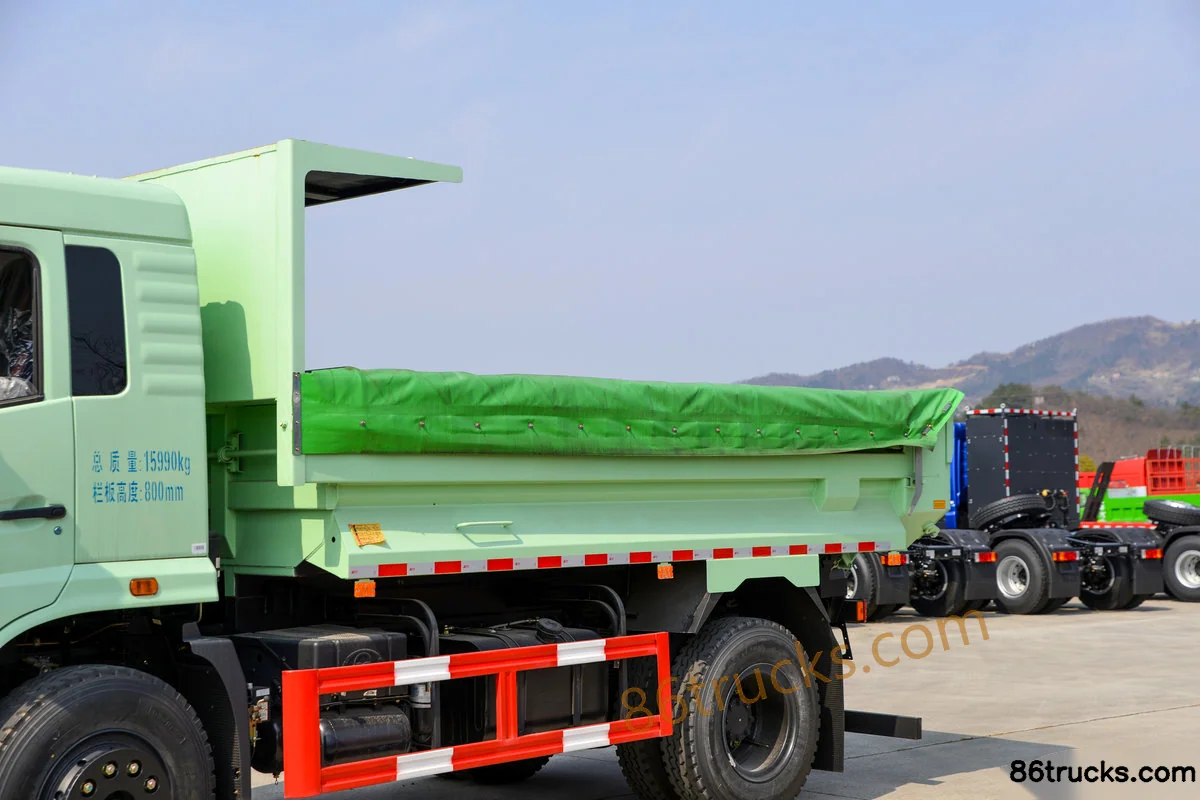

Body3

12 photos

FAQ

What is the export price of Sanhuan Shitong Haolong 6.2L Diesel 200hp 4X2(6 wheels) Fast Gear 8-speed 4.2m Half-row Dump Truck (New Exterior), and what does it include?

Sanhuan Shitong Haolong 6.2L Diesel 200hp 4X2(6 wheels) Fast Gear 8-speed 4.2m Half-row Dump Truck (New Exterior) export reference is about From $29,167; MSRP is ¥21M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sanhuan Shitong Haolong 6.2L Diesel 200hp 4X2(6 wheels) Fast Gear 8-speed 4.2m Half-row Dump Truck (New Exterior) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sanhuan Shitong Haolong 6.2L Diesel 200hp 4X2(6 wheels) Fast Gear 8-speed 4.2m Half-row Dump Truck (New Exterior)?

Key specs of Sanhuan Shitong Haolong 6.2L Diesel 200hp 4X2(6 wheels) Fast Gear 8-speed 4.2m Half-row Dump Truck (New Exterior): Drive: 4x2; Horsepower: 200 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sanhuan Shitong Haolong 6.2L Diesel 200hp 4X2(6 wheels) Fast Gear 8-speed 4.2m Half-row Dump Truck (New Exterior) suited for?

Sanhuan Shitong Haolong 6.2L Diesel 200hp 4X2(6 wheels) Fast Gear 8-speed 4.2m Half-row Dump Truck (New Exterior) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sanhuan Shitong Haolong 6.2L Diesel 200hp 4X2(6 wheels) Fast Gear 8-speed 4.2m Half-row Dump Truck (New Exterior) differ from other variants in the same series?

Sanhuan Shitong Haolong 6.2L Diesel 200hp 4X2(6 wheels) Fast Gear 8-speed 4.2m Half-row Dump Truck (New Exterior) belongs to Sanhuan Shitong Haolong Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sanhuan Shitong Haolong 6.2L Diesel 200hp 4X2(6 wheels) Fast Gear 8-speed 4.2m Half-row Dump Truck (New Exterior)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sanhuan Shitong Haolong 6.2L Diesel 200hp 4X2(6 wheels) Fast Gear 8-speed 4.2m Half-row Dump Truck (New Exterior)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
