Dongfeng (Original Special Chassis) Jiayun 160 hp 4X2(6 wheels) 4.2m Dump Truck

Export reference
From $22,500
MSRP ¥16.2M CNY
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 2.58ton
Wheelbase:: 3800mm
Tire Size:: 7.00-16 10PR,7.00R16 10PR
Rated payload: 1.49ton
Drive 4X2 (6 wheels)
Horsepower 160
Cargo box length: 4.2m

Overview

The Dongfeng (Original Special Chassis) Jiayun 160 hp 4X2(6 wheels) 4.2m Dump Truck is a Light Truck featuring 1.49t payload, 4.265t GVW, 4.2m cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYC4E160-56 engine, 160 hp, China V emissions and Fast Gear transmission.

China V 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): EQ3040LZ5D
Drive type: 4X2
Wheelbase: 3800mm
engine: YuchaiYC4E160-56
transmission: Fast Gear10JS90
Cab length: 5.995m
Cab width: 2.29m
Cab height: 2.85m
Front track width: 1750mm
rear track: 1586mm
Curb Weight: 2.58ton
Rated payload: 1.49ton
GVWR: 4.265ton
Origin: Wuhan, Hubei
tonnage class: Light Truck
Approach angle: 28°
departure angle: 24°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4E160-56
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.26L
Emission standard: China V
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 600N·m
Max torque speed: 1300-1600rpm
Rated speed: 2600rpm
Engine Type: Vertical, inline, water-cooled, four-stroke

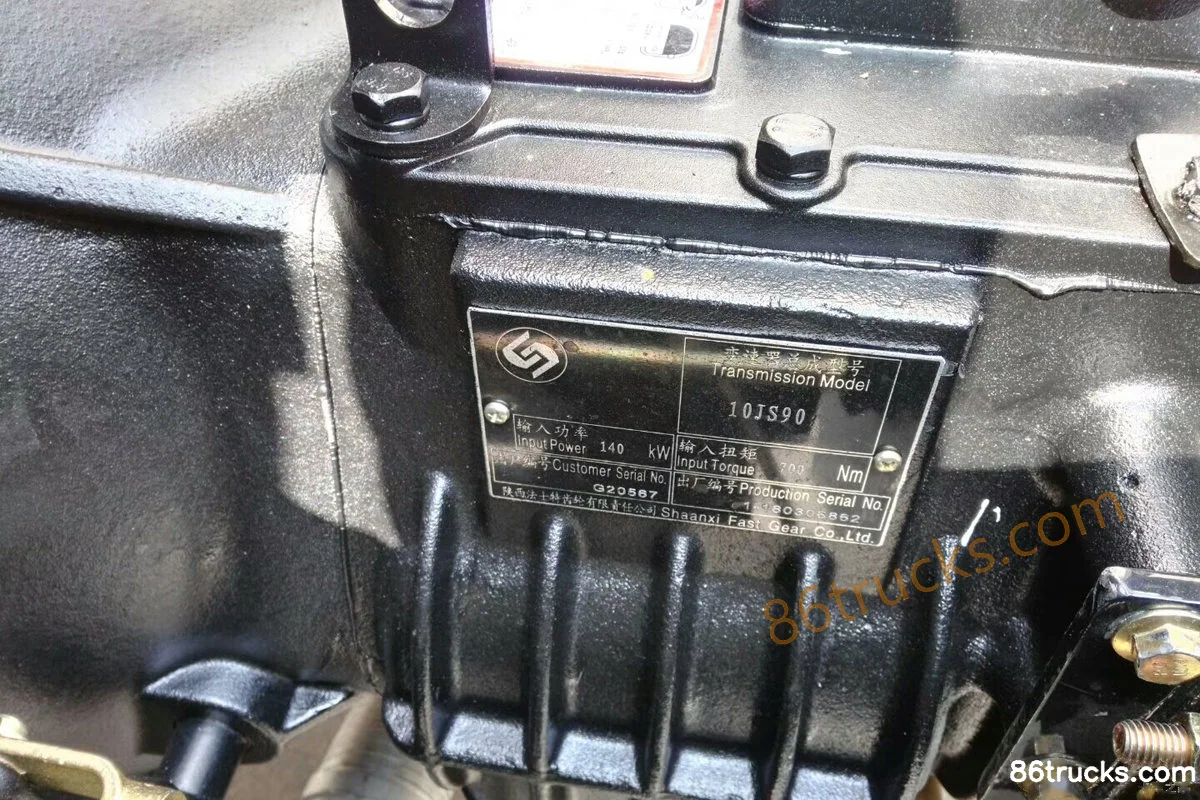

Transmission Parameters
Transmission Model: Fast Gear10JS90
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box length: 4.2m
Cargo box width: 2.2m
Cargo box height: 0.8m

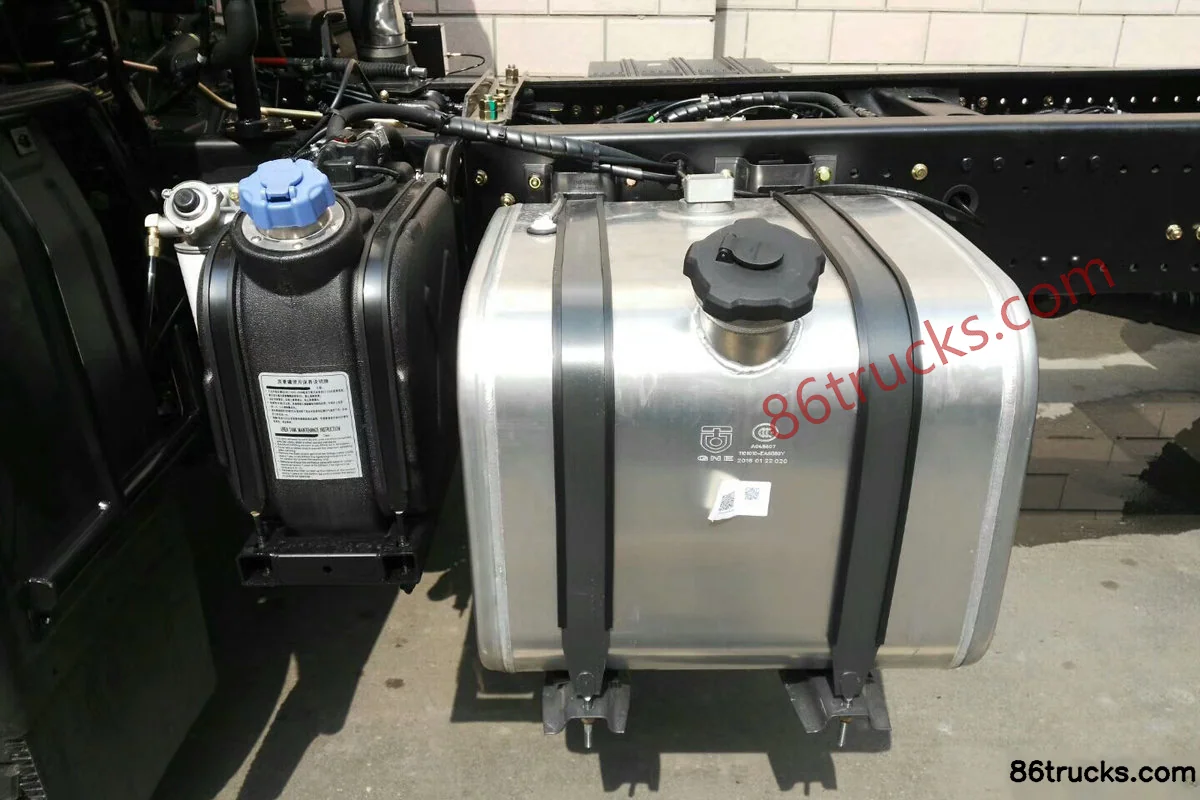

fuel tank
Fuel tank material: aluminum alloy

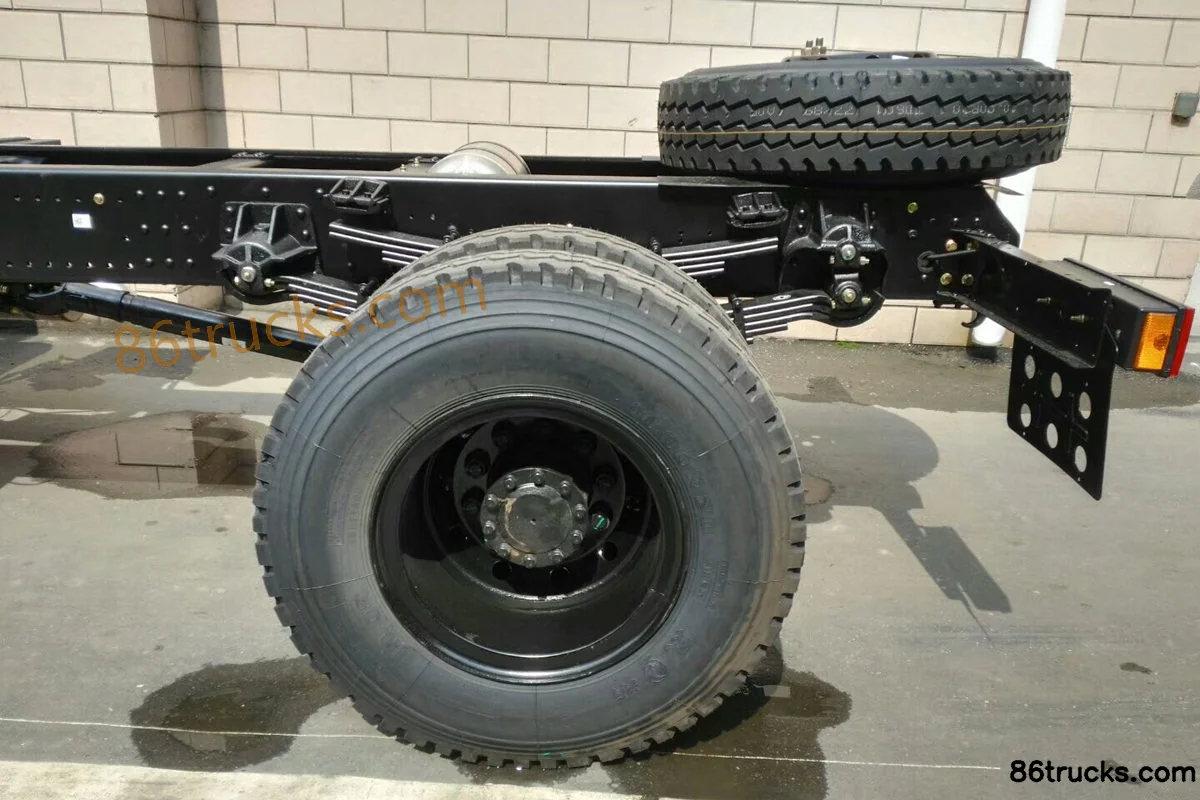

Chassis Specs
Front axle allowable load: 1880kg
rear axle description: 457 rear axle
rear axle allowable load: 2385kg
Leaf spring count: 8/10+8
Tire
Tire Size: 7.00-16 10PR,7.00R16 10PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

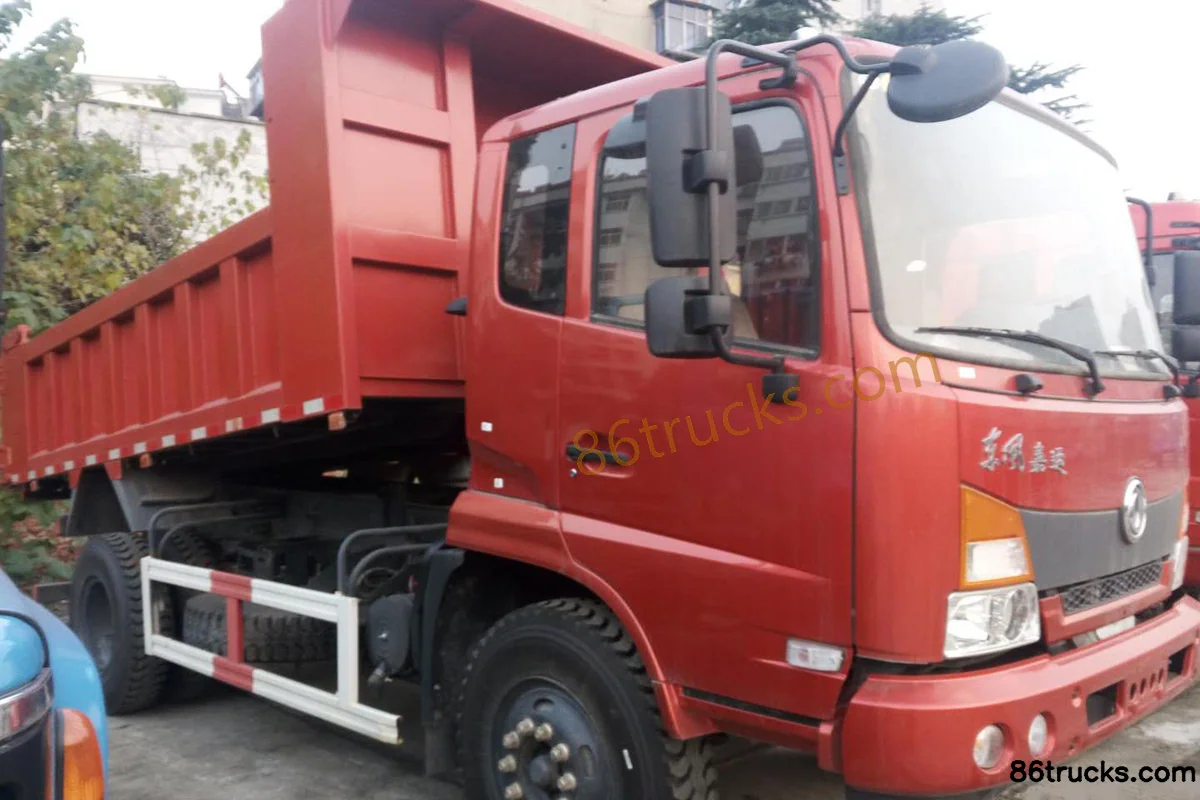

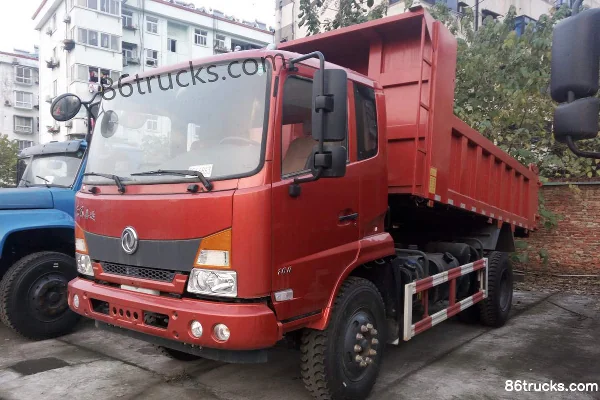

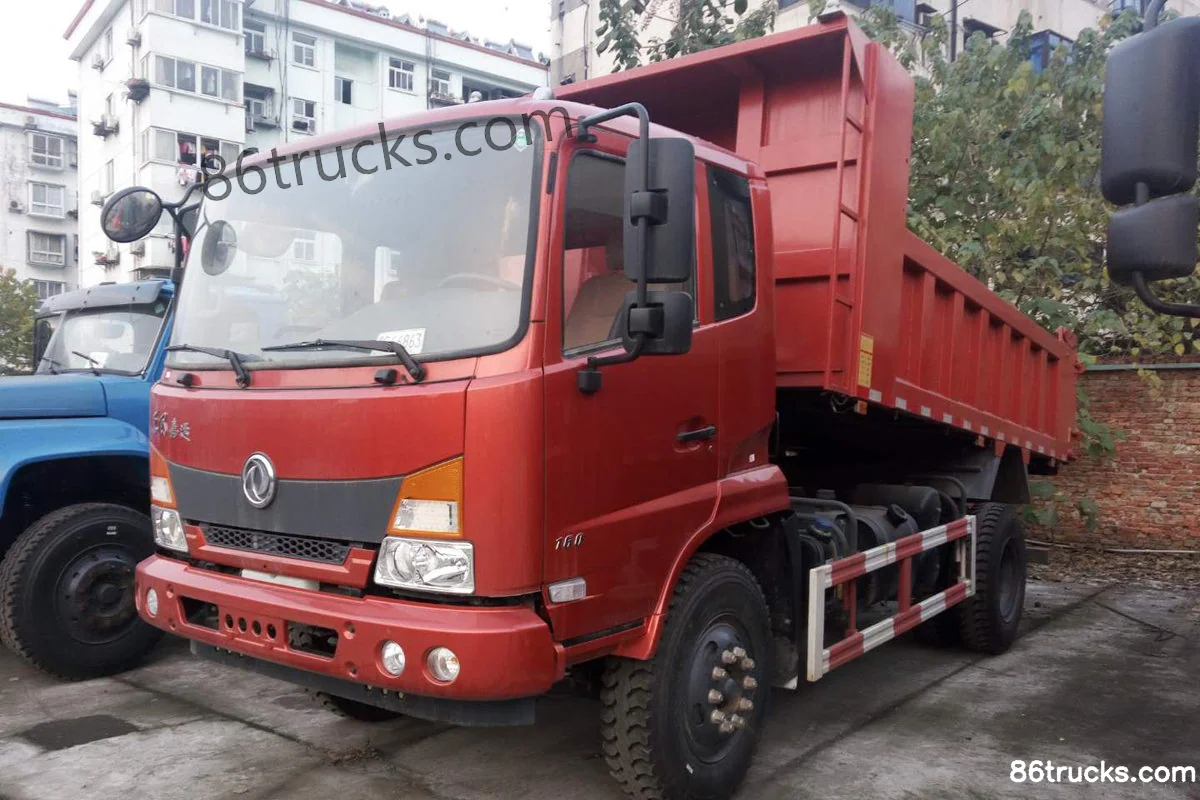

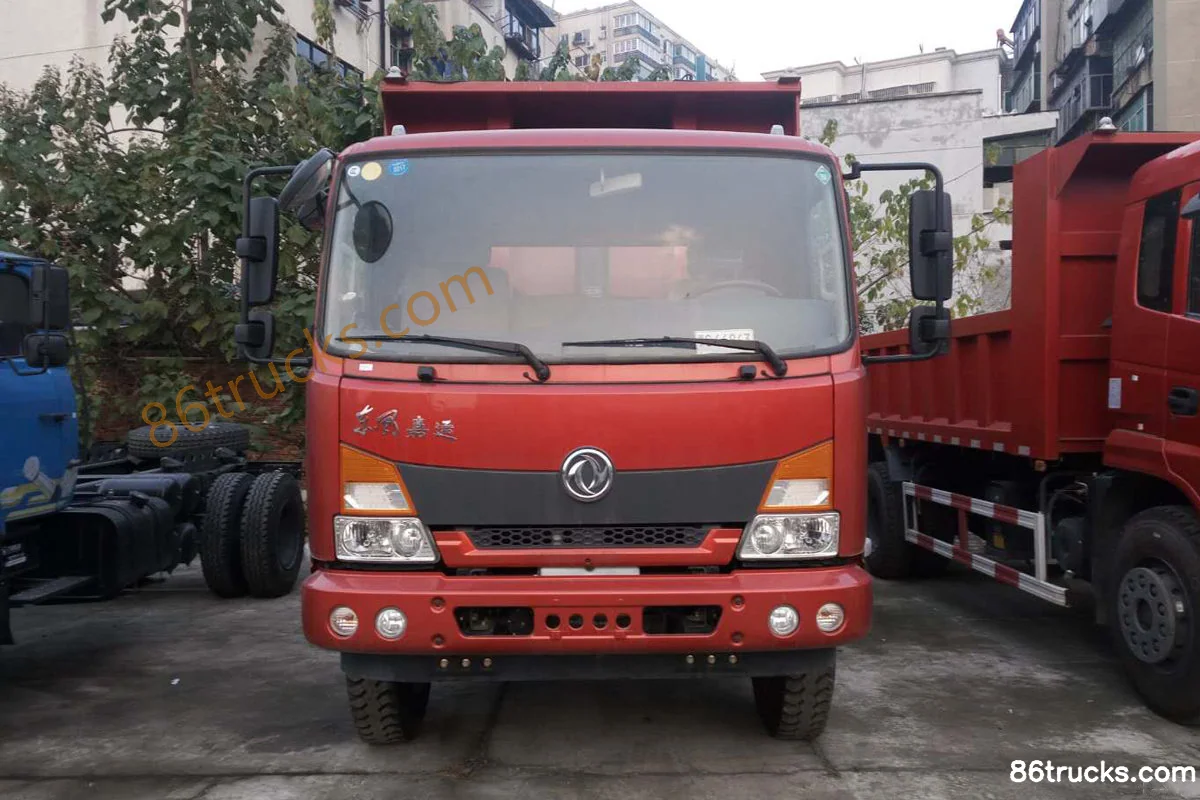

Exterior3

Cab3

6 photos

FAQ

What is the export price of Dongfeng (Original Special Chassis) Jiayun 160 hp 4X2(6 wheels) 4.2m Dump Truck, and what does it include?

Dongfeng (Original Special Chassis) Jiayun 160 hp 4X2(6 wheels) 4.2m Dump Truck export reference is about From $22,500; MSRP is ¥16.2M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng (Original Special Chassis) Jiayun 160 hp 4X2(6 wheels) 4.2m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng (Original Special Chassis) Jiayun 160 hp 4X2(6 wheels) 4.2m Dump Truck?

Key specs of Dongfeng (Original Special Chassis) Jiayun 160 hp 4X2(6 wheels) 4.2m Dump Truck: Drive: 4x2; Horsepower: 160 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng (Original Special Chassis) Jiayun 160 hp 4X2(6 wheels) 4.2m Dump Truck suited for?

Dongfeng (Original Special Chassis) Jiayun 160 hp 4X2(6 wheels) 4.2m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng (Original Special Chassis) Jiayun 160 hp 4X2(6 wheels) 4.2m Dump Truck differ from other variants in the same series?

Dongfeng (Original Special Chassis) Jiayun 160 hp 4X2(6 wheels) 4.2m Dump Truck belongs to Dongfeng Jiayun (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng (Original Special Chassis) Jiayun 160 hp 4X2(6 wheels) 4.2m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng (Original Special Chassis) Jiayun 160 hp 4X2(6 wheels) 4.2m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
