Dongfeng (original special chassis) Jiayun 160hp 4X2(6 wheels) 4.75m dump truck

Export reference
From $24,444
MSRP ¥17.6M CNY
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 7.675ton
Wheelbase:: 4200mm
Tire Size:: 9.00R20 16PR,10R22.5 16PR
Rated payload: 7.93ton
Drive 4X2 (6 wheels)
Horsepower 160
Cargo box type: Dump type

Overview

The Dongfeng (original special chassis) Jiayun 160hp 4X2(6 wheels) 4.75m dump truck is a Heavy truck featuring 7.93t payload, 15.8t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYC4EG160-50 engine, 160 hp, China V emissions and Fast Gear transmission.

China V 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): EQ3160GZ5D
Drive type: 4X2
Wheelbase: 4200mm
engine: YuchaiYC4EG160-50
transmission: Fast Gear10JS90A
Cab length: 7.43m
Cab width: 2.55m
Cab height: 3.18m
Front track width: 1900mm
rear track: 1800mm
Curb Weight: 7.675ton
Rated payload: 7.93ton
GVWR: 15.8ton
Origin: Shiyan, Hubei
tonnage class: Heavy truck
Approach angle: 28°
departure angle: 16°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4EG160-50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.73L
Emission standard: China V
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 600N·m
Max torque speed: 1300-1800rpm
Rated speed: 2500rpm
Engine Type: Vertical, inline, water-cooled, four-stroke, high-pressure common rail
Transmission Parameters
Transmission Model: Fast Gear10JS90A
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.75m
Cargo box width: 2.35m
Cargo box height: 0.8m
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 160L
Chassis Specs
Front axle allowable load: 5600kg
rear axle description: 457 rear axle
rear axle allowable load: 10200kg
Leaf spring count: 9/10+8
Tire
Tire Size: 9.00R20 16PR,10R22.5 16PR
Number of tires: 6pcs
Control configuration
ABS:

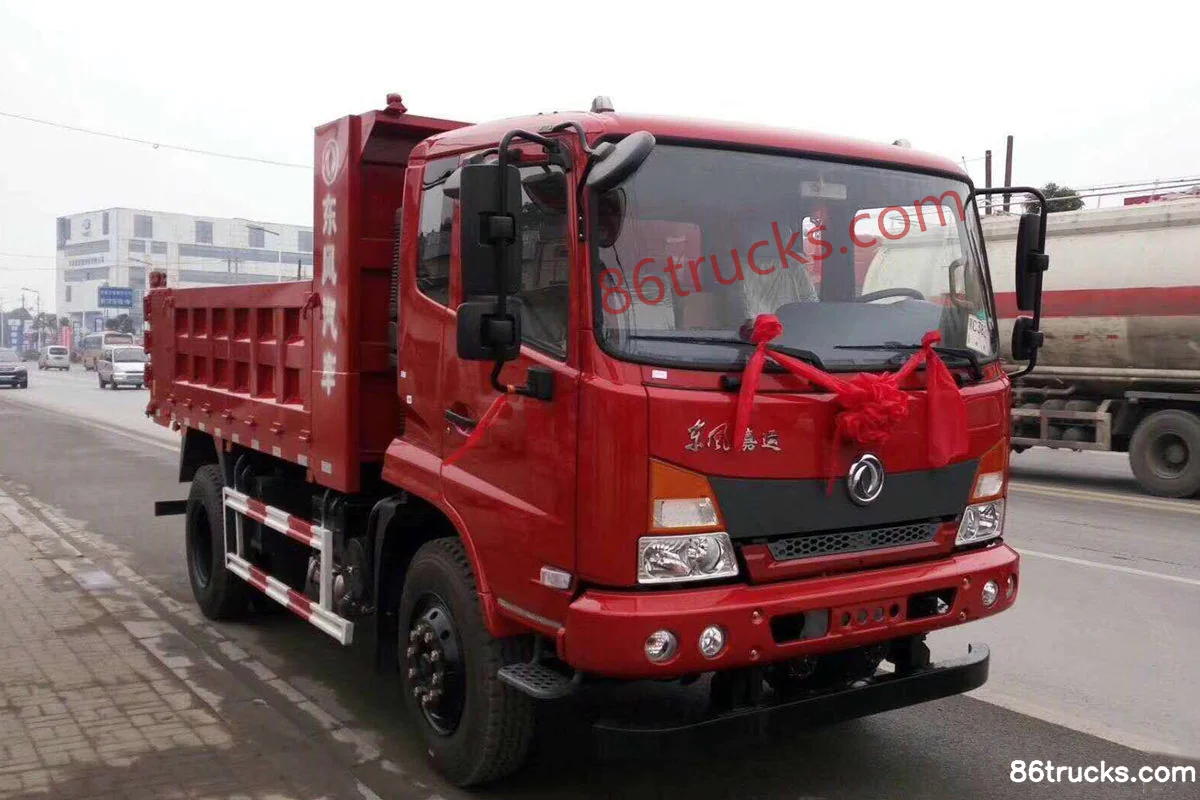

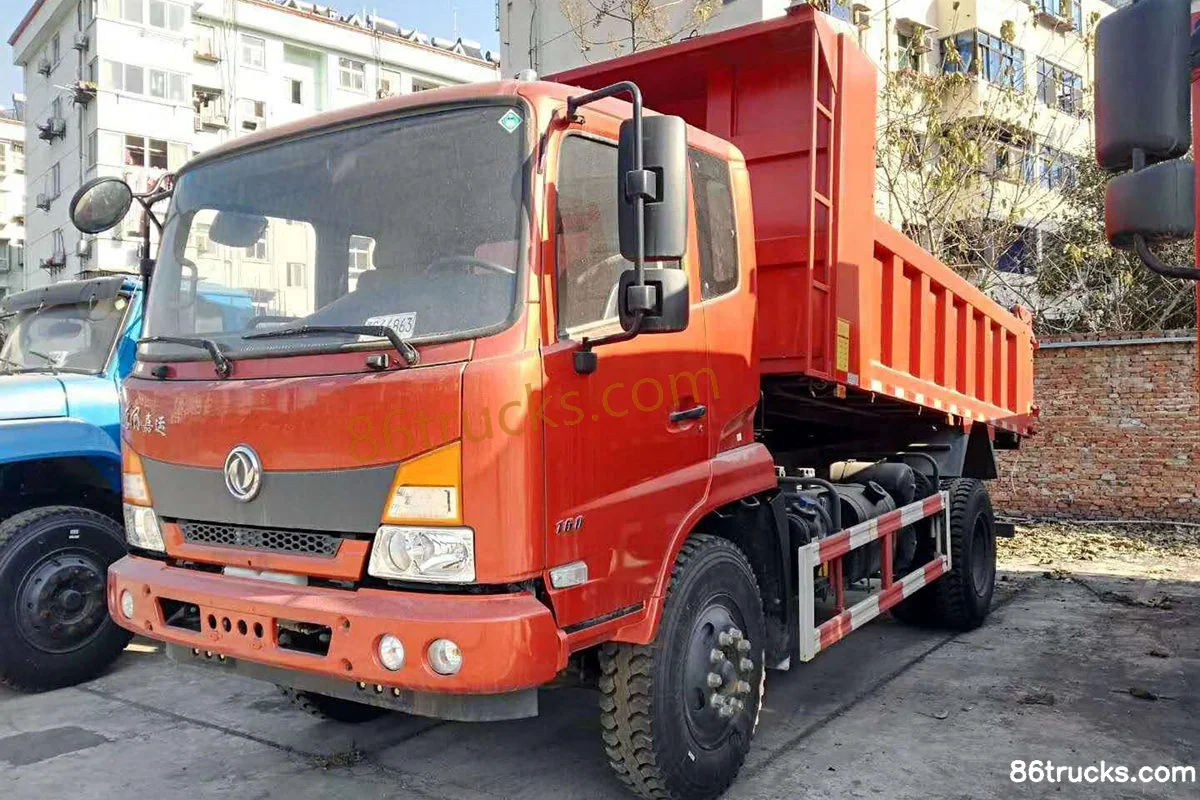

Photos

Exterior2

2 photos

FAQ

What is the export price of Dongfeng (original special chassis) Jiayun 160hp 4X2(6 wheels) 4.75m dump truck, and what does it include?

Dongfeng (original special chassis) Jiayun 160hp 4X2(6 wheels) 4.75m dump truck export reference is about From $24,444; MSRP is ¥17.6M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng (original special chassis) Jiayun 160hp 4X2(6 wheels) 4.75m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng (original special chassis) Jiayun 160hp 4X2(6 wheels) 4.75m dump truck?

Key specs of Dongfeng (original special chassis) Jiayun 160hp 4X2(6 wheels) 4.75m dump truck: Drive: 4x2; Horsepower: 160 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng (original special chassis) Jiayun 160hp 4X2(6 wheels) 4.75m dump truck suited for?

Dongfeng (original special chassis) Jiayun 160hp 4X2(6 wheels) 4.75m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng (original special chassis) Jiayun 160hp 4X2(6 wheels) 4.75m dump truck differ from other variants in the same series?

Dongfeng (original special chassis) Jiayun 160hp 4X2(6 wheels) 4.75m dump truck belongs to Dongfeng Jiayun (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng (original special chassis) Jiayun 160hp 4X2(6 wheels) 4.75m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng (original special chassis) Jiayun 160hp 4X2(6 wheels) 4.75m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
