Dongfeng (Original Special Chassis) Jiayun 130 hp 4X2(6 wheels) 3.4m Dump Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Dongfeng
Curb Weight:: 2.6ton
Wheelbase:: 3300mm
Tire Size:: 7.50-16 6PR,7.50R16 6PR,8.25-16 6PR,8.25R16 6PR
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Horsepower 130
Cargo box type: Dump type

Overview

The Dongfeng (Original Special Chassis) Jiayun 130 hp 4X2(6 wheels) 3.4m Dump Truck is a Light Truck featuring 1.495t payload, 4.29t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYC4S130-50 engine, 130 hp, China V emissions and Dongfeng transmission.

China V 130 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): YG3040BX5B
Drive type: 4X2
Wheelbase: 3300mm
engine: YuchaiYC4S130-50
transmission: DongfengDF6S550
Rear Axle Ratio: 4.33
Cab length: 5.995m
Cab width: 2.5m
Cab height: 2.99m
Front track width: 1810mm
rear track: 1680mm
Curb Weight: 2.6ton
Rated payload: 1.495ton
GVWR: 4.29ton
Origin: Shiyan, Hubei
tonnage class: Light Truck
Approach angle: 20°
departure angle: 14°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4S130-50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.767L
Emission standard: China V
Max output power: 96kW
Max hp: 130Horsepower
Max torque: 430N·m
Max torque speed: 1300-1800rpm
Rated speed: 2600rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: DongfengDF6S550
Transmission Brand: Dongfeng
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.4m
Cargo box width: 2.12m
Cargo box height: 0.8m
fuel tank
Fuel tank capacity: 145L
Chassis Specs
Front axle allowable load: 1710kg
rear axle allowable load: 2580kg
Axle ratio: 4.33
Leaf spring count: 9/8+7,8/10+8
Tire
Tire Size: 7.50-16 6PR,7.50R16 6PR,8.25-16 6PR,8.25R16 6PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

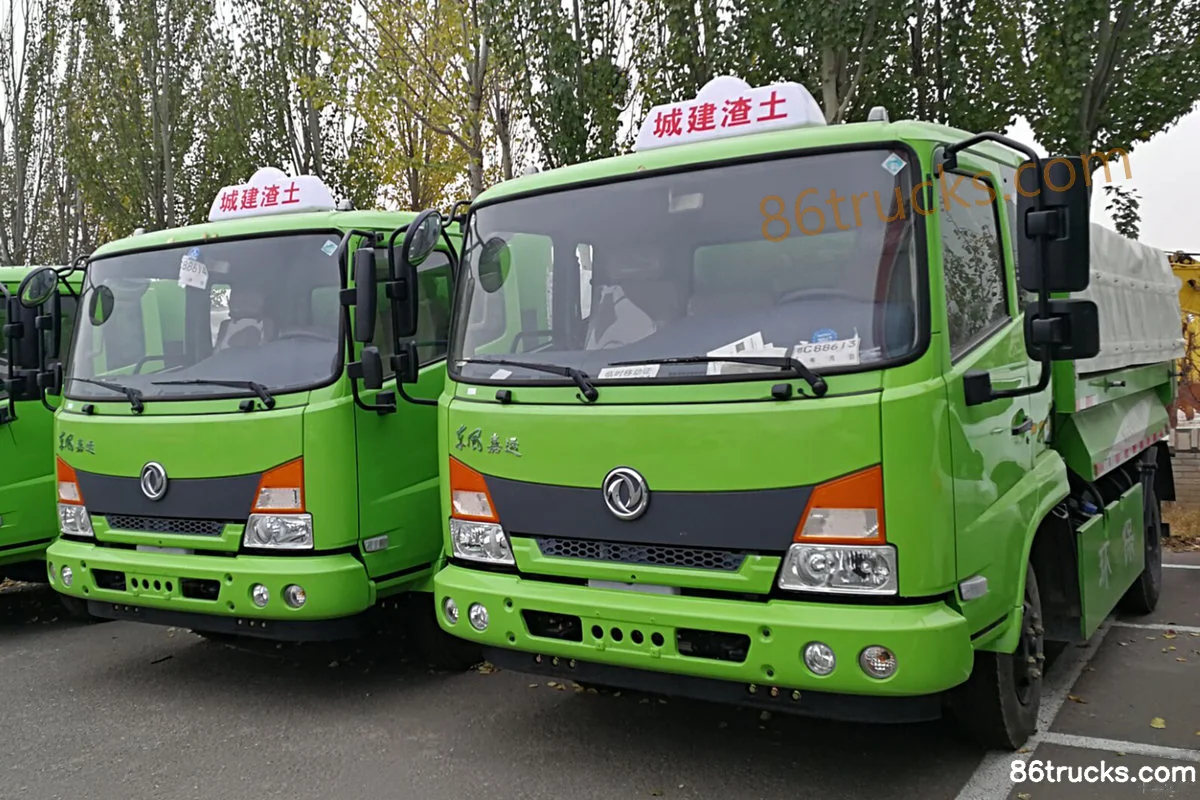

Exterior1

1 photos

FAQ

What emission standard does Dongfeng (Original Special Chassis) Jiayun 130 hp 4X2(6 wheels) 3.4m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng (Original Special Chassis) Jiayun 130 hp 4X2(6 wheels) 3.4m Dump Truck?

Key specs of Dongfeng (Original Special Chassis) Jiayun 130 hp 4X2(6 wheels) 3.4m Dump Truck: Drive: 4x2; Horsepower: 130 hp; Emission: China V; Fuel: Diesel; Transmission: Dongfeng. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng (Original Special Chassis) Jiayun 130 hp 4X2(6 wheels) 3.4m Dump Truck suited for?

Dongfeng (Original Special Chassis) Jiayun 130 hp 4X2(6 wheels) 3.4m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng (Original Special Chassis) Jiayun 130 hp 4X2(6 wheels) 3.4m Dump Truck differ from other variants in the same series?

Dongfeng (Original Special Chassis) Jiayun 130 hp 4X2(6 wheels) 3.4m Dump Truck belongs to Dongfeng Jiayun (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng (Original Special Chassis) Jiayun 130 hp 4X2(6 wheels) 3.4m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng (Original Special Chassis) Jiayun 130 hp 4X2(6 wheels) 3.4m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
