Dongfeng Commercial Vehicle Tianlong 292hp 8X4(12 wheels) Truck-mounted Crane (XCMG brand)

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Wheelbase:: 1950+4250+1300mm
Cab dimensions:: 11.98×2.5×3.91m
Type:: truck-mounted crane
GVWR:: 31ton
Dongfeng Commercial Vehicle Tianlong 292hp 8X4(12 wheels) Truck-mounted Crane (XCMG brand) exterior
View more photos (3)
Lifting capacity: 16ton
Drive 8X4 (12 wheels)
Horsepower 292
Rated mass: 13ton

Overview

The Dongfeng Commercial Vehicle Tianlong 292hp 8X4(12 wheels) Truck-mounted Crane (XCMG brand) is a truck-mounted crane featuring 16ton tank capacity, 31t GVW and 8X4 (12 wheels) drive. On the powertrain side, it comes with 292 hp, China IV emissions and Diesel fuel.

China IV 292 Diesel 8X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Cab dimensions: 11.98×2.5×3.91m
Type: truck-mounted crane
Drive type: 8X4
Wheelbase: 1950+4250+1300mm
Rated mass: 13ton
GVWR: 31ton
Front/rear suspension: 1.46/3.02m
Energy Type: Diesel
Body Parameters
Other special notes: Optional D310-H cab, colors: Pearl Molybdenum Red, Engineering Yellow, Jade White, etc.
Crane model: SQ16S
Lifting capacity: 16ton
crane self-weight: 6.2ton
Vehicle certification code: XZJ5317JSQ
Body Brand: XCMG brand
Engine parameters
Engine Brand: Dongfeng
Engine Model: DongfengISLe292 40
fuel type: Diesel
Displacement: 8.9L
Emission standard: China IV
Max output power: 215kW
Max hp: 292Horsepower
Max torque: 1200N·m
Max torque speed: 1700rpm
Rated speed: 2100rpm
Chassis Specs
Chassis Brand: Dongfeng Commercial Vehicle
Chassis Series: Dongfeng Tianlong
Chassis Model: DFL1311A10
rear axle description: Front axle 7T, rear axle 10T
Leaf spring count: 9/9/10
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Fast Gear9JS135
Tire
Tire Size: 11.00R20
Number of tires: 12pcs

Photos

Exterior3

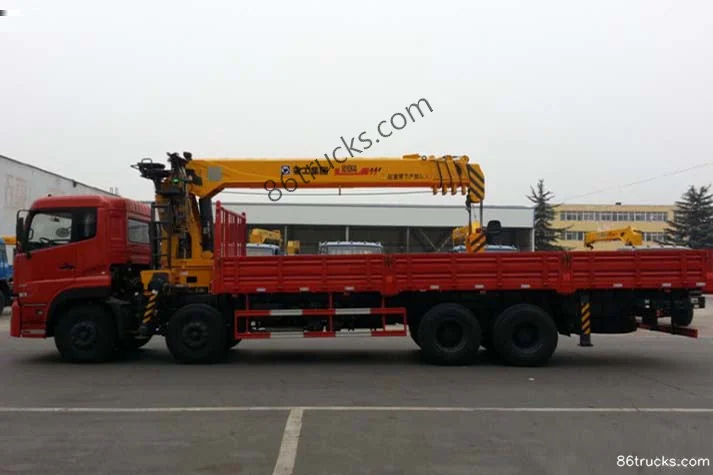

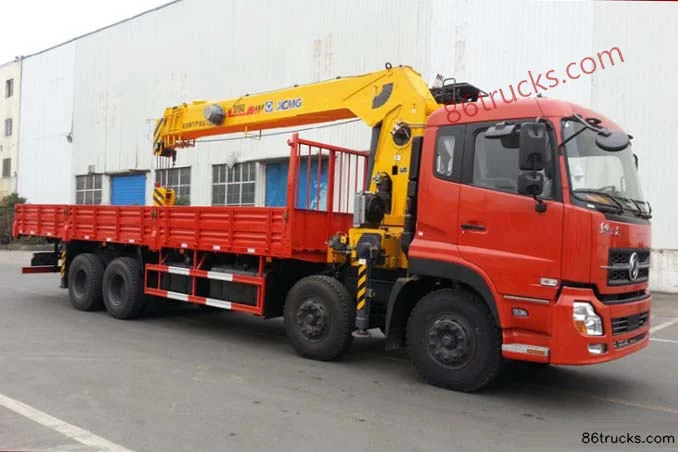

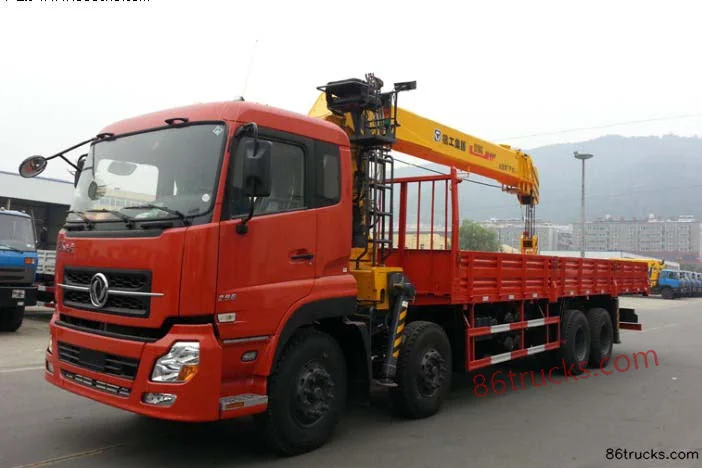

Dongfeng Commercial Vehicle Tianlong 292hp 8X4(12 wheels) Truck-mounted Crane (XCMG brand) Exterior (1) | 86Trucks Dongfeng Commercial Vehicle Tianlong 292hp 8X4(12 wheels) Truck-mounted Crane (XCMG brand) Exterior (2) | 86Trucks Dongfeng Commercial Vehicle Tianlong 292hp 8X4(12 wheels) Truck-mounted Crane (XCMG brand) Exterior (3) | 86Trucks

3 photos

FAQ

What emission standard does Dongfeng Commercial Vehicle Tianlong 292hp 8X4(12 wheels) Truck-mounted Crane (XCMG brand) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Commercial Vehicle Tianlong 292hp 8X4(12 wheels) Truck-mounted Crane (XCMG brand)?

Key specs of Dongfeng Commercial Vehicle Tianlong 292hp 8X4(12 wheels) Truck-mounted Crane (XCMG brand): Drive: 8x4; Horsepower: 292 hp; Emission: China IV; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Commercial Vehicle Tianlong 292hp 8X4(12 wheels) Truck-mounted Crane (XCMG brand) suited for?

Dongfeng Commercial Vehicle Tianlong 292hp 8X4(12 wheels) Truck-mounted Crane (XCMG brand) is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Dongfeng Commercial Vehicle Tianlong 292hp 8X4(12 wheels) Truck-mounted Crane (XCMG brand) differ from other variants in the same series?

Dongfeng Commercial Vehicle Tianlong 292hp 8X4(12 wheels) Truck-mounted Crane (XCMG brand) belongs to XCMG Dongfeng Commercial Vehicle Chassis (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Commercial Vehicle Tianlong 292hp 8X4(12 wheels) Truck-mounted Crane (XCMG brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Commercial Vehicle Tianlong 292hp 8X4(12 wheels) Truck-mounted Crane (XCMG brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
