Feidi D2 Series 116hp 4X2(6 wheels) 3.56m Truck Mounted Crane
EXW
From $26,389
Export quote
Feidi Aochi D Series Light Truck truck-mounted crane
Main model photos
273 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Feidi D2 Series 116hp 4X2(6 wheels) 3.56m Truck Mounted Crane | 4x2 / 116hp / China V | From $26,389 | |
| Feidi D3 series 170 hp 4X2(6 wheels) 5.8m truck-mounted crane (Huatong brand) | 4x2 / 170hp / China V | From $20,833 |

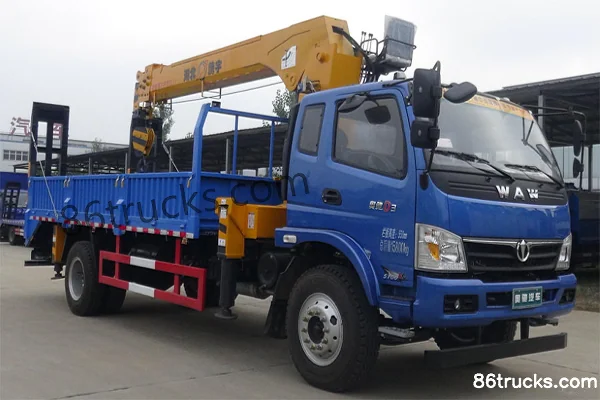

Feidi D3 series 170 hp 4X2(6 wheels) 5.8m truck-mounted crane (Huatong brand)
EXW
From $20,833
Export quote
Series Specs
Basic Info
Cab dimensions: 5.995×2.1×2.96 / 9×2.5×3.62m
Type: Truck with crane
Drive type: 4X2
Wheelbase: 3360 / 5100mm
Rated mass: 1.805 / 5.005ton
GVWR: 4.495 / 15.8ton
Front/rear suspension: 1.14/1.495 / 1.22/2.68m
Energy Type: Diesel
Body Parameters
Crane model: KSQS80 / SQS157
Lifting capacity: 2.43 / 6.3ton
crane self-weight: 1.36 / 2.57ton
Vehicle certification code: FD5041JSQW17K5 / HCQ5162JSQFD5
Body Brand: Feidi / Huatong
Engine parameters
Injection System: Common Rail
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN33CRE1 / Yunnei PowerYNF40E1
Displacement: 3.298 / 3.92L
Emission standard: China V
Max output power: 85 / 125kW
Max hp: 116 / 170Horsepower
Max torque: 315 / 600N·m
Max torque speed: 1600-2400 / 1300-1900rpm
Rated speed: 3200 / 2600rpm
Chassis Specs
Chassis Brand: Feidi
Chassis Series: Aochi D Series
Chassis Model: FD1041W17K5 / FD1161P63K5
Frame Dimensions: 280 double-layer framemm
rear axle description: 1080 air-brake / 153 rear axle
Axle ratio: 6.142
Leaf spring count: 7/8+8 / 10/12+9
Transmission Parameters
Number of gears: 5 / 8Gear
Transmission Model: 5-speed / Fast Gear 8-speed
Cab parameters
Cab: Wide-body D3 crew cab
Tire
Tire Size: 7.50R16LT / 9.00R20 steel-belted tire
Number of tires: 6pcs
FAQ
What kind of truck is Feidi Aochi D Series Light Truck truck-mounted crane?
Feidi Aochi D Series Light Truck is an export-oriented truck-mounted crane lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Feidi Aochi D Series Light Truck truck-mounted crane?
Feidi Aochi D Series Light Truck truck-mounted crane export reference is about $20,833 – $26,389. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Feidi Aochi D Series Light Truck truck-mounted crane cover?
Feidi Aochi D Series Light Truck truck-mounted crane mainly covers: Drive: 4x2; Horsepower: 116 hp / 170 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Feidi Aochi D Series Light Truck truck-mounted crane?
For Feidi Aochi D Series Light Truck truck-mounted crane: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is truck-mounted crane typically used for?
truck-mounted crane specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Feidi Aochi D Series Light Truck truck-mounted crane include?
Feidi Aochi D Series Light Truck truck-mounted crane currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Feidi Aochi D Series Light Truck truck-mounted crane?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
