Dayun Yuntu 140hp 4X2(6 wheels) 4.3m Truck Mounted Crane
EXW
From $28,333
Export quote
Dayun Zhengtu light-duty truck truck-mounted crane
Main model photos
72 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dayun Yuntu 140hp 4X2(6 wheels) 4.3m Truck Mounted Crane | 4x2 / 140hp / China V | From $28,333 |
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dayun ZhengTu 120hp 4X2(6 wheels) Truck Mounted Crane | 4x2 / 120hp / China V | ||
| Dayun Zhengtu 115hp 4X2(6 wheels) Truck-Mounted Crane | 4x2 / 115hp / China IV | ||
| Dayun ZhengTu 120hp 4X2(6 wheels) Truck Mounted Crane | 4x2 / 120hp / China IV | From $21,944 |

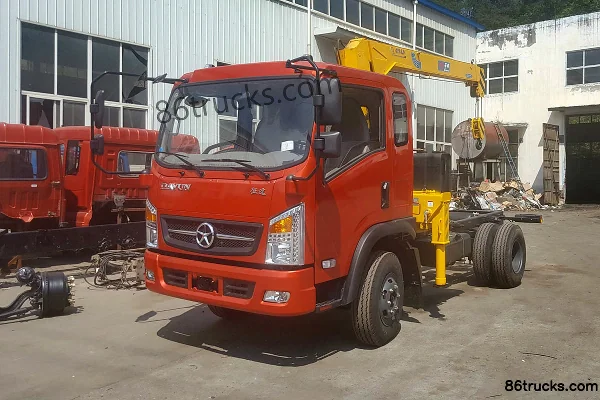

Dayun ZhengTu 120hp 4X2(6 wheels) Truck Mounted Crane
EXW
Export quote
Dayun Zhengtu 115hp 4X2(6 wheels) Truck-Mounted Crane
EXW
Export quote
Dayun ZhengTu 120hp 4X2(6 wheels) Truck Mounted Crane
EXW
From $21,944
Export quote
Series Specs
Basic Info
Cab dimensions: 7.28×2.4×3.56 / 5.995×2.24×2.98 / 5.995×2.24×2.69m
Type: truck-mounted crane
Drive type: 4X2
Wheelbase: 3900 / 3600 / 3300mm
Rated mass: 4.2 / 0.475 / 1.455ton
GVWR: 11.995 / 4.495ton
Front/rear suspension: 1.3/2.295 / 1.3/1.095 / 1.15/1.445 / 1.15/1.545m
Energy Type: Diesel
Body Parameters
Other special notes: 80L fuel tank capacity / Fuel tank capacity 80L, cargo box size 3.4*2.1*0.4m
Crane model: SQ5Z
Lifting capacity: 5ton
crane self-weight: 2ton
Vehicle certification code: DYQ5121JSQD5AB / DYQ5040JSQD5AB / DYQ5040JSQ
Body Brand: Dayun
Engine parameters
Injection System: Common Rail
Engine Brand: Yuchai / Yunnei Power
Engine Model: YuchaiYC4E140-56 / YuchaiYC4FA120-50 / Yunnei PowerYN38CRD2 / YuchaiYC4D120-41
Displacement: 4.26 / 2.982 / 3.76 / 4.214L
Emission standard: China V / China IV
Max output power: 103 / 88 / 85 / 90kW
Max hp: 140 / 120 / 115Horsepower
Max torque: 500 / 320 / 325 / 380N·m
Max torque speed: 1300-1600 / 1600-2400 / 1400-1800rpm
Rated speed: 2600 / 2800 / 3000rpm
Chassis Specs
Chassis Brand: Dayun
Chassis Series: Yuntu / Voyage
Chassis Model: DYQ1121D5AA / DYQ1040D5AA / CGC3040HBC34D
rear axle description: 9T / 1080 shortened
Axle ratio: 5.286 / 4.875 / 5.833
Leaf spring count: 9/11+8 / 9/11+8，8/10+7，9/9+6 / 9/11+8，8/11+8，9/9+6，4/3+3 / 9/11+8,8/11+8,9/9+6,4/3+3
Transmission Parameters
Number of gears: 6 / 5 / 10Gear
Transmission Model: WLY 6-speed / WLY 5-speed with auxiliary / WLY5-speed with rear auxiliary
Tire
Tire Size: 9.00-20 14PR,9.00R20 14PR / 7.50R16 6PR，8.25-16 6P / 7.50-16 8PR，8.25-16 6PR，7.50R16 8PR，8.25R16 6PR / 7.50-16 8PR,8.25-16 6PR,7.50R16 8PR,8.25R16 6PR
Number of tires: 6pcs
FAQ
What kind of truck is Dayun Dayun Zhengtu light-duty truck truck-mounted crane?
Dayun Dayun Zhengtu light-duty truck is an export-oriented truck-mounted crane lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Dayun Zhengtu light-duty truck truck-mounted crane?
Dayun Zhengtu light-duty truck truck-mounted crane export reference is about $21,944 – $28,333. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Dayun Zhengtu light-duty truck truck-mounted crane cover?
Dayun Zhengtu light-duty truck truck-mounted crane mainly covers: Drive: 4x2; Horsepower: 115 hp / 120 hp / 140 hp; Emission: China IV / China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Dayun Zhengtu light-duty truck truck-mounted crane?
For Dayun Zhengtu light-duty truck truck-mounted crane: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is truck-mounted crane typically used for?
truck-mounted crane specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Dayun Zhengtu light-duty truck truck-mounted crane include?
Dayun Zhengtu light-duty truck truck-mounted crane currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Dayun Zhengtu light-duty truck truck-mounted crane?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
