Sinotruk HOWO T5G 340 hp 8X4(12 wheels) 16-ton truck-mounted crane
EXW
From $85,833
Export quote
Sinotruk HOWO T5G medium-duty truck truck-mounted
Main model photos
606 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk HOWO T5G 340 hp 8X4(12 wheels) 16-ton truck-mounted crane | 8x4 / 340hp / China VI | From $85,833 | |
| Sinotruk HOWO T5G 340 hp 8X4(12 wheels) Truck-mounted Crane | 8x4 / 340hp / China V | ||
| Sinotruk HOWO T5G 340 hp 8X4(12 wheels) Truck-mounted Crane (ST260 Crane) | 8x4 / 340hp / China V | ||
| Sinotruk HOWO T5G 340 hp 8X4(12 wheels) Truck-mounted Crane | 8x4 / 340hp / China V | From $44,444 | |
| Sinotruk HOWO T5G 280 hp 6X2(8 wheels) Truck-mounted Crane (XS288 Crane) | 6x2 / 280hp / China V |

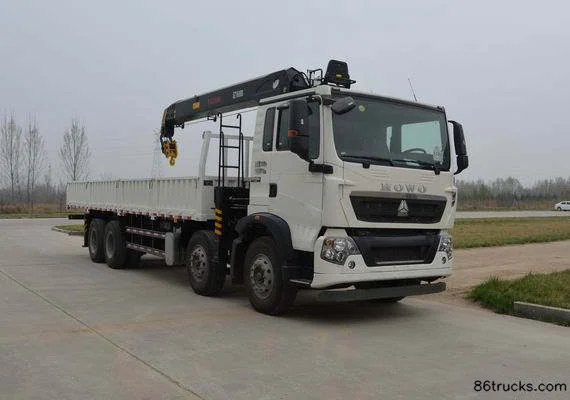

Sinotruk HOWO T5G 340 hp 8X4(12 wheels) Truck-mounted Crane
EXW
Export quote
Sinotruk HOWO T5G 340 hp 8X4(12 wheels) Truck-mounted Crane (ST260 Crane)
EXW
Export quote
Sinotruk HOWO T5G 340 hp 8X4(12 wheels) Truck-mounted Crane
EXW
From $44,444
Export quote
Sinotruk HOWO T5G 280 hp 6X2(8 wheels) Truck-mounted Crane (XS288 Crane)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 12.0×2.55×3.92 / 11.99×2.496×3.42 / 11.99×2.496×3.685 / 11.99×2.496×3.61 / 11.99×2.496×3.665 / 12.0×2.496×3.9 / 8.995X2.450X3.650m
Type: Truck with crane / truck-mounted crane
Drive type: 8X4 / 6X2 / 6X4 / 4X2
Wheelbase: 2100+4300+1350 / 1950+4450+1350 / 1950+5450 / 5800+1350 / 5000mm
Rated mass: 8.89 / 14.2 / 9.885 / 9.585 / 9.77ton
GVWR: 31 / 25ton
Front/rear suspension: 1.43/2.82 / 1.43/2.785 / 1.43/2.81 / 1.43/3.16 / 1.43/2.595m
Energy Type: Diesel
Body Parameters
Crane model: X-CL 12 / ST 260 / XS 288 / ST 170
Lifting capacity: 3.35 / 10 / 9.8ton
crane self-weight: 1.33 / 3.45ton
Vehicle certification code: ZZ5317JSQN436GF1 / ZZ5317JJHN466GE1 / ZZ5317JSQN466GE1 / ZZ5257JSQM56CGE1 / TAZ5254JSQA / ZZ5167H501GD1/H7M5M-SC
Body Brand: Sinotruk HOWO
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC07.34-60 / SinotrukMC07.34-50 / SinotrukMC07.28-50 / Sinotruk MC07.28-40
Displacement: 6.87L
Emission standard: China VI / China V / China IV
Max output power: 248 / 206 / 151kW
Max hp: 340 / 280 / 206Horsepower
Max torque: 1250 / 1100N·m
Max torque speed: 1200-1800rpm
Rated speed: 2200 / 2300rpm
Chassis Specs
Chassis Brand: Sinotruk HOWO
Chassis Series: T5G / HOWO T5G
Chassis Model: ZZ1317N436GF1 / ZZ1317N466GE1 / ZZ1257M56CGE1 / ZZ1257M584GD1
rear axle description: Front axle 153 drum type
Leaf spring count: 11/11/10 / 11/11/10+9 / 10/10
Transmission Parameters
Number of gears: 12 / 10 / 7Gear
Transmission Model: SinotrukHW13710C / SinotrukHW10C / Dachi DC7J12TC / DC6J95TC
Cab parameters
Cab: High roof cab / Flat roof cab
Tire
Tire Size: 11.00R20 / 11.00R20 18PR
Number of tires: 12 / 8 / 10 / 6pcs
FAQ
What kind of truck is Sinotruk HOWO Sinotruk HOWO T5G medium-duty truck truck-mounted crane?
Sinotruk HOWO Sinotruk HOWO T5G medium-duty truck is an export-oriented truck-mounted crane lineup with about 8 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Sinotruk HOWO T5G medium-duty truck truck-mounted?
Sinotruk HOWO T5G medium-duty truck truck-mounted export reference is about $44,444 – $85,833. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Sinotruk HOWO T5G medium-duty truck truck-mounted cover?
Sinotruk HOWO T5G medium-duty truck truck-mounted mainly covers: Drive: 6x2 / 8x4; Horsepower: 280 hp / 340 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sinotruk HOWO T5G medium-duty truck truck-mounted?
For Sinotruk HOWO T5G medium-duty truck truck-mounted: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is truck-mounted crane typically used for?
truck-mounted crane specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Sinotruk HOWO T5G medium-duty truck truck-mounted include?
Sinotruk HOWO T5G medium-duty truck truck-mounted currently lists about 8 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sinotruk HOWO T5G medium-duty truck truck-mounted?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
