Sanhuan Shitong New Haolong 200hp 4X2(6 wheels) Truck Mounted Crane
EXW
Export quote
Sanhuan Shitong Haolong Medium Truck truck-mounted
Main model photos
1,344 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sanhuan Shitong New Haolong 200hp 4X2(6 wheels) Truck Mounted Crane | 4x2 / 220hp / China VI | ||
| Sanhuan Shitong Xin Haolong 270 hp 6X4(10 wheels) Truck-mounted Crane Transport Truck (Shitong Brand) | 6x4 / 270hp / China VI | ||
| Sanhuan Shitong Haolong 300hp 6X4(10 wheels) truck-mounted crane transport truck (Shitong brand) | 6x4 / 300hp / China VI | ||
| Sanhuan Shitong Haolong 220hp 4X2(6 wheels) Truck-mounted Crane | 4x2 / 220hp / China VI | ||
| Sanhuan Shitong Haolong 200 hp 4X2(6 wheels) Truck-Mounted Crane | 4x2 / 200hp / China VI | From $48,611 |

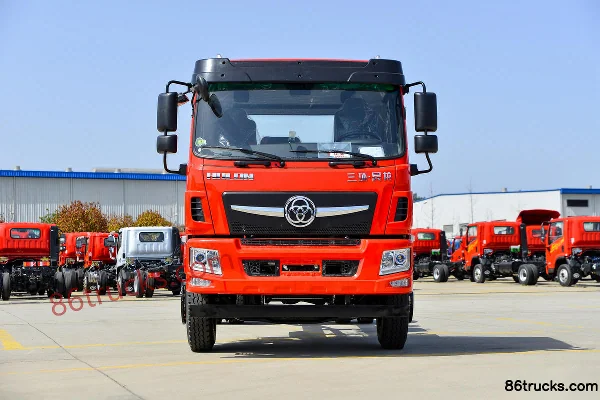

Sanhuan Shitong Xin Haolong 270 hp 6X4(10 wheels) Truck-mounted Crane Transport Truck (Shitong Brand)
EXW
Export quote

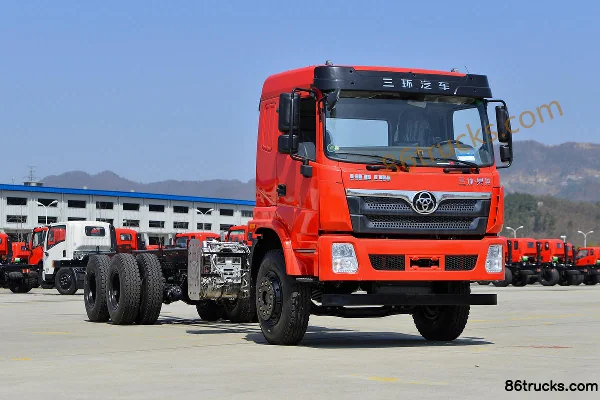

Sanhuan Shitong Haolong 300hp 6X4(10 wheels) truck-mounted crane transport truck (Shitong brand)
EXW
Export quote
Sanhuan Shitong Haolong 220hp 4X2(6 wheels) Truck-mounted Crane
EXW
Export quote
Sanhuan Shitong Haolong 200 hp 4X2(6 wheels) Truck-Mounted Crane
EXW
From $48,611
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sanhuan Shitong Haolong T260 270 hp 6X4(10 wheels) Truck Mounted Crane | 6x4 / 270hp / China IV | From $58,056 | |
| Sanhuan Shitong Haolong T280 270 hp 6X4(10 wheels) truck-mounted crane | 6x4 / 270hp / China IV | ||
| Sanhuan Shitong Haolong T280 270 hp 6X4(10 wheels) Truck-mounted Crane (Knuckle Boom) | 6x4 / 270hp / China IV | ||
| Sanhuan Shitong Haolong T280 270 hp 6X4(10 wheels) truck-mounted crane | 6x4 / 270hp / China IV | ||
| Sanhuan Shitong Haolong 160 hp 4X2(6 wheels) Truck-Mounted Crane | 4x2 / 160hp / China IV |
Sanhuan Shitong Haolong T260 270 hp 6X4(10 wheels) Truck Mounted Crane
EXW
From $58,056
Export quote
Sanhuan Shitong Haolong T280 270 hp 6X4(10 wheels) truck-mounted crane
EXW
Export quote
Sanhuan Shitong Haolong T280 270 hp 6X4(10 wheels) Truck-mounted Crane (Knuckle Boom)
EXW
Export quote
Sanhuan Shitong Haolong T280 270 hp 6X4(10 wheels) truck-mounted crane
EXW
Export quote
Sanhuan Shitong Haolong 160 hp 4X2(6 wheels) Truck-Mounted Crane
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 8.465×2.55×3.75 / 12×2.55×3.88 / 10.6×2.55×3.95 / 12×2.55×3.95 / 10.21×2.5×3.88 / 9x2.5x3.45 / 11.99×2.5×3.88 / 11.28×2.5×3.88 / 10.5×2.5×3.88 / 10.55×2.5×3.88 / 12.0×2.5×3.88 / 12×2.5×3.88 / 11.995×2.5×3.88 / 11.63x2.5x3.88 / 8.99×2.48×3.5 / 11.28×2.49×3.88 / 11.995×2.49×3.88m
Type: Truck with crane / truck-mounted crane
Drive type: 4X2 / 6X4 / 6X2 / 8X2 / 8X4
Wheelbase: 4500 / 5850+1350 / 5200+1300 / 4750+1350 / 2150+3900+1300 / 4250+1350 / 5200 / 2150+5250 / 2150+4650 / 2150+3950 / 5850+1300 / 2150+4300+1350 / 5350+1300 / 4700/5200mm
Rated mass: 5.715 / 7.155 / 10.505 / 12.305 / 7.455 / 10.3 / 5.225 / 10.305 / 10.405 / 13.105 / 14.4 / 4.93 / 12.905 / 14.5ton
Front track width: 1940mm
rear track: 1860/1860mm
GVWR: 18 / 24.5 / 25 / 31 / 14.45 / 24.9ton
Remarks: Central door lock, power windows, air suspension seat, multifunction steering wheel / Central door lock, power windows, air suspension seat, multifunction steering wheel, environmental terminal / (four-point suspension, air-suspension seat, multifunction steering wheel, sun visor, tachograph, A/C) 280L aluminum fuel tank
Front/rear suspension: 1.49/2.31 / 1.49/3.31 / 1.49/2.61 / 1.49/1.96 / 1.54/2.91 / 1.54/2.26 / 1.46/2.94 / 1.49/3.49 / 1.54/3.26 / 1.54/2.655 / 1.48/2.31 / 1.49/2.99 / 1.49/2.705m
Energy Type: Diesel
Body Parameters
Other special notes: Knuckle boom / Frame: 280mm local three-layer (crane truck dedicated frame); Leaf springs: front 16 rear 14; Cargo box inner dimensions: 6100,5700*2300*550; T310 semi-high roof (Tianjin-style) cab / Frame: 300mm local three-layer (crane truck dedicated frame); Leaf springs: front 16 rear 14; Cargo box inner dimensions: 6100,5700*2300*550 / Frame: 250mm local three-layer (crane truck dedicated frame); Leaf springs: front 13 rear 16; Cargo box inner dimensions: 6100,5700*2300*550 / straight-arm crane
Crane model: SPK38502 / SPS30000 / SQ5SK3Q / SQ5SK2Q / XCMG SQ8SK3Q
Lifting capacity: 5.5 / 5 / 2T,3.2T,5T,6.3T,,8T / 16ton
crane self-weight: 8 / 2.074 / 6.2ton
Vehicle certification code: STQ5188JSQ6 / STQ5248JSQS6 / STQ5257JSQD6 / STQ5318JSQA6 / STQ5258JSQS5 / STQ5257JSQD5 / STQ5188JSQ5 / STQ5258JSQD5 / STQ5251JSQS4 / STQ5311JSQB5 / STQ5146JSQ4 / STQ5251JSQD4 / STQ5317JSQB4
Body Brand: Sanhuan Shitong / Sitong Brand / SANY PALFINGER
Engine parameters
Injection System: Common Rail
Engine Brand: Yuchai / Weichai
Engine Model: WeichaiWP4.6NQ220E61A / YuchaiYCS06270-60 / YuchaiYCS06300-61 / YuchaiYCS06200-60 / YuchaiYCS06245-60 / WeichaiWP7.300E61 / YuchaiYC6A270-50 / YuchaiYC6JA180-50 / YuchaiYC6JA220-50 / YuchaiYC6JA240-50 / YuchaiYC6A270-46 / YuchaiYC4E160-42 / Yuchai YC6J200-46 / YuchaiYC6L270-42
Displacement: 4.58 / 6.23 / 6.442 / 7.5 / 7.52 / 6.87 / 7.255 / 4.26 / 6.494 / 8.4L
Emission standard: China VI / China V / China IV
Max output power: 162 / 199 / 221 / 147 / 180 / 220 / 132 / 177 / 118kW
Max hp: 220 / 270 / 300 / 200 / 245 / 180 / 240 / 160Horsepower
Max torque: 750 / 1050 / 850 / 1300 / 1100 / 700 / 860 / 950 / 1000 / 550N·m
Max torque speed: 1200-1700 / 1200-1600 / 1200-1800 / 1300-1600rpm
Rated speed: 2300 / 2100 / 2600 / 2500 / 2200rpm
Chassis Specs
Chassis Brand: Sanhuan Shitong
Chassis Series: Haolong
Chassis Model: STQ1188L10Y2N6 / STQ1248L16Y3S6 / STQ1257L13Y3D6 / STQ1318L16Y6A6 / STQ1258L16Y3S5 / STQ1257L13Y3D5 / STQ1188L10Y2N5 / STQ1258L16Y3D5 / STQ1251L16Y3S4 / STQ1311L16Y3B5 / STQ1164L10Y34 / STQ1256L16Y3D4 / STQ1317L16Y3B4
Frame Dimensions: 300(8+8) / 300(8+8) partial three-layer framemm
rear axle description: 153 wide brake dual rear axle / 459 wide brake / 153 / 153 wide brake rear axle + air lift axle / 153 wide brake rear axle, 5.143 / 153 dual rear axle / 457 / 10T dual rear / front 4.5T / rear 10T / Front axle 5T / Rear axle 10T / Front axle 3.6T / Rear axle 9T / Front tandem axle 5t / rear dual axle 10t
Axle ratio: 5.286 / 5.571 / 4.444 / 5.57 / 4.875 / 5.143
Leaf spring count: 8/11+8 / 10/12 / 3/10+3/7+- / 9/9/10+8/7+- / 9/10+8/- / 9/10+8/7 / 9/12+10,8/11+8 / 9/9/10+8,3/3/4+3,3/3/10+8,3/3/11+8 / 9/9/12 / 9/12+10 / 9/9/10+8
Transmission Parameters
Number of gears: 10 / 9 / 8 / 6Gear
Transmission Model: Fast Gear10JS90A-B / Fast Gear9JS119TA / Fast Gear10JS90 / Fast Gear9JS135TA / Fast Gear9JS119 / Fast Gear8JS85E / Fast Gear8JS105TA / Fast Gear8JS105 / Fast Gear 9-speed / Shaanxi Gear 9JS119TA / Fast Gear9JS119A / Fast Gear small 8-speed 8JS85E / Fast Gear 8-speed (Shaanxi Gear 8-speed) / Shao Chi 6-speed gearbox with auxiliary transmission
Cargo box parameters
Cargo box length: 8.5m
Cargo box width: 2.4m
Cargo box height: 0.5m
Cab parameters
Cab: T260 / T260 luxury cab / T280 Luxury Cab / Haolong T260 / T280 Super Luxury Cab / Sanhuan T280 semi-high roof cab / T280 Semi-High Roof Luxury Cab / Haolong T280
FAQ
What kind of truck is Sanhuan Shitong Sanhuan Shitong Haolong Medium Truck truck-mounted crane?
Sanhuan Shitong Sanhuan Shitong Haolong Medium Truck is an export-oriented truck-mounted crane lineup with about 28 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Sanhuan Shitong Haolong Medium Truck truck-mounted?
Sanhuan Shitong Haolong Medium Truck truck-mounted export reference is about $24,722 – $79,167. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Sanhuan Shitong Haolong Medium Truck truck-mounted cover?
Sanhuan Shitong Haolong Medium Truck truck-mounted mainly covers: Drive: 4x2 / 6x4; Horsepower: 160 hp / 200 hp / 220 hp / 270 hp / 300 hp; Emission: China IV / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sanhuan Shitong Haolong Medium Truck truck-mounted?
For Sanhuan Shitong Haolong Medium Truck truck-mounted: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is truck-mounted crane typically used for?
truck-mounted crane specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Sanhuan Shitong Haolong Medium Truck truck-mounted include?
Sanhuan Shitong Haolong Medium Truck truck-mounted currently lists about 28 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sanhuan Shitong Haolong Medium Truck truck-mounted?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
