Dongfeng K5 270hp 6X4(10 wheels) 8.5m Truck-mounted Crane Transport Vehicle
EXW
From $30,278
Export quote
Dongfeng Dongfeng chassis truck-mounted crane
Main model photos
15 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng K5 270hp 6X4(10 wheels) 8.5m Truck-mounted Crane Transport Vehicle | 6x4 / 270hp / China VI | From $30,278 | |
| Dongfeng K5 270 hp 6X4(10 wheels) truck-mounted crane | 6x4 / 270hp / China VI | From $58,750 | |
| Dongfeng 165hp 4X2(6 wheels) truck-mounted crane | 4x2 / 165hp / China V | From $33,056 | |
| Dongfeng D17 240 hp 6X4(10 wheels) 8.5m truck-mounted crane | 6x4 / 240hp / China V | From $53,611 | |
| Dongfeng 180 hp 4X2(6 wheels) Truck-Mounted Crane Transport Vehicle | 4x2 / 180hp / China V | From $38,333 |
Dongfeng K5 270 hp 6X4(10 wheels) truck-mounted crane
EXW
From $58,750
Export quote
Dongfeng 165hp 4X2(6 wheels) truck-mounted crane
EXW
From $33,056
Export quote
Dongfeng D17 240 hp 6X4(10 wheels) 8.5m truck-mounted crane
EXW
From $53,611
Export quote

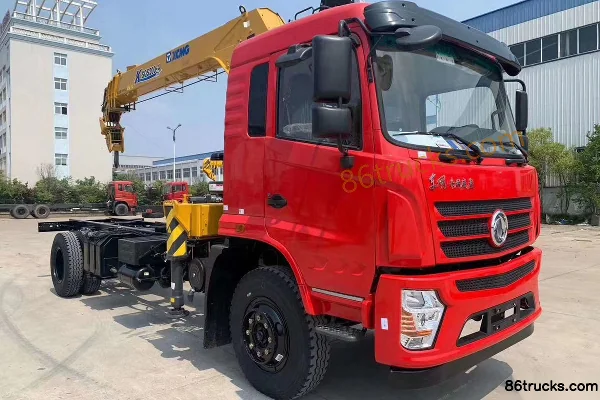

Dongfeng 180 hp 4X2(6 wheels) Truck-Mounted Crane Transport Vehicle
EXW
From $38,333
Export quote
Series Specs
Basic Info
Cab dimensions: 12×2.5×3.85 / 11×2.5×3.75 / 9×2.5×3.65 / 12×2.5×3.98m
Type: Truck with crane
Drive type: 6X4 / 4X2
Wheelbase: 5900+1350 / 4750+1350 / 5100mm
Rated mass: 8.575 / 6.105 / 8.605 / 7.57ton
Front track width: 1960mm
rear track: 1860/1860mm
GVWR: 25 / 18ton
Remarks: XCMG G-type 12-ton crane
Front/rear suspension: 1.475/3.275 / 1.25/2.65 / 1.515/3.235 / 1.45/3.25m
Energy Type: Diesel
Body Parameters
Crane model: SQS300 / SQS157,QYS-6.3,ZLC1600T,URV634,KS1254,DFSQ15800,SQ604
Lifting capacity: 6.3ton
crane self-weight: 3.4ton
Vehicle certification code: DFZ5258JSQSZ6D / DFZ5180JSQSZ5DS / DFZ5258JSQSZ5D / DFZ5258JSQSZ5D1
Body Brand: Dongfeng
Engine parameters
Engine Brand: Yuchai / Weichai
Engine Model: YuchaiYCS06270-60 / WeichaiWP4.1Q165E50 / YuchaiYC6JA240-50 / YuchaiYC6JA180-50
Displacement: 6.23 / 4.088 / 6.87L
Emission standard: China VI / China V
Max output power: 199 / 120 / 177 / 132kW
Max hp: 270 / 165 / 240 / 180Horsepower
Max torque: 1050 / 560 / 950 / 700N·m
Max torque speed: 1200-1700 / 1200-1800rpm
Rated speed: 2300 / 2600rpm
Chassis Specs
Chassis Brand: Dongfeng
Chassis Series: Dongfeng chassis
Chassis Model: EQ1253GSZ6DJ / EQ1180GSZ5DJ / EQ1258GSZ5DJ
Axle ratio: 4.75
Leaf spring count: 9/10 / 9/11+9 / 9/10,9/13,3/-,8/-
Transmission Parameters
Number of gears: 9 / 8Gear
Transmission Model: Fast Gear 9-speed / Fast Gear 8-speed
Cargo box parameters
Cargo box length: 8.5m
Cargo box width: 2.4m
Cargo box height: 0.8m
Tire
Tire Size: 11.00R20 18PR / 10.00R20 18PR / 295/80R22.5 18PR,11.00-20 18PR,11.00R20 18PR
Number of tires: 10 / 6pcs
Control configuration
ABS:
FAQ
What kind of truck is Dongfeng Dongfeng Dongfeng chassis truck-mounted crane?
Dongfeng Dongfeng Dongfeng chassis is an export-oriented truck-mounted crane lineup with about 6 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Dongfeng Dongfeng chassis truck-mounted crane?
Dongfeng Dongfeng chassis truck-mounted crane export reference is about $30,278 – $58,750. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Dongfeng Dongfeng chassis truck-mounted crane cover?
Dongfeng Dongfeng chassis truck-mounted crane mainly covers: Drive: 4x2 / 6x4; Horsepower: 165 hp / 180 hp / 240 hp / 270 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Dongfeng Dongfeng chassis truck-mounted crane?
For Dongfeng Dongfeng chassis truck-mounted crane: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is truck-mounted crane typically used for?
truck-mounted crane specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Dongfeng Dongfeng chassis truck-mounted crane include?
Dongfeng Dongfeng chassis truck-mounted crane currently lists about 6 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Dongfeng Dongfeng chassis truck-mounted crane?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
