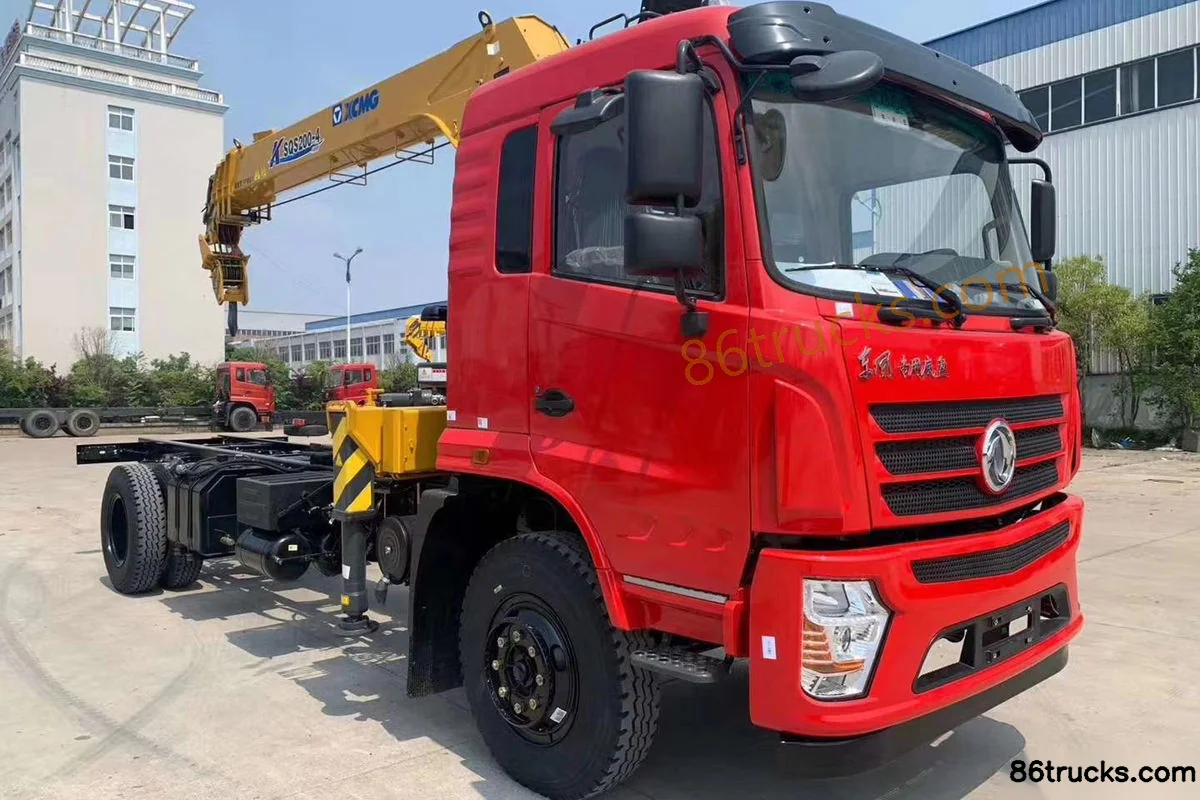

Dongfeng 180 hp 4X2(6 wheels) Truck-Mounted Crane Transport Vehicle

Export reference
From $38,333
MSRP ¥27.6M CNY
Emission: China V
Fuel: Diesel
Wheelbase:: 5100mm
Cab dimensions:: 9×2.5×3.65m
Type:: Truck with crane
GVWR:: 18ton
Lifting capacity: 6.3ton
Drive 4X2 (6 wheels)
Horsepower 180
Rated mass: 6.105ton

Overview

The Dongfeng 180 hp 4X2(6 wheels) Truck-Mounted Crane Transport Vehicle is a truck-mounted crane featuring 6.3ton tank capacity, 18t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 180 hp, China V emissions and Diesel fuel.

China V 180 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9×2.5×3.65m
Type: Truck with crane
Drive type: 4X2
Wheelbase: 5100mm
Rated mass: 6.105ton
GVWR: 18ton
Front/rear suspension: 1.25/2.65m
Energy Type: Diesel
Body Parameters
Crane model: SQS157,QYS-6.3,ZLC1600T,URV634,KS1254,DFSQ15800,SQ604
Lifting capacity: 6.3ton
crane self-weight: 3.4ton
Vehicle certification code: DFZ5180JSQSZ5DS
Body Brand: Dongfeng
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6JA180-50
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V
Max output power: 132kW
Max hp: 180Horsepower
Max torque: 700N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Chassis Specs
Chassis Brand: Dongfeng
Chassis Model: EQ1180GSZ5DJ
Leaf spring count: 9/11+9
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear 8-speed
Tire
Tire Size: 10.00R20 18PR
Number of tires: 6pcs

Photos

Exterior1

1 photos

FAQ

What is the export price of Dongfeng 180 hp 4X2(6 wheels) Truck-Mounted Crane Transport Vehicle, and what does it include?

Dongfeng 180 hp 4X2(6 wheels) Truck-Mounted Crane Transport Vehicle export reference is about From $38,333; MSRP is ¥27.6M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng 180 hp 4X2(6 wheels) Truck-Mounted Crane Transport Vehicle use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng 180 hp 4X2(6 wheels) Truck-Mounted Crane Transport Vehicle?

Key specs of Dongfeng 180 hp 4X2(6 wheels) Truck-Mounted Crane Transport Vehicle: Drive: 4x2; Horsepower: 180 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng 180 hp 4X2(6 wheels) Truck-Mounted Crane Transport Vehicle suited for?

Dongfeng 180 hp 4X2(6 wheels) Truck-Mounted Crane Transport Vehicle is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Dongfeng 180 hp 4X2(6 wheels) Truck-Mounted Crane Transport Vehicle differ from other variants in the same series?

Dongfeng 180 hp 4X2(6 wheels) Truck-Mounted Crane Transport Vehicle belongs to Dongfeng Dongfeng chassis (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng 180 hp 4X2(6 wheels) Truck-Mounted Crane Transport Vehicle?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng 180 hp 4X2(6 wheels) Truck-Mounted Crane Transport Vehicle?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
