Sinotruk HOWO T5G 280 hp 6X2(8 wheels) Truck-mounted Crane (XS288 Crane)

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Wheelbase:: 1950+5450mm
Cab dimensions:: 11.99×2.496×3.61m
Type:: Truck with crane
GVWR:: 25ton
Lifting capacity: 9.8ton
Drive 6X2 (8 wheels)
Horsepower 280
Rated mass: 9.885ton

Overview

The Sinotruk HOWO T5G 280 hp 6X2(8 wheels) Truck-mounted Crane (XS288 Crane) is a truck-mounted crane featuring 9.8ton tank capacity, 25t GVW and 6X2 (8 wheels) drive. On the powertrain side, it comes with 280 hp, China V emissions and Diesel fuel.

China V 280 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 11.99×2.496×3.61m
Type: Truck with crane
Drive type: 6X2
Wheelbase: 1950+5450mm
Rated mass: 9.885ton
GVWR: 25ton
Front/rear suspension: 1.43/3.16m
Energy Type: Diesel
Body Parameters
Crane model: XS 288
Lifting capacity: 9.8ton
crane self-weight: 3.45ton
Vehicle certification code: ZZ5257JSQM56CGE1
Body Brand: Sinotruk HOWO
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC07.28-50
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V
Max output power: 206kW
Max hp: 280Horsepower
Max torque: 1100N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Chassis Specs
Chassis Brand: Sinotruk HOWO
Chassis Series: HOWO T5G
Chassis Model: ZZ1257M56CGE1
Leaf spring count: 11/11/10+9
Transmission Parameters
Number of gears: 10Gear
Transmission Model: SinotrukHW10C
Cab parameters
Cab: Flat roof cab
Tire
Tire Size: 11.00R20 18PR
Number of tires: 8pcs

Photos

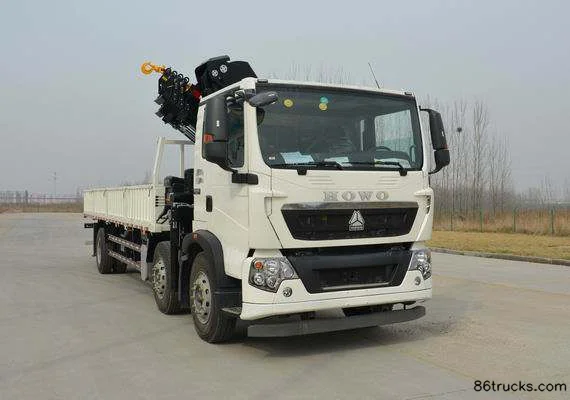

Exterior1

1 photos

FAQ

What emission standard does Sinotruk HOWO T5G 280 hp 6X2(8 wheels) Truck-mounted Crane (XS288 Crane) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO T5G 280 hp 6X2(8 wheels) Truck-mounted Crane (XS288 Crane)?

Key specs of Sinotruk HOWO T5G 280 hp 6X2(8 wheels) Truck-mounted Crane (XS288 Crane): Drive: 6x2; Horsepower: 280 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO T5G 280 hp 6X2(8 wheels) Truck-mounted Crane (XS288 Crane) suited for?

Sinotruk HOWO T5G 280 hp 6X2(8 wheels) Truck-mounted Crane (XS288 Crane) is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Sinotruk HOWO T5G 280 hp 6X2(8 wheels) Truck-mounted Crane (XS288 Crane) differ from other variants in the same series?

Sinotruk HOWO T5G 280 hp 6X2(8 wheels) Truck-mounted Crane (XS288 Crane) belongs to Sinotruk HOWO T5G medium-duty truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO T5G 280 hp 6X2(8 wheels) Truck-mounted Crane (XS288 Crane)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO T5G 280 hp 6X2(8 wheels) Truck-mounted Crane (XS288 Crane)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
