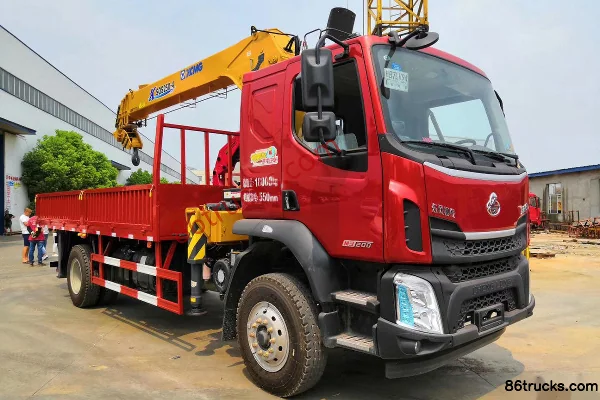

Dongfeng Liuqi Chenglong H5 270hp 4X2(6 wheels) Truck-mounted Crane (Chengliwei Brand)
EXW
From $32,556
Export quote
Chengliwei Dongfeng Liuqi Chassis truck-mounted
Main model photos
43 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Liuqi Chenglong H5 270hp 4X2(6 wheels) Truck-mounted Crane (Chengliwei Brand) | 4x2 / 270hp / China VI | From $32,556 | |
| Dongfeng Liuqi Chenglong M3 220hp 4X2(6 wheels) 5.8m Truck-mounted Crane (Chengliwei Brand) | 4x2 / 220hp / China V | From $23,333 | |
| Dongfeng Liuqi Chenglong H5 350hp 8X4(12 wheels) 8.2m Truck-mounted Crane (Chengliwei Brand) | 8x4 / 350hp / China VI | From $45,139 |
Dongfeng Liuqi Chenglong M3 220hp 4X2(6 wheels) 5.8m Truck-mounted Crane (Chengliwei Brand)
EXW
From $23,333
Export quote
Dongfeng Liuqi Chenglong H5 350hp 8X4(12 wheels) 8.2m Truck-mounted Crane (Chengliwei Brand)
EXW
From $45,139
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Liuqi Chenglong 210 hp 6X2(8 wheels) Truck-mounted Crane (Chengliwei Brand) | 6x2 / 210hp / China III / Euro III |
Series Specs
Basic Info
Cab dimensions: 9×2.55×3.75 / 9.0×2.55×3.8 / 12×2.55×3.78 / 10.99×2.48×3.65m
Type: Truck with crane / truck-mounted crane / Onboard crane
Drive type: 4X2 / 8X4 / 6X2
Wheelbase: 5100 / 2050+4400+1350 / 1860+4640mm
Rated mass: 6.12 / 6.605 / 10.67 / 5.9ton
GVWR: 18 / 31 / 16.175ton
Front/rear suspension: 1.445/2.455 / 1.525/2.675 / 1.308/3.182m
Energy Type: Diesel
Body Parameters
Other special notes: This vehicle is equipped with a straight-arm crane; crane model, weight, and max lifting capacity: SQ5S: 2170Kg, 5000Kg; SQ6.3S: 2270Kg, 6000Kg. Cab selection available with chassis.
Crane model: SCS200A-5,SPS20000,SQZ300,SQS200,SQZ200 / SQS200 / SQ12S,SQ12Z,URV1204,SQ1204,SQZ2503,SQS300,HTS1205A / SQ5S
Lifting capacity: 8 / 7.5 / 12 / 5ton
crane self-weight: 4.5 / 3.5 / 4.8 / 2.17ton
Vehicle certification code: CLW5180JSQL6 / LZ5181JSQM3AB / LZ5315JSQH5FC1 / CLW5160JSQL3
Body Brand: Chengliwei / DongfengLiuqi
Engine parameters
Engine Brand: Yuchai / Dongfeng
Engine Model: YuchaiYCS06270-60 / DongfengISB220 50 / YuchaiYCK08350-60 / Dongfeng ISDe210 30
Displacement: 6.23 / 5.9 / 7.7 / 6.7L
Emission standard: China VI / China V / China III / Euro III
Max output power: 199 / 162 / 257 / 155kW
Max hp: 270 / 220 / 350 / 210Horsepower
Max torque: 1050 / 800 / 1450N·m
Max torque speed: 1200-1700 / 1500-1600 / 1300-1500 / 1400rpm
Rated speed: 2300 / 2500 / 2200rpm
Chassis Specs
Chassis Brand: DongfengLiuqi
Chassis Series: ChenglongH5 / ChenglongM3 / Chenglong
Chassis Model: LZ1180H5ACT / LZ5182XXYM3ABT / LZ1315H5FCT / LZ1160LCMT
Frame Dimensions: 264(6+4) double layer / 264(6)mm
rear axle description: 10T / 153
Axle ratio: 4.875 / 4.1
Leaf spring count: 11/12+9 / 11/11/10,9/9/10,3/3/10,3/3/4,11/11/13 / 10/10/12+9
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear8JS105TA / Fast Gear8JS85E
Cab parameters
Cab: H51S / M31BS
Tire
Tire Size: 10.00R20 / 295/60R22.5 / 11.00R20,11.00-20,12R22.5 / 9.00-20;9.00R20;10.00-20
Number of tires: 6 / 12 / 8pcs
FAQ
What kind of truck is Chengliwei Chengliwei Dongfeng Liuqi Chassis truck-mounted crane?
Chengliwei Chengliwei Dongfeng Liuqi Chassis is an export-oriented truck-mounted crane lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Chengliwei Dongfeng Liuqi Chassis truck-mounted?
Chengliwei Dongfeng Liuqi Chassis truck-mounted export reference is about $23,333 – $45,139. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Chengliwei Dongfeng Liuqi Chassis truck-mounted cover?
Chengliwei Dongfeng Liuqi Chassis truck-mounted mainly covers: Drive: 4x2 / 6x2 / 8x4; Horsepower: 210 hp / 220 hp / 270 hp / 350 hp; Emission: China III / Euro III / China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Chengliwei Dongfeng Liuqi Chassis truck-mounted?
For Chengliwei Dongfeng Liuqi Chassis truck-mounted: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is truck-mounted crane typically used for?
truck-mounted crane specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Chengliwei Dongfeng Liuqi Chassis truck-mounted include?
Chengliwei Dongfeng Liuqi Chassis truck-mounted currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Chengliwei Dongfeng Liuqi Chassis truck-mounted?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
