Sinotruk Steyr M5G 280 hp 6X4(10 wheels) truck-mounted crane
EXW
From $36,111
Export quote
Sinotruk M5G Quasi-heavy Truck truck-mounted crane
Main model photos
285 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk Steyr M5G 280 hp 6X4(10 wheels) truck-mounted crane | 6x4 / 280hp / China V | From $36,111 | |
| Sinotruk Steyr M5G 210 hp 4X2(6 wheels) truck-mounted crane | 4x2 / 210hp / China IV | ||
| Sinotruk Steyr M5G 280 hp 6X4(10 wheels) truck-mounted crane | 6x4 / 280hp / China IV |

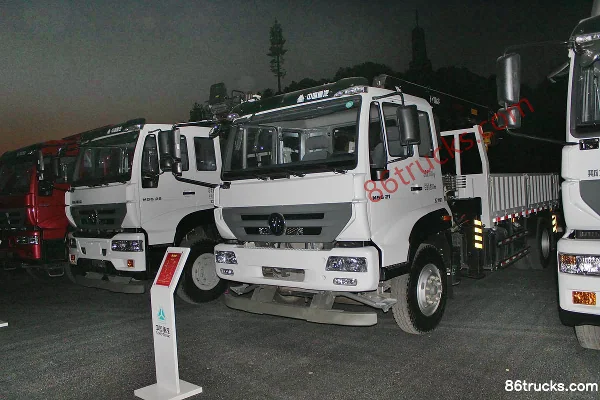

Sinotruk Steyr M5G 210 hp 4X2(6 wheels) truck-mounted crane
EXW
Export quote
Sinotruk Steyr M5G 280 hp 6X4(10 wheels) truck-mounted crane
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 11.85×2.55×3.62 / 8.995X2.47X3.35 / 11.85x2.47x3.62m
Type: Truck with crane / truck-mounted crane
Drive type: 6X4 / 4X2
Wheelbase: 5700+1350 / 5000mm
Rated mass: 8.72 / 5.905 / 9.31ton
GVWR: 25 / 16ton
Front/rear suspension: 1.32/3.48 / 1.25/2.745m
Energy Type: Diesel
Body Parameters
Crane model: QYS-12IV / T-CLX220 / T-CLX260
Lifting capacity: 12 / 8 / 10 tons
crane self-weight: 4 / 2.85 / 3.75ton
Vehicle certification code: ZZ5251JSQM574GE1 / ZZ5161JSQH501GD1 / ZZ5251JSQM574GD1H
Body Brand: Sinotruk
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC07.28-50 / Sinotruk MC05.21-40 / Sinotruk MC07.28-40
Displacement: 6.87 / 4.58L
Emission standard: China V / China IV
Max output power: 206 / 151kW
Max hp: 280 / 210Horsepower
Max torque: 1100 / 830N·m
Max torque speed: 1200-1800 / 1300-1700rpm
Rated speed: 2300rpm
Chassis Specs
Chassis Brand: Sinotruk
Chassis Series: Steyr M5G
Chassis Model: ZZ1251N464GE1 / ZZ1161H501GD1 / ZZ1251M574GD1
rear axle description: Payload 18000kg / 153 drive axle / 457
Leaf spring count: 3/5,3/10,11/10,11/12,3/-,11/-,3/4 / 3/4 / 3/5
Transmission Parameters
Number of gears: 10 / 6 / 7Gear
Transmission Model: SinotrukHW13710C / Dachi DC6J95TC / DC7J120TC
Tire
Tire Size: 11.00-20,11.00R20 18PR/11.00R20 16PR,12R22.5 18PR/12R22.5 16PR,295/80R22.5 18PR/295/80R22.5 16PR / 10.00R20 / 12R22.5
Number of tires: 10 / 6pcs
FAQ
What kind of truck is Sinotruk Sinotruk M5G Quasi-heavy Truck truck-mounted crane?
Sinotruk Sinotruk M5G Quasi-heavy Truck is an export-oriented truck-mounted crane lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Sinotruk M5G Quasi-heavy Truck truck-mounted crane?
Sinotruk M5G Quasi-heavy Truck truck-mounted crane export reference is about From $36,111. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Sinotruk M5G Quasi-heavy Truck truck-mounted crane cover?
Sinotruk M5G Quasi-heavy Truck truck-mounted crane mainly covers: Drive: 4x2 / 6x4; Horsepower: 210 hp / 280 hp; Emission: China IV / China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sinotruk M5G Quasi-heavy Truck truck-mounted crane?
For Sinotruk M5G Quasi-heavy Truck truck-mounted crane: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is truck-mounted crane typically used for?
truck-mounted crane specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Sinotruk M5G Quasi-heavy Truck truck-mounted crane include?
Sinotruk M5G Quasi-heavy Truck truck-mounted crane currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sinotruk M5G Quasi-heavy Truck truck-mounted crane?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
