Sinotruk Steyr M5G 210 hp 4X2(6 wheels) truck-mounted crane

Export reference
MSRP N/A
Emission: China IV
Wheelbase:: 5000mm
Cab dimensions:: 8.995X2.47X3.35m
Type:: truck-mounted crane
GVWR:: 16ton
Front/rear suspension:: 1.25/2.745m
Lifting capacity: 8ton
Drive 4X2 (6 wheels)
Horsepower 210
Rated mass: 5.905ton

Overview

The Sinotruk Steyr M5G 210 hp 4X2(6 wheels) truck-mounted crane is a truck-mounted crane featuring 8ton tank capacity, 16t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 210 hp and China IV emissions.

China IV 210 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 8.995X2.47X3.35m
Type: truck-mounted crane
Drive type: 4X2
Wheelbase: 5000mm
Rated mass: 5.905ton
GVWR: 16ton
Front/rear suspension: 1.25/2.745m
Body Parameters
Crane model: T-CLX220
Lifting capacity: 8ton
crane self-weight: 2.85ton
Vehicle certification code: ZZ5161JSQH501GD1
Body Brand: Sinotruk
Engine parameters
Engine Brand: Sinotruk
Engine Model: Sinotruk MC05.21-40
Displacement: 4.58L
Emission standard: China IV
Max output power: 151kW
Max hp: 210Horsepower
Max torque: 830N·m
Max torque speed: 1300-1700rpm
Chassis Specs
Chassis Brand: Sinotruk
Chassis Series: Steyr M5G
Chassis Model: ZZ1161H501GD1
rear axle description: 153 drive axle
Leaf spring count: 3/4
Transmission Parameters
Number of gears: 6Gear
Transmission Model: Dachi DC6J95TC
Tire
Tire Size: 10.00R20
Number of tires: 6pcs

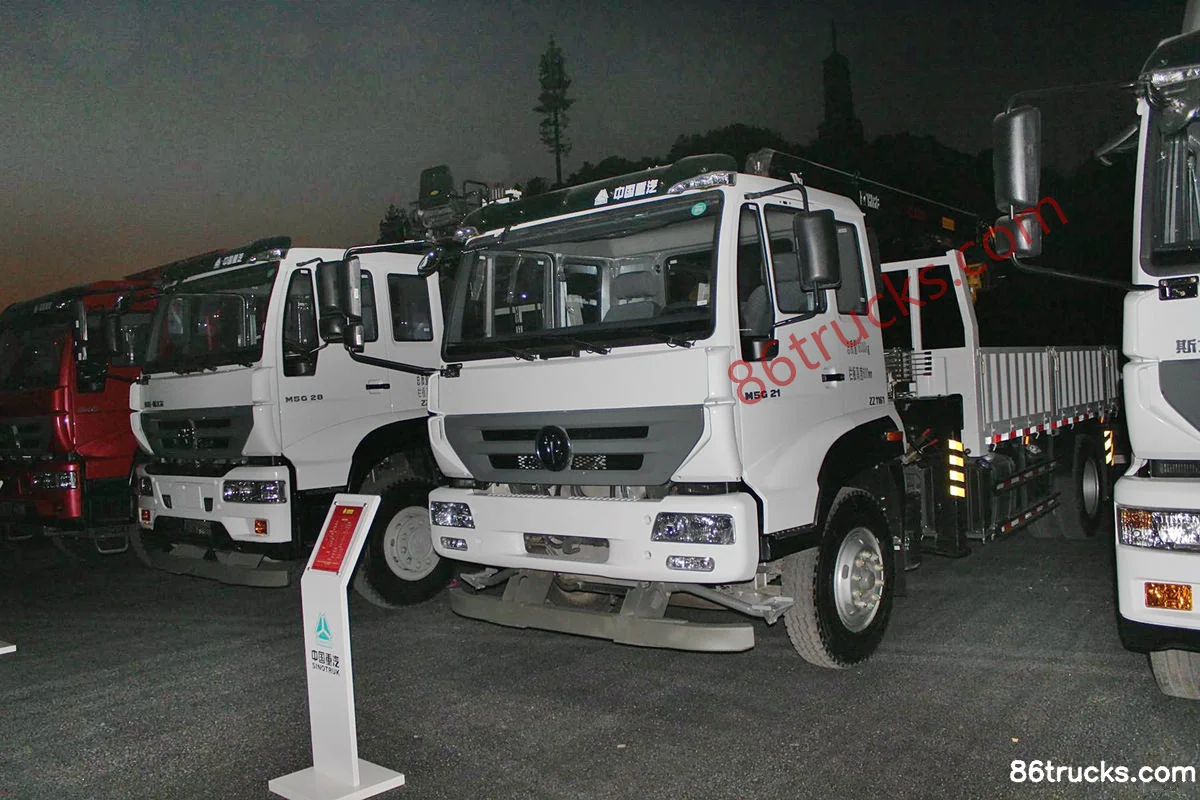

Photos

Exterior2

2 photos

FAQ

What emission standard does Sinotruk Steyr M5G 210 hp 4X2(6 wheels) truck-mounted crane use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Steyr M5G 210 hp 4X2(6 wheels) truck-mounted crane?

Key specs of Sinotruk Steyr M5G 210 hp 4X2(6 wheels) truck-mounted crane: Drive: 4x2; Horsepower: 210 hp; Emission: China IV. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Steyr M5G 210 hp 4X2(6 wheels) truck-mounted crane suited for?

Sinotruk Steyr M5G 210 hp 4X2(6 wheels) truck-mounted crane is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Sinotruk Steyr M5G 210 hp 4X2(6 wheels) truck-mounted crane differ from other variants in the same series?

Sinotruk Steyr M5G 210 hp 4X2(6 wheels) truck-mounted crane belongs to Sinotruk M5G Quasi-heavy Truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Steyr M5G 210 hp 4X2(6 wheels) truck-mounted crane?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Steyr M5G 210 hp 4X2(6 wheels) truck-mounted crane?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
