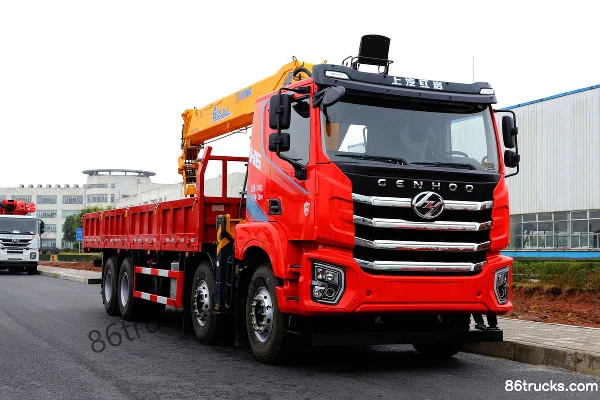

SAIC Hongyan Jiehu H6 300hp 6X4(10 wheels) truck-mounted crane
EXW
From $40,944
Export quote
SAIC Hongyan Genho Heavy Truck truck-mounted crane
Main model photos
322 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SAIC Hongyan Jiehu H6 300hp 6X4(10 wheels) truck-mounted crane | 6x4 / 300hp / China VI | From $40,944 | |
| SAIC Hongyan Jiehu H6 350 hp 8X4(12 wheels) Truck-mounted Crane | 8x4 / 350hp / China VI |
SAIC Hongyan Jiehu H6 350 hp 8X4(12 wheels) Truck-mounted Crane
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 12X2.55X3.85 / 11.755X2.55X3.14m
Type: Truck with crane
Drive type: 6X4 / 8X4
Wheelbase: 5800+1400 / 2150+4250+1400mm
Rated mass: 7.97ton
Front track width: 2040mm
rear track: 1858/1858mm
GVWR: 25 / 31ton
Front/rear suspension: 1.46/3.34 / 1.46/2.495m
Energy Type: Diesel
Body Parameters
Crane model: SQS250
Lifting capacity: 10ton
crane self-weight: 4.6ton
Vehicle certification code: CQ5257JSQEY08584
Body Brand: SAIC Hongyan
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCK08300-60 / YuchaiYCK08350-60
Displacement: 7.7L
Emission standard: China VI
Max output power: 221 / 257kW
Max hp: 300 / 350Horsepower
Max torque: 1450N·m
Max torque speed: 1300-1500rpm
Rated speed: 2200rpm
Chassis Specs
Chassis Brand: SAIC Hongyan
Chassis Series: Jiehu H6
Chassis Model: CQ1257EM4Z / CQ1317EM6Z
Frame Dimensions: 980_865/305×8+4 / 305/8+4mm
rear axle description: HY300H
Axle ratio: 4.8
Leaf spring count: 9/12 / 9/9/12
Transmission Parameters
Number of gears: 12Gear
Transmission Model: Fast Gear12JSD160TA
Cargo box parameters
Cargo box length: 8.4m
Cargo box width: 2.4m
Cargo box height: 0.6m
Cab parameters
Cab: Flat roof long cab / Jiehu H6
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 400L
Tire
Tire Size: 12.00R20 16PR / 12.00R20 18PR
FAQ
What kind of truck is SAIC Hongyan SAIC Hongyan Genho Heavy Truck truck-mounted crane?
SAIC Hongyan SAIC Hongyan Genho Heavy Truck is an export-oriented truck-mounted crane lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for SAIC Hongyan Genho Heavy Truck truck-mounted crane?
SAIC Hongyan Genho Heavy Truck truck-mounted crane export reference is about From $40,944. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does SAIC Hongyan Genho Heavy Truck truck-mounted crane cover?
SAIC Hongyan Genho Heavy Truck truck-mounted crane mainly covers: Drive: 6x4 / 8x4; Horsepower: 300 hp / 350 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in SAIC Hongyan Genho Heavy Truck truck-mounted crane?
For SAIC Hongyan Genho Heavy Truck truck-mounted crane: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is truck-mounted crane typically used for?
truck-mounted crane specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does SAIC Hongyan Genho Heavy Truck truck-mounted crane include?
SAIC Hongyan Genho Heavy Truck truck-mounted crane currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for SAIC Hongyan Genho Heavy Truck truck-mounted crane?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
