Dongfeng Commercial Vehicle Tianlong VL 292hp 6X4(10 wheels) 8.4m Truck Mounted Crane (Pafeite)
EXW
From $40,361
Export quote
Pafeite Dongfeng Commercial Vehicle Chassis
Main model photos
43 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Commercial Vehicle Tianlong VL 292hp 6X4(10 wheels) 8.4m Truck Mounted Crane (Pafeite) | 6x4 / 292hp / China V | From $40,361 | |
| Dongfeng Commercial Vehicle Tianlong VL 245hp 6X4(10 wheels) 8.4m Truck Mounted Crane (Dongfeng)(Pafeite) | 6x4 / 245hp / China V | From $40,361 | |
| Dongfeng Commercial Vehicle Tianjin KS 210hp 4X2(6 wheels) Truck Mounted Crane (Pafeite Brand) | 4x2 / 210hp / China V | From $26,403 | |
| Dongfeng Commercial Vehicle Tianjin KS 180hp 4X2(6 wheels) Truck Mounted Crane (Pafeite Brand) | 4x2 / 180hp / China V | From $25,458 | |
| Dongfeng Commercial Vehicle Tianlong 340 hp 8X4(12 wheels) Truck-Mounted Crane (Pafeite Brand) | 8x4 / 340hp / China V | From $81,944 |
Dongfeng Commercial Vehicle Tianlong VL 245hp 6X4(10 wheels) 8.4m Truck Mounted Crane (Dongfeng)(Pafeite)
EXW
From $40,361
Export quote
Dongfeng Commercial Vehicle Tianjin KS 210hp 4X2(6 wheels) Truck Mounted Crane (Pafeite Brand)
EXW
From $26,403
Export quote

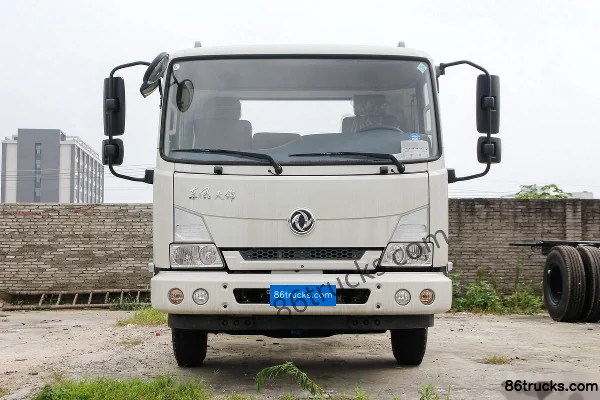

Dongfeng Commercial Vehicle Tianjin KS 180hp 4X2(6 wheels) Truck Mounted Crane (Pafeite Brand)
EXW
From $25,458
Export quote
Dongfeng Commercial Vehicle Tianlong 340 hp 8X4(12 wheels) Truck-Mounted Crane (Pafeite Brand)
EXW
From $81,944
Export quote
Series Specs
Basic Info
Cab dimensions: 12×2.55×3.82 / 9×2.55×3.68 / 12×2.55×3.85m
Type: Truck with crane
Drive type: 6X4 / 4X2 / 8X4
Wheelbase: 5700+1350 / 5000 / 1850+4600+1350 / 2050+4400+1350mm
Rated mass: 9.98 / 6.725 / 11.43 / 11.955ton
GVWR: 25 / 18 / 31ton
Remarks: Optional ratio 5.286
Front/rear suspension: 1.5/3.45 / 1.43/2.57 / 1.5/2.7 / 1.48/3.37m
Energy Type: Diesel
Body Parameters
Crane model: SQS250,SPS25000,SQS-10,ST264 / SQS-6.3, SPS16000,QYS-6.3 / SPS50000 / SQS-16 / SPS35000 / SQS-12 / SPS30000 / SPS20000; optional SQS-8 / SPS16000; optional SQS-6.3
Lifting capacity: 10 / 6.3 / 16 / 14 / 12 / 8ton
crane self-weight: 3.8 / 3.5 / 6 / 5 / 4.3 / 4ton
Vehicle certification code: PFT5250JSQA13 / PFT5180JSQBX1DV / PFT5310JSQA1 / PFT5181JSQBX1DV
Body Brand: Pafeite
Engine parameters
Engine Brand: Dongfeng
Engine Model: DongfengDDi75S292-50 / DongfengDDi75S245-50 / DongfengISD210 50 / DongfengISB180 50 / DongfengISL9.5-340E51A / DongfengDDi75S350-50 / DongfengISL9.5-315E51A / DongfengISD270 50 / DongfengISD245 50
Displacement: 7.53 / 6.7 / 5.9 / 9.46L
Emission standard: China V
Max output power: 215 / 180 / 155 / 132 / 251 / 257 / 232 / 198kW
Max hp: 292 / 245 / 210 / 180 / 340 / 350 / 315 / 270Horsepower
Max torque: 1200 / 1000 / 800 / 700 / 1500 / 1390 / 1250 / 970 / 950N·m
Max torque speed: 1100-1800 / 1200-1700 / 1100-1500 / 1100-1700 / 1200-1800rpm
Rated speed: 2300 / 2500 / 1900rpm
Chassis Specs
Chassis Brand: Dongfeng Commercial Vehicle
Chassis Series: Dongfeng Tianlong VL / Tianjin KS / Dongfeng Tianlong / Dongfeng Tianjin
Chassis Model: DFL1250A13 / DFH1180BX1DV / DFH1310A1
Frame Dimensions: 300×90×[8+6]mm
rear axle description: 10T / 9T;4.16
Axle ratio: 4.875 / 5.571 / 4.56
Leaf spring count: 8/10 / 8/10+8 / 9/9/10,8/8/10,3/3/4,9/9/-,3/3/-,3/3/10,2/2/10,2/2/4,2/2/3,10/10/13,3/3/3 / 8/9,8/10,9/10 / 7/9+6,8/10+8,11/11+10,10/11+10
Transmission Parameters
Number of gears: 9 / 8 / 12Gear
Transmission Model: Fast Gear9JS119TA / Fast Gear8JS85E / Fast Gear12JSD160TA / Fast Gear9JS119A
Cab parameters
Cab: New Tianlong-S
Tire
Tire Size: 11.00R20 18PR / 10.00R20 18PR / 11.00R20 / 12R22.5 / 10.00R20
Number of tires: 10 / 6 / 12pcs
FAQ
What kind of truck is Pafeite Pafeite Dongfeng Commercial Vehicle Chassis truck-mounted crane?
Pafeite Pafeite Dongfeng Commercial Vehicle Chassis is an export-oriented truck-mounted crane lineup with about 12 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Pafeite Dongfeng Commercial Vehicle Chassis?
Pafeite Dongfeng Commercial Vehicle Chassis export reference is about $25,458 – $85,833. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Pafeite Dongfeng Commercial Vehicle Chassis cover?
Pafeite Dongfeng Commercial Vehicle Chassis mainly covers: Drive: 4x2 / 6x4 / 8x4; Horsepower: 180 hp / 210 hp / 245 hp / 292 hp / 340 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Pafeite Dongfeng Commercial Vehicle Chassis?
For Pafeite Dongfeng Commercial Vehicle Chassis: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is truck-mounted crane typically used for?
truck-mounted crane specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Pafeite Dongfeng Commercial Vehicle Chassis include?
Pafeite Dongfeng Commercial Vehicle Chassis currently lists about 12 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Pafeite Dongfeng Commercial Vehicle Chassis?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
