SHACMAN Commercial Vehicle SHACMAN Xuande X6

Main model photos

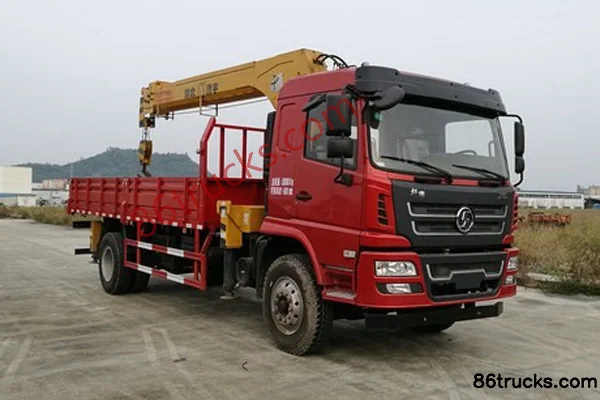

SHACMAN Commercial Vehicle Xuande X6 270hp 6X4(10 wheels) 8m Truck Mounted Crane Exterior SHACMAN Commercial Vehicle Xuande X6 185 hp 4X2(6 wheels) 6.1m Truck-Mounted Crane Exterior

385 photos

Models

Series Specs

Basic Info
Cab dimensions: 12x2.55x3.95 / 12×2.55×3.8 / 12×2.55×3.85 / 9×2.4×0.6 / 9×2.55×3.9m
Type: truck-mounted crane
Drive type: 6x4 / 4X2
Wheelbase: 5800+1300 / 5200 / 5000mm
Rated mass: 8.605 / 9.605 / 9.435 / 6.425 / 6.37ton
Front track width: 1970mm
rear track: 1860/1860mm
GVWR: 25 / 24.5 / 18ton
Remarks: Optional ratio 5.143
Front/rear suspension: 1.45/3.45 / 1.45/2.35 / 1.34/2.66 / 1.45/2.08m
Energy Type: Diesel
Body Parameters
Other special notes: Standard: Cab: TJG201(N/2220) semi-floating structure, comfort air-suspension seat, A/C, Tianxingjian Zhiya Edition BD telematics terminal. Cab color: China Red. Brakes: domestic 4-channel ABS. With FARIZON throttle control system. Optional: Cab: four-point mechanical suspension, central door lock, sun visor, multimedia display (without reverse camera).
Lifting capacity: 10-12T / 6.3-8Tton
Vehicle certification code: SX5250JSQGP6584 / SX5250JSQGP5 / SX5251JSQGP5 / SX5180JSQGP5 / SX5180JSQLB501A
Body Brand: SHACMAN Commercial Vehicle
Engine parameters
Engine Brand: Yuchai / Weichai
Engine Model: YuchaiYCS06270-60 / WeichaiWP6.245E50 / WeichaiWP7.270E51 / YuchaiYC6JA240-50 / YuchaiYC6JA180-50 / YuchaiYC4EG185-50 / YuchaiYC6A270-50
Displacement: 6.23 / 6.75 / 7.47 / 6.87 / 4.73 / 7.52L
Emission standard: China VI / China V
Max output power: 199 / 180 / 177 / 132 / 136kW
Max hp: 270 / 245 / 240 / 180 / 185Horsepower
Max torque: 900 / 1160 / 950 / 700 / 1100N·m
Max torque speed: 1200-1600 / 1200-1700 / 1200-1800 / 1300-1800rpm
Rated speed: 2300 / 2500rpm
Chassis Specs
Chassis Brand: SHACMAN Commercial Vehicle
Chassis Series: Xuande X6
Chassis Model: SX1250GP6584 / SX1250GP5 / SX1181GP5 / SX1180LA1
Frame Dimensions: 300/8+6+6 outer full three-layer / 861x300 (8+6+8) triple-layer with outer wrap / 861x300/8+6+8 partial triple-layer/outer beam / 280/8+6+6mm
rear axle description: HDZ11.5t/single reduction dual axle / 153B+153B/10T+10T / 153B+153B / 153B / 153 rear axle
Axle ratio: 5.571 / 5.143 / 4.111 / 4.44
Leaf spring count: 10/10 / 9/10 / 7/9+6 / 10/9+6,3/4+3
Transmission Parameters
Number of gears: 9 / 8Gear
Transmission Model: Fast GearS9MOT / Fast Gear9J119A / Fast Gear8JS85E / Fast Gear9JS119TB
Cargo box parameters
Cargo box length: 8.3m
Cargo box width: 2.45m
Cargo box height: 0.6m
Cab parameters
Cab: X6 mid-high roof cab / X6 mid-high roof/2220 / TJG161 / TJG201
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 280L
Tire
Tire Size: 11.00R20 18PR / 11.00R20/18PR / 10.00R20/18PR / 10.00R20,295/80R22.5 / 295/80R22.5 18PR,10.00-20,10.00R20

FAQ

What kind of truck is SHACMAN Commercial Vehicle SHACMAN Xuande X6 Heavy-Duty Truck truck-mounted crane?

SHACMAN Commercial Vehicle SHACMAN Xuande X6 Heavy-Duty Truck is an export-oriented truck-mounted crane lineup with about 8 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.

What is the export price range for SHACMAN Commercial Vehicle SHACMAN Xuande X6?

SHACMAN Commercial Vehicle SHACMAN Xuande X6 export reference is about $23,958 – $36,278. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).

What spec range does SHACMAN Commercial Vehicle SHACMAN Xuande X6 cover?

SHACMAN Commercial Vehicle SHACMAN Xuande X6 mainly covers: Drive: 4x2 / 6x4; Horsepower: 180 hp / 240 hp / 245 hp / 270 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.

How do I choose a variant in SHACMAN Commercial Vehicle SHACMAN Xuande X6?

For SHACMAN Commercial Vehicle SHACMAN Xuande X6: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.

What is truck-mounted crane typically used for?

truck-mounted crane specs vary widely by job. Define the application first, then compare specs here and request a quote.

How many models does SHACMAN Commercial Vehicle SHACMAN Xuande X6 include?

SHACMAN Commercial Vehicle SHACMAN Xuande X6 currently lists about 8 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.

How do I request a quote for SHACMAN Commercial Vehicle SHACMAN Xuande X6?

Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
