SHACMAN Commercial Vehicle Xuande X6 270hp 6X4(10 wheels) 8m Truck Mounted Crane

Export reference
From $31,583
MSRP ¥22.74M CNY
Emission: China V
Fuel: Diesel
Wheelbase:: 5800+1300mm
Cab dimensions:: 12×2.55×3.85m
Type:: truck-mounted crane
GVWR:: 24.5ton
Lifting capacity: 10-12Tton
Drive 6X4 (10 wheels)
Horsepower 270
Rated mass: 9.435ton

Overview

The SHACMAN Commercial Vehicle Xuande X6 270hp 6X4(10 wheels) 8m Truck Mounted Crane is a truck-mounted crane featuring 10-12Tton tank capacity, 24.5t GVW and 6X4 (10 wheels) drive. On the powertrain side, it comes with 270 hp, China V emissions and Diesel fuel.

China V 270 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 12×2.55×3.85m
Type: truck-mounted crane
Drive type: 6X4
Wheelbase: 5800+1300mm
Rated mass: 9.435ton
GVWR: 24.5ton
Remarks: Optional ratio 5.143
Front/rear suspension: 1.45/3.45m
Energy Type: Diesel
Body Parameters
Other special notes: Standard: Cab: TJG201(N/2220) semi-floating structure, comfort air-suspension seat, A/C, Tianxingjian Zhiya Edition BD telematics terminal. Cab color: China Red. Brakes: domestic 4-channel ABS. With FARIZON throttle control system. Optional: Cab: four-point mechanical suspension, central door lock, sun visor, multimedia display (without reverse camera).
Lifting capacity: 10-12Tton
Vehicle certification code: SX5251JSQGP5
Body Brand: SHACMAN Commercial Vehicle
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6A270-50
fuel type: Diesel
Displacement: 7.52L
Emission standard: China V
Max output power: 199kW
Max hp: 270Horsepower
Max torque: 1100N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Chassis Specs
Chassis Brand: SHACMAN Commercial Vehicle
Chassis Series: Xuande X6
Chassis Model: SX1250GP5
Frame Dimensions: 861x300/8+6+8 partial triple-layer/outer beammm
rear axle description: 153B+153B
Axle ratio: 4.44
Leaf spring count: 9/10
Transmission Parameters
Number of gears: 9Gear

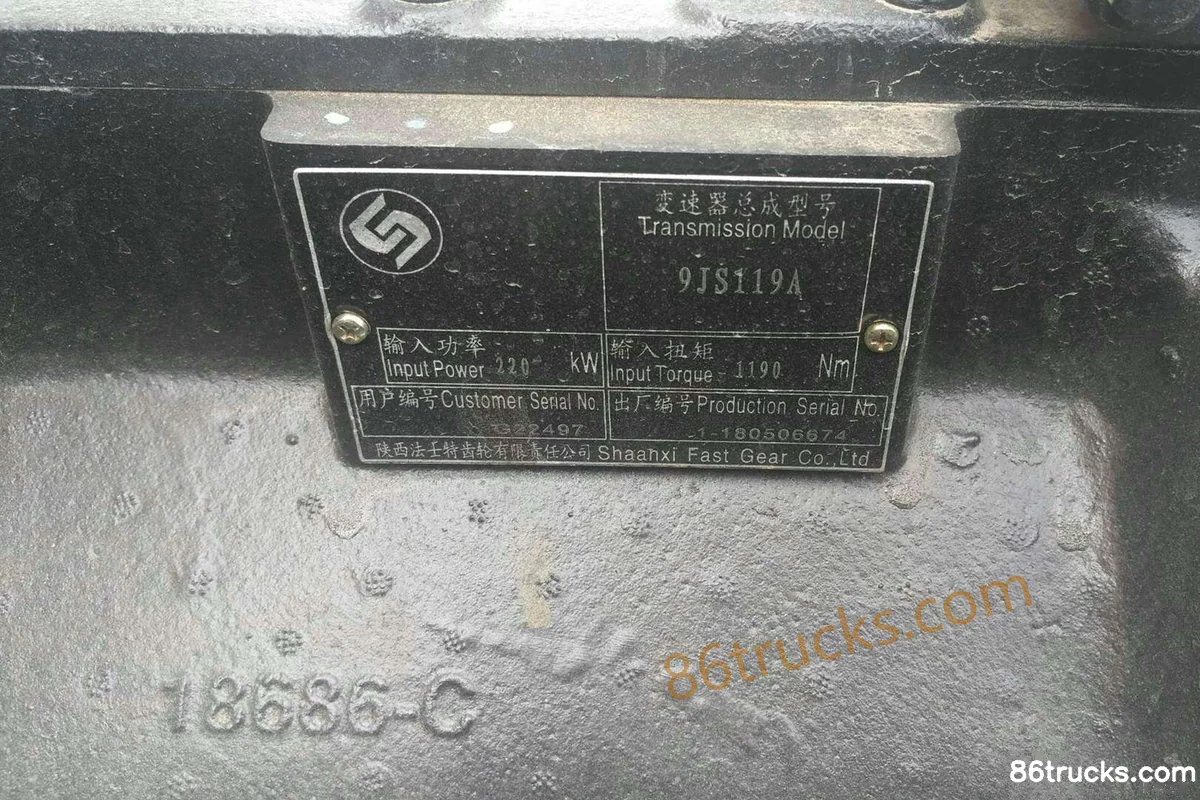

Transmission Model: Fast Gear9J119A
Cab parameters
Cab: TJG161
Tire

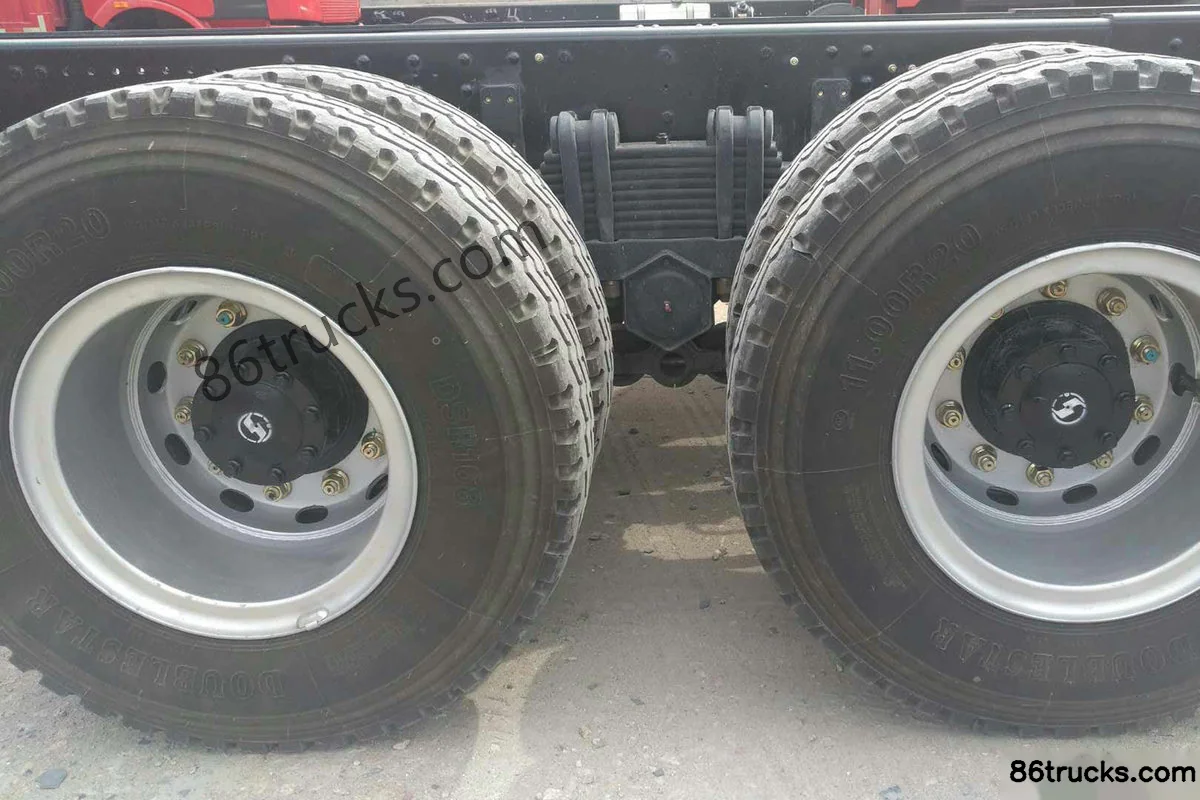

Tire Size: 11.00R20/18PR
Number of tires: 10pcs

Photos

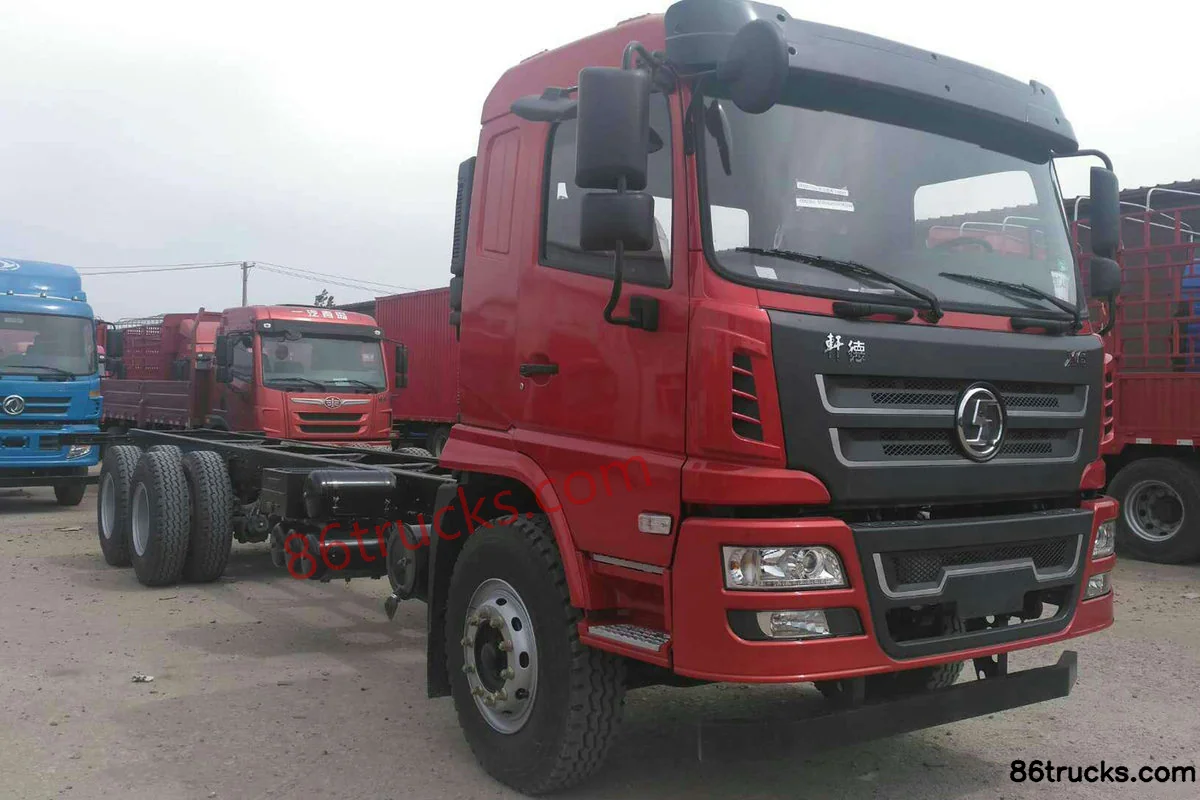

Exterior2

Cab2

4 photos

FAQ

What is the export price of SHACMAN Commercial Vehicle Xuande X6 270hp 6X4(10 wheels) 8m Truck Mounted Crane, and what does it include?

SHACMAN Commercial Vehicle Xuande X6 270hp 6X4(10 wheels) 8m Truck Mounted Crane export reference is about From $31,583; MSRP is ¥22.74M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SHACMAN Commercial Vehicle Xuande X6 270hp 6X4(10 wheels) 8m Truck Mounted Crane use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Commercial Vehicle Xuande X6 270hp 6X4(10 wheels) 8m Truck Mounted Crane?

Key specs of SHACMAN Commercial Vehicle Xuande X6 270hp 6X4(10 wheels) 8m Truck Mounted Crane: Drive: 6x4; Horsepower: 270 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Commercial Vehicle Xuande X6 270hp 6X4(10 wheels) 8m Truck Mounted Crane suited for?

SHACMAN Commercial Vehicle Xuande X6 270hp 6X4(10 wheels) 8m Truck Mounted Crane is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does SHACMAN Commercial Vehicle Xuande X6 270hp 6X4(10 wheels) 8m Truck Mounted Crane differ from other variants in the same series?

SHACMAN Commercial Vehicle Xuande X6 270hp 6X4(10 wheels) 8m Truck Mounted Crane belongs to SHACMAN Xuande X6 Heavy-Duty Truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Commercial Vehicle Xuande X6 270hp 6X4(10 wheels) 8m Truck Mounted Crane?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Commercial Vehicle Xuande X6 270hp 6X4(10 wheels) 8m Truck Mounted Crane?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
