Sinotruk (formerly Sinotruk Ace) Jieshi 4X2(6 wheels) 160 hp Truck-Mounted Crane
EXW
From $31,944
Export quote

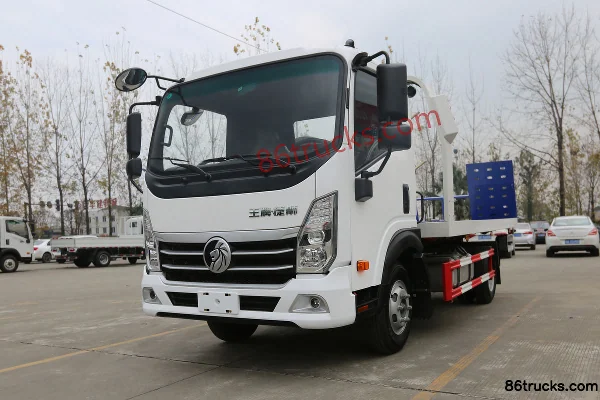

Sinotruk Jieshi Light Truck truck-mounted crane
Main model photos
60 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk (formerly Sinotruk Ace) Jieshi 4X2(6 wheels) 160 hp Truck-Mounted Crane | 4x2 / 160hp / China VI | From $31,944 | |
| Sinotruk (formerly Sinotruk Ace) Jieshi 4X2(6 wheels) 160 hp Truck-Mounted Crane (Fast Gear) | 4x2 / 160hp / China V | From $31,667 | |
| Sinotruk (formerly Sinotruk Ace) Jieshi 4X2(6 wheels) 160 hp Truck-Mounted Crane | 4x2 / 160hp / China V | From $31,944 | |
| Sinotruk (formerly Sinotruk Ace) Jieshi 4X2(6 wheels) 129hp truck-mounted crane | 4x2 / 129hp / China V | From $30,139 | |
| Sinotruk (formerly Sinotruk Ace) Jieshi 4X2(6 wheels) 130hp truck-mounted crane | 4x2 / 130hp / China V | From $29,861 |
Sinotruk (formerly Sinotruk Ace) Jieshi 4X2(6 wheels) 160 hp Truck-Mounted Crane (Fast Gear)
EXW
From $31,667
Export quote
Sinotruk (formerly Sinotruk Ace) Jieshi 4X2(6 wheels) 160 hp Truck-Mounted Crane
EXW
From $31,944
Export quote
Sinotruk (formerly Sinotruk Ace) Jieshi 4X2(6 wheels) 129hp truck-mounted crane
EXW
From $30,139
Export quote
Sinotruk (formerly Sinotruk Ace) Jieshi 4X2(6 wheels) 130hp truck-mounted crane
EXW
From $29,861
Export quote
Series Specs
Basic Info
Cab dimensions: 7.325×2.55×3.55 / 8.2×2.45×3.6 / 7.55×2.45×3.5 / 7.33×2.26×3.5 / 5.995×2.2×3.2m
Type: truck-mounted crane / Truck with crane
Drive type: 4X2
Wheelbase: 3900 / 5000 / 4500 / 3360mm
Rated mass: 4.995 / 7.58 / 4.385 / 2.5 / 3.8ton
Front track width: 1810mm
rear track: 1800mm
GVWR: 14.06 / 15.775 / 11.48 / 9.495ton
Front/rear suspension: 1.28/2.145 / 1.28/2.42 / 1.28/2.17 / 1.285/2.145 / 1.285/1.355m
Energy Type: Diesel
Body Parameters
Other special notes: Optional 5T, 6.3T crane; optional 4.5m/4.3m cargo box
Crane model: SPS16000 / SQ8SK3Q / SQ5SK2Q,URV503,ST093 / SQ3.2SK1Q
Lifting capacity: 7.5 / 8 / 3.5 / 3.2ton
crane self-weight: 2.65 / 3.3 / 2.2 / 1.105ton
Vehicle certification code: CDW5140JSQHA1R6 / CDW5160JSQA1R5 / CDW5110JSQHA2R5 / CDW5090JSQHA1R5 / CDW5091JSQHA1R5
Body Brand: SANY PALFINGER
Engine parameters
Engine Brand: Weichai / Yuchai / Yunnei Power / Xichai
Engine Model: WeichaiWP3NQ160E61 / YuchaiYC4S160-50 / Yunnei PowerYN38CRE1 / Xichai4DX23-130E5 / Yunnei PowerYNF40E2
Displacement: 2.97 / 3.767 / 3.76 / 3.857 / 3.92L
Emission standard: China VI / China V
Max output power: 118 / 95 / 97.5 / 115kW
Max hp: 160 / 129 / 130 / 156Horsepower
Max torque: 480 / 550 / 365 / 410 / 500N·m
Max torque speed: 1400-2300 / 1300-1800 / 1600-2400 / 1600-2000 / 1200-2000rpm
Rated speed: 3000 / 2600 / 2800rpm
Chassis Specs
Chassis Brand: Sinotruk王牌
Chassis Series: Jieshi
Chassis Model: CDW1140HA1R6J / CDW1160HA1R5 / CDW1110HA2R5 / CDW1090HA1R5
Frame Dimensions: 245×(10+8)-800mm
rear axle description: 9T / 8T; ratio 5.286 / 5.5T; ratio 5.286
Steering gear: Domestic
Axle ratio: 6.833 / 5.286
Leaf spring count: 11/11+9
Transmission Parameters
Number of gears: 10 / 8 / 5Gear
Transmission Model: SinotrukHW90510C / Fast Gear8JS85E / WLYWLY10H46
Cargo box parameters
Cargo box length: 4.5m
Cargo box width: 2.35m
Cargo box height: 0.55m
Cab parameters
Cab: 7 series
Tire
Tire Size: 9.00R20 16PR / 9.00R20 / 8.25-20 / 8.25R16
FAQ
What kind of truck is Sinotruk Sinotruk Jieshi Light Truck truck-mounted crane?
Sinotruk Sinotruk Jieshi Light Truck is an export-oriented truck-mounted crane lineup with about 9 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Sinotruk Jieshi Light Truck truck-mounted crane?
Sinotruk Jieshi Light Truck truck-mounted crane export reference is about $23,333 – $31,944. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Sinotruk Jieshi Light Truck truck-mounted crane cover?
Sinotruk Jieshi Light Truck truck-mounted crane mainly covers: Drive: 4x2; Horsepower: 129 hp / 130 hp / 160 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sinotruk Jieshi Light Truck truck-mounted crane?
For Sinotruk Jieshi Light Truck truck-mounted crane: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is truck-mounted crane typically used for?
truck-mounted crane specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Sinotruk Jieshi Light Truck truck-mounted crane include?
Sinotruk Jieshi Light Truck truck-mounted crane currently lists about 9 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sinotruk Jieshi Light Truck truck-mounted crane?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
