Dayun G6 165hp 4X2(6 wheels) Truck-mounted Crane (China VI)(Single Row)
EXW
Export quote

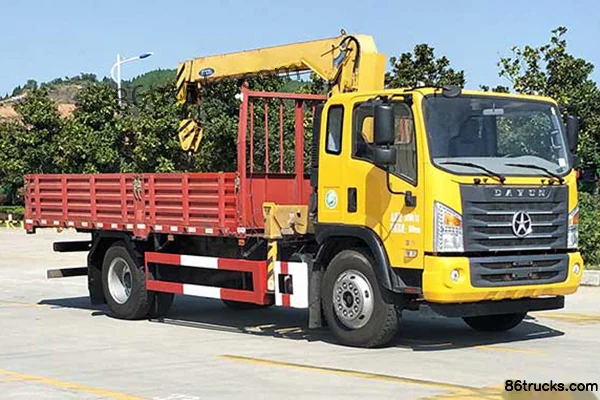

DayunG6 truck-mounted crane
Main model photos
373 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dayun G6 165hp 4X2(6 wheels) Truck-mounted Crane (China VI)(Single Row) | 4x2 / 165hp / China VI | ||
| Dayun G6 140hp 4X2(6 wheels) Truck-mounted Crane (China VI)(Single Row) | 4x2 / 140hp / China VI | ||
| Dayun G6 184hp 4X2(6 wheels) Truck-mounted Crane (China VI)(Axle Ratio 6.167) | 4x2 / 184hp / China VI | ||
| Dayun G6 140hp 4X2(6 wheels) Truck-mounted Crane (China VI)(Axle Ratio 5.286) | 4x2 / 140hp / China VI | ||
| Dayun G6 160 hp 4X2(6 wheels) Truck Mounted Crane (China VI) (Ratio 5.833) | 4x2 / 160hp / China VI |
Dayun G6 140hp 4X2(6 wheels) Truck-mounted Crane (China VI)(Single Row)
EXW
Export quote
Dayun G6 184hp 4X2(6 wheels) Truck-mounted Crane (China VI)(Axle Ratio 6.167)
EXW
Export quote
Dayun G6 140hp 4X2(6 wheels) Truck-mounted Crane (China VI)(Axle Ratio 5.286)
EXW
Export quote
Dayun G6 160 hp 4X2(6 wheels) Truck Mounted Crane (China VI) (Ratio 5.833)
EXW
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dayun G6 180hp 4X2(6 wheels) Truck-mounted Crane | 4x2 / 180hp / China VI | ||
| Dayun G6 184hp 4X2(6 wheels) Truck-mounted Crane | 4x2 / 184hp / China VI | ||
| Dayun G6 200hp 4X2(6 wheels) Truck-mounted Crane (153 front axle) | 4x2 / 200hp / China VI | ||
| Dayun G6 160 hp 4X2(6 wheels) truck-mounted crane (wheelbase 4.1m) | 4x2 / 160hp / China VI | ||
| Dayun G6 200hp 4X2(6 wheels) truck-mounted crane | 4x2 / 200hp / China VI |
Dayun G6 180hp 4X2(6 wheels) Truck-mounted Crane
EXW
Export quote
Dayun G6 184hp 4X2(6 wheels) Truck-mounted Crane
EXW
Export quote
Dayun G6 200hp 4X2(6 wheels) Truck-mounted Crane (153 front axle)
EXW
Export quote
Dayun G6 160 hp 4X2(6 wheels) truck-mounted crane (wheelbase 4.1m)
EXW
Export quote
Dayun G6 200hp 4X2(6 wheels) truck-mounted crane
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 7.65×2.55×3.8 / 6.79×2.55×3.35 / 9×2.55×3.85 / 7.34×2.4×3.65 / 8.27×2.55×3.75 / 8.27×2.5×3.75 / 7.655×2.5×3.75 / 7.34×2.5×3.75 / 8.12×2.5×3.85 / 7.3×2.55×3.8 / 6.87×2.55×3.8 / 7.57×2.55×3.8 / 7.57×2.55×3.7 / 6.13×2.55×3.35 / 8.27×2.4×3.65m
Type: truck-mounted crane / Truck with crane
Drive type: 4X2
Wheelbase: 4100 / 3600 / 5150 / 3900 / 4500 / 4400 / 3300mm
Rated mass: 3.8 / 4.77 / 6.17 / 3.865 / 4.705ton
GVWR: 11.2 / 46.2 / 14ton
Remarks: Option: Axle ratio 5.571
Front/rear suspension: 1.3/2.25 / 1.22/1.97 / 1.3/2.55 / 1.3/2.14 / 1.3/2.47 / 1.3/2.255 / 1.3/2.42 / 1.3/2.1 / 1.3/1.97 / 1.22/2.25 / 1.22/1.61m
Energy Type: Diesel
Body Parameters
Crane model: SQZ84.2 / S2005 / BTSQ503 / SQ5SK3Q
Lifting capacity: 4 / 7 / 5ton
crane self-weight: 1.29 / 3.1 / 2.12 / 2.26ton
Vehicle certification code: DYQ5115JSQD6AB / DYQ5111JSQD6AB / DYQ5162JSQD6AB / DYQ5141JSQD6AB
Body Brand: Dayun
Engine parameters
Engine Brand: Yuchai / Yunnei Power
Engine Model: YuchaiYCY30165-60 / YuchaiYCY24140-60 / Yunnei PowerD40TCIF1 / YuchaiYCS04160-68 / YuchaiYCS04180-68 / YuchaiYCS04200-68 / Yunnei PowerD30TCIF1 / Yunnei PowerD25TCIF1 / YuchaiYCS04140-68
Displacement: 2.97 / 2.36 / 4 / 4.16 / 3 / 2.5L
Emission standard: China VI
Max output power: 121 / 103 / 135 / 118 / 132 / 147 / 125 / 110kW
Max hp: 165 / 140 / 184 / 160 / 180 / 200 / 170 / 150Horsepower
Max torque: 500 / 400 / 660 / 550 / 650 / 720 / 450N·m
Max torque speed: 1400-2200 / 1400-2000 / 1200-2000 / 1200-1900 / 1200-1600 / 1200-2200 / 1200-2600rpm
Rated speed: 2800 / 2950 / 2300 / 3000rpm
Chassis Specs
Chassis Brand: Dayun
Chassis Series: G6 / DayunG6
Chassis Model: DYQ1115D6AA / DYQ1111D6AA / DYQ1162D6AA / DYQ1141D6AA
Frame Dimensions: 860×232×(7+4+4) / 800×200×(7+4+4) / 800×280×(8+6+4) / 800×250×(7+5+4) / 800×250×(7+5+5) / 800×232×(7+4+4)mm
rear axle description: 1089 standard axle/7t / 1089 short axle/7t / 153 Shortened Axle/10t / 1094 shortened axle/9t / 145 standard axle/8t / 10T / 9T
Axle ratio: 4.875 / 5.286 / 6.167 / 5.833 / 5.143 / 5.571 / 6.5
Leaf spring count: 9/10+8 / 9/9+6 / 9/10+8,9/9+6 / 3/8+6,9/10+8,9/9+6
Transmission Parameters
Number of gears: 8 / 5 / 6Gear
Transmission Model: Fast Gear8JS75E-C / WLYWLY10H46 / Fast Gear8JS85E-C / Fast Gear8JS55E-C / Fast Gear 8-speed / WLY 6-speed
Cab parameters
Cab: Single row standard roof / Day cab standard roof / Sleeper cab
Tire
Tire Size: 8.25R16LT 18PR / 10.00R20 18PR / 8.25R20 16PR / 9.00R20 16PR / 8.25R20 14PR / 9.00-20 16PR,9.00R20 16PR
Number of tires: 6pcs
interior configuration
AC control type: Manual
Power Windows:
Multimedia features
GPS/Beidou driving recorder:
Radio:
lighting configuration
Front fog lamp:
FAQ
What kind of truck is Dayun DayunG6 truck-mounted crane?
Dayun DayunG6 is an export-oriented truck-mounted crane lineup with about 27 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for DayunG6 truck-mounted crane?
DayunG6 truck-mounted crane export reference is about $10,972 – $16,181. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does DayunG6 truck-mounted crane cover?
DayunG6 truck-mounted crane mainly covers: Drive: 4x2; Horsepower: 140 hp / 160 hp / 165 hp / 180 hp / 184 hp / 200 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in DayunG6 truck-mounted crane?
For DayunG6 truck-mounted crane: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is truck-mounted crane typically used for?
truck-mounted crane specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does DayunG6 truck-mounted crane include?
DayunG6 truck-mounted crane currently lists about 27 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for DayunG6 truck-mounted crane?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
