Dayun G6 180hp 4X2(6 wheels) Truck-mounted Crane

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Wheelbase:: 4500mm
Cab dimensions:: 8.27×2.55×3.75m
Type:: truck-mounted crane
GVWR:: 14ton
Dayun G6 180hp 4X2(6 wheels) Truck-mounted Crane exterior
View more photos (9)
Lifting capacity: 5ton
Drive 4X2 (6 wheels)
Horsepower 180
Rated mass: 4.77ton

Overview

The Dayun G6 180hp 4X2(6 wheels) Truck-mounted Crane is a truck-mounted crane featuring 5ton tank capacity, 14t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 180 hp, China VI emissions and Diesel fuel.

China VI 180 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Cab dimensions: 8.27×2.55×3.75m
Type: truck-mounted crane
Drive type: 4X2
Wheelbase: 4500mm
Rated mass: 4.77ton
GVWR: 14ton
Remarks: Option: Axle ratio 5.571
Front/rear suspension: 1.3/2.47m
Energy Type: Diesel
Body Parameters
Crane model: BTSQ503
Lifting capacity: 5ton
crane self-weight: 2.12ton
Vehicle certification code: DYQ5141JSQD6AB
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCS04180-68
fuel type: Diesel
Displacement: 4.16L
Emission standard: China VI
Max output power: 132kW
Max hp: 180Horsepower
Max torque: 650N·m
Max torque speed: 1200-1900rpm
Rated speed: 2300rpm
Chassis Specs
Chassis Brand: Dayun
Chassis Series: G6
Chassis Model: DYQ1141D6AA
Frame Dimensions: 800×250×(7+5+5)mm
rear axle description: 1094 shortened axle/9t
Axle ratio: 4.875
Leaf spring count: 9/10+8,9/9+6
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear8JS85E-C
Cab parameters
Cab: Sleeper cab
Tire
Tire Size: 8.25R20 16PR
Number of tires: 6pcs
interior configuration
AC control type: Manual
Power Windows:
Multimedia features
GPS/Beidou driving recorder:
Radio:
lighting configuration
Front fog lamp:
Headlight height adjustment:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Exhaust brake:

Photos

Exterior3

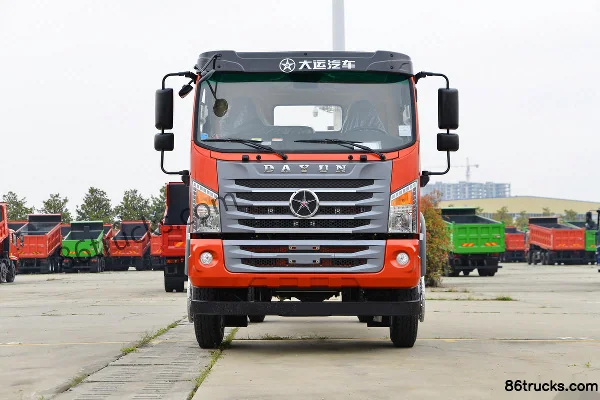

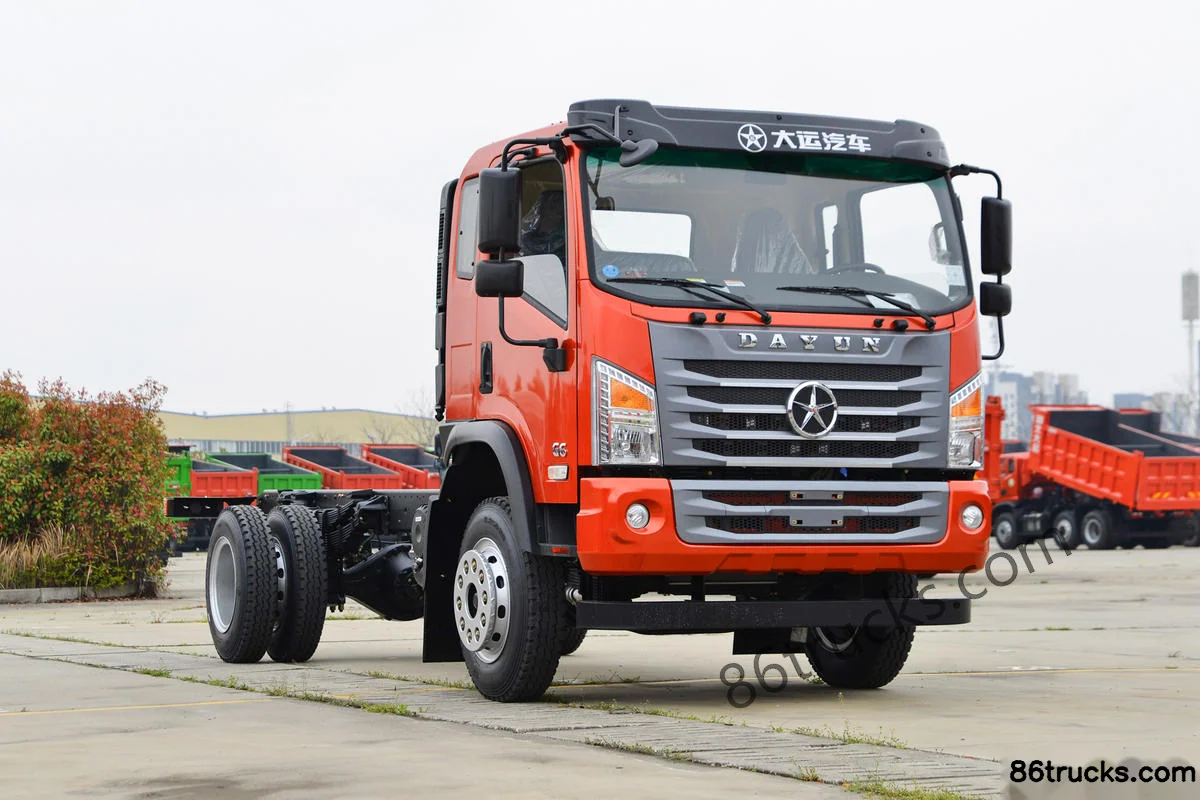

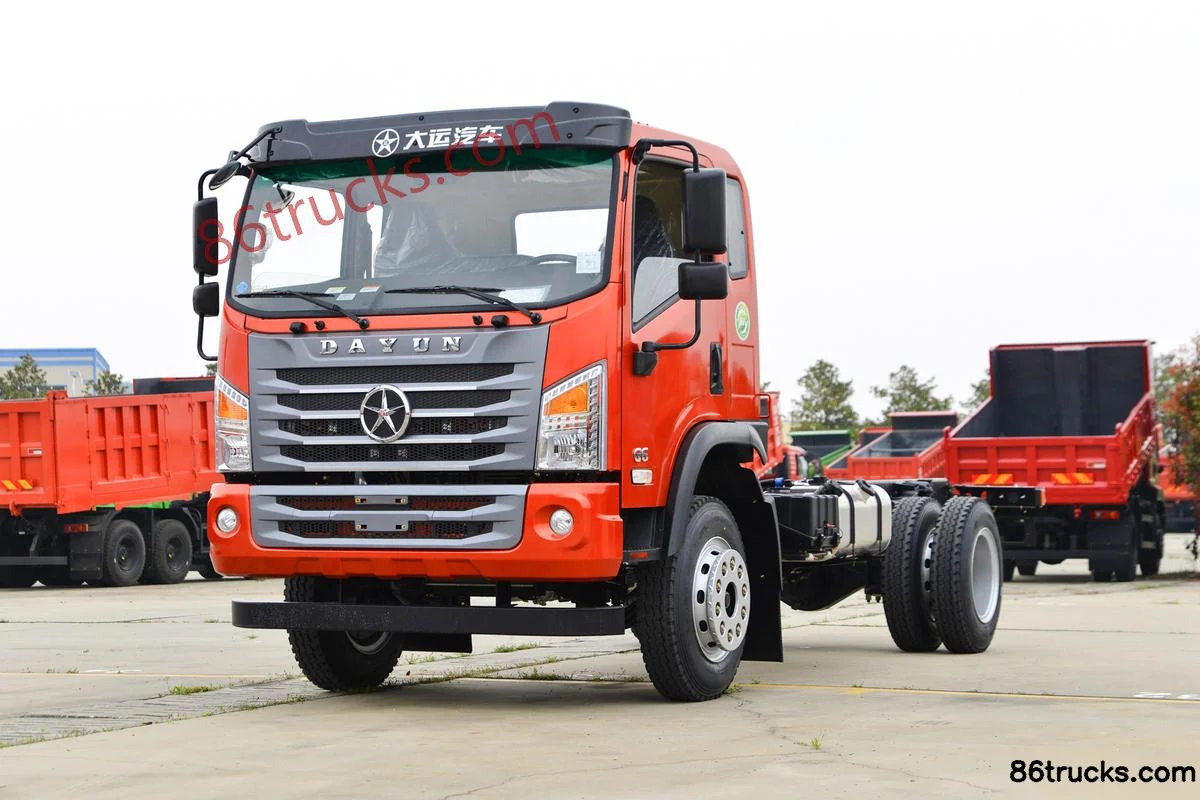

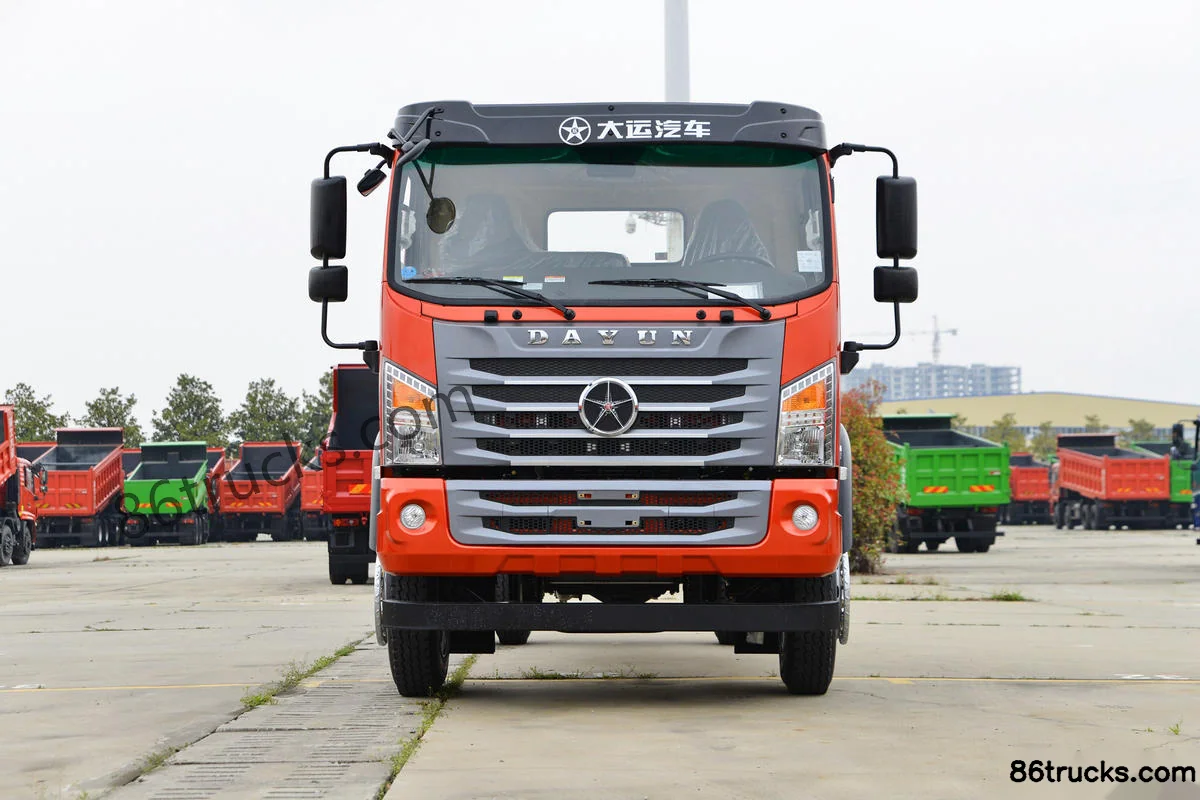

Dayun G6 180hp 4X2(6 wheels) Truck-mounted Crane Exterior (1) | 86Trucks Dayun G6 180hp 4X2(6 wheels) Truck-mounted Crane Exterior (2) | 86Trucks Dayun G6 180hp 4X2(6 wheels) Truck-mounted Crane Exterior (3) | 86Trucks

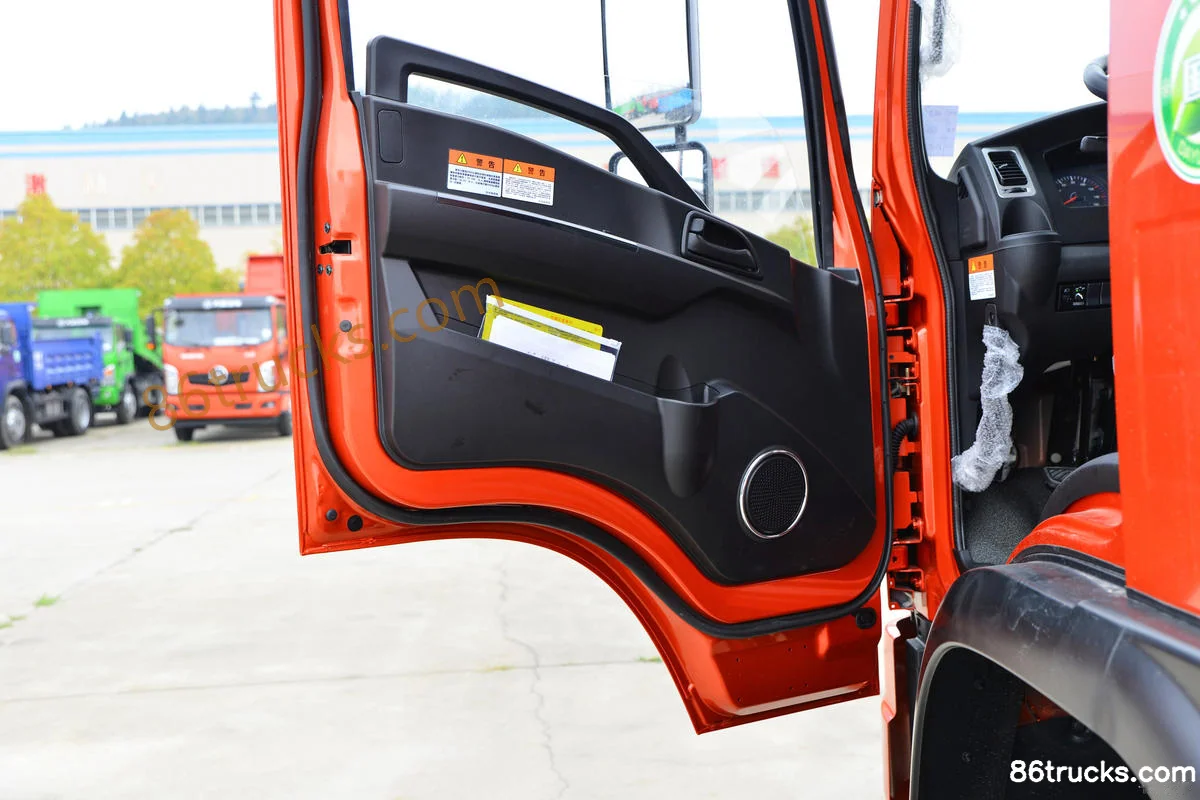

Cab3

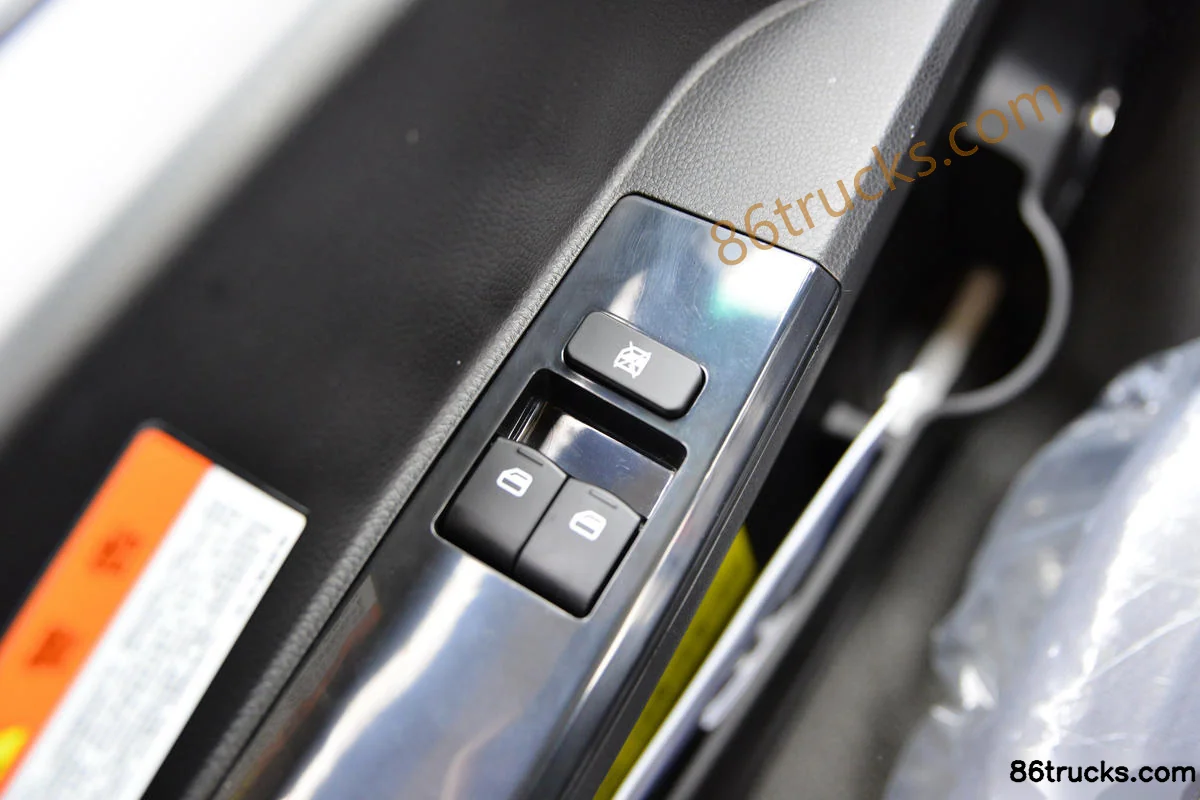

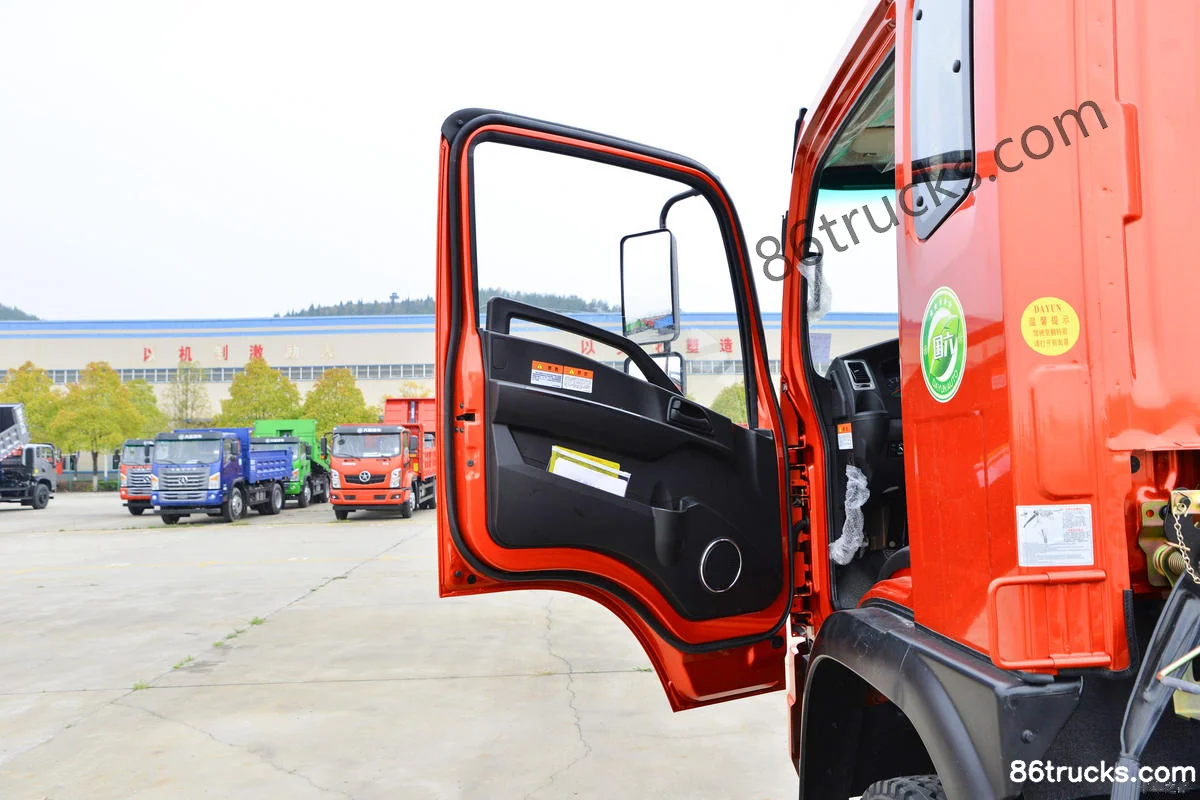

Dayun G6 180hp 4X2(6 wheels) Truck-mounted Crane Cab (1) | 86Trucks Dayun G6 180hp 4X2(6 wheels) Truck-mounted Crane Cab (2) | 86Trucks Dayun G6 180hp 4X2(6 wheels) Truck-mounted Crane Cab (3) | 86Trucks

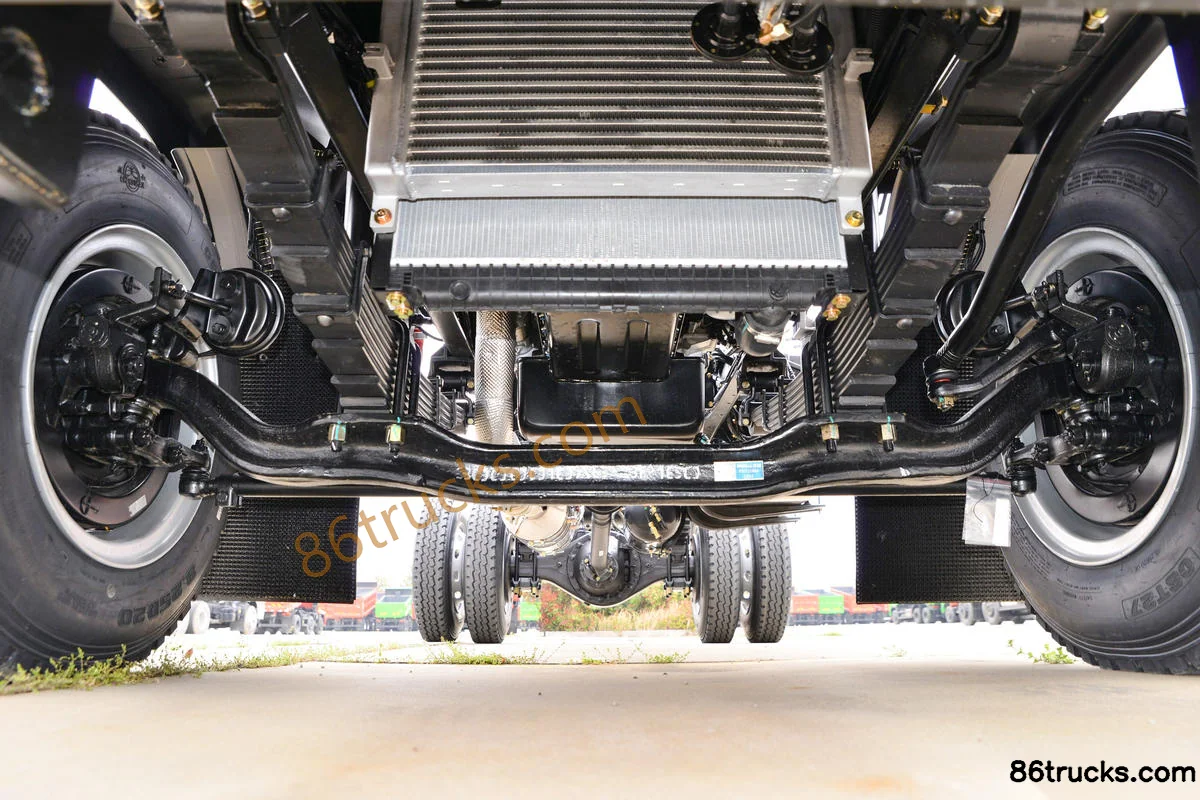

Chassis3

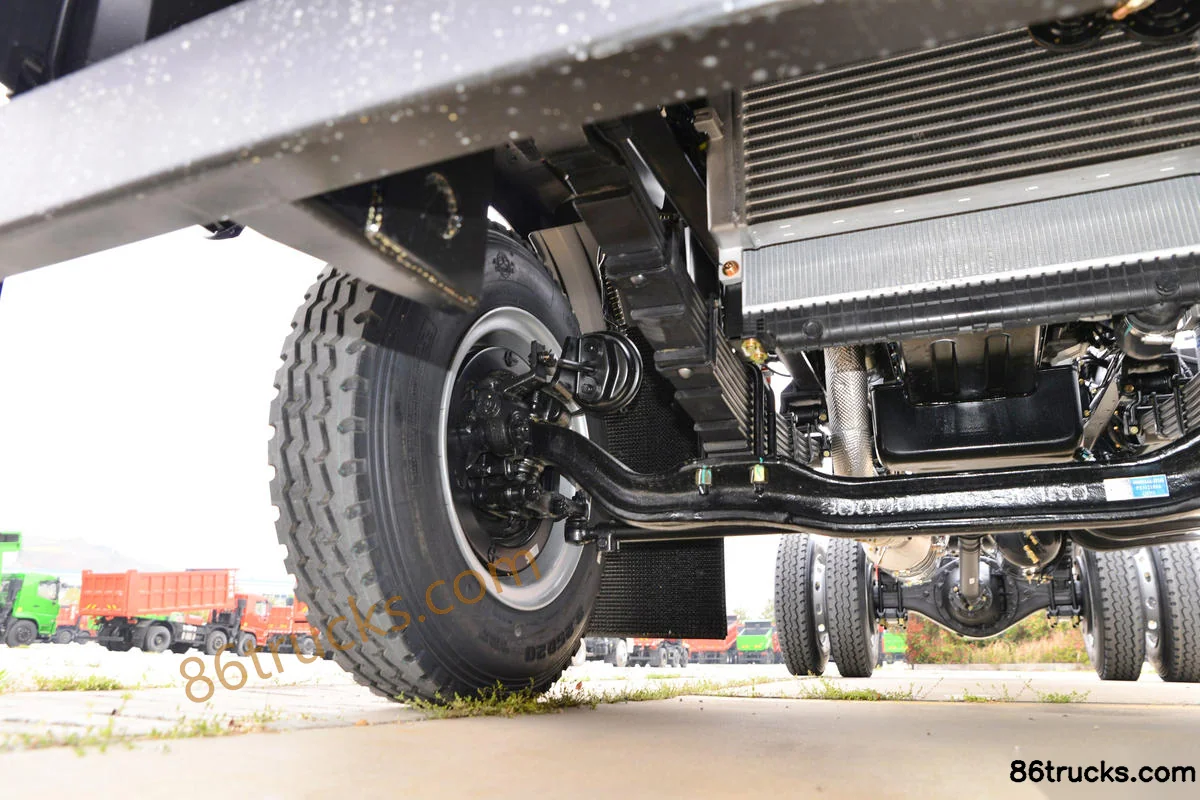

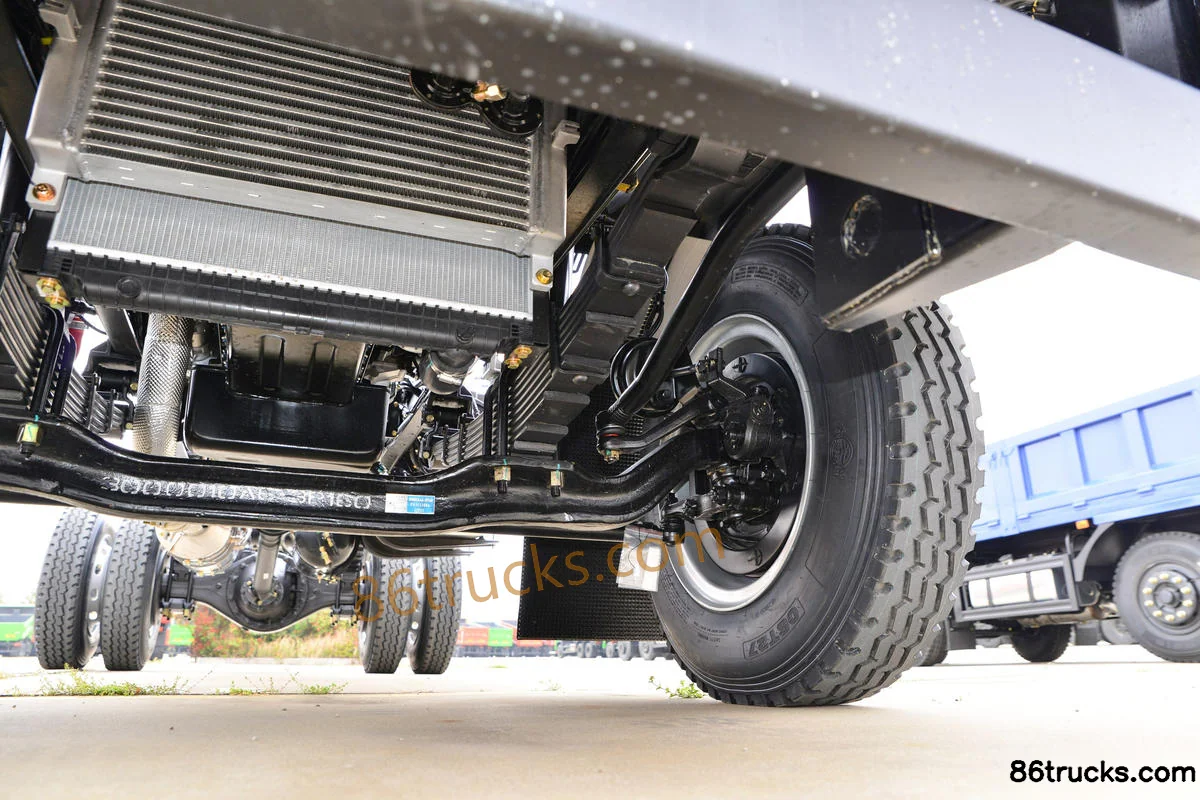

Dayun G6 180hp 4X2(6 wheels) Truck-mounted Crane Chassis (1) | 86Trucks Dayun G6 180hp 4X2(6 wheels) Truck-mounted Crane Chassis (2) | 86Trucks Dayun G6 180hp 4X2(6 wheels) Truck-mounted Crane Chassis (3) | 86Trucks

9 photos

FAQ

What emission standard does Dayun G6 180hp 4X2(6 wheels) Truck-mounted Crane use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dayun G6 180hp 4X2(6 wheels) Truck-mounted Crane?

Key specs of Dayun G6 180hp 4X2(6 wheels) Truck-mounted Crane: Drive: 4x2; Horsepower: 180 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dayun G6 180hp 4X2(6 wheels) Truck-mounted Crane suited for?

Dayun G6 180hp 4X2(6 wheels) Truck-mounted Crane is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Dayun G6 180hp 4X2(6 wheels) Truck-mounted Crane differ from other variants in the same series?

Dayun G6 180hp 4X2(6 wheels) Truck-mounted Crane belongs to DayunG6 (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dayun G6 180hp 4X2(6 wheels) Truck-mounted Crane?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dayun G6 180hp 4X2(6 wheels) Truck-mounted Crane?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
