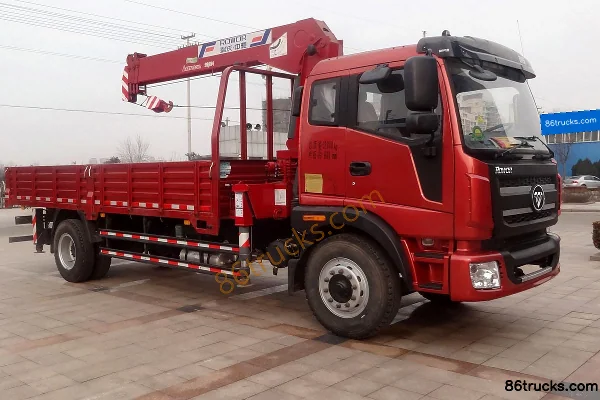

Foton Ruiwo Q5 170hp 4X2(6 wheels) truck-mounted crane
EXW
From $33,264
Export quote
FotonQ5 truck-mounted crane
Main model photos
491 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Ruiwo Q5 170hp 4X2(6 wheels) truck-mounted crane | 4x2 / 170hp / China V | From $33,264 | |
| Foton 168hp 4X2(6 wheels) 6.3-ton Truck-Mounted Crane | 4x2 / 168hp / China IV |
Foton 168hp 4X2(6 wheels) 6.3-ton Truck-Mounted Crane
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 9.0×2.52×3.66 / 9.0×2.5×3.43m
Type: truck-mounted crane
Drive type: 4X2
Wheelbase: 4500 / 5250mm
Rated mass: 7.06 / 9.15ton
GVWR: 18 / 15.795ton
Front/rear suspension: 1.35/2.4 / 1.425/2.325m
Energy Type: Diesel
Body Parameters
Crane model: STSQ6S4 / SQ604
Lifting capacity: 6 / 6.3ton
crane self-weight: 4ton
Vehicle certification code: BJ5185JSQ-FA / BJ5165JSQ-2
Body Brand: Foton
Engine parameters
Engine Brand: Yuchai / Foton
Engine Model: YuchaiYC4S170-50 / FotonISF3.8s4R168
Displacement: 3.76L
Emission standard: China V / China IV
Max output power: 125kW
Max hp: 170 / 168Horsepower
Max torque: 600N·m
Max torque speed: 1300-1800 / 1300-1700rpm
Rated speed: 2600rpm
Chassis Specs
Chassis Brand: Foton
Chassis Series: Foton Ruiwo Q5
Chassis Model: BJ1185VLPEN-FA / BJ1165VKPHK-1
rear axle description: 9T / 1153 spring brake
Leaf spring count: 8/10+8,4/10+3,10/10+9 / 8/10+8
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear 8-speed / Fast Gear8JS75TB
Tire
Tire Size: 10.00R20 18PR / 9.00R20
Number of tires: 6pcs
FAQ
What kind of truck is Foton FotonQ5 truck-mounted crane?
Foton FotonQ5 is an export-oriented truck-mounted crane lineup with about 2 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for FotonQ5 truck-mounted crane?
FotonQ5 truck-mounted crane export reference is about From $33,264. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does FotonQ5 truck-mounted crane cover?
FotonQ5 truck-mounted crane mainly covers: Drive: 4x2; Horsepower: 168 hp / 170 hp; Emission: China IV / China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in FotonQ5 truck-mounted crane?
For FotonQ5 truck-mounted crane: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is truck-mounted crane typically used for?
truck-mounted crane specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does FotonQ5 truck-mounted crane include?
FotonQ5 truck-mounted crane currently lists about 2 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for FotonQ5 truck-mounted crane?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
