Shidai Jingang 115hp 4X2(6 wheels) Truck Mounted Crane
EXW
Export quote
Foton King Light Truck truck-mounted crane
Main model photos
216 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Shidai Jingang 115hp 4X2(6 wheels) Truck Mounted Crane | 4x2 / 115hp / China III / Euro III | ||
| Shidai Jingang 100 hp 4X2(6 wheels) truck-mounted crane | 4x2 / 100hp / China III / Euro III | ||
| Shidai Jingang 125 hp 4X2(6 wheels) truck-mounted crane | 4x2 / 125hp / China III / Euro III |

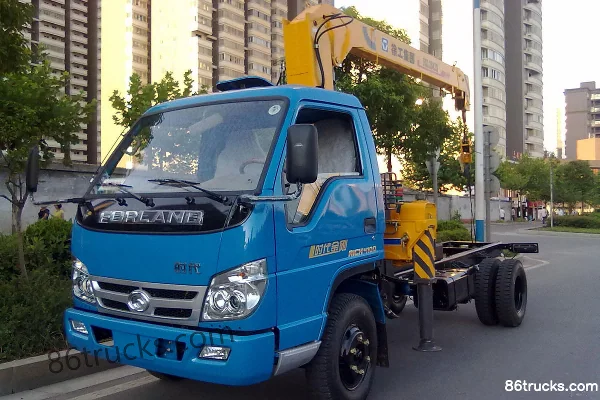

Shidai Jingang 100 hp 4X2(6 wheels) truck-mounted crane
EXW
Export quote

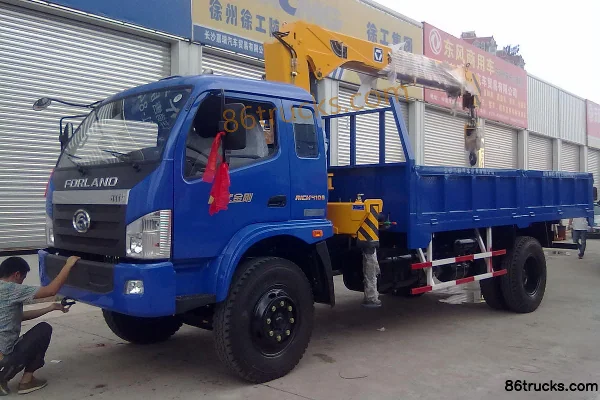

Shidai Jingang 125 hp 4X2(6 wheels) truck-mounted crane
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 7.215×2.35×3.58 / 6600×2200×3150 / 7.295×2.49×3m
Type: truck-mounted crane
Drive type: 4X2
Wheelbase: 3900 / 3600mm
Rated mass: 2.855 / 3.99ton
GVWR: 7.35 / 11.665ton
Front/rear suspension: 1.12/1.88 / 1.255/2.14m
Energy Type: Diesel
Body Parameters
Crane model: SQ3.2ZQ3 / SQ5SK3Q
Lifting capacity: 3.2 / 5ton
crane self-weight: 1 / 1.8ton
Vehicle certification code: BJ5072JSQ-F1 / BJ5122V4PBB-A1
Body Brand: Foton / XCMG brand
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei Power YN38PE-1 / Yunnei Power YN33PE-1 / Yunnei Power YN33CR-4
Displacement: 3.76 / 3 / 3.298L
Emission standard: China III / Euro III
Max output power: 85 / 76 / 93kW
Max hp: 115 / 100 / 125Horsepower
Max torque: 320N·m
Max torque speed: 1800-2200rpm
Rated speed: 3000rpm
Chassis Specs
Chassis Brand: Foton
Chassis Series: King Kong
Chassis Model: BJ1072V3JBB-F1 / BJ1122V4PBB-A1
Leaf spring count: 9/8+6 / 9/11+8
Transmission Parameters
Number of gears: 5Gear
Transmission Model: 140 / 145HF
Tire
Tire Size: 8.25R20 / 7.00-16 / 8.25-20
Number of tires: 6pcs
FAQ
What kind of truck is Foton Foton King Light Truck truck-mounted crane?
Foton Foton King Light Truck is an export-oriented truck-mounted crane lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Foton King Light Truck truck-mounted crane cover?
Foton King Light Truck truck-mounted crane mainly covers: Drive: 4x2; Horsepower: 100 hp / 115 hp / 125 hp; Emission: China III / Euro III; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Foton King Light Truck truck-mounted crane?
For Foton King Light Truck truck-mounted crane: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is truck-mounted crane typically used for?
truck-mounted crane specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Foton King Light Truck truck-mounted crane include?
Foton King Light Truck truck-mounted crane currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Foton King Light Truck truck-mounted crane?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
