Dayun G6 165hp 4X2(6 wheels) Truck-mounted Crane (China VI)(Single Row)

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Wheelbase:: 4100mm
Cab dimensions:: 7.65×2.55×3.8m
Type:: truck-mounted crane
GVWR:: 11.2ton
Lifting capacity: 4ton
Drive 4X2 (6 wheels)
Horsepower 165
Rated mass: 3.8ton

Overview

The Dayun G6 165hp 4X2(6 wheels) Truck-mounted Crane (China VI)(Single Row) is a truck-mounted crane featuring 4ton tank capacity, 11.2t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 165 hp, China VI emissions and Diesel fuel.

China VI 165 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 7.65×2.55×3.8m
Type: truck-mounted crane
Drive type: 4X2
Wheelbase: 4100mm
Rated mass: 3.8ton
GVWR: 11.2ton
Front/rear suspension: 1.3/2.25m
Energy Type: Diesel
Body Parameters
Crane model: SQZ84.2
Lifting capacity: 4ton
crane self-weight: 1.29ton
Vehicle certification code: DYQ5115JSQD6AB
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCY30165-60
fuel type: Diesel
Displacement: 2.97L
Emission standard: China VI
Max output power: 121kW
Max hp: 165Horsepower
Max torque: 500N·m
Max torque speed: 1400-2200rpm
Rated speed: 2800rpm
Chassis Specs
Chassis Brand: Dayun
Chassis Series: G6
Chassis Model: DYQ1115D6AA
Frame Dimensions: 860×232×(7+4+4)mm
rear axle description: 1089 standard axle/7t
Axle ratio: 4.875
Leaf spring count: 9/10+8
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear8JS75E-C
Cab parameters
Cab: Single row standard roof
Tire
Tire Size: 8.25R16LT 18PR
Number of tires: 6pcs

Photos

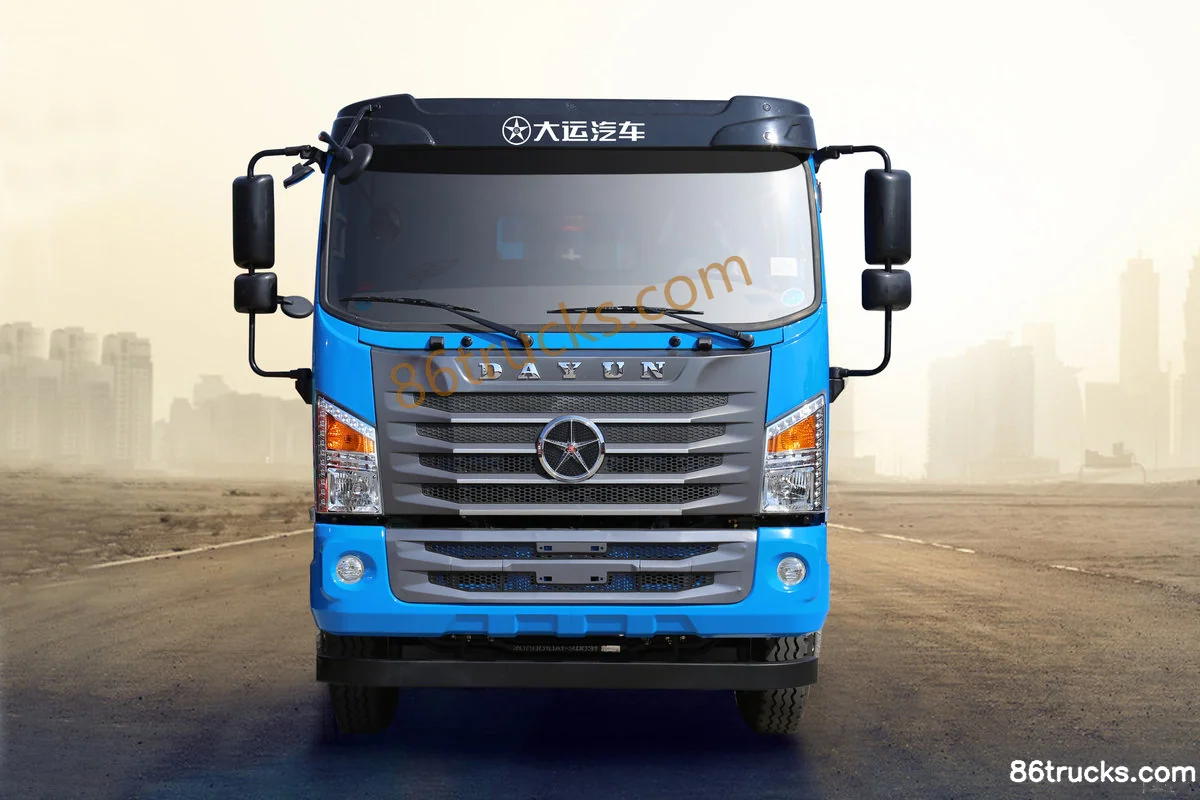

Exterior1

1 photos

FAQ

What emission standard does Dayun G6 165hp 4X2(6 wheels) Truck-mounted Crane (China VI)(Single Row) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dayun G6 165hp 4X2(6 wheels) Truck-mounted Crane (China VI)(Single Row)?

Key specs of Dayun G6 165hp 4X2(6 wheels) Truck-mounted Crane (China VI)(Single Row): Drive: 4x2; Horsepower: 165 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dayun G6 165hp 4X2(6 wheels) Truck-mounted Crane (China VI)(Single Row) suited for?

Dayun G6 165hp 4X2(6 wheels) Truck-mounted Crane (China VI)(Single Row) is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Dayun G6 165hp 4X2(6 wheels) Truck-mounted Crane (China VI)(Single Row) differ from other variants in the same series?

Dayun G6 165hp 4X2(6 wheels) Truck-mounted Crane (China VI)(Single Row) belongs to DayunG6 (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dayun G6 165hp 4X2(6 wheels) Truck-mounted Crane (China VI)(Single Row)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dayun G6 165hp 4X2(6 wheels) Truck-mounted Crane (China VI)(Single Row)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
