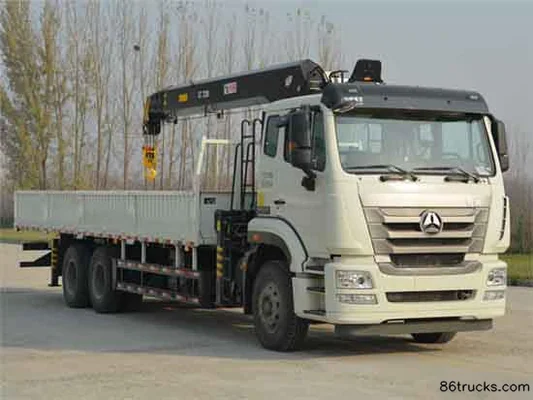

Sinotruk Hohan J5G 280 hp 6X4(10 wheels) Truck-mounted Crane (Sinotruk brand)
EXW
From $45,833
Export quote
Sinotruk Sinotruk chassis truck-mounted crane
Main model photos
5 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk Hohan J5G 280 hp 6X4(10 wheels) Truck-mounted Crane (Sinotruk brand) | 6x4 / 280hp / China V | From $45,833 | |
| Sinotruk Hohan J5G 280 hp 6X4(10 wheels) Truck-mounted Crane (Sinotruk brand) | 6x4 / 280hp / China V | From $45,833 |
Sinotruk Hohan J5G 280 hp 6X4(10 wheels) Truck-mounted Crane (Sinotruk brand)
EXW
From $45,833
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk Hohan J5G 210 hp 4X2(6 wheels) Truck-mounted Crane (Sinotruk brand) | 4x2 / 210hp / China V | ||
| Sinotruk Hohan J5G 310 hp 8X4(12 wheels) Truck-mounted Crane (Sinotruk brand) | 8x4 / 310hp / China V | ||
| Sinotruk Hohan J5G 310 hp 6X2(8 wheels) Truck-mounted Crane (Sinotruk brand) | 6x2 / 310hp / China V |
Sinotruk Hohan J5G 210 hp 4X2(6 wheels) Truck-mounted Crane (Sinotruk brand)
EXW
Export quote
Sinotruk Hohan J5G 310 hp 8X4(12 wheels) Truck-mounted Crane (Sinotruk brand)
EXW
Export quote
Sinotruk Hohan J5G 310 hp 6X2(8 wheels) Truck-mounted Crane (Sinotruk brand)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 8.995×2.44×3.34 / 11.99×2.55×3.53 / 11.99×2.55×3.6 / 11.99×2.55×3.64m
Type: Truck with crane
Drive type: 4X2 / 6X4 / 8X4 / 6X2
Wheelbase: 5100 / 5825+1350 / 2150+4250+1350 / 2150+5250mm
Rated mass: 6.495 / 9.305 / 14.405 / 9.37 / 10.405ton
GVWR: 16 / 25 / 31ton
Front/rear suspension: 1.35/2.545 / 1.55/3.265 / 1.55/2.69 / 1.55/3.04m
Energy Type: Diesel
Body Parameters
Crane model: ST 170 / ST 220 / ST260
Lifting capacity: 6.3 / 8 / 10ton
crane self-weight: 2.45 / 4.08 / 4.1ton
Vehicle certification code: AB5161JSQ / AB5253JSQ / AB5310JSQ / AB5252JSQ
Body Brand: Sinotruk牌
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC05.21-50 / SinotrukMC07.28-50 / SinotrukMC07.31-50
Displacement: 4.58 / 6.87L
Emission standard: China V
Max output power: 151 / 206 / 228kW
Max hp: 210 / 280 / 310Horsepower
Max torque: 830 / 1100 / 1230N·m
Max torque speed: 1300-1700 / 1200-1800rpm
Rated speed: 2400 / 2300rpm
Chassis Specs
Chassis Brand: Sinotruk
Chassis Series: Hohan J5G
Chassis Model: ZZ1165G5113E1H / ZZ1255N5843E1 / ZZ5315JSQN4263E1 / ZZ5255JSQN52C3E1
Leaf spring count: 4/9+8 / 4/12 / 4/4/5 / 4/5,4/12 / 4/4/9+6
Transmission Parameters
Number of gears: 6 / 10Gear
Transmission Model: DachiDC6J70TC / SinotrukHW10
Cab parameters
Cab: Standard H16 Cab
Tire
Tire Size: 9.00R20,10.00R20 / 11.00R20 18PR / 11.00R20 18PR,12.00R20 18PR / 11.00R20
Number of tires: 6 / 10 / 12 / 8pcs
FAQ
What kind of truck is Sinotruk Sinotruk Sinotruk chassis truck-mounted crane?
Sinotruk Sinotruk Sinotruk chassis is an export-oriented truck-mounted crane lineup with about 5 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Sinotruk Sinotruk chassis truck-mounted crane?
Sinotruk Sinotruk chassis truck-mounted crane export reference is about From $45,833. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Sinotruk Sinotruk chassis truck-mounted crane cover?
Sinotruk Sinotruk chassis truck-mounted crane mainly covers: Drive: 4x2 / 6x2 / 6x4 / 8x4; Horsepower: 210 hp / 280 hp / 310 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sinotruk Sinotruk chassis truck-mounted crane?
For Sinotruk Sinotruk chassis truck-mounted crane: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is truck-mounted crane typically used for?
truck-mounted crane specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Sinotruk Sinotruk chassis truck-mounted crane include?
Sinotruk Sinotruk chassis truck-mounted crane currently lists about 5 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sinotruk Sinotruk chassis truck-mounted crane?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
