Sinotruk Hohan J5G 310 hp 6X2(8 wheels) Truck-mounted Crane (Sinotruk brand)

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Wheelbase:: 2150+5250mm
Cab dimensions:: 11.99×2.55×3.64m
Type:: Truck with crane
GVWR:: 25ton
Lifting capacity: 10ton
Drive 6X2 (8 wheels)
Horsepower 310
Rated mass: 10.405ton

Overview

The Sinotruk Hohan J5G 310 hp 6X2(8 wheels) Truck-mounted Crane (Sinotruk brand) is a truck-mounted crane featuring 10ton tank capacity, 25t GVW and 6X2 (8 wheels) drive. On the powertrain side, it comes with 310 hp, China V emissions and Diesel fuel.

China V 310 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 11.99×2.55×3.64m
Type: Truck with crane
Drive type: 6X2
Wheelbase: 2150+5250mm
Rated mass: 10.405ton
GVWR: 25ton
Front/rear suspension: 1.55/3.04m
Energy Type: Diesel
Body Parameters
Crane model: ST 260
Lifting capacity: 10ton
crane self-weight: 4.1ton
Vehicle certification code: AB5252JSQ
Body Brand: Sinotruk牌
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC07.31-50
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V
Max output power: 228kW
Max hp: 310Horsepower
Max torque: 1230N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Chassis Specs
Chassis Brand: Sinotruk
Chassis Series: Hohan J5G
Chassis Model: ZZ5255JSQN52C3E1
Leaf spring count: 4/4/9+6
Transmission Parameters
Number of gears: 10Gear
Transmission Model: SinotrukHW10
Cab parameters
Cab: Standard H16 Cab
Tire
Tire Size: 11.00R20
Number of tires: 8pcs

Photos

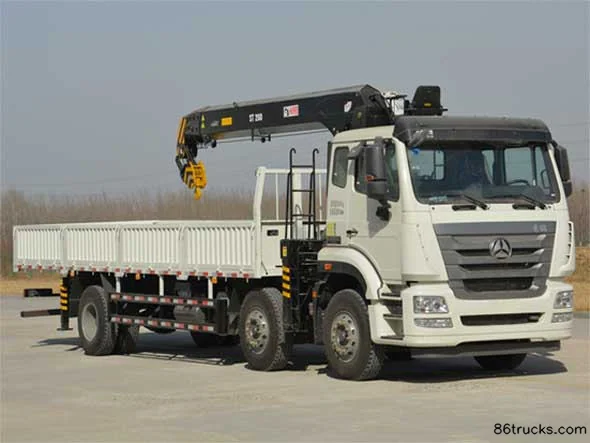

Exterior1

1 photos

FAQ

What emission standard does Sinotruk Hohan J5G 310 hp 6X2(8 wheels) Truck-mounted Crane (Sinotruk brand) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Hohan J5G 310 hp 6X2(8 wheels) Truck-mounted Crane (Sinotruk brand)?

Key specs of Sinotruk Hohan J5G 310 hp 6X2(8 wheels) Truck-mounted Crane (Sinotruk brand): Drive: 6x2; Horsepower: 310 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Hohan J5G 310 hp 6X2(8 wheels) Truck-mounted Crane (Sinotruk brand) suited for?

Sinotruk Hohan J5G 310 hp 6X2(8 wheels) Truck-mounted Crane (Sinotruk brand) is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Sinotruk Hohan J5G 310 hp 6X2(8 wheels) Truck-mounted Crane (Sinotruk brand) differ from other variants in the same series?

Sinotruk Hohan J5G 310 hp 6X2(8 wheels) Truck-mounted Crane (Sinotruk brand) belongs to Sinotruk Sinotruk chassis (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Hohan J5G 310 hp 6X2(8 wheels) Truck-mounted Crane (Sinotruk brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Hohan J5G 310 hp 6X2(8 wheels) Truck-mounted Crane (Sinotruk brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
