Dayun F7 Composite Type 240 hp 6X2(8 wheels) 7.3m Truck Mounted Crane (Middle Lift)
EXW
Export quote
DayunF7 truck-mounted crane
Main model photos
214 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dayun F7 Composite Type 240 hp 6X2(8 wheels) 7.3m Truck Mounted Crane (Middle Lift) | 6x4 / 240hp / China VI | ||
| Dayun F7 Heavy-Duty 270hp 6X4(10 wheels) 8.4m Truck-Mounted Crane (China VI) | 6x4 / 270hp / China VI | ||
| Dayun F7 Heavy-Duty 270hp 6X4(10 wheels) 8m Truck-Mounted Crane (China VI) | 6x4 / 270hp / China VI | ||
| Dayun F7 Composite 270hp 6X4(10 wheels) 8.4m Truck-Mounted Crane (China VI) | 6x4 / 270hp / China VI | ||
| Dayun F7 Composite 270hp 6X4(10 wheels) 6.7m Truck-Mounted Crane (China VI) | 6x4 / 270hp / China VI |
Dayun F7 Heavy-Duty 270hp 6X4(10 wheels) 8.4m Truck-Mounted Crane (China VI)
EXW
Export quote
Dayun F7 Heavy-Duty 270hp 6X4(10 wheels) 8m Truck-Mounted Crane (China VI)
EXW
Export quote
Dayun F7 Composite 270hp 6X4(10 wheels) 8.4m Truck-Mounted Crane (China VI)
EXW
Export quote

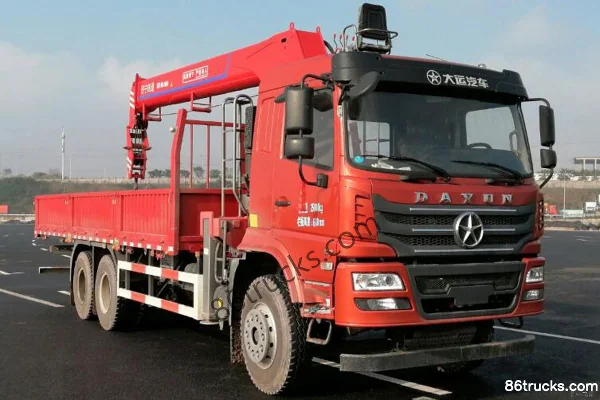

Dayun F7 Composite 270hp 6X4(10 wheels) 6.7m Truck-Mounted Crane (China VI)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 10.75×2.55×3.75 / 12×2.55×3.75 / 11.65×2.55×3.75 / 10.25×2.55×3.75 / 10.9×2.55×3.75 / 10.25×2.55×3.65m
Type: truck-mounted crane
Drive type: 6X4
Wheelbase: 4700+1300 / 5850+1350 / 5350+1350 / 4350+1350 / 4750+1350mm
Rated mass: 9.995 / 7.52ton
Front track width: 1935 / 2065 / 1975mm
rear track: 1965/1860 / 1860/1860mm
GVWR: 24.5 / 25ton
Front/rear suspension: 1.45/3.3 / 1.46/3.34 / 1.46/3.49 / 1.46/3.09m
Energy Type: Diesel
Body Parameters
Crane model: SPS25000
Lifting capacity: 10ton
crane self-weight: 5ton
Vehicle certification code: DYZ5242JSQD6CB / DYQ5250JSQD6DC
Body Brand: Dayun
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCK05240-60 / YuchaiYCS06270-60 / YuchaiYCS06245-60A
Displacement: 5.13 / 6.23L
Emission standard: China VI
Max output power: 176 / 199 / 180kW
Max hp: 240 / 270 / 245Horsepower
Max torque: 950 / 1050N·m
Max torque speed: 1200-1700rpm
Rated speed: 2200 / 2300rpm
Chassis Specs
Chassis Brand: Dayun
Chassis Series: F7
Chassis Model: DYQ1242D6CA / DYQ1250D6DA
Frame Dimensions: (940-860)×300×(8+8+6) / 860×300×(8+8+6)mm
rear axle description: Dual 153 standard axle/10t
Axle ratio: 4.444 / 5.571 / 6.167
Leaf spring count: 9/7+-/10+8 / 9/10
Transmission Parameters
Number of gears: 8 / 9Gear
Transmission Model: Fast Gear 8-speed / Fast Gear9JS119TA
Cargo box parameters
Cargo box length: 7.3m
Cargo box width: 2.45m
Cargo box height: 0.6m
Cab parameters
Cab: Day cab standard roof
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 280L
Tire
Tire Size: 10.00R20 18PR / 11.00R20 18PR
FAQ
What kind of truck is Dayun DayunF7 truck-mounted crane?
Dayun DayunF7 is an export-oriented truck-mounted crane lineup with about 9 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does DayunF7 truck-mounted crane cover?
DayunF7 truck-mounted crane mainly covers: Drive: 6x4; Horsepower: 240 hp / 270 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in DayunF7 truck-mounted crane?
For DayunF7 truck-mounted crane: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is truck-mounted crane typically used for?
truck-mounted crane specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does DayunF7 truck-mounted crane include?
DayunF7 truck-mounted crane currently lists about 9 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for DayunF7 truck-mounted crane?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
