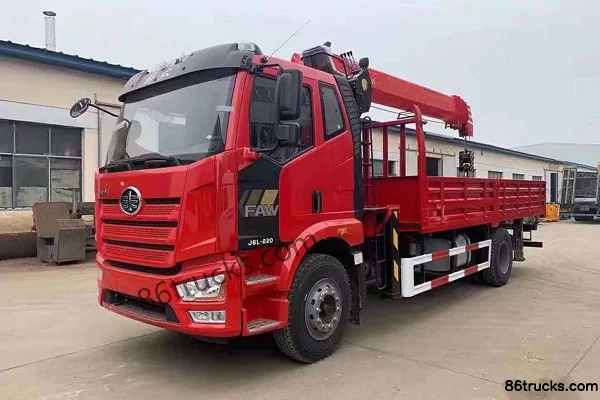

FAW Jiefang J6L 220hp 4X2(6 wheels) truck-mounted crane (XCMG brand)
EXW
Export quote
FAW Jiefang J6L Medium Truck truck-mounted crane
Main model photos
1,675 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Jiefang J6L 220hp 4X2(6 wheels) truck-mounted crane (XCMG brand) | 4x2 / 220hp / China VI | ||
| FAW Jiefang J6L 270hp 6X4(10 wheels) truck-mounted crane (Shenbai Heavy Industry brand) | 6x4 / 270hp / China VI | ||
| FAW Jiefang J6L 350hp 8X4(12 wheels) truck-mounted crane | 8x4 / 350hp / China VI | From $40,583 | |
| FAW Jiefang J6L 380hp 8X4(12 wheels) truck-mounted crane | 8x4 / 380hp / China VI | ||
| FAW Jiefang J6L 260hp 6X2(8 wheels) Truck-mounted Crane | 6x2 / 260hp / China VI | From $33,667 |

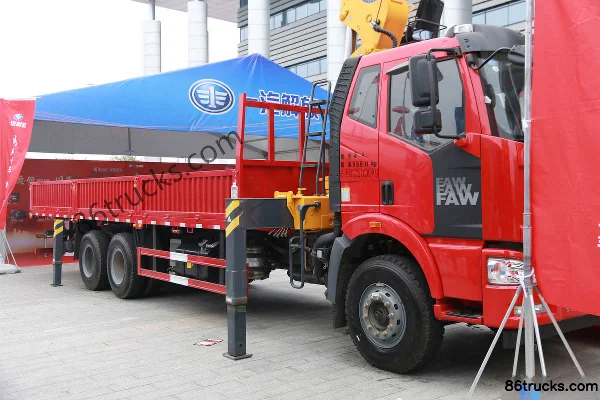

FAW Jiefang J6L 270hp 6X4(10 wheels) truck-mounted crane (Shenbai Heavy Industry brand)
EXW
Export quote
FAW Jiefang J6L 350hp 8X4(12 wheels) truck-mounted crane
EXW
From $40,583
Export quote
FAW Jiefang J6L 380hp 8X4(12 wheels) truck-mounted crane
EXW
Export quote
FAW Jiefang J6L 260hp 6X2(8 wheels) Truck-mounted Crane
EXW
From $33,667
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Jiefang J6L 220hp 6X2(8 wheels) Truck Mounted Crane | 6x2 / 220hp / China IV | From $30,556 |
FAW Jiefang J6L 220hp 6X2(8 wheels) Truck Mounted Crane
EXW
From $30,556
Export quote
Series Specs
Basic Info
Cab dimensions: 9×2.55×3.7 / 12×2.55×3.85 / 12×2.55×4 / 12×2.55×3.8 / 10.7X2.55X3.8 / 9X2.55X3.65 / 8.07X2.55X3.8 / 9×2.55×3.72 / 9×2.495×3.4 / 11.99X2.495X3.7m
Type: Truck with crane / truck-mounted crane / Tractor truck with crane
Drive type: 4X2 / 6X4 / 8X4 / 6X2
Wheelbase: 5000 / 5800+1350 / 2200+4300+1350 / 2200+5100 / 4800+1350 / 5800 / 4500 / 5300+1350 / 4050+1350 / 5300mm
Rated mass: 6.305 / 8.17 / 12.23 / 11.27 / 8.59 / 9.22 / 9.105 / 6.1 / 11.525 / 7.905 / 6.515 / 8.985ton
Front track width: 1928 / 1950 / 1950/1950 / 1928/1928mm
rear track: 1878 / 1878/1878 / 1860mm
GVWR: 18 / 24.5 / 31 / 25 / 15.6 / 21.6ton
Remarks: Option: Ratio 4.444 / Front underrun protection, wide bumper, electro-hydraulic tilting, electronic hand throttle, right-turn warning, T-Box 2.0, brake lining wear reminder / Front underrun protection, manual hydraulic tilting, electronic hand throttle, remote start/stop, T-Box 1.5 / Driver air-suspension seat, single-DIN Beidou-compatible onboard system.
Front/rear suspension: 11.5 / 16.2 / 1.4/2.75 / 1.4/3.3 / 1.4/3.45 / 1.4/3.15 / 1.4/2.6 / 3.1 / 1.47/1.2 / 1.4/2.3 / 1.4/3.29m
Energy Type: Diesel
Body Parameters
Other special notes: Auto AC, front underrun protection, 200L fuel tank, iron bumper, electric hydraulic tilting mechanism, self-contained air-assisted urea system, suspension 10/12+8, electronic hand throttle, speed limited to 89km/h, right-turn audio warning device / Auto AC, 200L fuel tank, front underrun protection, manual hydraulic tilting mechanism, rear overhang 2500mm, electronic hand throttle, 120Ah battery, diagnostic connector, engine with 50,000km long oil change interval, speed limited to 89km/h, right-turn audio warning device, T-box 1.1
Crane model: SQS350 / SQ10 / HCS300A-4 / SQS300 / SQS200 / SQ600,SPK38502 / SQS250 / SQ8
Lifting capacity: 14 / 10 / 4.4 / 12 / 8 / 6ton
crane self-weight: 5.827 / 4.8 / 12 / 4.6 / 3.315 / 6.2;6 / 4.12 / 2.29 / 4.4ton
Vehicle certification code: XGS5180JSQJ6 / ABC5245JSQCA6 / CA5310JSQP62K1L6T4E6 / CA5250JSQP62K1L7T3E6 / CA5250JSQP62K1L5T1E6 / CA5240JSQP62K1L5T1E6 / CA5180JSQP62K1L2A1E6 / CA4250P66K24L1T1E5Z / CA5250JSQP62K1L7T3A1E5 / CA5180JSQP62K1L2A1E5 / CA5160JSQP62K1L2E5 / CA5220JSQP62K1L7T3E4
Body Brand: XCMG brand / Shenbai Heavy Industry / FAW Jiefang
Engine parameters
Engine Brand: Dachai / Xichai
Engine Model: DachaiCA4DK2-22E65 / DachaiCA6DH1-27E65 / DachaiCA6DK2-35E65 / XichaiCA6DL6-38E68 / DachaiCA6DK1-26E6 / DachaiCA6DK1-32E6 / DachaiCA6DK1-28E6 / DachaiCA6DH1-26E61 / DachaiCA6DH1-24E6 / DachaiCA6DH1-22E6 / DachaiCA4DK1-22E61 / DachaiCA4DK1-22E6 / DachaiCA4DK1-18E6 / XichaiCA6DM2-42E51 / DachaiCA6DH1-24E5 / DachaiCA6DH1-22E5 / DachaiCA4DK1-18E51 / DachaiBF6M2012-22E4
Displacement: 5.17 / 5.7 / 7.751 / 8.57 / 7.2 / 4.76 / 4.8 / 4.764 / 11.05 / 6L
Emission standard: China VI / China V / China IV
Max output power: 165 / 201 / 257 / 2.83 / 192 / 235 / 206 / 179 / 162 / 136 / 312 / 176 / 139kW
Max hp: 220 / 270 / 350 / 380 / 260 / 320 / 280 / 240 / 180 / 420Horsepower
Max torque: 850 / 900 / 1300 / 1900 / 720 / 770N·m
Max torque speed: 1300-1800 / 1200-1800 / 1200-1700 / 1100-1400 / 1500rpm
Rated speed: 2300 / 2500 / 1900rpm
Chassis Specs
Chassis Brand: FAW Jiefang
Chassis Series: J6L / FAW JiefangJ6L
Chassis Model: CA1180P62K1L2E6Z / CA1240P62K1L3T1A1E6Z / CA5310JSQP62K1L6T4E6 / CA5250JSQP62K1L7T3E6 / CA1250P62K1L3T1A1E6Z / CA5250JSQP62K1L5T1E5 / CA1180P62K1L2A1E5Z / CA1160P62K1L2E5Z / CA5220JSQP62K1L7T3E4
Frame Dimensions: 253×83×(7+6.5+4) / 286×82×(7+7+5) / 312×85×(5+8+5) / 300×80×(8+5) / 288×83×(8+7+5) / 288×75×(7+5+8) / 255×83×(8+7+4) / 237×75×(7+4) / 312×82×(5+8+5) / 270×75×(7+5+8) / 237×75×(7+4+8)mm
rear axle description: ф378 cast axle / ф378 welded axle / Xinchai 457 cast steel axle / ф435 stamped-welded axle / 435 stamped-welded axle / 457 / 435 / 378 / Axle Φ435 stamped-welded axle (domestic ABS)
Axle ratio: 4.875 / 5.143 / 5.286 / 5.571 / 4.444
Transmission Parameters
Number of gears: 8 / 10 / 12 / 6Gear
Transmission Model: Fast Gear8JS85E / Fast Gear10JSX110A / FAW JiefangCA10TAX160M / Fast Gear8JS118 / FAW JiefangCA10TA130M / Fast Gear8JS105 / Fast Gear8JS85F / FAWCA12TAX210M / FAWCA6T138
Cargo box parameters
Cargo box length: 8.2 / 8.5 / 7.2 / 6.15 / 5.7m
Cargo box width: 2.46m
Cargo box height: 0.6m
Cab parameters
Cab: New J6L semi-floating flat roof single-row cab / New J6L Full-Float Flat-Top Cab with Semi-Sleeper / 2020 J6L flat roof cab with extended sleeper / 2020 J6L Semi-Float Flat Roof Cab with Extended Sleeper / J6L Semi-floating Flat Roof Short Extended Cab / 2017 Model J6L Semi-Float Flat-Roof Small Half-Row Cab / 2017 J6L semi-floating flat roof small half-row cab
fuel tank
Fuel tank material: aluminum alloy / Steel
Fuel tank capacity: 400 / 300L
FAQ
What kind of truck is FAW Jiefang FAW Jiefang J6L Medium Truck truck-mounted crane?
FAW Jiefang FAW Jiefang J6L Medium Truck is an export-oriented truck-mounted crane lineup with about 26 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for FAW Jiefang J6L Medium Truck truck-mounted crane?
FAW Jiefang J6L Medium Truck truck-mounted crane export reference is about $23,583 – $122,222. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does FAW Jiefang J6L Medium Truck truck-mounted crane cover?
FAW Jiefang J6L Medium Truck truck-mounted crane mainly covers: Drive: 4x2 / 6x2 / 6x4 / 8x4; Horsepower: 220 hp / 260 hp / 270 hp / 350 hp / 380 hp; Emission: China IV / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in FAW Jiefang J6L Medium Truck truck-mounted crane?
For FAW Jiefang J6L Medium Truck truck-mounted crane: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is truck-mounted crane typically used for?
truck-mounted crane specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does FAW Jiefang J6L Medium Truck truck-mounted crane include?
FAW Jiefang J6L Medium Truck truck-mounted crane currently lists about 26 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for FAW Jiefang J6L Medium Truck truck-mounted crane?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
