FAW Jiefang J6L 220hp 6X2(8 wheels) Truck Mounted Crane

Export reference
From $30,556
MSRP ¥22M CNY
Emission: China IV
Wheelbase:: 2200+5100mm
Cab dimensions:: 11.99X2.495X3.7m
Type:: truck-mounted crane
GVWR:: 21.6ton
Front/rear suspension:: 1.4/3.29m
Lifting capacity: 8ton
Drive 6X2 (8 wheels)
Horsepower 220
Rated mass: 8.985ton

Overview

The FAW Jiefang J6L 220hp 6X2(8 wheels) Truck Mounted Crane is a truck-mounted crane featuring 8ton tank capacity, 21.6t GVW and 6X2 (8 wheels) drive. On the powertrain side, it comes with 220 hp and China IV emissions.

China IV 220 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 11.99X2.495X3.7m
Type: truck-mounted crane
Drive type: 6X2
Wheelbase: 2200+5100mm
Rated mass: 8.985ton
GVWR: 21.6ton
Front/rear suspension: 1.4/3.29m
Body Parameters
Crane model: SQ8
Lifting capacity: 8ton
crane self-weight: 4.4ton
Vehicle certification code: CA5220JSQP62K1L7T3E4
Body Brand: FAW Jiefang
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiBF6M2012-22E4
Displacement: 6L
Emission standard: China IV
Max output power: 165kW
Max hp: 220Horsepower
Max torque: 770N·m
Max torque speed: 1500rpm
Chassis Specs
Chassis Brand: FAW Jiefang
Chassis Series: FAW JiefangJ6L
Chassis Model: CA5220JSQP62K1L7T3E4
rear axle description: Axle Φ435 stamped-welded axle (domestic ABS)

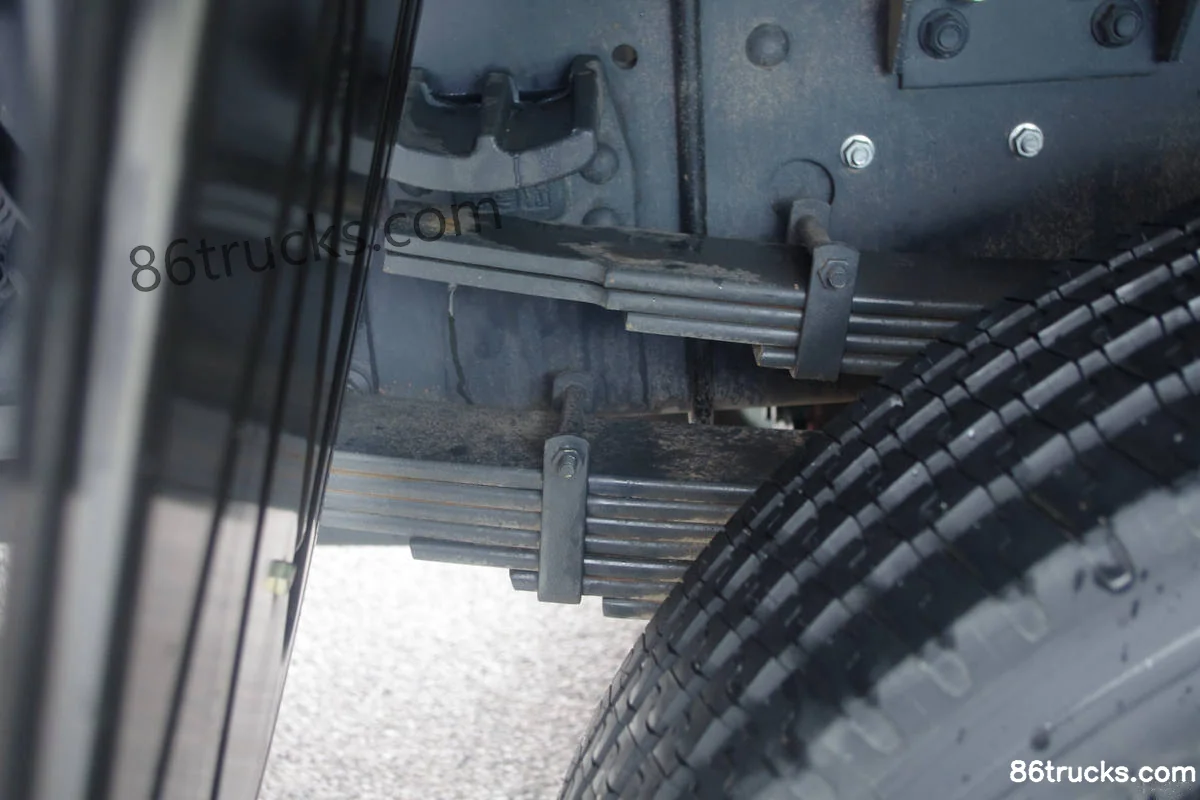

Leaf spring count: 10/10/13+7
Transmission Parameters
Number of gears: 6Gear
Transmission Model: FAW CA6T138
Tire

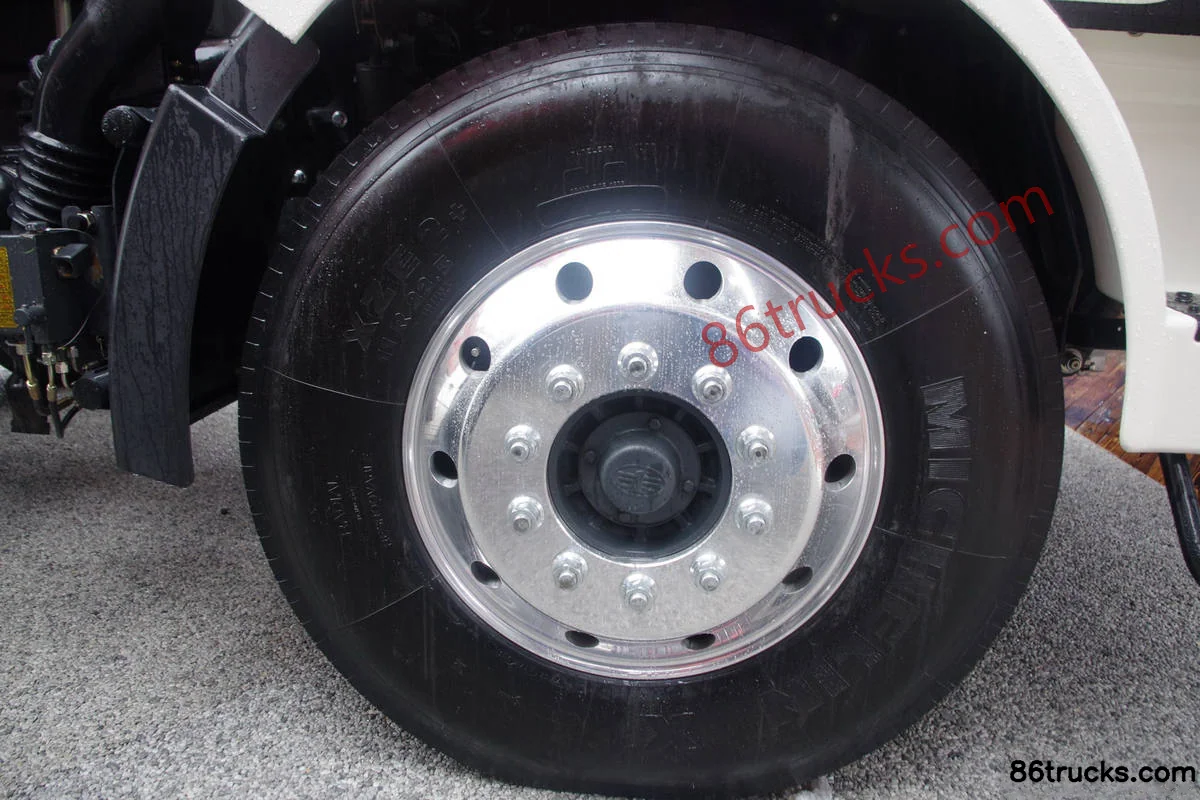

Tire Size: 9.00R20 16-ply rating
Number of tires: 8pcs

Photos

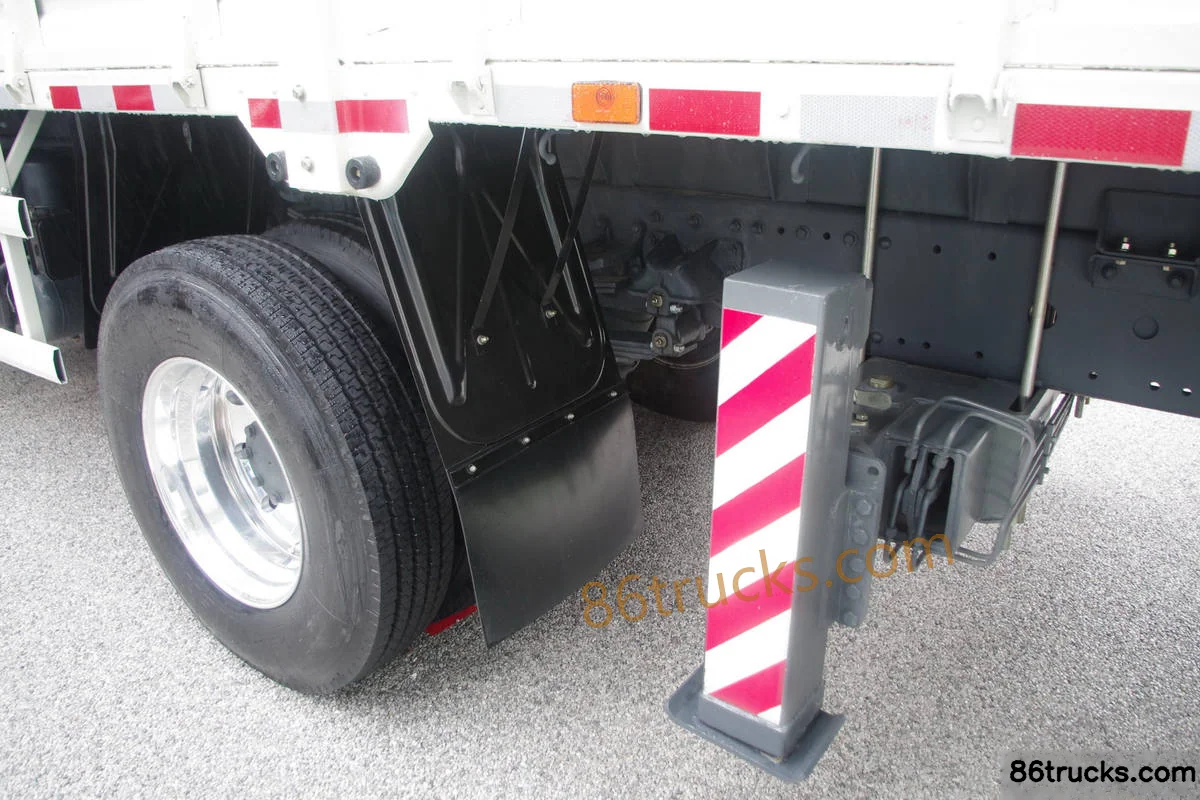

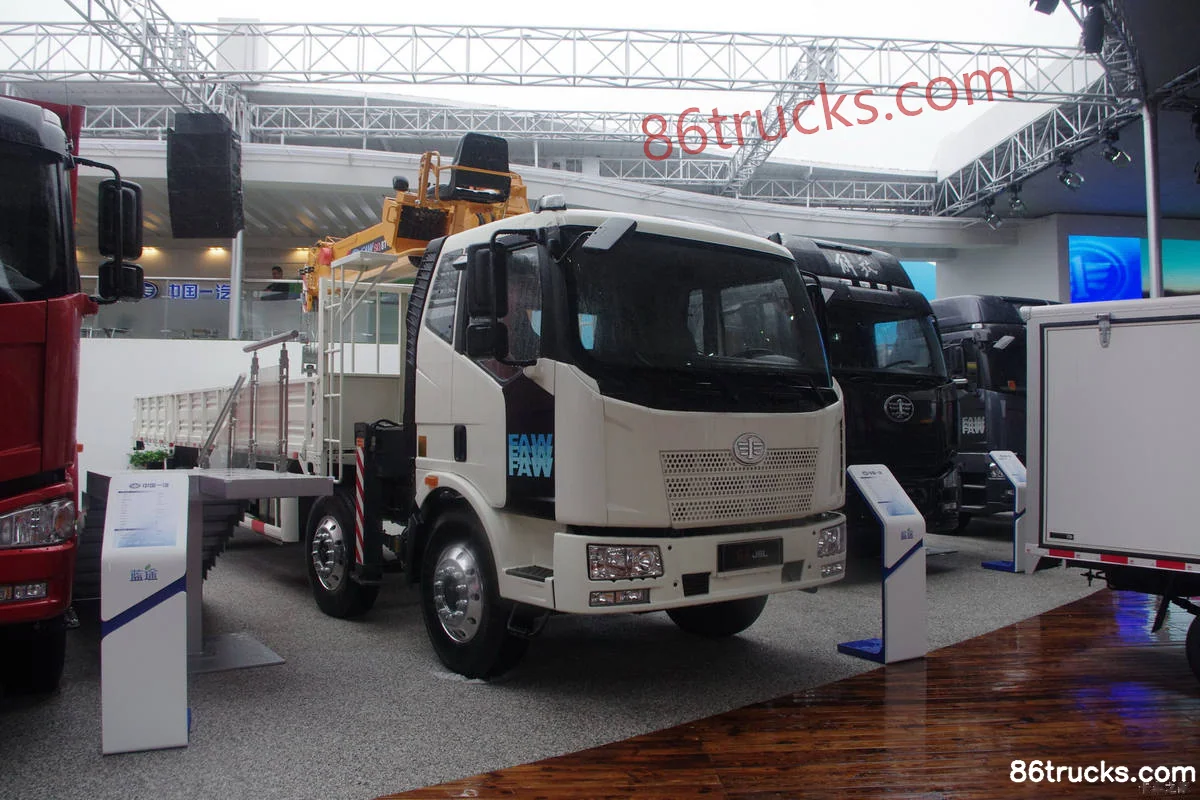

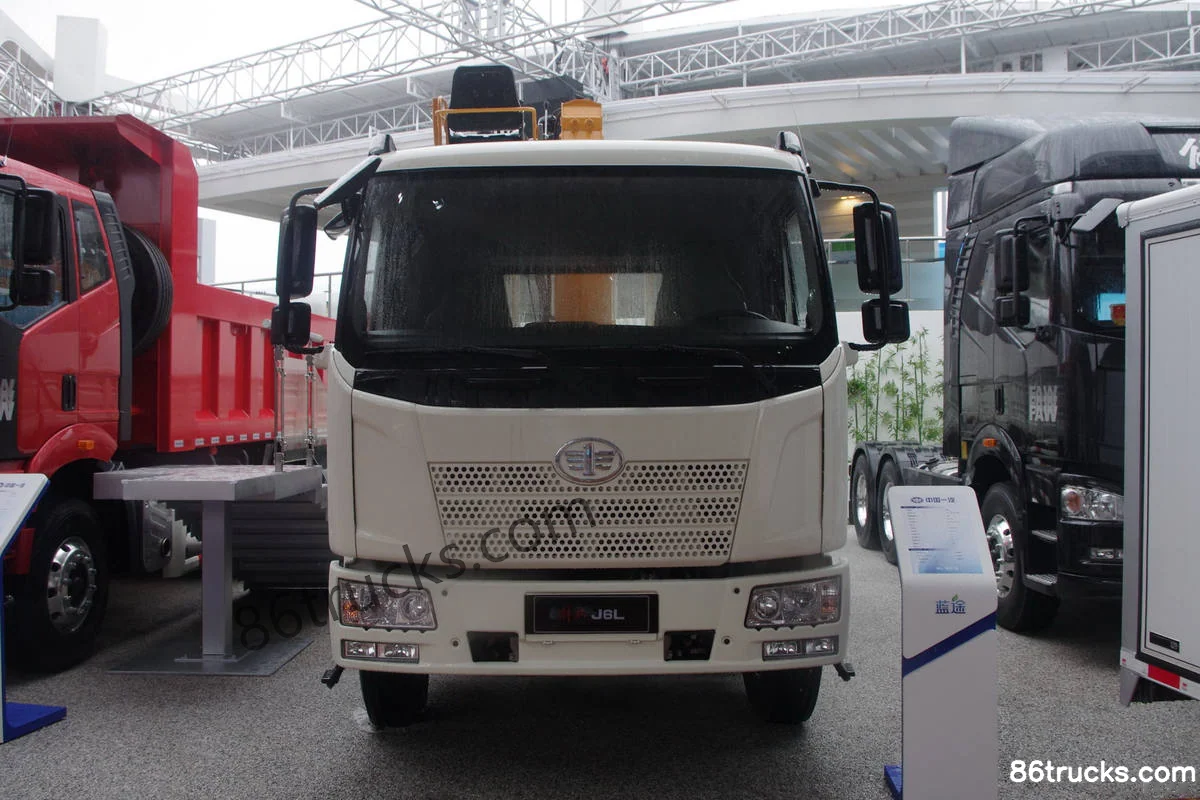

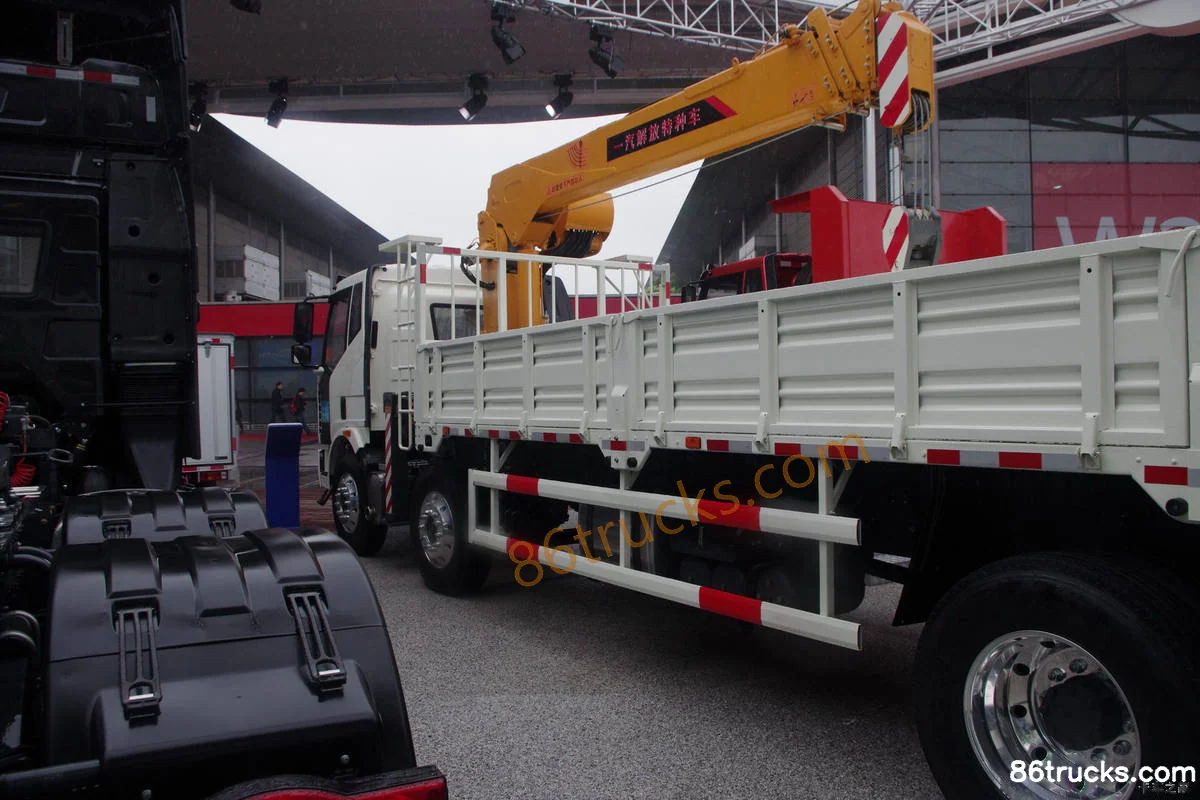

Exterior3

Chassis3

6 photos

FAQ

What is the export price of FAW Jiefang J6L 220hp 6X2(8 wheels) Truck Mounted Crane, and what does it include?

FAW Jiefang J6L 220hp 6X2(8 wheels) Truck Mounted Crane export reference is about From $30,556; MSRP is ¥22M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang J6L 220hp 6X2(8 wheels) Truck Mounted Crane use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J6L 220hp 6X2(8 wheels) Truck Mounted Crane?

Key specs of FAW Jiefang J6L 220hp 6X2(8 wheels) Truck Mounted Crane: Drive: 6x2; Horsepower: 220 hp; Emission: China IV. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6L 220hp 6X2(8 wheels) Truck Mounted Crane suited for?

FAW Jiefang J6L 220hp 6X2(8 wheels) Truck Mounted Crane is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does FAW Jiefang J6L 220hp 6X2(8 wheels) Truck Mounted Crane differ from other variants in the same series?

FAW Jiefang J6L 220hp 6X2(8 wheels) Truck Mounted Crane belongs to FAW Jiefang J6L Medium Truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6L 220hp 6X2(8 wheels) Truck Mounted Crane?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6L 220hp 6X2(8 wheels) Truck Mounted Crane?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
