FAW Jiefang J6L 280hp 6X4(10 wheels) Truck-Mounted Crane

Export reference
MSRP N/A
Fuel: Diesel
Wheelbase:: 5300+1350mm
Type:: truck-mounted crane
Front/rear suspension:: 3.1m
Vehicle certification code:: CA5250JSQP62K1L5T1E6
Engine Brand:: Dachai
Drive 6X4 (10 wheels)
Horsepower 280
crane self-weight: 12ton
Emission China VI

Overview

The FAW Jiefang J6L 280hp 6X4(10 wheels) Truck-Mounted Crane is a truck-mounted crane featuring 12ton GVW and 6X4 (10 wheels) drive. On the powertrain side, it comes with a Dachai engine, 280 hp, China VI emissions and Diesel fuel.

China VI 280 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Type: truck-mounted crane
Drive type: 6X4
Wheelbase: 5300+1350mm
Front/rear suspension: 3.1m
Energy Type: Diesel
Body Parameters
crane self-weight: 12ton
Vehicle certification code: CA5250JSQP62K1L5T1E6
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiCA6DK1-28E6
fuel type: Diesel
Displacement: 7.2L
Emission standard: China VI
Max output power: 206kW
Max hp: 280Horsepower
Max torque: 1300N·m
Max torque speed: 1200-1700rpm
Rated speed: 2300rpm
Chassis Specs
Chassis Brand: FAW Jiefang
Chassis Series: J6L
Chassis Model: CA1250P62K1L3T1A1E6Z
Frame Dimensions: 312×82×(5+8+5)mm
rear axle description: 435 stamped-welded axle
Leaf spring count: 12/10
Transmission Parameters
Number of gears: 10Gear
Transmission Model: FAW JiefangCA10TA130M
Tire
Tire Size: 11.00R20 18PR
Number of tires: 10pcs

Photos

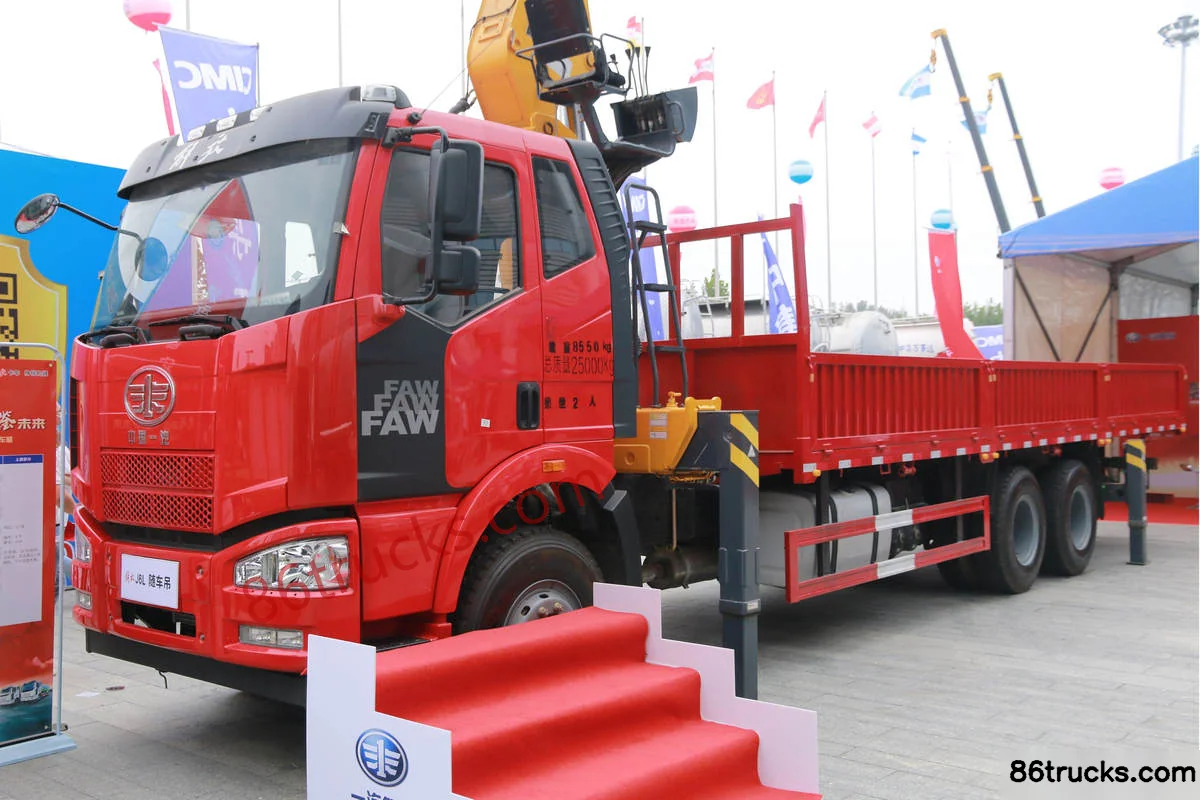

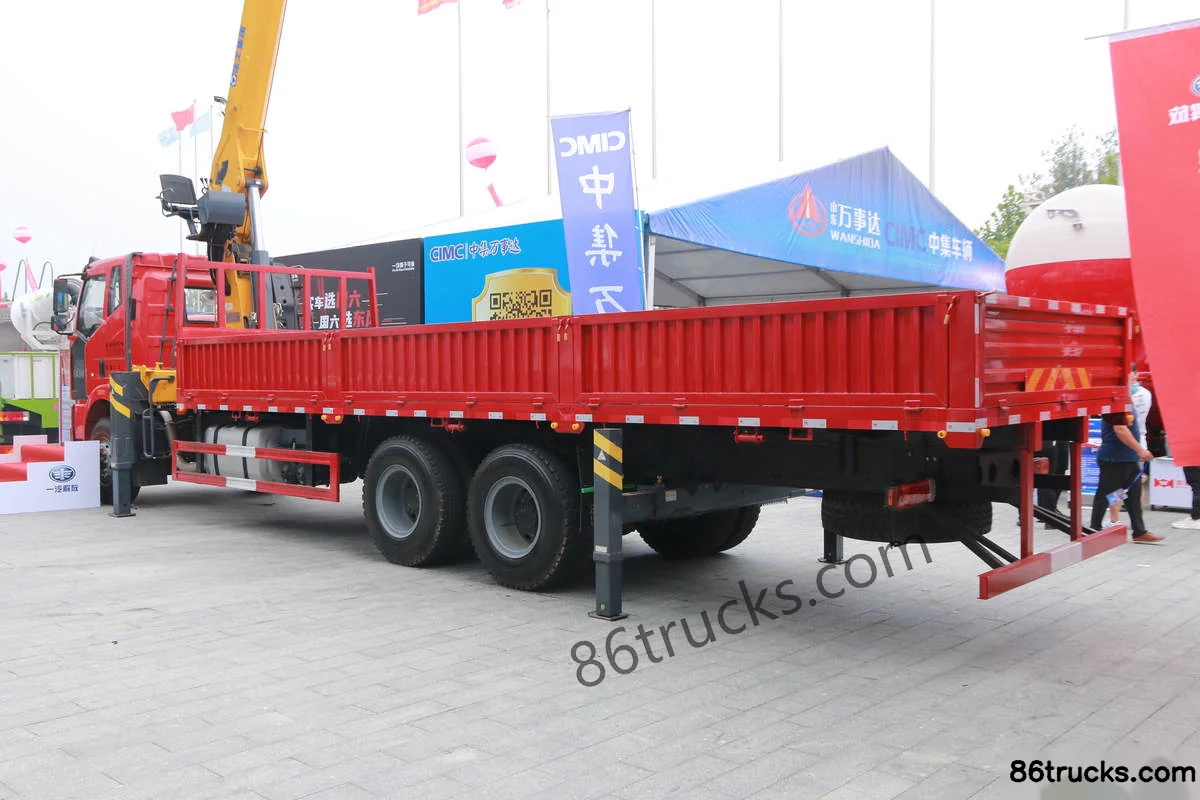

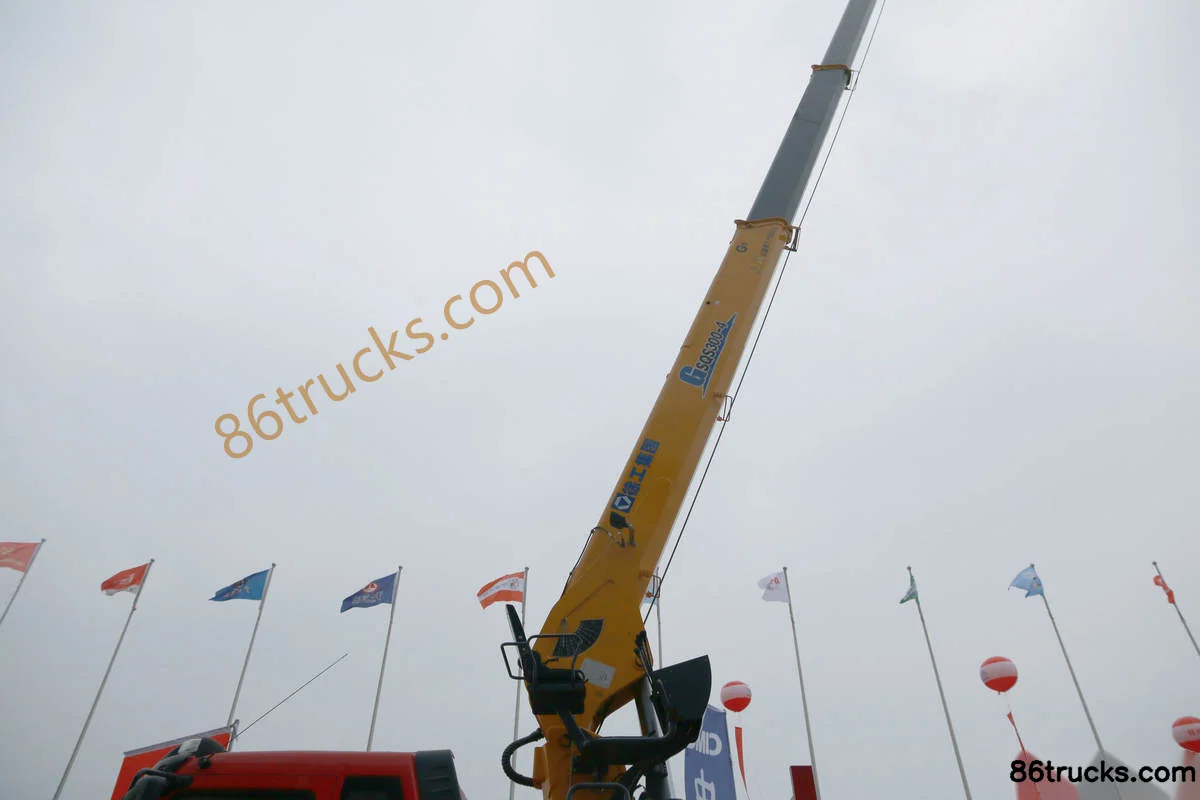

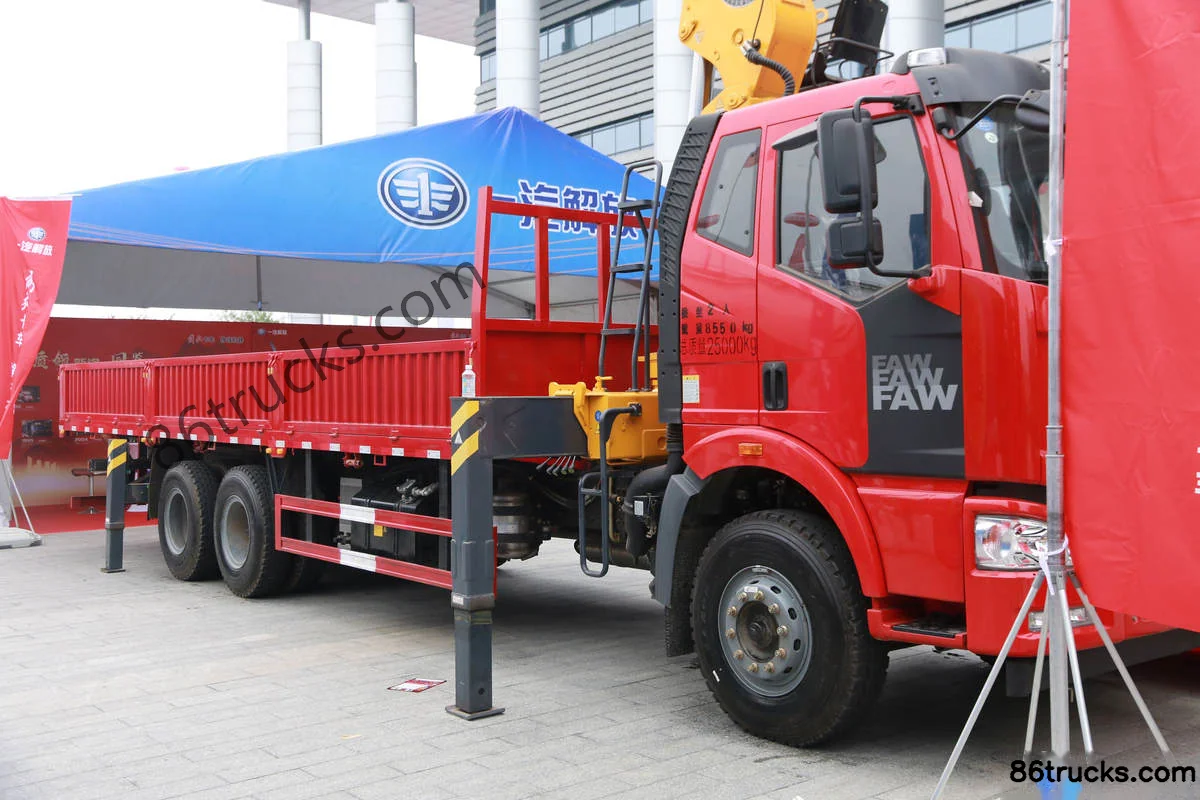

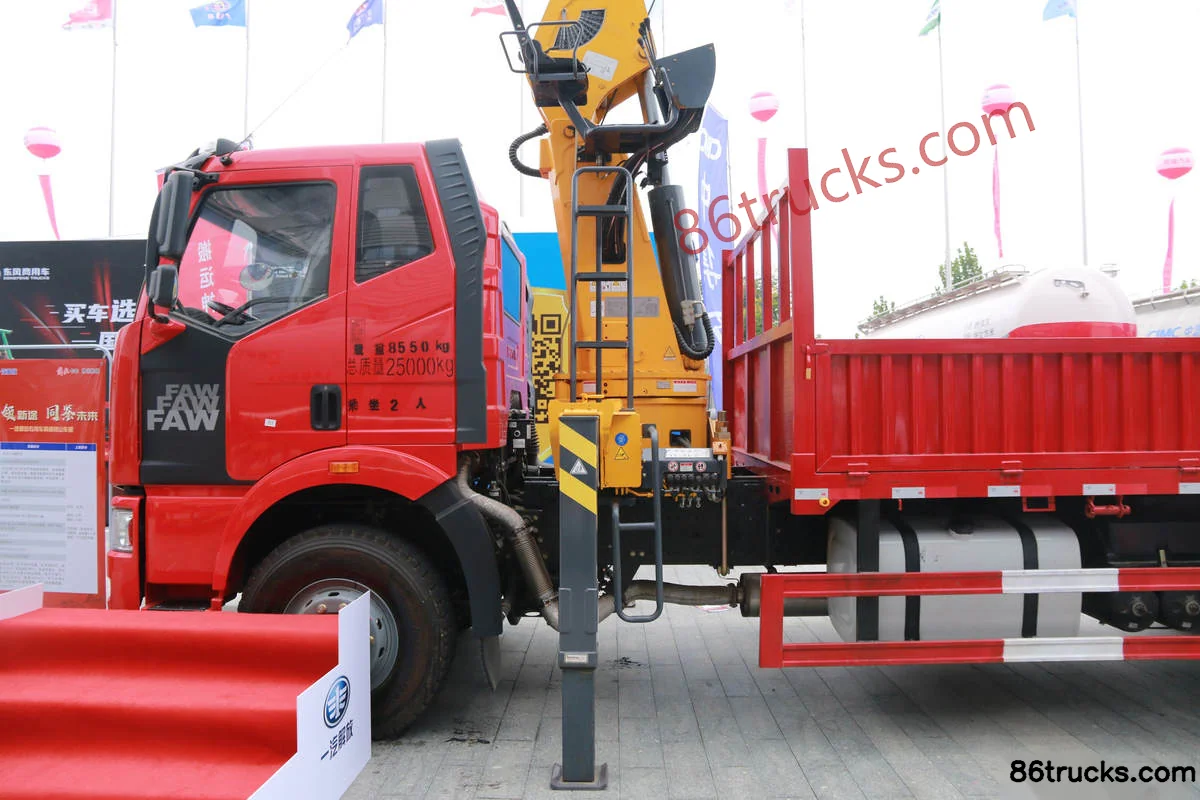

Exterior3

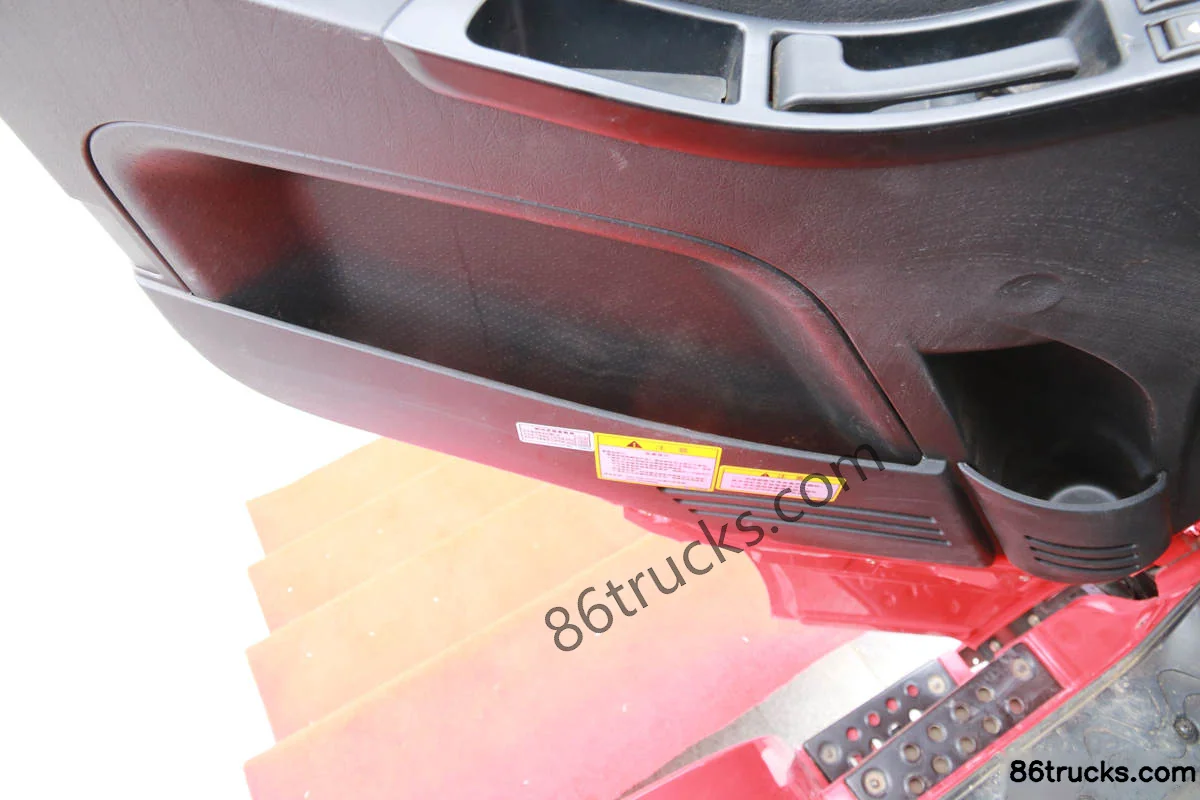

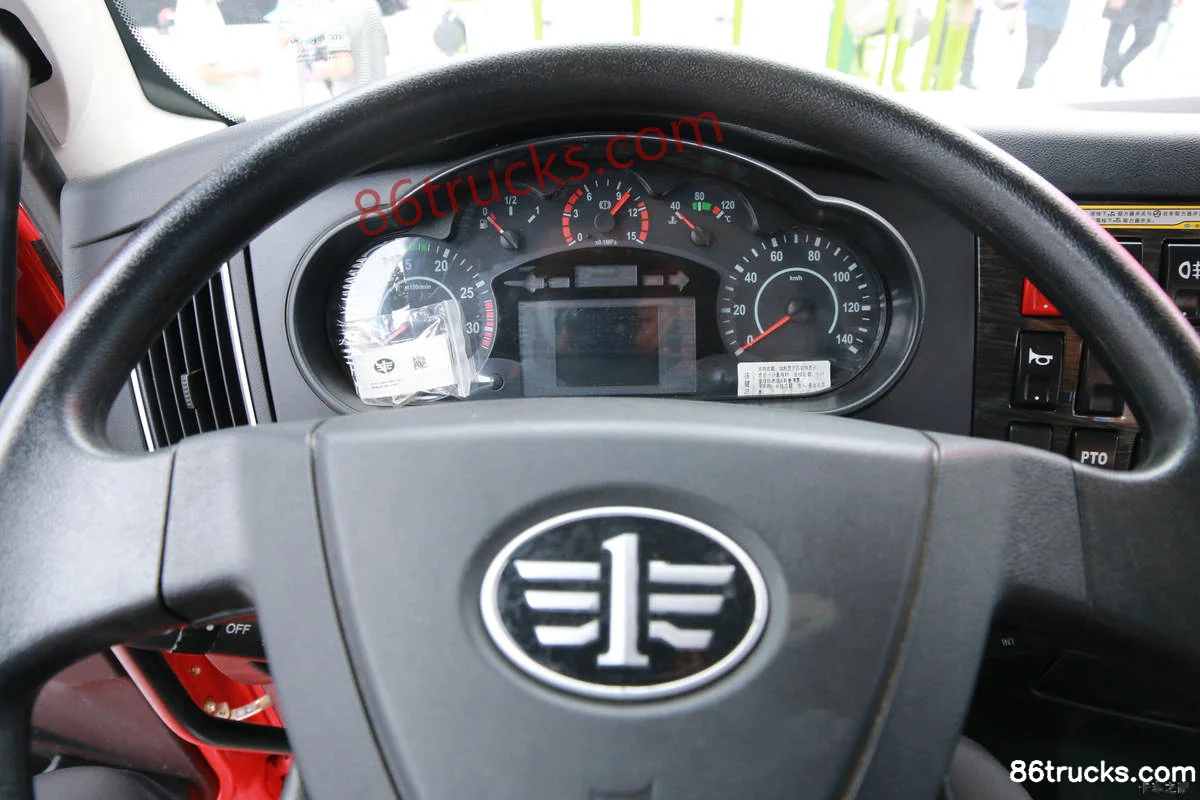

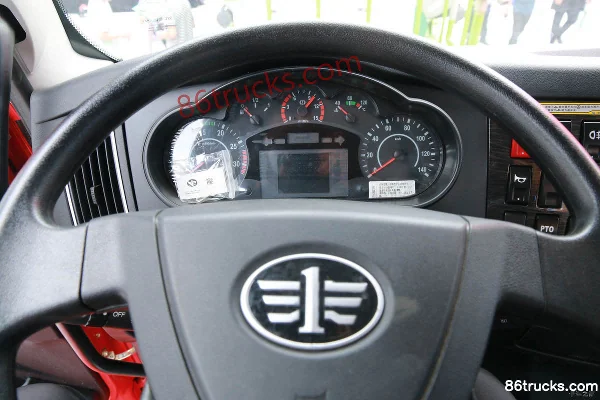

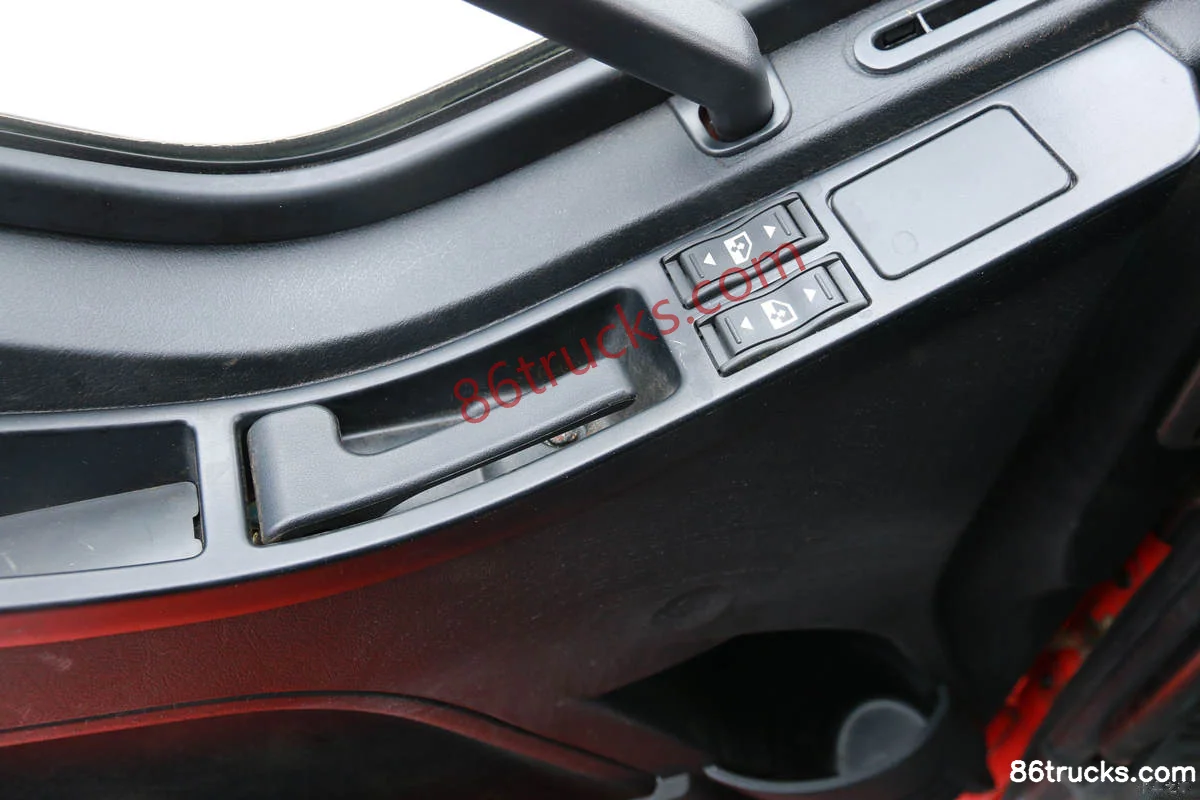

Cab3

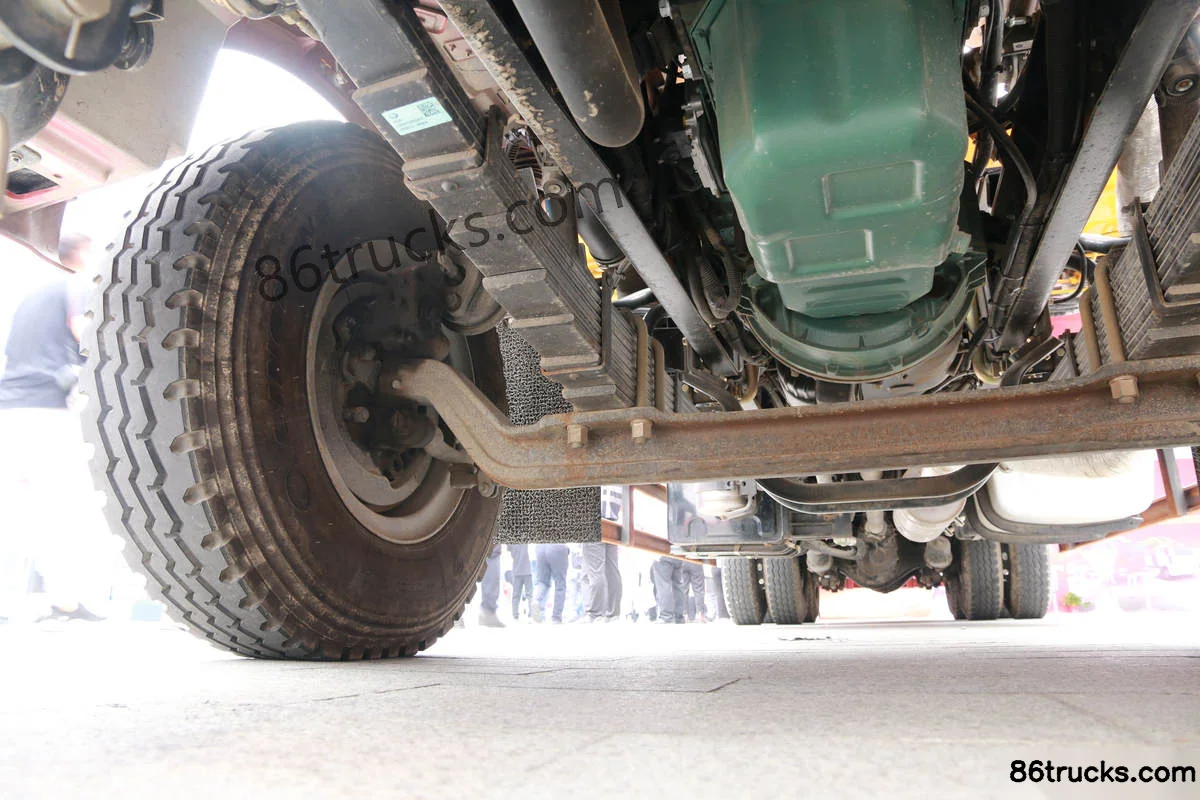

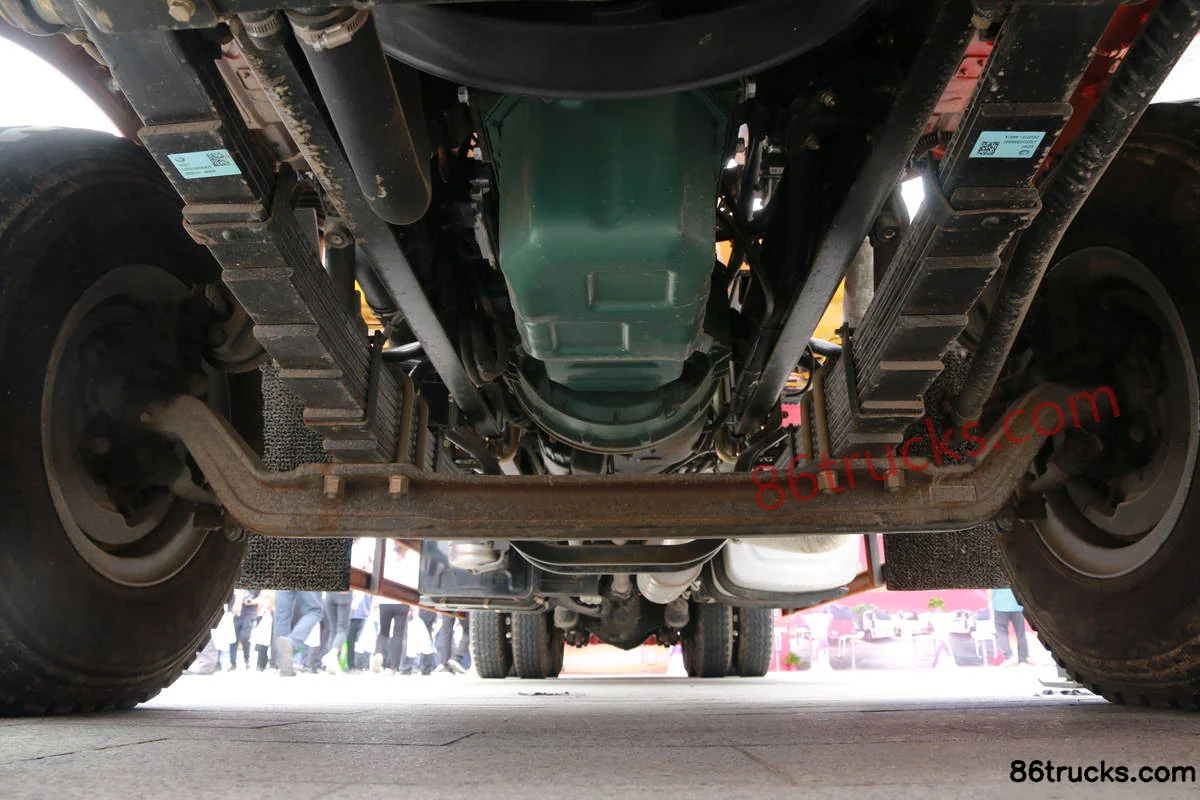

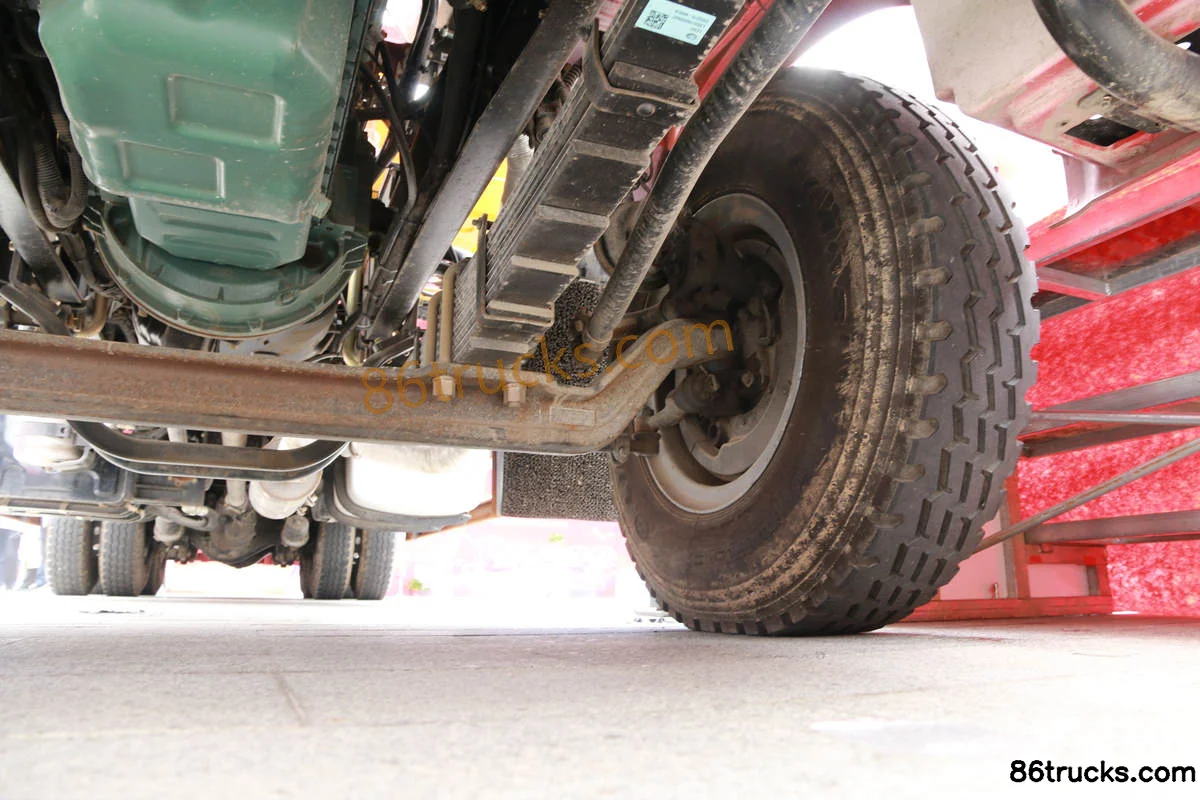

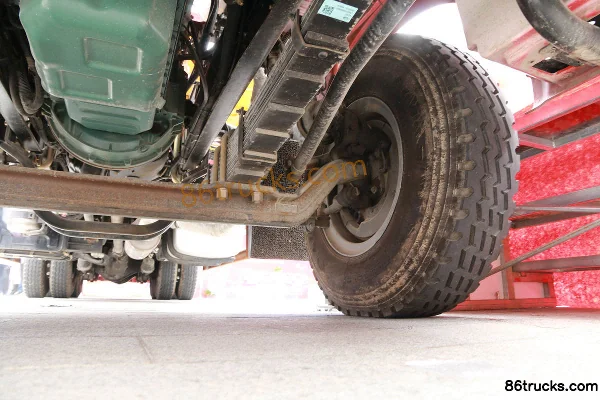

Chassis3

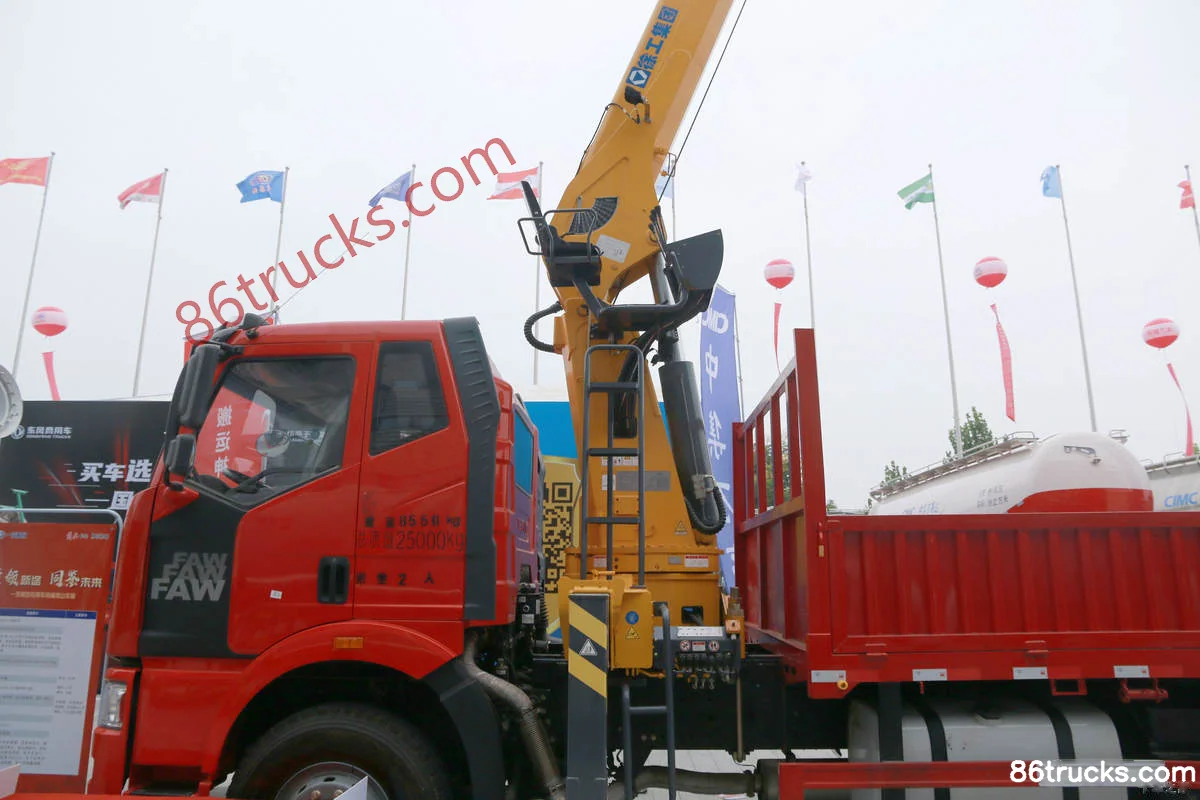

Body3

12 photos

FAQ

What emission standard does FAW Jiefang J6L 280hp 6X4(10 wheels) Truck-Mounted Crane use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J6L 280hp 6X4(10 wheels) Truck-Mounted Crane?

Key specs of FAW Jiefang J6L 280hp 6X4(10 wheels) Truck-Mounted Crane: Drive: 6x4; Horsepower: 280 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6L 280hp 6X4(10 wheels) Truck-Mounted Crane suited for?

FAW Jiefang J6L 280hp 6X4(10 wheels) Truck-Mounted Crane is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does FAW Jiefang J6L 280hp 6X4(10 wheels) Truck-Mounted Crane differ from other variants in the same series?

FAW Jiefang J6L 280hp 6X4(10 wheels) Truck-Mounted Crane belongs to FAW Jiefang J6L Medium Truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6L 280hp 6X4(10 wheels) Truck-Mounted Crane?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6L 280hp 6X4(10 wheels) Truck-Mounted Crane?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
