JAC Gallop K5X 270hp 6X4(10 wheels) truck-mounted crane
EXW
From $59,722
Export quote

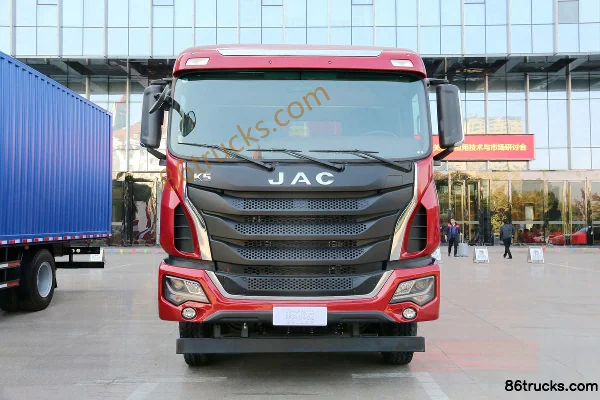

JAC Gallop K5 Heavy Truck truck-mounted crane
Main model photos
805 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Gallop K5X 270hp 6X4(10 wheels) truck-mounted crane | 6x4 / 270hp / China VI | From $59,722 | |
| JAC Gallop K5L 200hp 4X2(6 wheels) truck-mounted crane | 4x2 / 200hp / China VI | From $38,194 | |
| JAC Gallop K5W 310hp 8X4(12 wheels) truck-mounted crane | 8x4 / 310hp / China V | From $71,528 | |
| JAC Gallop K5X 220hp 6X2(8 wheels) truck-mounted crane | 6x2 / 220hp / China V | From $57,500 | |
| JAC Gallop K5X 240hp 6X2(8 wheels) truck-mounted crane | 6x2 / 240hp / China V | From $58,889 |
JAC Gallop K5L 200hp 4X2(6 wheels) truck-mounted crane
EXW
From $38,194
Export quote
JAC Gallop K5W 310hp 8X4(12 wheels) truck-mounted crane
EXW
From $71,528
Export quote
JAC Gallop K5X 220hp 6X2(8 wheels) truck-mounted crane
EXW
From $57,500
Export quote
JAC Gallop K5X 240hp 6X2(8 wheels) truck-mounted crane
EXW
From $58,889
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| JAC Gallop K5L Heavy Truck 270hp 6X4(10 wheels) Crane Truck Chassis (China VI) | 6x4 / 270hp / China VI |
Series Specs
Basic Info
Cab dimensions: 12×2.55×3.85 / 9×2.55×3.8 / 12×2.55×3.8 / 9×2.55×3.75 / 11.425×2.5×3.15m
Type: truck-mounted crane / Truck with crane
Drive type: 6X4 / 4X2 / 8X4 / 6X2
Wheelbase: 5800+1350 / 5000 / 2100+4300+1350 / 2100+5200 / 5300mm
Rated mass: 8.67 / 7.505 / 11.905 / 9.005 / 7.905ton
Front track width: 2050 / 1890mm
rear track: 1860/1860 / 1860mm
GVWR: 25 / 18 / 31ton
Front/rear suspension: 1.4/3.45 / 1.4/2.6 / 1.495/2.755 / 1.495/3.205 / 1.4/2.3 / 1.495/2.78m
Energy Type: Diesel
Body Parameters
Other special notes: 14T straight-arm crane, 4-section arm, single plunger pump, built-in planetary reducer, elevated seat, full-length subframe / 12T straight-arm crane, 4-section boom, single plunger pump, built-in planetary reducer, high-position seat, full-length subframe / 7t straight-arm crane, 3-section arm, integrated slewing
Crane model: SQS350,SPS350000 / SPS30000
Lifting capacity: 5 / 6.3 / 14 / 12ton
crane self-weight: 12 / 3.5 / 6.4 / 4.8 / 2.85ton
Vehicle certification code: HFC5251JSQP2K4E58S / HFC5181JSQP3K2A50S / HFC5311JSQYP1K4H43V / HFC5251JSQYP2K2D52V / HFC5181JSQP3K1A47V / HFC5251JSQP3K3E58S
Body Brand: JAC Gallop
Engine parameters
Injection System: Common Rail
Engine Brand: Yuchai / Weichai / Yunnei Power
Engine Model: YuchaiYCS06270-60 / YuchaiYCS04200-68 / WeichaiWP10.310E53 / YuchaiYC6JA220-50 / YuchaiYC6JA240-50 / Yunnei PowerD45TCIE1 / WeichaiWP4.1Q160E50
Displacement: 6.23 / 4.16 / 9.726 / 6.87 / 4.46 / 4.088L
Emission standard: China VI / China V
Max output power: 199 / 147 / 228 / 162 / 177 / 115kW
Max hp: 270 / 200 / 310 / 220 / 240 / 160Horsepower
Max torque: 1500 / 860 / 950 / 820 / 520 / 1050N·m
Max torque speed: 1200-1500 / 1200-1800 / 1200-2800 / 1400-1800 / 1200-1700rpm
Rated speed: 2300 / 1900 / 2400 / 2600rpm
Chassis Specs
Chassis Brand: JAC heavy-duty truck / JAC Gallop
Chassis Series: GallopK5X / GallopK5L / GallopK5W / GallopK5
Chassis Model: HFC1251P2K4E58S / HFC5181XXYP3K2A50S / HFC5311JSQYP1K4H43V / HFC5251JSQYP2K2D52V / HFC5181XXYP3K1A47V
Frame Dimensions: 302×80×(8+4) / 280×75×(8+4)mm
rear axle description: 153 axle / 9T / 459 / 153 / 9t reinforced / Single reduction axle
Axle ratio: 5.143 / 5.286 / 4.875
Leaf spring count: 10/12 / 9/9+7 / 3/3/12,9/9/12 / 3/3/9+7,3/3/4+3,9/9/9+7 / 3/4+3,3/9+7,9/9+7
Transmission Parameters
Number of gears: 8 / 10Gear
Transmission Model: Fast Gear8JS118T-B / Fast Gear8JS85TE-C / Fast Gear10JSD160+QH70 / Fast Gear8JS118TA-B+QH70 / Fast Gear8JS118 +QH70 / Fast Gear8JS85TC+QD40A / Fast Gear8JS75TC+QD40A / Fast Gear8JS118T+QH50A
Cargo box parameters
Cargo box length: 8.3 / 5.85m
Cargo box width: 2.46m
Cargo box height: 0.6m
Cab parameters
Cab: GallopK5XⅢ Mid-High Roof / GallopK5L Mid-High Roof / K5W Semi-High Roof / K5X Mid-High Roof / K5L semi-high roof
Tire
Tire Size: 11.00R20 18PR / 10.00R20 18PR / 11.00R20 16PR,12.00R20 18PR,12R22.5 16PR / 11.00R20 / 10.00R20,11R22.5
FAQ
What kind of truck is JAC Gallop JAC Gallop K5 Heavy Truck truck-mounted crane?
JAC Gallop JAC Gallop K5 Heavy Truck is an export-oriented truck-mounted crane lineup with about 8 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for JAC Gallop K5 Heavy Truck truck-mounted crane?
JAC Gallop K5 Heavy Truck truck-mounted crane export reference is about $36,806 – $71,528. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does JAC Gallop K5 Heavy Truck truck-mounted crane cover?
JAC Gallop K5 Heavy Truck truck-mounted crane mainly covers: Drive: 4x2 / 6x2 / 6x4 / 8x4; Horsepower: 200 hp / 220 hp / 240 hp / 270 hp / 310 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in JAC Gallop K5 Heavy Truck truck-mounted crane?
For JAC Gallop K5 Heavy Truck truck-mounted crane: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is truck-mounted crane typically used for?
truck-mounted crane specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does JAC Gallop K5 Heavy Truck truck-mounted crane include?
JAC Gallop K5 Heavy Truck truck-mounted crane currently lists about 8 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for JAC Gallop K5 Heavy Truck truck-mounted crane?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
