JAC Gallop K5L Heavy Truck 270hp 6X4(10 wheels) Crane Truck Chassis (China VI)

Export reference
MSRP N/A
Wheelbase:: 5800+1350mm
Cab dimensions:: 11.425×2.5×3.15m
Type:: truck-mounted crane
GVWR:: 25ton
Front/rear suspension:: 1.495/2.78m
Injection System:: Common Rail
Drive 6X4 (10 wheels)
Horsepower 270
Emission China VI
Fuel Diesel

Overview

The JAC Gallop K5L Heavy Truck 270hp 6X4(10 wheels) Crane Truck Chassis (China VI) is a truck-mounted crane featuring 25t GVW and 6X4 (10 wheels) drive. On the powertrain side, it comes with a Yuchai engine, 270 hp, China VI emissions and Diesel fuel.

China VI 270 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 11.425×2.5×3.15m
Type: truck-mounted crane
Drive type: 6X4
Wheelbase: 5800+1350mm
GVWR: 25ton
Front/rear suspension: 1.495/2.78m
Energy Type: Diesel
Engine parameters
Injection System: Common Rail
Engine Brand: Yuchai
Engine Model: YuchaiYCS06270-60
fuel type: Diesel
Displacement: 6.23L
Emission standard: China VI
Max output power: 199kW
Max hp: 270Horsepower
Max torque: 1050N·m
Max torque speed: 1200-1700rpm
Rated speed: 2300rpm
Body Parameters
Vehicle certification code: HFC5251JSQP3K3E58S
Body Brand: JAC Gallop
Chassis Specs
Chassis Brand: JAC Gallop
Chassis Series: GallopK5
rear axle description: Single reduction axle
Axle ratio: 4.875
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear8JS118T+QH50A
Tire
Tire Size: 11.00R20
Number of tires: 10pcs

Photos

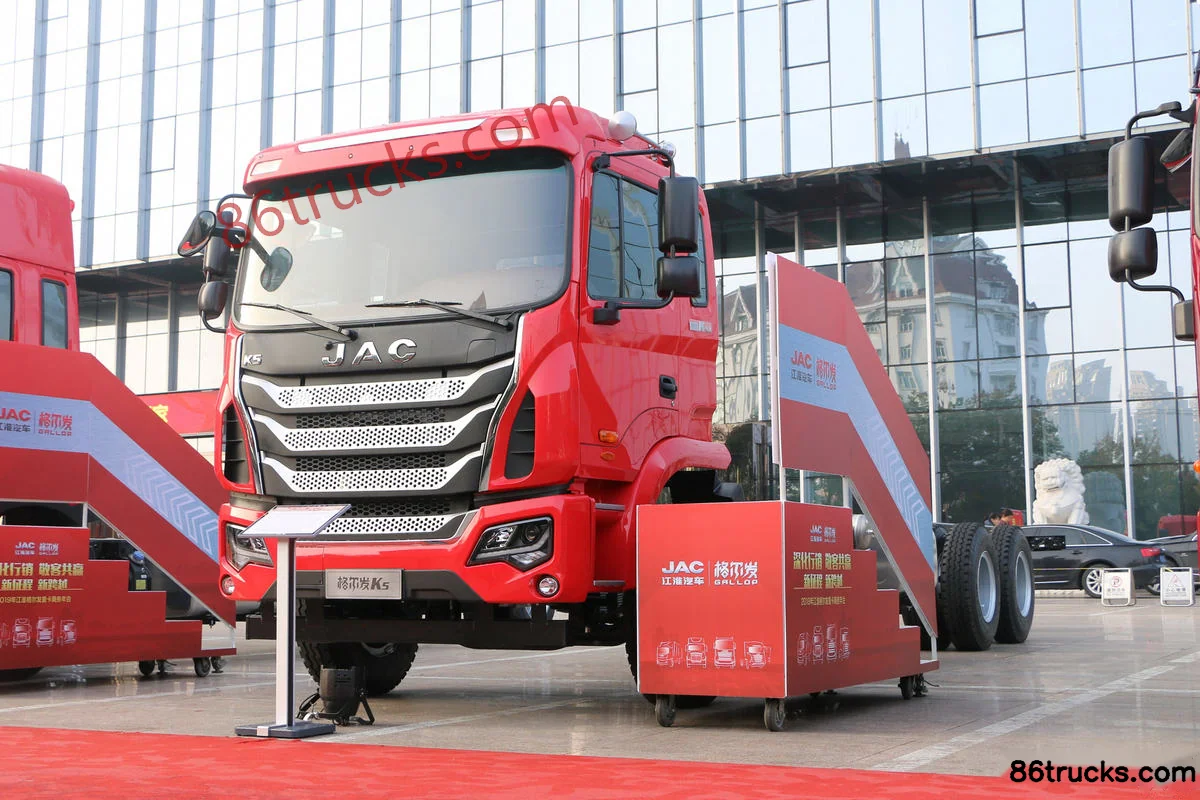

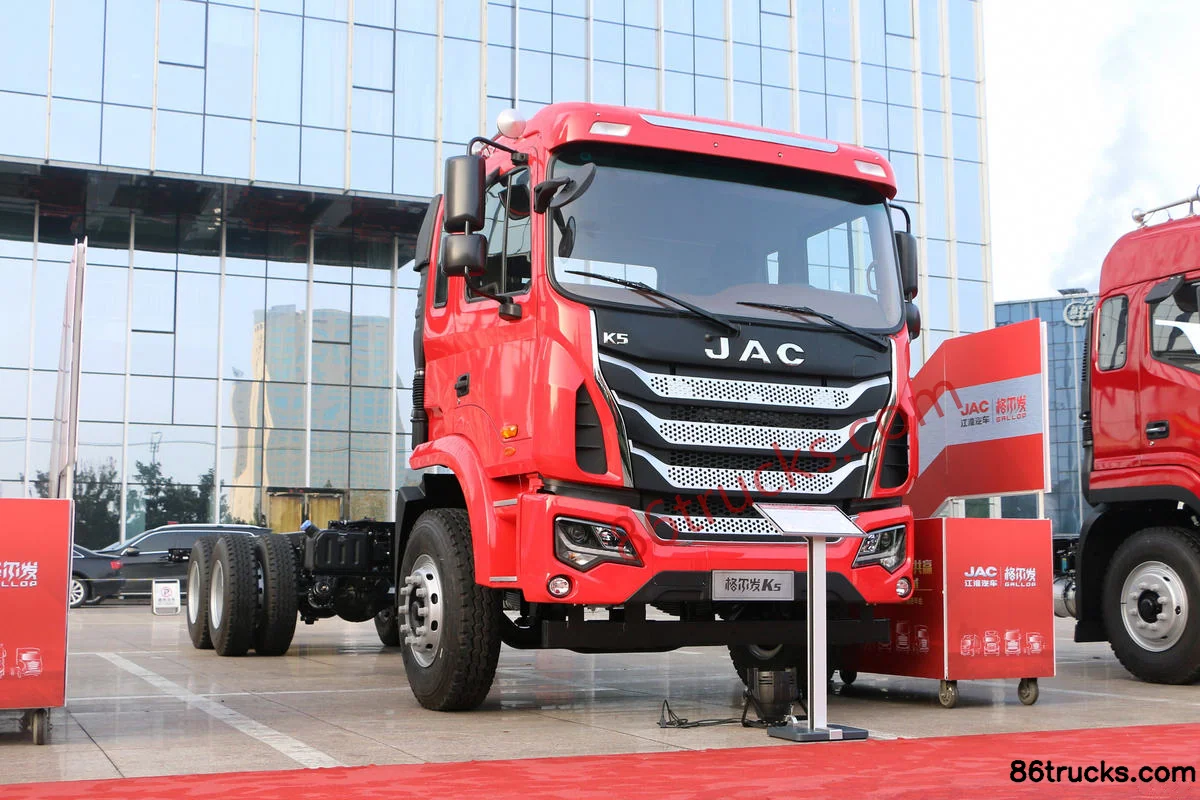

Exterior3

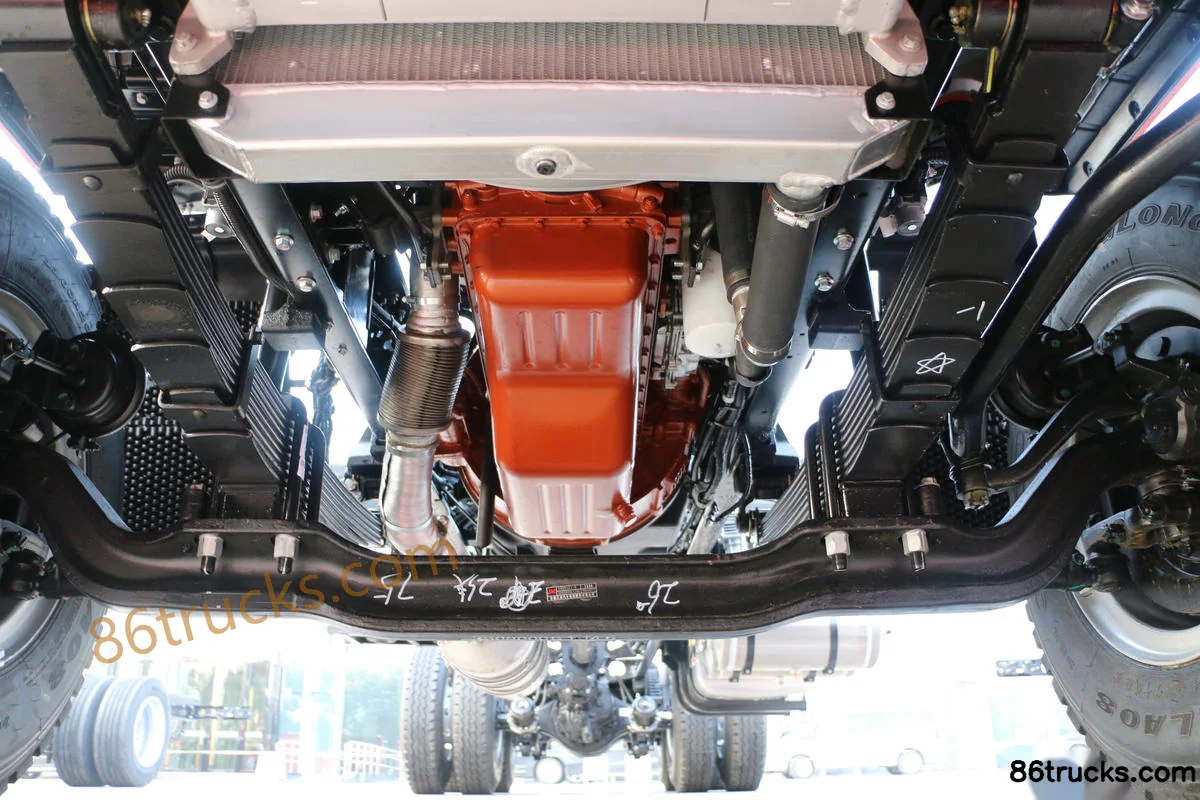

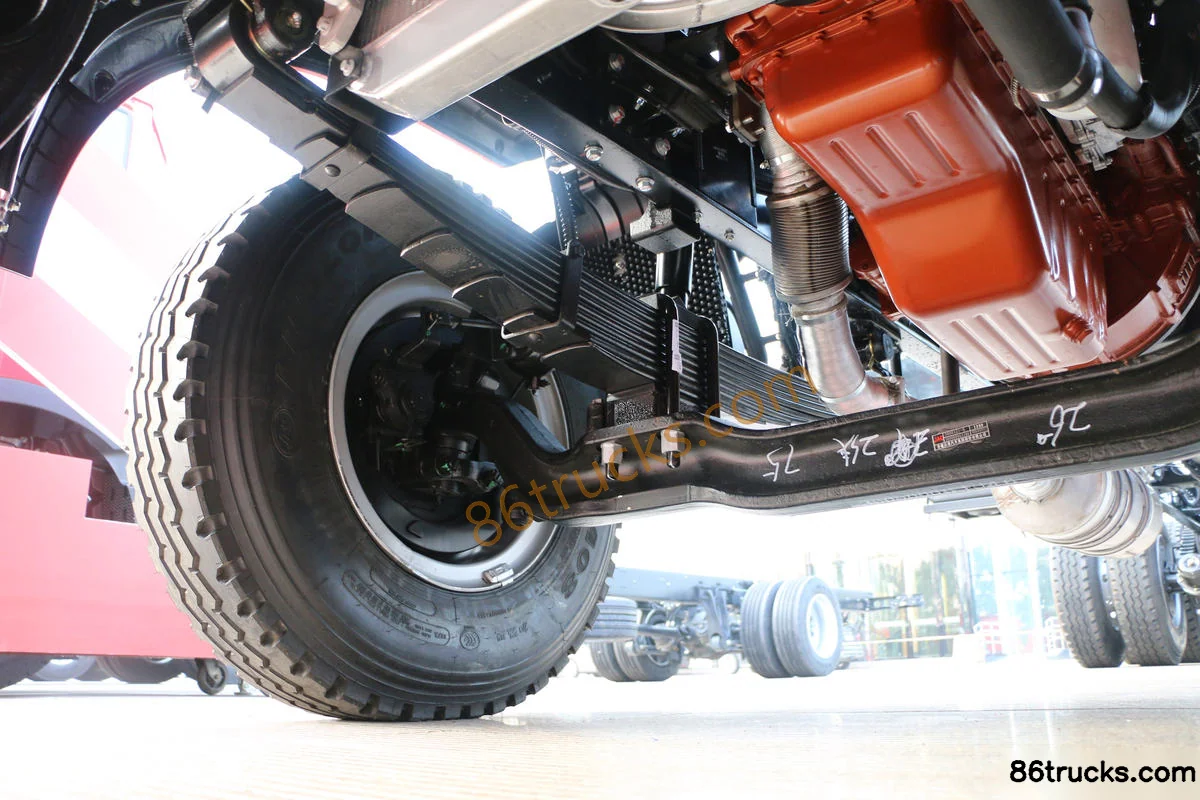

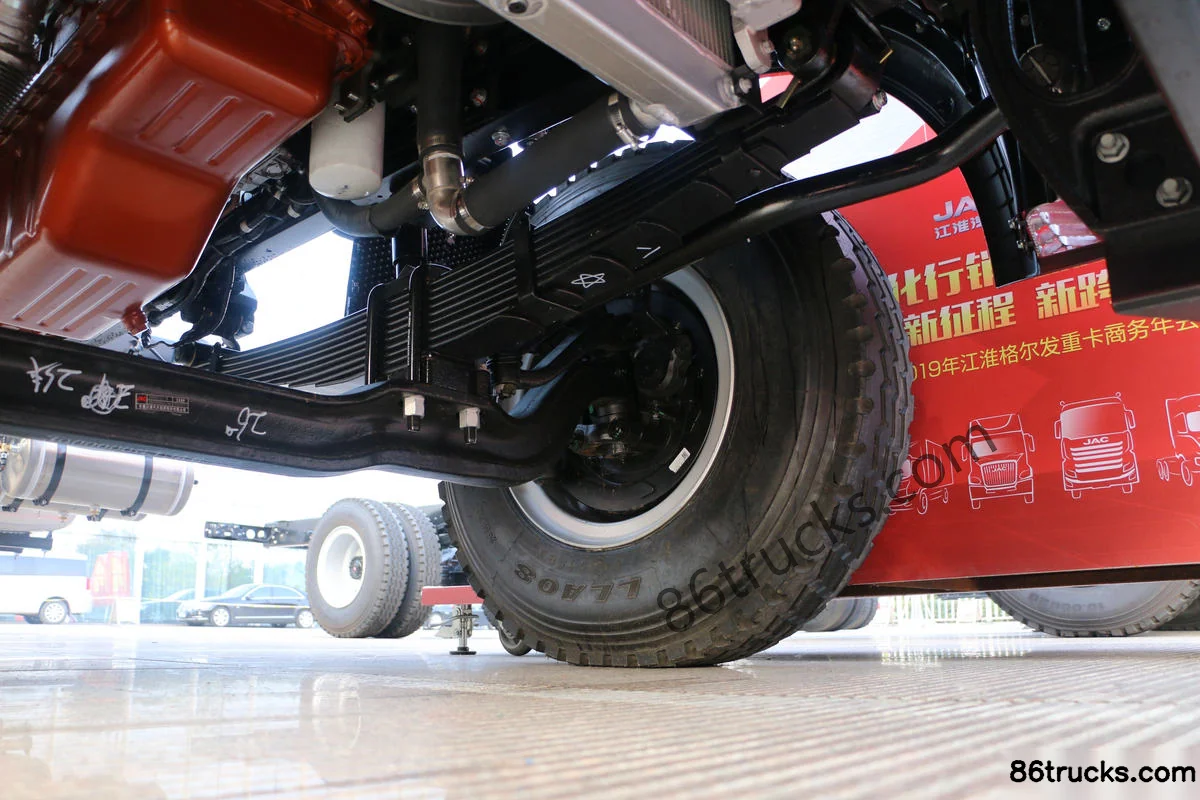

Chassis3

6 photos

FAQ

What emission standard does JAC Gallop K5L Heavy Truck 270hp 6X4(10 wheels) Crane Truck Chassis (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop K5L Heavy Truck 270hp 6X4(10 wheels) Crane Truck Chassis (China VI)?

Key specs of JAC Gallop K5L Heavy Truck 270hp 6X4(10 wheels) Crane Truck Chassis (China VI): Drive: 6x4; Horsepower: 270 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop K5L Heavy Truck 270hp 6X4(10 wheels) Crane Truck Chassis (China VI) suited for?

JAC Gallop K5L Heavy Truck 270hp 6X4(10 wheels) Crane Truck Chassis (China VI) is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does JAC Gallop K5L Heavy Truck 270hp 6X4(10 wheels) Crane Truck Chassis (China VI) differ from other variants in the same series?

JAC Gallop K5L Heavy Truck 270hp 6X4(10 wheels) Crane Truck Chassis (China VI) belongs to JAC Gallop K5 Heavy Truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop K5L Heavy Truck 270hp 6X4(10 wheels) Crane Truck Chassis (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop K5L Heavy Truck 270hp 6X4(10 wheels) Crane Truck Chassis (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
