Sinotruk Steyr M5G 280 hp 6X4(10 wheels) truck-mounted crane

Export reference
MSRP N/A
Emission: China IV
Wheelbase:: 5700+1350mm
Cab dimensions:: 11.85x2.47x3.62m
Type:: truck-mounted crane
GVWR:: 25ton
Front/rear suspension:: 1.32/3.48m
Lifting capacity: 10 tons
Drive 6X4 (10 wheels)
Horsepower 280
Rated mass: 9.31ton

Overview

The Sinotruk Steyr M5G 280 hp 6X4(10 wheels) truck-mounted crane is a truck-mounted crane featuring 10 tons tank capacity, 25t GVW and 6X4 (10 wheels) drive. On the powertrain side, it comes with 280 hp and China IV emissions.

China IV 280 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 11.85x2.47x3.62m
Type: truck-mounted crane
Drive type: 6X4
Wheelbase: 5700+1350mm
Rated mass: 9.31ton
GVWR: 25ton
Front/rear suspension: 1.32/3.48m
Body Parameters
Crane model: T-CLX260
Lifting capacity: 10 tons
crane self-weight: 3.75ton
Vehicle certification code: ZZ5251JSQM574GD1H
Body Brand: Sinotruk
Engine parameters
Engine Brand: Sinotruk
Engine Model: Sinotruk MC07.28-40
Displacement: 6.87L
Emission standard: China IV
Max output power: 206kW
Max hp: 280Horsepower
Max torque: 1100N·m
Max torque speed: 1200-1800rpm
Chassis Specs
Chassis Brand: Sinotruk
Chassis Series: Steyr M5G
Chassis Model: ZZ1251M574GD1
rear axle description: 457
Leaf spring count: 3/5
Transmission Parameters
Number of gears: 7Gear
Transmission Model: DC7J120TC
Tire
Tire Size: 12R22.5
Number of tires: 10pcs

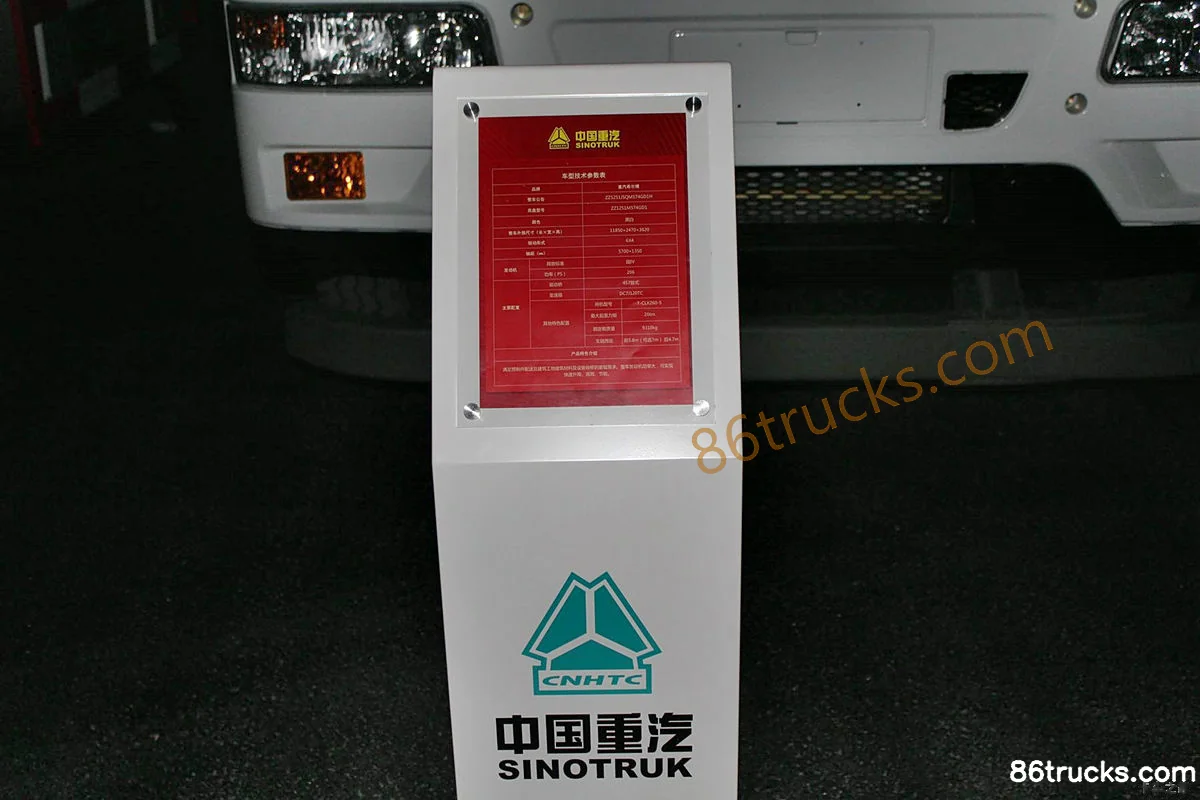

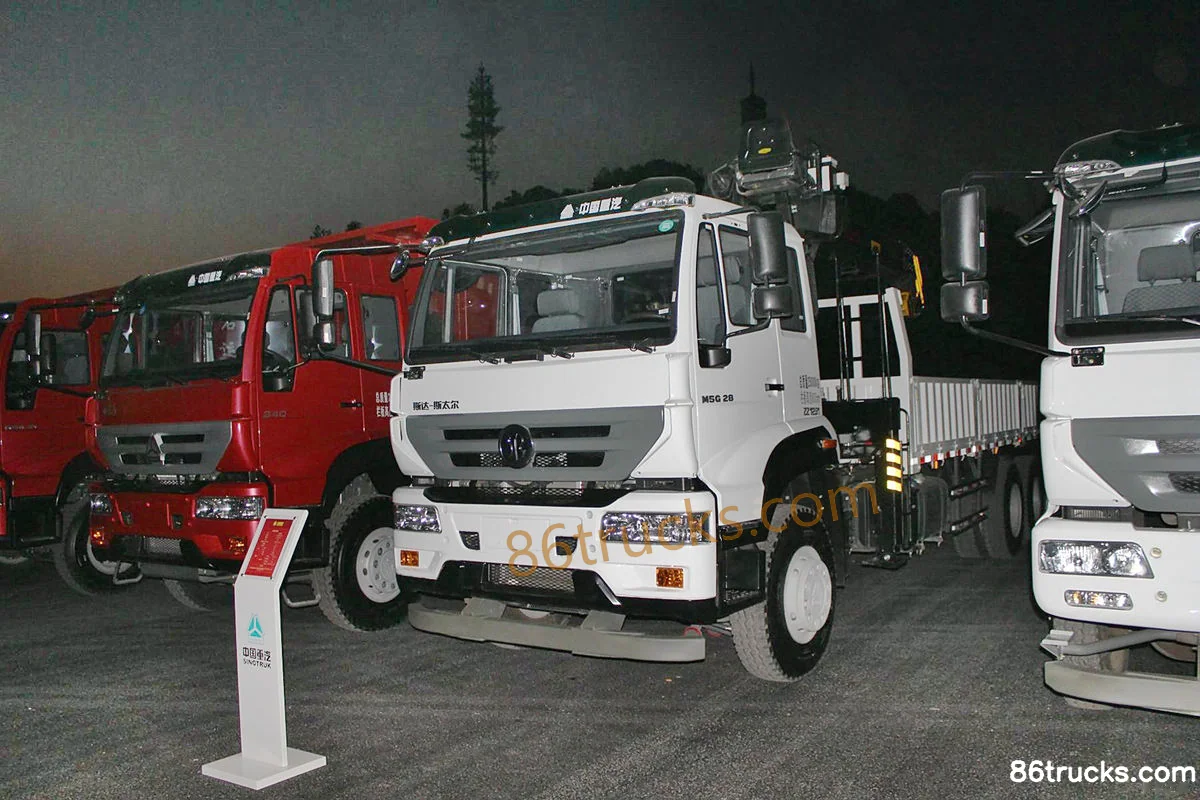

Photos

Exterior2

2 photos

FAQ

What emission standard does Sinotruk Steyr M5G 280 hp 6X4(10 wheels) truck-mounted crane use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Steyr M5G 280 hp 6X4(10 wheels) truck-mounted crane?

Key specs of Sinotruk Steyr M5G 280 hp 6X4(10 wheels) truck-mounted crane: Drive: 6x4; Horsepower: 280 hp; Emission: China IV. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Steyr M5G 280 hp 6X4(10 wheels) truck-mounted crane suited for?

Sinotruk Steyr M5G 280 hp 6X4(10 wheels) truck-mounted crane is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Sinotruk Steyr M5G 280 hp 6X4(10 wheels) truck-mounted crane differ from other variants in the same series?

Sinotruk Steyr M5G 280 hp 6X4(10 wheels) truck-mounted crane belongs to Sinotruk M5G Quasi-heavy Truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Steyr M5G 280 hp 6X4(10 wheels) truck-mounted crane?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Steyr M5G 280 hp 6X4(10 wheels) truck-mounted crane?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
