Dongfeng Commercial Vehicle Tianjin VR 210hp 4X2(6 wheels) Truck-Mounted Crane (SANY brand)
EXW
Export quote
SANY Group Dongfeng Commercial Vehicle chassis
Main model photos
25 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Commercial Vehicle Tianjin VR 210hp 4X2(6 wheels) Truck-Mounted Crane (SANY brand) | 4x2 / 210hp / China VI | ||
| Dongfeng Commercial Vehicle Tianlong 240 hp 6X4(10 wheels) Truck-mounted Crane | 6x4 / 240hp / China V | From $63,333 |

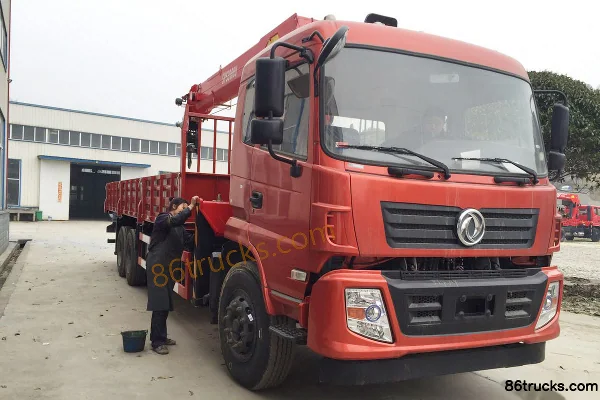

Dongfeng Commercial Vehicle Tianlong 240 hp 6X4(10 wheels) Truck-mounted Crane
EXW
From $63,333
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Commercial Vehicle Tianlong 260hp 6X4(10 wheels) Truck-mounted Crane (SANY brand) | 6x4 / 260hp / China III / Euro III | From $59,722 | |
| Dongfeng Commercial Vehicle Tianjin 190hp 4X2(6 wheels) Truck-mounted Crane (SANY brand) | 4x2 / 190hp / China III / Euro III | From $34,444 |
Dongfeng Commercial Vehicle Tianlong 260hp 6X4(10 wheels) Truck-mounted Crane (SANY brand)
EXW
From $59,722
Export quote
Dongfeng Commercial Vehicle Tianjin 190hp 4X2(6 wheels) Truck-mounted Crane (SANY brand)
EXW
From $34,444
Export quote
Series Specs
Basic Info
Cab dimensions: 11.95×2.5×3.85 / 11.57×2.5×3.76 / 8.95X2.498X3.325m
Type: truck-mounted crane
Drive type: 4X2 / 6X4
Wheelbase: 5900+1300 / 5350+1300 / 5000mm
Rated mass: 8.805 / 9 / 7.705ton
GVWR: 25 / 16ton
Front/rear suspension: 1.25/3.45 / 1.46/3.11 / 1.430/2.52m
Energy Type: Diesel
Body Parameters
Other special notes: 7t front axle, no inter-axle diff lock, frame section 300×90×[8+6]mm, leaf spring 8/9, 11.00R20 radial tires, manual adjuster arm, no ABS, full-floating cab front/rear suspension, hydraulic mechanical tilt, air-suspension driver seat, walk-through dashboard, with A/C / 6T front axle, no inter-axle diff lock, frame rail section 280×80×(7+4)mm, leaf spring count 8/10+8, 10.00R20 radial tire, automatic slack adjuster, no ABS, semi-floating cab rear suspension, hydraulic mechanical tilt, manual window regulator, manual door lock, walk-through dashboard, A/C equipped
Crane model: SPS16.500TEC1 / SPS30000 / SPS15800
Lifting capacity: 7 / 12 / 6.3ton
crane self-weight: 16.27 / 8.8ton
Vehicle certification code: EQ5250JSQGZ5D / SYM5255JSQD / SYM5161JSQD
Body Brand: SANY Group
Engine parameters
Engine Brand: Yuchai / Dongfeng
Engine Model: YuchaiYC6A240-50 / Dongfeng C260 33 / DongfengB190 33E
Displacement: 7.52 / 8.3 / 5.9L
Emission standard: China VI / China V / China III / Euro III
Max output power: 177 / 191 / 140kW
Max hp: 210 / 240 / 260 / 190Horsepower
Max torque: 1000 / 1090N·m
Max torque speed: 1200-1800 / 1200rpm
Rated speed: 2200rpm
Chassis Specs
Chassis Brand: Dongfeng Commercial Vehicle
Chassis Series: Tianjin VR / Dongfeng Tianlong / Dongfeng Tianjin
Chassis Model: EQ1250GZ5DJ1 / DFL1250A9 / DFL1160BX
rear axle description: 10t single reduction dual rear axle (Dongfeng435), main reduction ratio 4.44 / 10T single reduction rear axle, main reduction ratio 5.286
Leaf spring count: 8/13,9/10,9/13 / 8/9 / 8/10
Transmission Parameters
Number of gears: 8 / 9 / 6Gear
Transmission Model: Fast Gear8JS118A / Fast Gear 9JS119T-B / Dongfeng DF6S900 (Dongfeng 6-Speed)
Tire
Tire Size: 10.00R20,11.00R20 16PR / 10.00-20 / 9.00-20
Number of tires: 6 / 10pcs
FAQ
What kind of truck is SANY Truck SANY Group Dongfeng Commercial Vehicle chassis truck-mounted crane?
SANY Truck SANY Group Dongfeng Commercial Vehicle chassis is an export-oriented truck-mounted crane lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for SANY Group Dongfeng Commercial Vehicle chassis?
SANY Group Dongfeng Commercial Vehicle chassis export reference is about $34,444 – $63,333. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does SANY Group Dongfeng Commercial Vehicle chassis cover?
SANY Group Dongfeng Commercial Vehicle chassis mainly covers: Drive: 4x2 / 6x4; Horsepower: 190 hp / 210 hp / 240 hp / 260 hp; Emission: China III / Euro III / China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in SANY Group Dongfeng Commercial Vehicle chassis?
For SANY Group Dongfeng Commercial Vehicle chassis: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is truck-mounted crane typically used for?
truck-mounted crane specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does SANY Group Dongfeng Commercial Vehicle chassis include?
SANY Group Dongfeng Commercial Vehicle chassis currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for SANY Group Dongfeng Commercial Vehicle chassis?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
