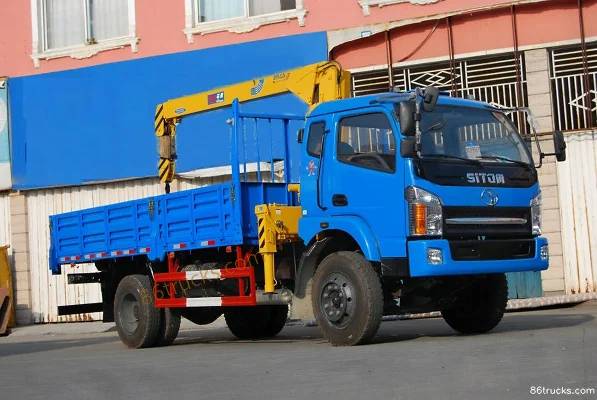

Sanhuan Shitong Fuxingka 140 hp 4X2(6 wheels) Truck-Mounted Crane
EXW
Export quote
Sanhuan Shitong Fuxingka Light Truck truck-mounted
Main model photos
28 photos
Models
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sanhuan Shitong Fuxingka 140 hp 4X2(6 wheels) Truck-Mounted Crane | 4x2 / 140hp / China IV | ||
| Sanhuan Shitong Fuxingka 140 hp 4X2(6 wheels) Truck-Mounted Crane | 4x2 / 140hp / China IV | ||

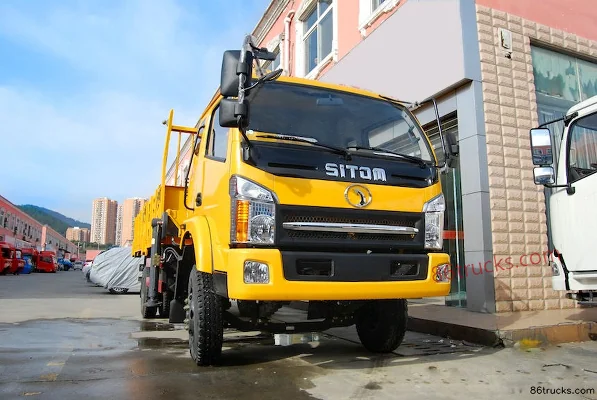

| Sanhuan Shitong Fuxingka 115 hp 4X2(6 wheels) truck-mounted crane | 4x2 / 115hp / China IV | ||
| Sanhuan Shitong Fuxingka 115 hp 4X2(6 wheels) truck-mounted crane | 4x2 / 115hp / China IV | From $16,667 |
Sanhuan Shitong Fuxingka 140 hp 4X2(6 wheels) Truck-Mounted Crane
EXW
Export quote
Sanhuan Shitong Fuxingka 115 hp 4X2(6 wheels) truck-mounted crane
EXW
Export quote
Sanhuan Shitong Fuxingka 115 hp 4X2(6 wheels) truck-mounted crane
EXW
From $16,667
Export quote
Series Specs
Basic Info
Cab dimensions: 2.475×3.115 / 7.215×2.475×3.5 / 7.99×2.475×3.115m
Type: truck-mounted crane
Drive type: 4X2
Wheelbase: 3900/4450 / 4450mm
Rated mass: 8.72 / 3.59ton
GVWR: 14.575 / 9.98ton
Front/rear suspension: 1.17/2.375 / 1.17/2.145m
Energy Type: Diesel
Body Parameters
Other special notes: Frame: 250mm local three-layer (crane truck dedicated frame); Leaf springs: front 13 rear 13; Cargo box inner dimensions: 4800,4450*2100*600. / Frame: 280mm local three-layer (crane truck dedicated frame); Leaf springs: front 13 rear 13; Cargo box inner dimensions: 4800,4450*2100*600. / Frame: 250mm local three-layer (crane truck dedicated frame); Leaf springs: front 13 rear 13; Cargo box inner dimensions: 4800,4450*2100*600
Crane model: SQS68 / QYS-3.2Ⅱ / SQ4SK2Q / SQ3.2S
Lifting capacity: 3.2 / 4ton
crane self-weight: 1.35ton
Vehicle certification code: STQ5151JSQN4 / STQ5101JSQN4
Body Brand: Sanhuan Shitong / XCMG brand
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4E140-41 / YuchaiYC4FA115-40
Displacement: 4.26 / 2.982L
Emission standard: China IV
Max output power: 85kW
Max hp: 140 / 115Horsepower
Max torque: 430 / 300N·m
Max torque speed: 1300-1600 / 1600-2400rpm
Rated speed: 2600 / 3200rpm
Chassis Specs
Chassis Brand: Sanhuan Shitong
Chassis Series: Fuxing Truck
Chassis Model: STQ1151L07Y2N4 / STQ1101L05Y1N4
rear axle description: Front 140B/Rear 8T / front 5T short / rear 10T short / Front axle 169/Rear axle 1089C
Leaf spring count: 8/11+8
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Shaanxi Gear/Shaoxing Gear Small 8-speed / Shaanxi Gear small 8-speed / 8-speed transmission
Tire
Tire Size: 9.00-20 16PR / 8.25-16LT 16PR
Number of tires: 6pcs
FAQ
What kind of truck is Sanhuan Shitong Sanhuan Shitong Fuxingka Light Truck truck-mounted crane?
Sanhuan Shitong Sanhuan Shitong Fuxingka Light Truck is an export-oriented truck-mounted crane lineup with about 4 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Sanhuan Shitong Fuxingka Light Truck truck-mounted?
Sanhuan Shitong Fuxingka Light Truck truck-mounted export reference is about From $16,667. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Sanhuan Shitong Fuxingka Light Truck truck-mounted cover?
Sanhuan Shitong Fuxingka Light Truck truck-mounted mainly covers: Drive: 4x2; Horsepower: 115 hp / 140 hp; Emission: China IV; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sanhuan Shitong Fuxingka Light Truck truck-mounted?
For Sanhuan Shitong Fuxingka Light Truck truck-mounted: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is truck-mounted crane typically used for?
truck-mounted crane specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Sanhuan Shitong Fuxingka Light Truck truck-mounted include?
Sanhuan Shitong Fuxingka Light Truck truck-mounted currently lists about 4 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sanhuan Shitong Fuxingka Light Truck truck-mounted?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
