Dongfeng Commercial Vehicle Tianjin 190hp 4X2(6 wheels) Truck-mounted Crane (SANY brand)

Export reference
From $34,444
MSRP ¥24.8M CNY
Emission: China III / Euro III
Wheelbase:: 5000mm
Cab dimensions:: 8.95X2.498X3.325m
Type:: truck-mounted crane
GVWR:: 16ton
Front/rear suspension:: 1.430/2.52m
Lifting capacity: 6.3ton
Drive 4X2 (6 wheels)
Horsepower 190
Rated mass: 7.705ton

Overview

The Dongfeng Commercial Vehicle Tianjin 190hp 4X2(6 wheels) Truck-mounted Crane (SANY brand) is a truck-mounted crane featuring 6.3ton tank capacity, 16t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 190 hp and China III / Euro III emissions.

China III / Euro III 190 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 8.95X2.498X3.325m
Type: truck-mounted crane
Drive type: 4X2
Wheelbase: 5000mm
Rated mass: 7.705ton
GVWR: 16ton
Front/rear suspension: 1.430/2.52m
Body Parameters
Other special notes: 6T front axle, no inter-axle diff lock, frame rail section 280×80×(7+4)mm, leaf spring count 8/10+8, 10.00R20 radial tire, automatic slack adjuster, no ABS, semi-floating cab rear suspension, hydraulic mechanical tilt, manual window regulator, manual door lock, walk-through dashboard, A/C equipped
Crane model: SPS15800
Lifting capacity: 6.3ton
crane self-weight: 8.8ton
Vehicle certification code: SYM5161JSQD
Body Brand: SANY Group
Engine parameters
Engine Model: DongfengB190 33E
Displacement: 5.9L
Emission standard: China III / Euro III
Max output power: 140kW
Max hp: 190Horsepower
Chassis Specs
Chassis Brand: Dongfeng Commercial Vehicle
Chassis Series: Dongfeng Tianjin
Chassis Model: DFL1160BX
rear axle description: 10T single reduction rear axle, main reduction ratio 5.286
Leaf spring count: 8/10
Transmission Parameters
Number of gears: 6Gear
Transmission Model: Dongfeng DF6S900 (Dongfeng 6-Speed)
Tire
Tire Size: 9.00-20
Number of tires: 6pcs

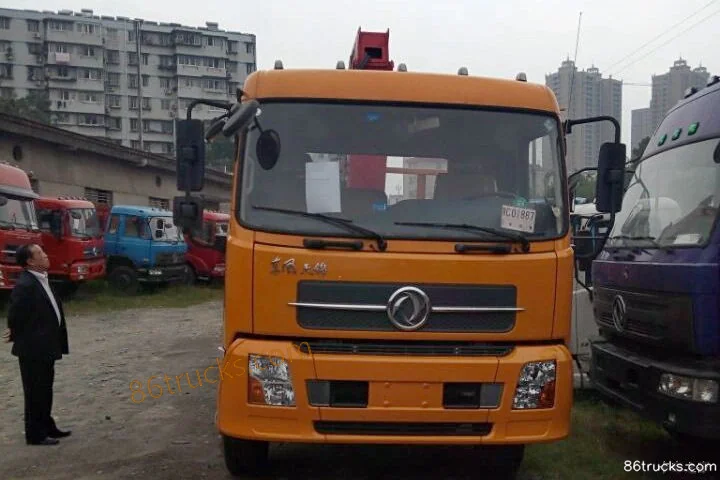

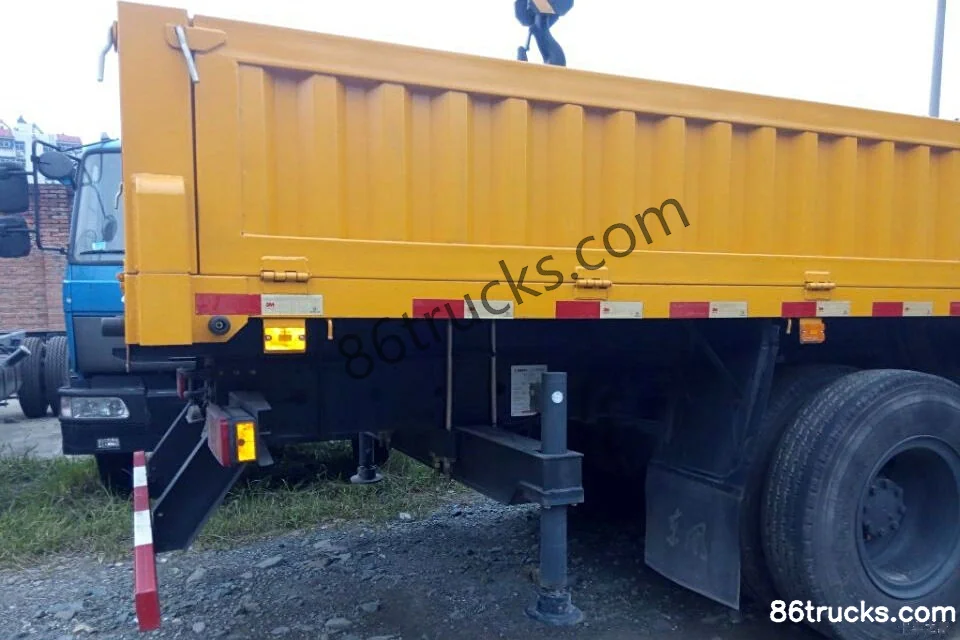

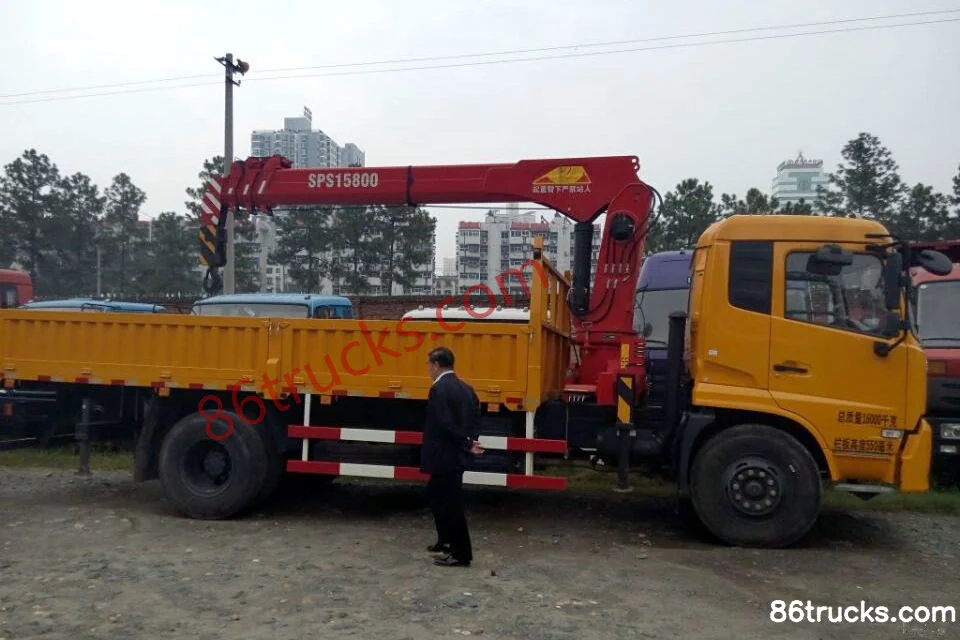

Photos

Exterior3

3 photos

FAQ

What is the export price of Dongfeng Commercial Vehicle Tianjin 190hp 4X2(6 wheels) Truck-mounted Crane (SANY brand), and what does it include?

Dongfeng Commercial Vehicle Tianjin 190hp 4X2(6 wheels) Truck-mounted Crane (SANY brand) export reference is about From $34,444; MSRP is ¥24.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Commercial Vehicle Tianjin 190hp 4X2(6 wheels) Truck-mounted Crane (SANY brand) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Commercial Vehicle Tianjin 190hp 4X2(6 wheels) Truck-mounted Crane (SANY brand)?

Key specs of Dongfeng Commercial Vehicle Tianjin 190hp 4X2(6 wheels) Truck-mounted Crane (SANY brand): Drive: 4x2; Horsepower: 190 hp; Emission: China III / Euro III. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Commercial Vehicle Tianjin 190hp 4X2(6 wheels) Truck-mounted Crane (SANY brand) suited for?

Dongfeng Commercial Vehicle Tianjin 190hp 4X2(6 wheels) Truck-mounted Crane (SANY brand) is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Dongfeng Commercial Vehicle Tianjin 190hp 4X2(6 wheels) Truck-mounted Crane (SANY brand) differ from other variants in the same series?

Dongfeng Commercial Vehicle Tianjin 190hp 4X2(6 wheels) Truck-mounted Crane (SANY brand) belongs to SANY Group Dongfeng Commercial Vehicle chassis (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Commercial Vehicle Tianjin 190hp 4X2(6 wheels) Truck-mounted Crane (SANY brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Commercial Vehicle Tianjin 190hp 4X2(6 wheels) Truck-mounted Crane (SANY brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
