FAW Jiefang J6M 260hp 6X4(10 wheels) truck-mounted crane
EXW
From $39,694
Export quote
FAW Jiefang J6M Near-Heavy Truck truck-mounted crane
Main model photos
363 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Jiefang J6M 260hp 6X4(10 wheels) truck-mounted crane | 6x4 / 260hp / China V | From $39,694 | |
| FAW Jiefang J6M 350hp 6X4(10 wheels) truck-mounted crane | 6x4 / 350hp / China V | From $46,236 | |
| FAW Jiefang J6M 280hp 6X4(10 wheels) truck-mounted crane | 6x4 / 280hp / China V | From $40,111 |
FAW Jiefang J6M 350hp 6X4(10 wheels) truck-mounted crane
EXW
From $46,236
Export quote

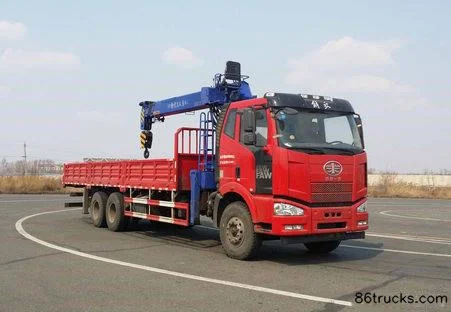

FAW Jiefang J6M 280hp 6X4(10 wheels) truck-mounted crane
EXW
From $40,111
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Jiefang J6M 260hp 6X4(10 wheels) truck-mounted crane | 6x4 / 260hp / China IV | ||
| FAW Jiefang J6M 260hp 6X4(10 wheels) truck-mounted crane | 6x4 / 260hp / China IV |
FAW Jiefang J6M 260hp 6X4(10 wheels) truck-mounted crane
EXW
Export quote
FAW Jiefang J6M 260hp 6X4(10 wheels) truck-mounted crane
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 12×2.55×3.96 / 8.07X2.495X3.865 / 11.97X2.495X3.865m
Type: truck-mounted crane
Drive type: 6X4
Wheelbase: 5800+1350 / 4050+1350mm
Rated mass: 8.805 / 13.88ton
GVWR: 25ton
Front/rear suspension: 1.4/3.45 / 1.47/1.2m
Energy Type: Diesel
Body Parameters
Other special notes: J6M Semi-Float Flat Roof Cab / J6M Semi-Float Flat Roof Cab, Body 8.35×2.3×0.6 / J6M Semi-Float Flat Roof Cab, Body 7.8x2.3x0.8m / Suitable for retrofitting 8-10 tons; Operating environment: mixed conditions, general roads, national highways, construction site roads
Crane model: SQS10,SPS25000,SPS30000,SQS300,SQS250 / SQ12T-V
Lifting capacity: 12;10 / 8-10ton
Vehicle certification code: CA5250JSQP63K1L5T1E5 / CA5250JQQP66K2L1T1A1E5 / CA5250JSQP63K1L5T1E4
Body Brand: FAW Jiefang
Engine parameters
Engine Brand: Dachai / Xichai
Engine Model: DachaiCA6DK1-26E5 / XichaiCA6DL2-35E5 / DachaiCA6DK1-28E5 / DachaiBF6M1013-26E4R
Displacement: 7.146 / 8.6 / 7.142 / 7.14L
Emission standard: China V / China IV
Max output power: 195 / 261 / 209 / 192kW
Max hp: 260 / 350 / 280Horsepower
Max torque: 1050 / 1500 / 1100N·m
Max torque speed: 1200-1700 / 1300-1470rpm
Rated speed: 2300 / 2100 / 1900rpm
Chassis Specs
Chassis Brand: FAW Jiefang
Chassis Series: FAW JiefangJ6M
Chassis Model: CA5250JSQP63K1L5T1E5 / CA5250QSYP63K1L5T1E4 / CA5250JSQP63K1L5T1E4
Frame Dimensions: 300×80×(8+5+5) / 270×75×(7+5+8)mm
rear axle description: Ф435 stamped-welded axle / 457 rear axle / Rear axle: 457 axle (manual adjuster arm)
Axle ratio: 4.875
Leaf spring count: 11/11,9/10 / 10/11,9/12 / 11/11
clutch: Φ430
Transmission Parameters
Number of gears: 10Gear
Transmission Model: FAWCA10TAX130M / FAWCA10TA / FAWCA10TA130M
Cab parameters
Cab: J6M Semi-Float Flat Roof Small Day Cab
Tire
Tire Size: 11.00R20 / 295/80R22.5 type 16-ply / 11.00R20,12R22.5,295/80R22.5 / 10.00R20
Number of tires: 10pcs
FAQ
What kind of truck is FAW Jiefang FAW Jiefang J6M Near-Heavy Truck truck-mounted crane?
FAW Jiefang FAW Jiefang J6M Near-Heavy Truck is an export-oriented truck-mounted crane lineup with about 5 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for FAW Jiefang J6M Near-Heavy Truck truck-mounted crane?
FAW Jiefang J6M Near-Heavy Truck truck-mounted crane export reference is about $39,694 – $46,236. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does FAW Jiefang J6M Near-Heavy Truck truck-mounted crane cover?
FAW Jiefang J6M Near-Heavy Truck truck-mounted crane mainly covers: Drive: 6x4; Horsepower: 260 hp / 280 hp / 350 hp; Emission: China IV / China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in FAW Jiefang J6M Near-Heavy Truck truck-mounted crane?
For FAW Jiefang J6M Near-Heavy Truck truck-mounted crane: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is truck-mounted crane typically used for?
truck-mounted crane specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does FAW Jiefang J6M Near-Heavy Truck truck-mounted crane include?
FAW Jiefang J6M Near-Heavy Truck truck-mounted crane currently lists about 5 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for FAW Jiefang J6M Near-Heavy Truck truck-mounted crane?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
