SHACMAN Delong New M3000 270 hp 6X4(10 wheels) 8.6m Truck-mounted Crane (Juntong brand)
EXW
From $39,764
Export quote
Henan JunTong SHACMAN Chassis truck-mounted crane
Main model photos
14 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| SHACMAN Delong New M3000 270 hp 6X4(10 wheels) 8.6m Truck-mounted Crane (Juntong brand) | 6x4 / 270hp / China V | From $39,764 | |
| SHACMAN Delong New M3000 270 hp 6X4(10 wheels) 8.6m Truck-mounted Crane (16T rear axle) (Juntong brand) | 6x4 / 270hp / China V | From $40,972 | |
| SHACMAN Delong New M3000 300 hp 6X4(10 wheels) 8.6m Truck-mounted Crane (Juntong brand) | 6x4 / 300hp / China V | From $41,875 | |
| SHACMAN Delong L3000 220 hp 4X2(6 wheels) 5.8m Truck-mounted Crane (Juntong Brand) | 4x2 / 220hp / China V | From $26,403 | |
| SHACMAN Delong L3000 185 hp 4X2(6 wheels) 5.8m Truck-mounted Crane (Juntong Brand) | 4x2 / 185hp / China V | From $24,833 |
SHACMAN Delong New M3000 270 hp 6X4(10 wheels) 8.6m Truck-mounted Crane (16T rear axle) (Juntong brand)
EXW
From $40,972
Export quote
SHACMAN Delong New M3000 300 hp 6X4(10 wheels) 8.6m Truck-mounted Crane (Juntong brand)
EXW
From $41,875
Export quote
SHACMAN Delong L3000 220 hp 4X2(6 wheels) 5.8m Truck-mounted Crane (Juntong Brand)
EXW
From $26,403
Export quote

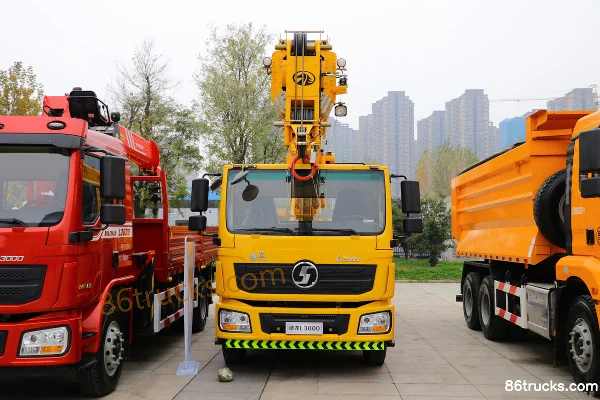

SHACMAN Delong L3000 185 hp 4X2(6 wheels) 5.8m Truck-mounted Crane (Juntong Brand)
EXW
From $24,833
Export quote
Series Specs
Basic Info
Cab dimensions: 12×2.55×3.9 / 9×2.55×3.55 / 11.165×2.5×3.495m
Type: Truck with crane / truck-mounted crane / truck crane
Drive type: 6X4 / 4X2
Wheelbase: 5775+1400 / 5000mm
Rated mass: 8.29 / 6.77ton
GVWR: 25 / 18 / 16.9ton
Front/rear suspension: 1.525/3.3 / 1.34/2.66 / 1.34/1.97m
Energy Type: Diesel
Body Parameters
Crane model: JSQ200
Lifting capacity: 8 / 12ton
crane self-weight: 3.5ton
Vehicle certification code: JF5250JSQSX / JF5180JSQSX / JF5171JQZ(JPC120)
Body Brand: Juntong brand / Juntong
Engine parameters
Engine Brand: Weichai / Yuchai
Engine Model: WeichaiWP7.270E51 / WeichaiWP7.300E51 / YuchaiYC6J220-50 / YuchaiYC4EG185-50
Displacement: 7.47 / 6.494 / 4.73L
Emission standard: China V
Max output power: 199 / 220 / 162 / 136kW
Max hp: 270 / 300 / 220 / 185Horsepower
Max torque: 1160 / 1250 / 800 / 700N·m
Max torque speed: 1200-1700 / 1300-1800rpm
Rated speed: 2300 / 2500rpm
Chassis Specs
Chassis Brand: SHACMAN
Chassis Series: New M3000 / Delong L3000
Chassis Model: XZJ5251JSQS5 / SX1180LA1
Frame Dimensions: 866×308(8+5+8) / 870×250(8+4+6 partial reinforcement) / 870×250(7+4+6 partial reinforcement)mm
rear axle description: MAN 11.5T single reduction / MAN 16T dual-reduction / MAN 10T single reduction
Axle ratio: 4.111 / 4.266 / 4.625
Leaf spring count: 10/12,10/10 / 10/9+6 / 10/9+6,3/4+3,3/-,3/2+-
Transmission Parameters
Number of gears: 8 / 9Gear
Transmission Model: Fast Gear8JS118 / Fast Gear9JS135 / Fast Gear8JS85E-C / Fast Gear 8-speed
Cab parameters
Cab: One-row cab with sleeper (8)
Tire
Tire Size: 11.00R20 / 10.00R20 / 10.00R20,295/80R22.5
Number of tires: 10 / 6pcs
FAQ
What kind of truck is Henan JunTong Henan JunTong SHACMAN Chassis truck-mounted crane?
Henan JunTong Henan JunTong SHACMAN Chassis is an export-oriented truck-mounted crane lineup with about 6 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Henan JunTong SHACMAN Chassis truck-mounted crane?
Henan JunTong SHACMAN Chassis truck-mounted crane export reference is about $23,611 – $41,875. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Henan JunTong SHACMAN Chassis truck-mounted crane cover?
Henan JunTong SHACMAN Chassis truck-mounted crane mainly covers: Drive: 4x2 / 6x4; Horsepower: 185 hp / 220 hp / 270 hp / 300 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Henan JunTong SHACMAN Chassis truck-mounted crane?
For Henan JunTong SHACMAN Chassis truck-mounted crane: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is truck-mounted crane typically used for?
truck-mounted crane specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Henan JunTong SHACMAN Chassis truck-mounted crane include?
Henan JunTong SHACMAN Chassis truck-mounted crane currently lists about 6 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Henan JunTong SHACMAN Chassis truck-mounted crane?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
