FAW Jiefang J6M 260hp 6X4(10 wheels) truck-mounted crane

Export reference
MSRP N/A
Cab dimensions:: 11.97X2.495X3.865m
Type:: truck-mounted crane
Other special notes:: J6M Semi-Float Flat Roof Cab, Body 7.8x2.3x0.8m
Crane model:: SQ12T-V
Body Brand:: FAW Jiefang
Engine Model:: DachaiBF6M1013-26E4R
Drive 6X4 (10 wheels)
Horsepower 260
Emission China IV
Wheelbase: 5800+1350mm

Overview

The FAW Jiefang J6M 260hp 6X4(10 wheels) truck-mounted crane is a truck-mounted crane featuring 6X4 (10 wheels) drive. On the powertrain side, it comes with a DachaiBF6M1013-26E4R engine, 260 hp and China IV emissions.

China IV 260 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 11.97X2.495X3.865m
Type: truck-mounted crane
Drive type: 6X4
Wheelbase: 5800+1350mm
Body Parameters
Other special notes: J6M Semi-Float Flat Roof Cab, Body 7.8x2.3x0.8m
Crane model: SQ12T-V
Body Brand: FAW Jiefang
Engine parameters
Engine Model: DachaiBF6M1013-26E4R
Displacement: 7.142L
Emission standard: China IV
Max output power: 192kW
Max hp: 260Horsepower
Chassis Specs
Chassis Brand: FAW Jiefang
Chassis Series: FAW JiefangJ6M
Chassis Model: CA5250QSYP63K1L5T1E4
rear axle description: 457 rear axle
Transmission Parameters
Number of gears: 10Gear
Transmission Model: FAW CA10TA130M
Tire
Tire Size: 295/80R22.5 type 16-ply
Number of tires: 10pcs

Photos

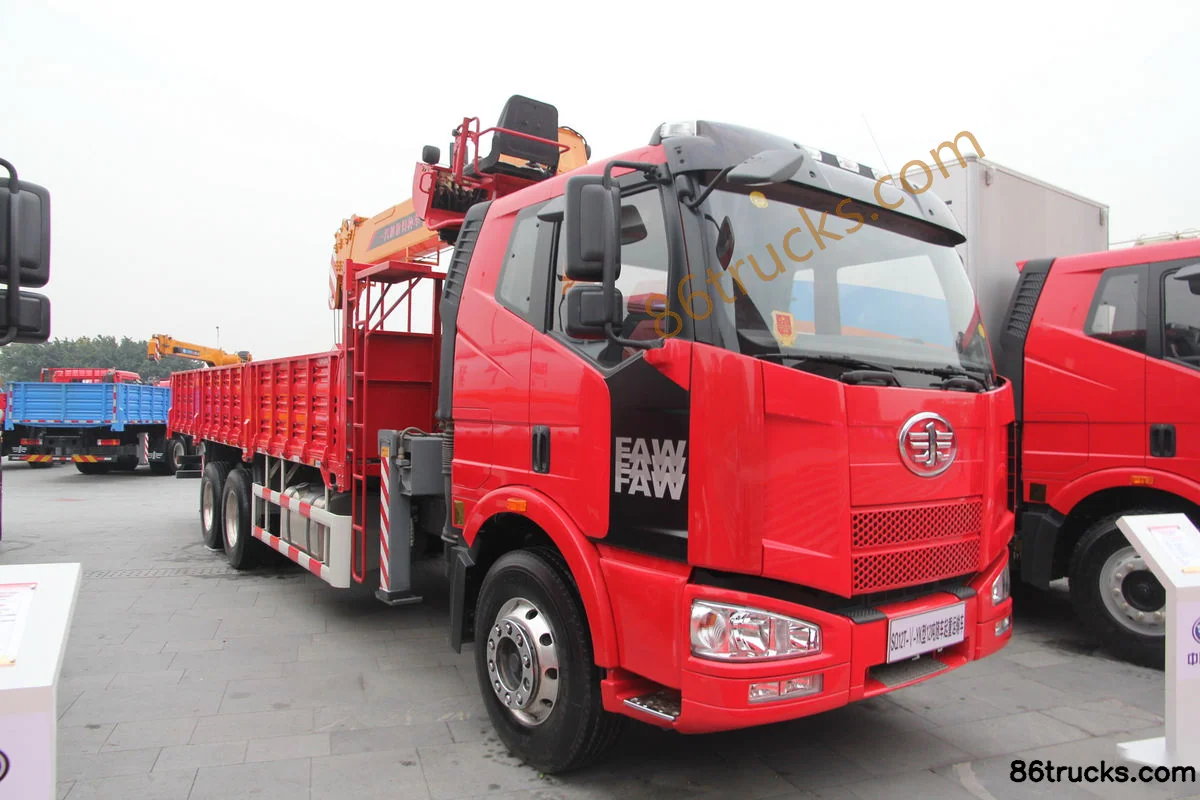

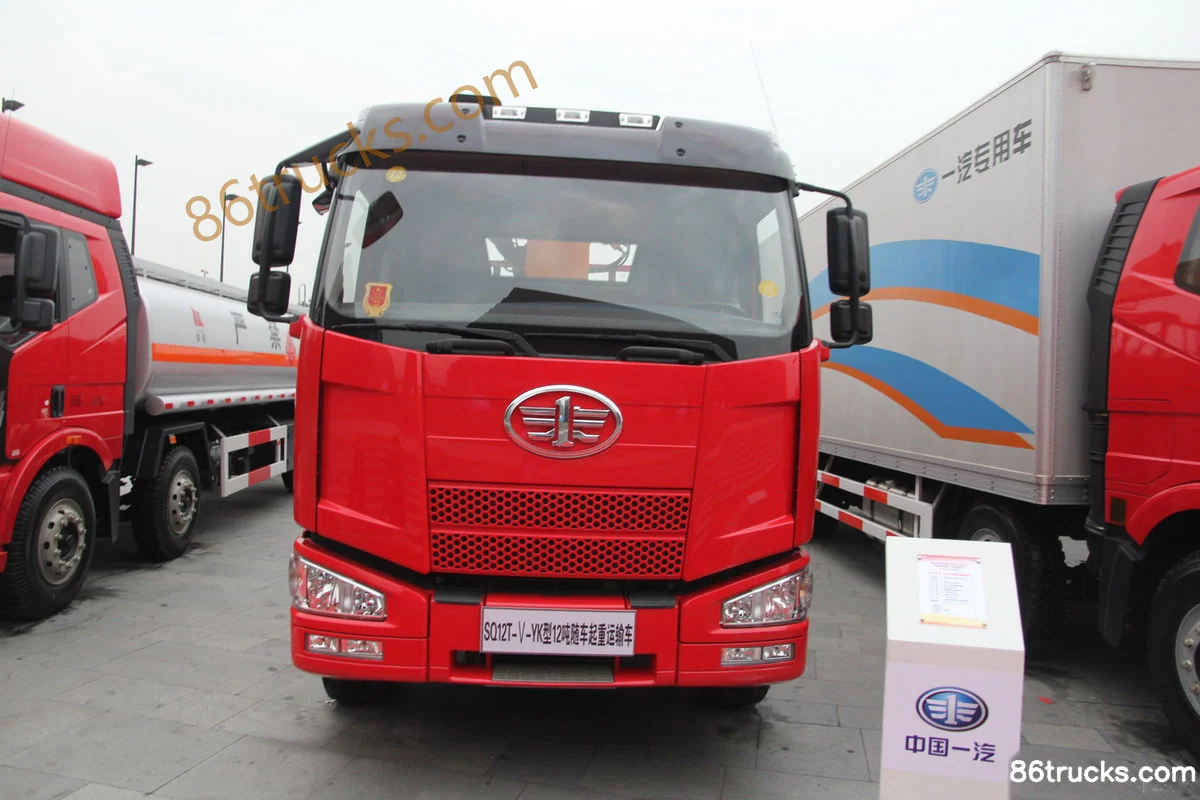

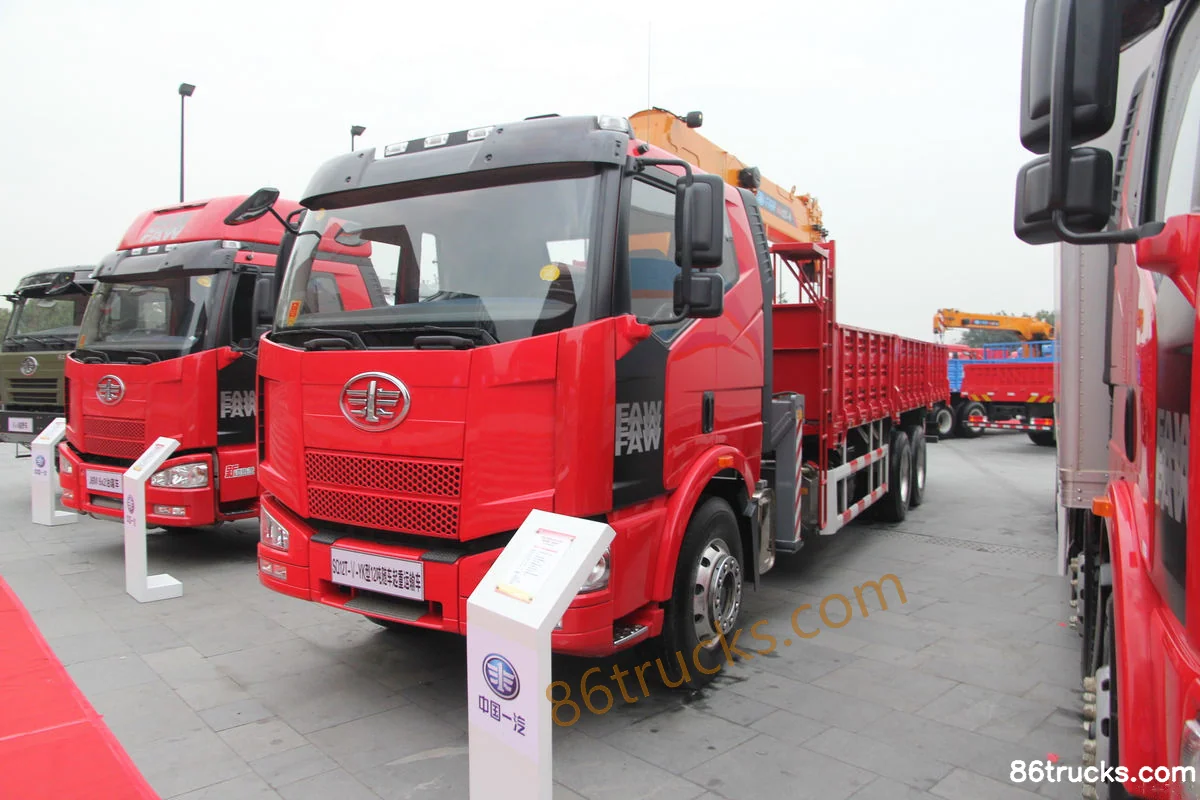

Exterior3

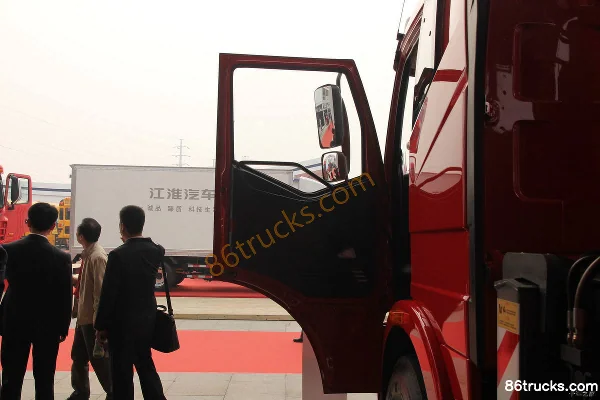

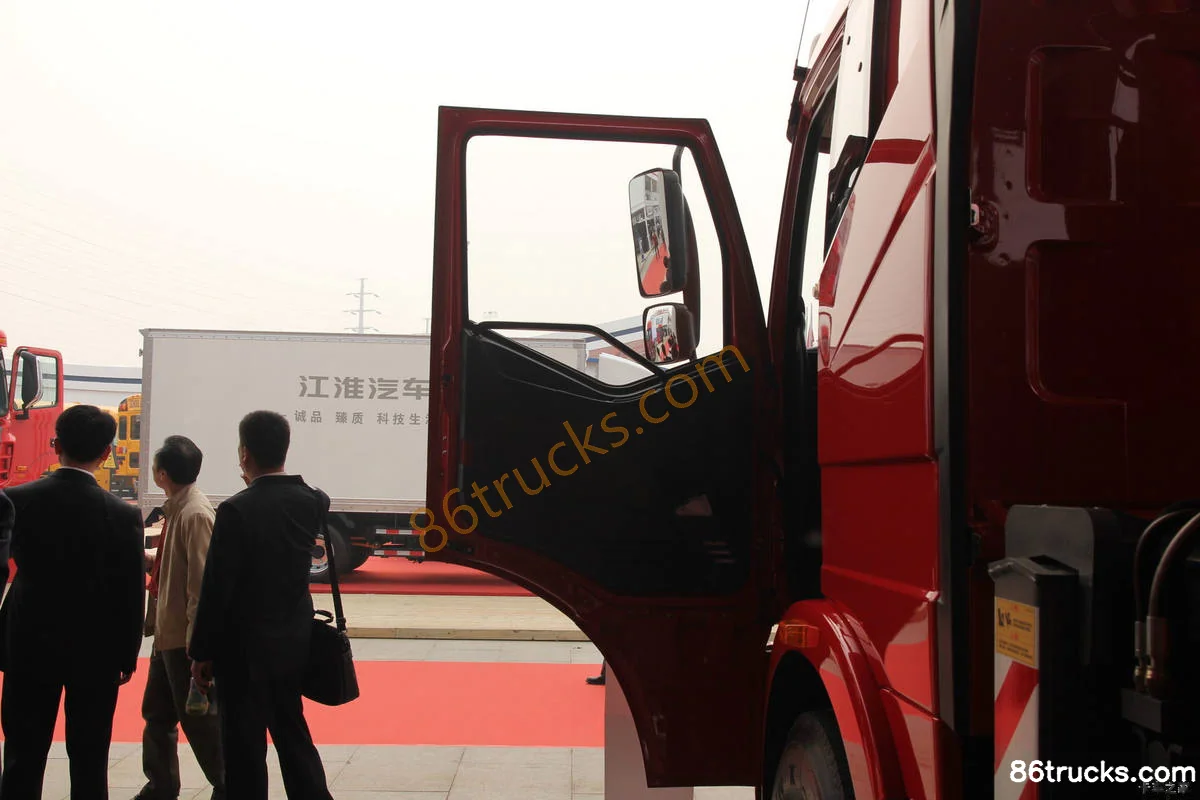

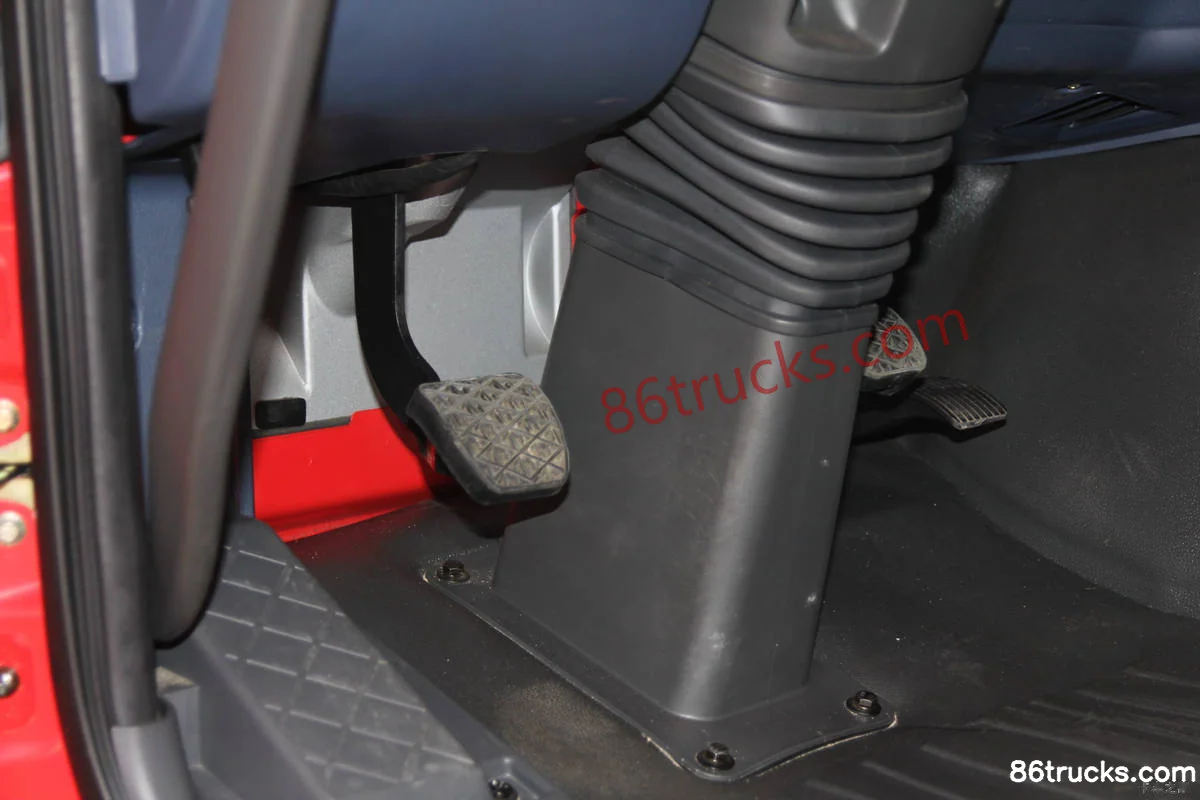

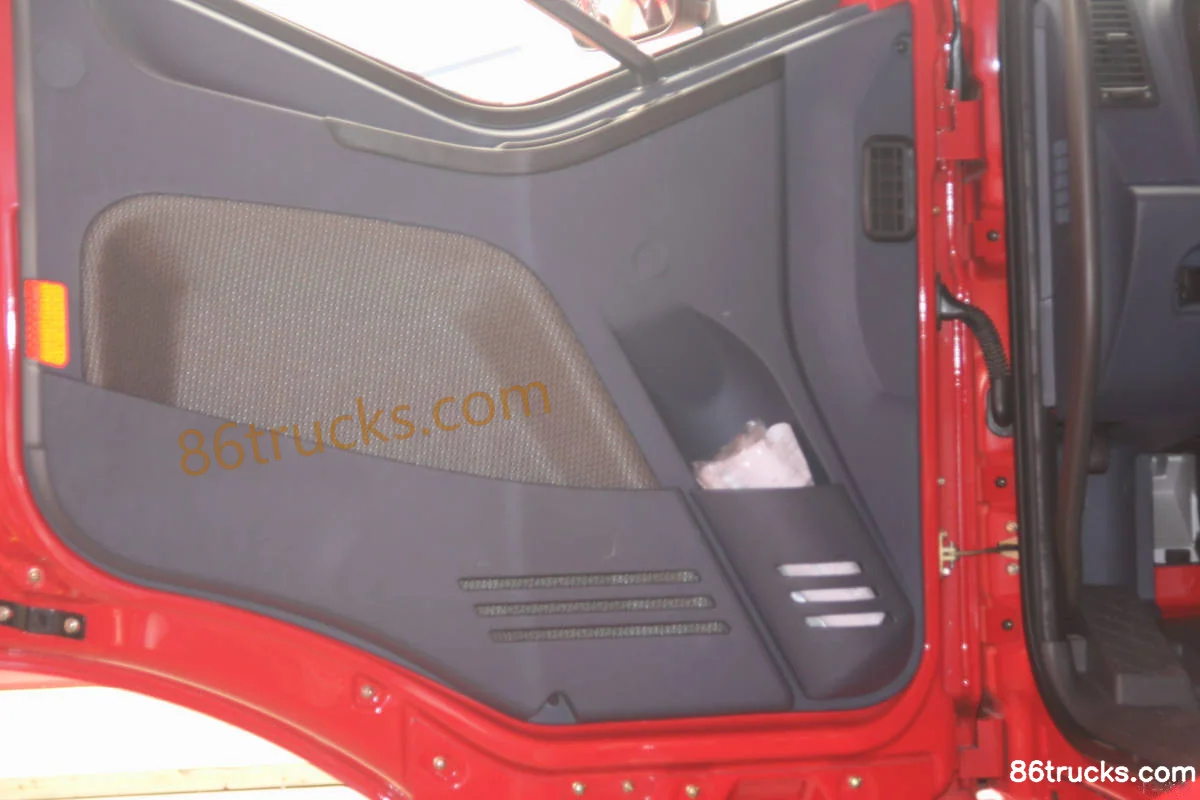

Cab3

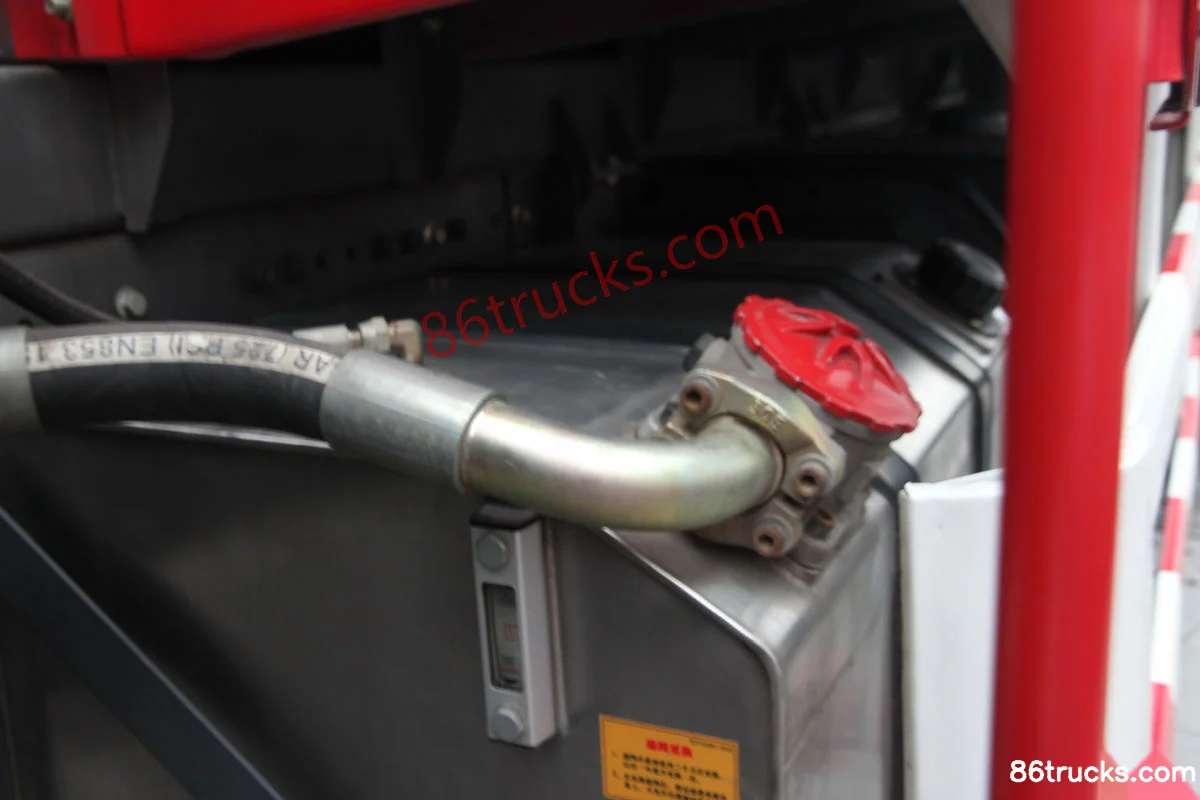

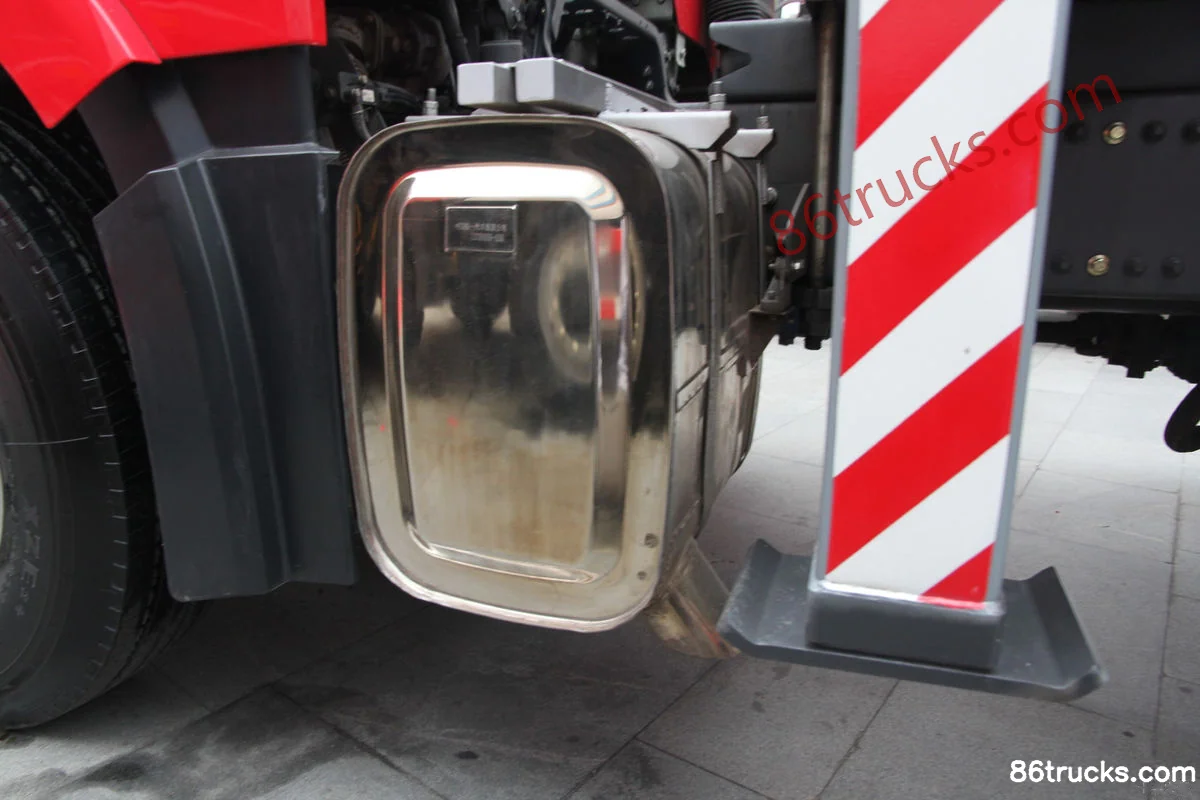

Chassis3

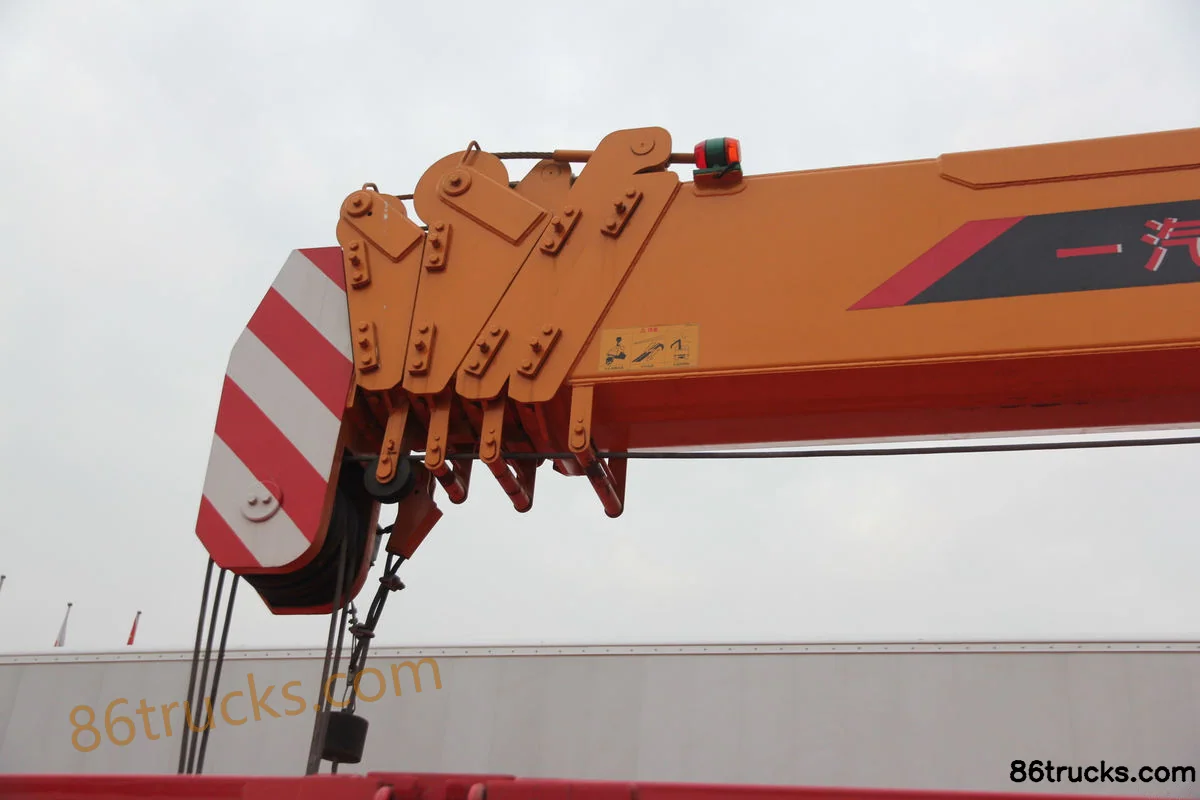

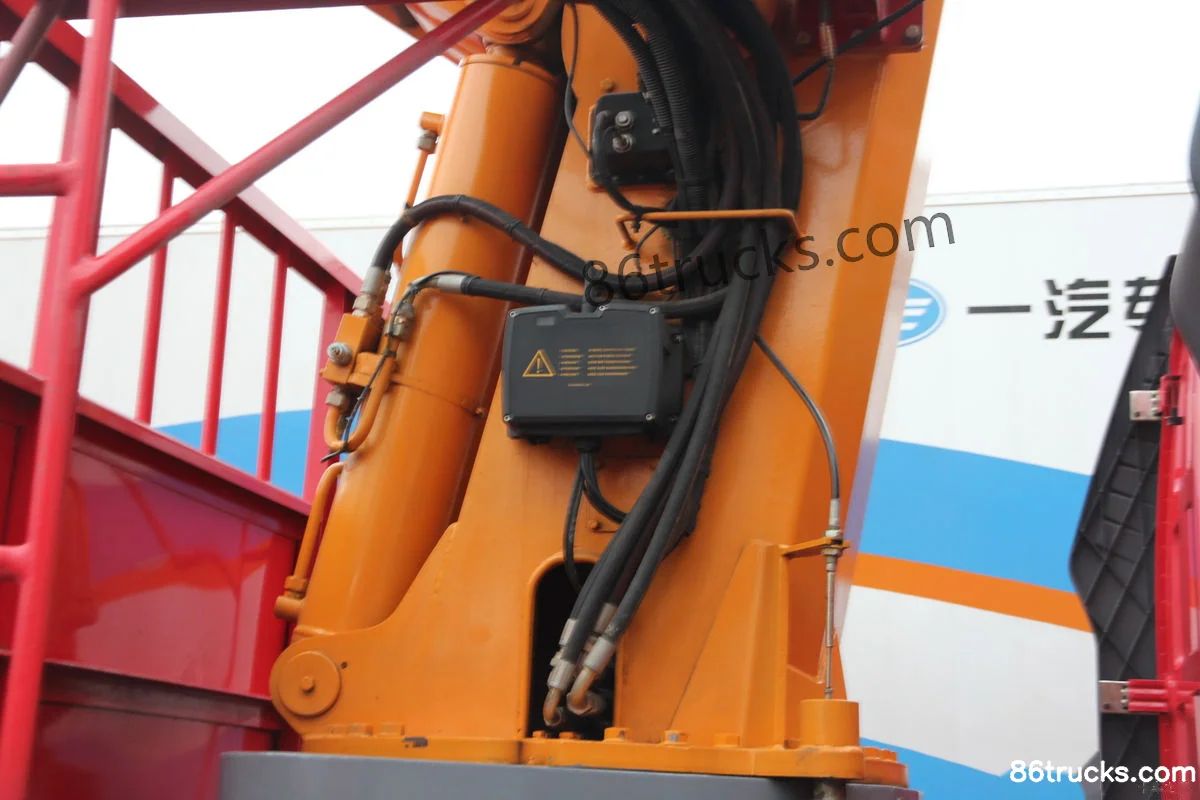

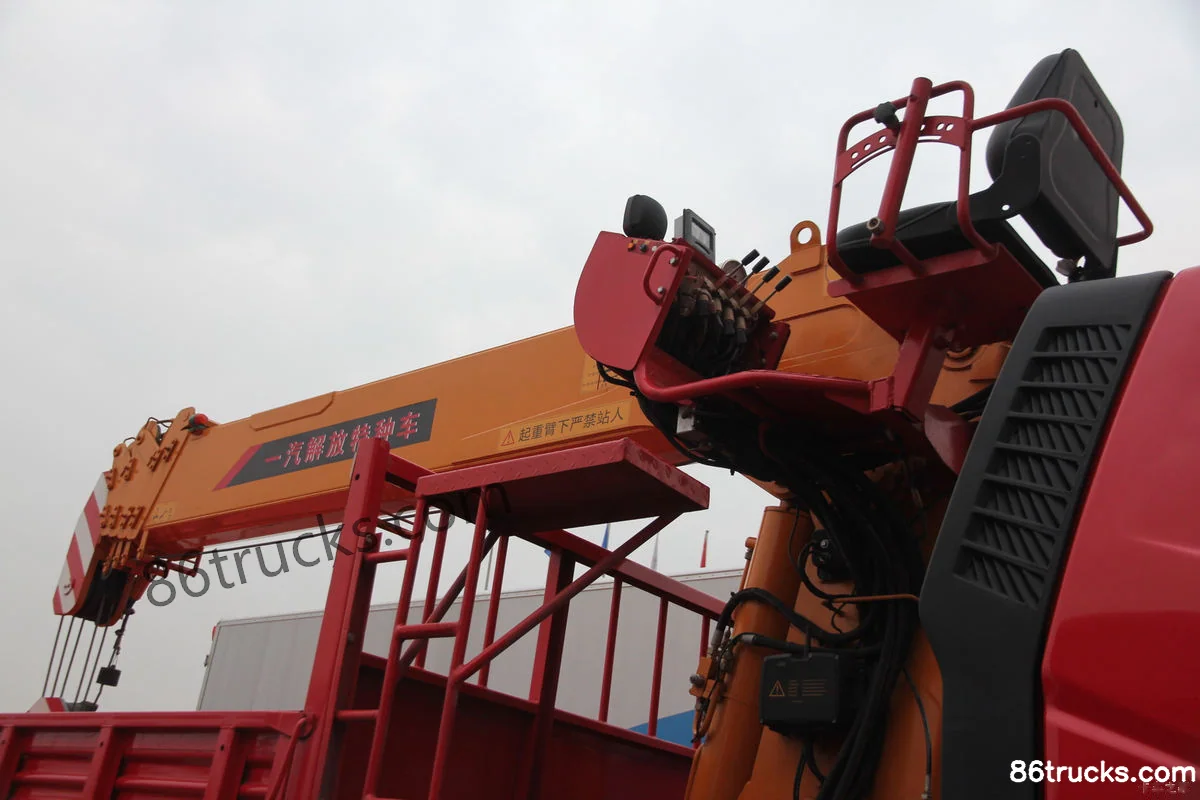

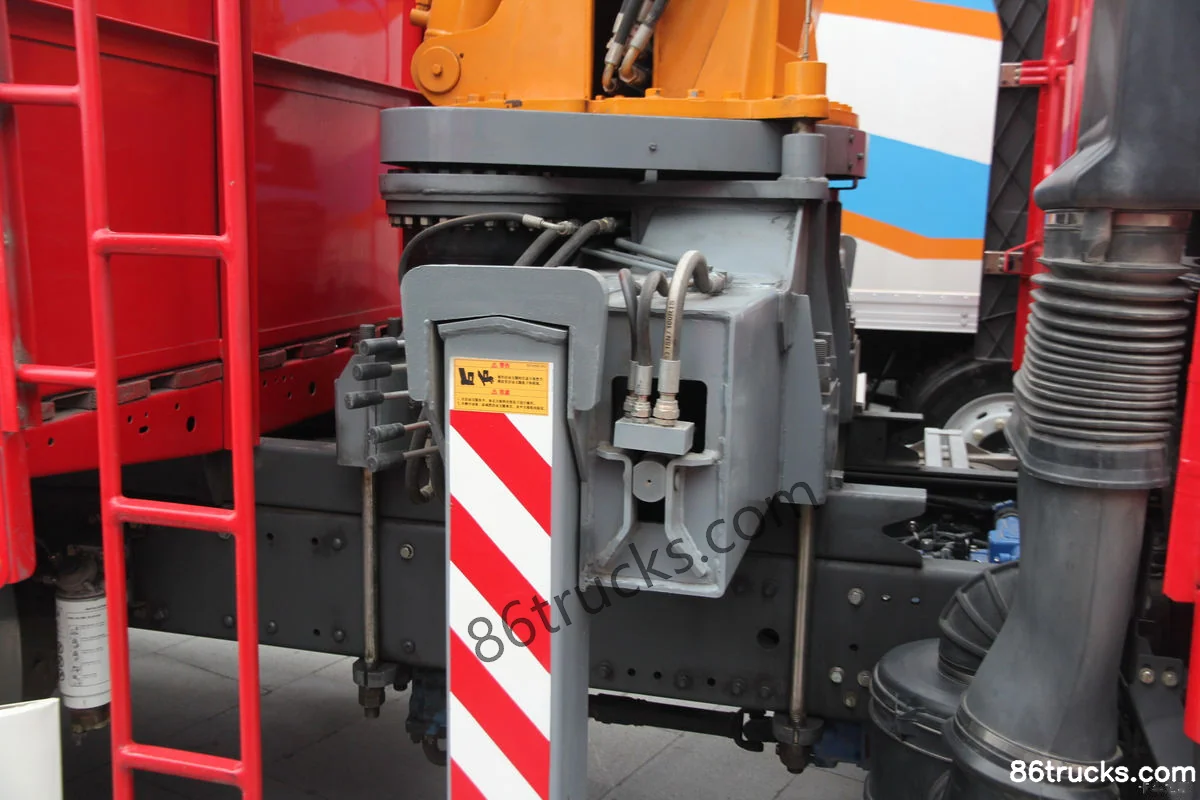

Body3

12 photos

FAQ

What emission standard does FAW Jiefang J6M 260hp 6X4(10 wheels) truck-mounted crane use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J6M 260hp 6X4(10 wheels) truck-mounted crane?

Key specs of FAW Jiefang J6M 260hp 6X4(10 wheels) truck-mounted crane: Drive: 6x4; Horsepower: 260 hp; Emission: China IV. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6M 260hp 6X4(10 wheels) truck-mounted crane suited for?

FAW Jiefang J6M 260hp 6X4(10 wheels) truck-mounted crane is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does FAW Jiefang J6M 260hp 6X4(10 wheels) truck-mounted crane differ from other variants in the same series?

FAW Jiefang J6M 260hp 6X4(10 wheels) truck-mounted crane belongs to FAW Jiefang J6M Near-Heavy Truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6M 260hp 6X4(10 wheels) truck-mounted crane?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6M 260hp 6X4(10 wheels) truck-mounted crane?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
