Sinotruk (formerly Sinotruk Wangpai) Wangpai 7 Series 156hp 4X2(6 wheels) Truck-Mounted Crane
EXW
From $28,611
Export quote
Sinotruk Wangpai 7 series light truck truck-mounted
Main model photos
618 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk (formerly Sinotruk Wangpai) Wangpai 7 Series 156hp 4X2(6 wheels) Truck-Mounted Crane | 4x2 / 156hp / China V | From $28,611 |
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk Wangpai Wangpai 7 Series 4X2(6 wheels) 156hp Truck Mounted Crane | 4x2 / 156hp / China V | From $17,583 | |

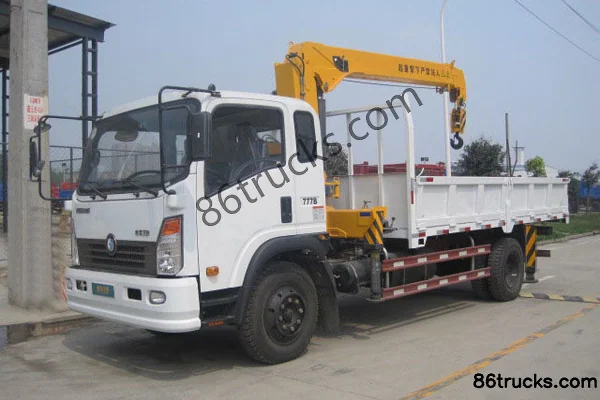

| Sinotruk Wangpai Wangpai 7 Series 4X2(6 wheels) 160 hp Truck-Mounted Crane | 4x2 / 160hp / China V | From $17,778 | |
| Sinotruk Wangpai 7 Series 4X2(6 wheels) 129hp Truck-mounted Crane | 4x2 / 129hp / China V | From $14,833 | |
| Sinotruk Wangpai 7 Series 4X2(6 wheels) 129hp Truck-mounted Crane | 4x2 / 129hp / China V | From $13,972 | |
| Sinotruk Wangpai Wangpai 7 Series 4X2(6 wheels) 156hp Truck Mounted Crane | 4x2 / 156hp / China V | From $15,972 |
Sinotruk Wangpai Wangpai 7 Series 4X2(6 wheels) 156hp Truck Mounted Crane
EXW
From $17,583
Export quote
Sinotruk Wangpai Wangpai 7 Series 4X2(6 wheels) 160 hp Truck-Mounted Crane
EXW
From $17,778
Export quote
Sinotruk Wangpai 7 Series 4X2(6 wheels) 129hp Truck-mounted Crane
EXW
From $14,833
Export quote
Sinotruk Wangpai 7 Series 4X2(6 wheels) 129hp Truck-mounted Crane
EXW
From $13,972
Export quote
Sinotruk Wangpai Wangpai 7 Series 4X2(6 wheels) 156hp Truck Mounted Crane
EXW
From $15,972
Export quote
Series Specs
Basic Info
Cab dimensions: 5.995×2.35×3.47 / 8.55×2.45×3.6 / 7.55×2.45×3.5 / 7.33×2.26×3.5 / 5.995×2.2×3.2 / 10.2×2.5×3.4 / 5.995×2.35×3.2 / 7.35×2.45×3.5 / 8.2×2.45×3.6 / 2.5×3.7 / 9.0×2.5×3.7 / 9.0×2.45×3.6m
Type: truck-mounted crane / truck crane
Drive type: 4X2
Wheelbase: 3600 / 4500 / 3900 / 3360,3900,3600 / 4200 / 3360 / 5000mm
Rated mass: 0.495 / 8.4 / 4.385 / 2.5 / 3.8 / 7.58 / 10 / 8.9 / 0.3 / 1.45ton
GVWR: 4.495 / 15.775 / 11.48 / 9.495 / 18ton
Front/rear suspension: 1.285/1.35 / 1.28/2.57 / 1.28/2.17 / 1.285/2.145 / 1.285/1.355 / 1.285/2.535 / 1.28/2.72 / 1.46/2.54 / 1.28/2.42m
Energy Type: Diesel
Body Parameters
Other special notes: Front axle 3T / Optional 8T crane, available with 5.85m/6.1m/6.4m cargo box / Optional 8T crane, available with 5.6m/5.85m/6.1m cargo box / Optional 8T crane, available with 5.9m/5.6m cargo box / Optional 6.3T crane; 5.4m cargo box / Optional 6.3T crane; 5.1m cargo box / Optional 5T, 6.3T crane; optional 4.5m/4.3m cargo box / Optional 3.2T straight-arm crane, 4T knuckle-boom crane; optional 3.45m/3.6m cargo box
Crane model: SQ8SK3Q / SQ5SK2Q,URV503,ST093 / SQ3.2SK1Q
Lifting capacity: 8 / 3.5 / 3.2ton
crane self-weight: 3.3 / 2.2 / 1.105ton
Vehicle certification code: CDW5041JSQHA1R5 / CDW5161JSQA1R5 / CDW5110JSQHA2R5 / CDW5090JSQHA1R5 / CDW5091JSQHA1R5 / CDW5160JQZA3R5 / CDW5160JSQA1R5 / CDW5181JSQA2N5 / CDW5180JSQA2N5 / CDW5162JSQA1R5 / CDW5040JSQHA1R5 / CDW5040JSQA3Q4
Body Brand: Sinotruk王牌 / 重汽王牌
Engine parameters
Engine Brand: Yunnei Power / Yuchai / Xichai
Engine Model: Yunnei PowerYNF40E2 / YuchaiYC4S160-50 / Yunnei PowerYN38CRE1 / Xichai4DX23-130E5 / YuchaiYC4FA115-50 / YuchaiYC4S150-50 / YuchaiYCD4D4S-140 / YuchaiYC6J180-52 / YuchaiYC4EG185-50 / YuchaiYCD4F4S-130 / Yunnei PowerYN38CRD1
Displacement: 3.92 / 3.767 / 3.76 / 3.857 / 2.982 / 4.156 / 6.494 / 4.73 / 3.922L
Emission standard: China V / China IV
Max output power: 115 / 118 / 95 / 97.5 / 85 / 110 / 105 / 132 / 136 / 97kW
Max hp: 156 / 160 / 129 / 130 / 115 / 150 / 140 / 180 / 185Horsepower
Max torque: 500 / 550 / 365 / 410 / 300 / 460 / 700 / 430 / 315N·m
Max torque speed: 1200-2000 / 1300-1800 / 1600-2400 / 1600-2000 / 1500-1950 / 1200-1800rpm
Rated speed: 2600 / 3000 / 2800 / 3200 / 2300 / 2500rpm
Chassis Specs
Chassis Series: Wangpai 7 Series
Chassis Model: CDW1040HA1R5 / CDW1160HA1R5 / CDW1110HA2R5 / CDW1090HA1R5 / CDW1160HA3R5 / CDW1180A2N5 / CDW1040HA3Q4
Frame Dimensions: 245×(10+8)-800 / 280×(10+8)-860 / 280×10-860 / 230×8-800 / 198×6-800mm
rear axle description: 9T / 8T; ratio 5.286 / 5.5T; ratio 5.286 / CZ1062BZS / CZ1082BAZS / CZ1450DZS / CZ1092BS / 10T with ABS / 9T with ABS / 5.5T axle with ABS, 1082 rear axle / 2.4T
Axle ratio: 5.375 / 5.286 / 5.857 / 4.63
Leaf spring count: 11/11+9 / 9/10+8,11/11+9 / 3/5+3,9/10+8,11/11+9 / 11/11+9,9/10+8 / 3/5+3 / 11/11+9,3/5+3,9/10+8
Transmission Parameters
Number of gears: 8 / 10 / 5 / 6Gear
Transmission Model: Fast Gear 8-speed / Fast Gear8JS85E / SinotrukHW90510C / WLYWLY10H46 / WLYWLY10H35 / WLY 6-speed / WLYWLY6TS60 / 8-speed / 6-speed / 5-speed with auxiliary / 5-speed
Cab parameters
Cab: Flat roof / 2080 Day Cab / 2080
Tire
Tire Size: 8.25R16LT 6PR / 9.00R20 / 8.25-20 / 8.25R16 / 7.50-16LT 6PR,7.50R16LT 6PR,8.25-16LT 6PR,8.25R16LT 6PR / 9.00-20,9.00R20,10.00-20,10.00R20 / 9.00R20,10.00R20 / 10.00R20 / 7.50-16LT 6PR，8.25-16LT 6PR / 8.25-16LT 6PR,8.25R16 6PR,,7.50-16LT 6PR,7.50R16LT 6PR
Number of tires: 6pcs
FAQ
What kind of truck is Sinotruk Sinotruk Wangpai 7 series light truck truck-mounted crane?
Sinotruk Sinotruk Wangpai 7 series light truck is an export-oriented truck-mounted crane lineup with about 26 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Sinotruk Wangpai 7 series light truck truck-mounted?
Sinotruk Wangpai 7 series light truck truck-mounted export reference is about $13,694 – $33,056. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Sinotruk Wangpai 7 series light truck truck-mounted cover?
Sinotruk Wangpai 7 series light truck truck-mounted mainly covers: Drive: 4x2; Horsepower: 129 hp / 156 hp / 160 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sinotruk Wangpai 7 series light truck truck-mounted?
For Sinotruk Wangpai 7 series light truck truck-mounted: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is truck-mounted crane typically used for?
truck-mounted crane specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Sinotruk Wangpai 7 series light truck truck-mounted include?
Sinotruk Wangpai 7 series light truck truck-mounted currently lists about 26 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sinotruk Wangpai 7 series light truck truck-mounted?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
