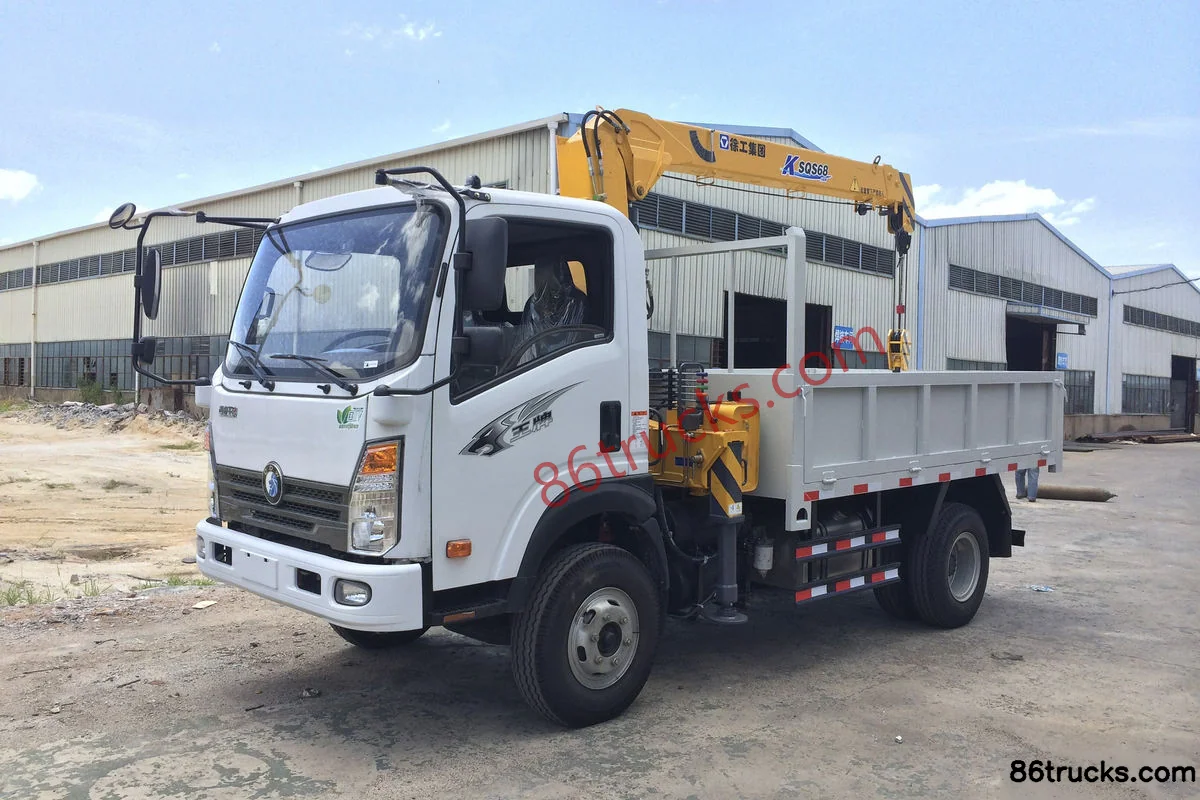

Sinotruk Wangpai 7 Series 4X2(6 wheels) 129hp Truck-mounted Crane

Export reference
From $14,833
MSRP ¥10.68M CNY
Fuel: Diesel
Wheelbase:: 3900mm
Cab dimensions:: 7.55×2.45×3.5m
Type:: truck-mounted crane
GVWR:: 11.48ton
Front/rear suspension:: 1.28/2.17m
Drive 4X2 (6 wheels)
Horsepower 129
Rated mass: 4.385ton
Emission China V

Overview

The Sinotruk Wangpai 7 Series 4X2(6 wheels) 129hp Truck-mounted Crane is a truck-mounted crane featuring 11.48t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei Power engine, 129 hp, China V emissions and Diesel fuel.

China V 129 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 7.55×2.45×3.5m
Type: truck-mounted crane
Drive type: 4X2
Wheelbase: 3900mm
Rated mass: 4.385ton
GVWR: 11.48ton
Front/rear suspension: 1.28/2.17m
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN38CRE1
fuel type: Diesel
Displacement: 3.76L
Emission standard: China V
Max output power: 95kW
Max hp: 129Horsepower
Max torque: 365N·m
Max torque speed: 1600-2400rpm
Rated speed: 3000rpm
Body Parameters
Vehicle certification code: CDW5110JSQHA2R5
Body Brand: Sinotruk王牌
Chassis Specs
Chassis Brand: Sinotruk王牌
Chassis Series: Wangpai 7 Series
Chassis Model: CDW1110HA2R5
rear axle description: 8T; ratio 5.286
Leaf spring count: 11/11+9
Transmission Parameters
Number of gears: 5Gear
Transmission Model: WLYWLY10H46
Cab parameters
Cab: Flat roof
Tire
Tire Size: 8.25-20
Number of tires: 6pcs

Photos

Exterior1

1 photos

FAQ

What is the export price of Sinotruk Wangpai 7 Series 4X2(6 wheels) 129hp Truck-mounted Crane, and what does it include?

Sinotruk Wangpai 7 Series 4X2(6 wheels) 129hp Truck-mounted Crane export reference is about From $14,833; MSRP is ¥10.68M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Wangpai 7 Series 4X2(6 wheels) 129hp Truck-mounted Crane use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Wangpai 7 Series 4X2(6 wheels) 129hp Truck-mounted Crane?

Key specs of Sinotruk Wangpai 7 Series 4X2(6 wheels) 129hp Truck-mounted Crane: Drive: 4x2; Horsepower: 129 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Wangpai 7 Series 4X2(6 wheels) 129hp Truck-mounted Crane suited for?

Sinotruk Wangpai 7 Series 4X2(6 wheels) 129hp Truck-mounted Crane is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Sinotruk Wangpai 7 Series 4X2(6 wheels) 129hp Truck-mounted Crane differ from other variants in the same series?

Sinotruk Wangpai 7 Series 4X2(6 wheels) 129hp Truck-mounted Crane belongs to Sinotruk Wangpai 7 series light truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Wangpai 7 Series 4X2(6 wheels) 129hp Truck-mounted Crane?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Wangpai 7 Series 4X2(6 wheels) 129hp Truck-mounted Crane?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
