Sinotruk Wangpai Wangpai 7 Series 4X2(6 wheels) 180 hp Truck Mounted Crane

Export reference
MSRP N/A
Fuel: Diesel
Wheelbase:: 5000mm
Cab dimensions:: 9.0×2.5×3.7m
Type:: truck-mounted crane
GVWR:: 18ton
Front/rear suspension:: 1.46/2.54m
Drive 4X2 (6 wheels)
Horsepower 180
Rated mass: 10ton
Emission China V

Overview

The Sinotruk Wangpai Wangpai 7 Series 4X2(6 wheels) 180 hp Truck Mounted Crane is a truck-mounted crane featuring 18t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 180 hp, China V emissions and Diesel fuel.

China V 180 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.0×2.5×3.7m
Type: truck-mounted crane
Drive type: 4X2
Wheelbase: 5000mm
Rated mass: 10ton
GVWR: 18ton
Front/rear suspension: 1.46/2.54m
Energy Type: Diesel
Body Parameters
Other special notes: Optional 8T crane, available with 5.6m/5.85m/6.1m cargo box
Vehicle certification code: CDW5180JSQA2N5
Body Brand: Sinotruk王牌
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6J180-52
fuel type: Diesel
Displacement: 6.494L
Emission standard: China V
Max output power: 132kW
Max hp: 180Horsepower
Max torque: 700N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Chassis Specs
Chassis Brand: Sinotruk王牌
Chassis Series: Wangpai 7 Series
Chassis Model: CDW1180A2N5
Frame Dimensions: 280×(10+8)-860mm
rear axle description: 10T with ABS
Leaf spring count: 11/11+9
Transmission Parameters
Number of gears: 8Gear
Transmission Model: 8-speed
Cab parameters
Cab: Flat roof
Tire
Tire Size: 10.00R20
Number of tires: 6pcs

Photos

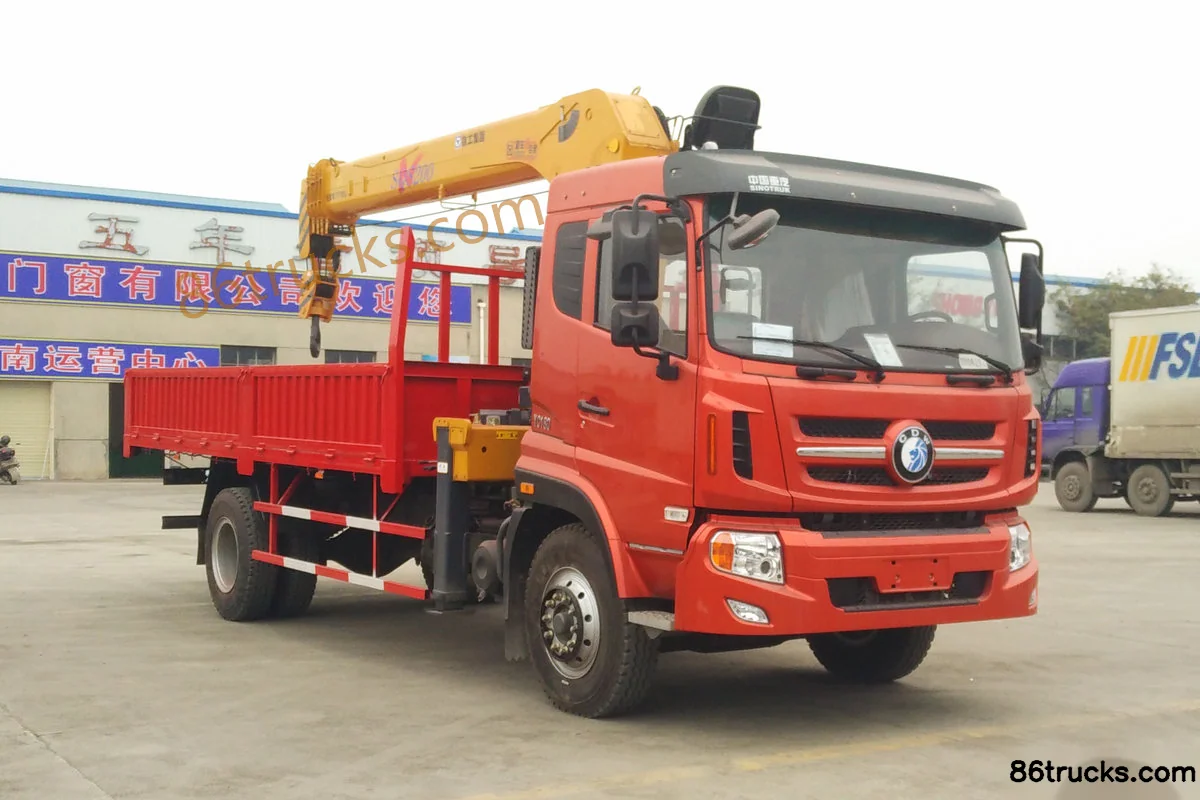

Exterior1

1 photos

FAQ

What emission standard does Sinotruk Wangpai Wangpai 7 Series 4X2(6 wheels) 180 hp Truck Mounted Crane use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Wangpai Wangpai 7 Series 4X2(6 wheels) 180 hp Truck Mounted Crane?

Key specs of Sinotruk Wangpai Wangpai 7 Series 4X2(6 wheels) 180 hp Truck Mounted Crane: Drive: 4x2; Horsepower: 180 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Wangpai Wangpai 7 Series 4X2(6 wheels) 180 hp Truck Mounted Crane suited for?

Sinotruk Wangpai Wangpai 7 Series 4X2(6 wheels) 180 hp Truck Mounted Crane is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Sinotruk Wangpai Wangpai 7 Series 4X2(6 wheels) 180 hp Truck Mounted Crane differ from other variants in the same series?

Sinotruk Wangpai Wangpai 7 Series 4X2(6 wheels) 180 hp Truck Mounted Crane belongs to Sinotruk Wangpai 7 series light truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Wangpai Wangpai 7 Series 4X2(6 wheels) 180 hp Truck Mounted Crane?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Wangpai Wangpai 7 Series 4X2(6 wheels) 180 hp Truck Mounted Crane?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
