Feidi D2 Series 116hp 4X2(6 wheels) 3.56m Truck Mounted Crane

Export reference
From $26,389
MSRP ¥19M CNY
Emission: China V
Fuel: Diesel
Wheelbase:: 3360mm
Cab dimensions:: 5.995×2.1×2.96m
Type:: Truck with crane
GVWR:: 4.495ton
Lifting capacity: 2.43ton
Drive 4X2 (6 wheels)
Horsepower 116
Rated mass: 1.805ton

Overview

The Feidi D2 Series 116hp 4X2(6 wheels) 3.56m Truck Mounted Crane is a truck-mounted crane featuring 2.43ton tank capacity, 4.495t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 116 hp, China V emissions and Diesel fuel.

China V 116 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 5.995×2.1×2.96m
Type: Truck with crane
Drive type: 4X2
Wheelbase: 3360mm
Rated mass: 1.805ton
GVWR: 4.495ton
Front/rear suspension: 1.14/1.495m
Energy Type: Diesel
Body Parameters
Crane model: KSQS80
Lifting capacity: 2.43ton
crane self-weight: 1.36ton
Vehicle certification code: FD5041JSQW17K5
Body Brand: Feidi
Engine parameters
Injection System: Common Rail
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN33CRE1
fuel type: Diesel
Displacement: 3.298L
Emission standard: China V
Max output power: 85kW
Max hp: 116Horsepower
Max torque: 315N·m
Max torque speed: 1600-2400rpm
Rated speed: 3200rpm
Chassis Specs
Chassis Brand: Feidi
Chassis Series: Aochi D Series
Chassis Model: FD1041W17K5
rear axle description: 1080 air-brake
Axle ratio: 6.142
Leaf spring count: 7/8+8
Transmission Parameters
Number of gears: 5Gear
Transmission Model: 5-speed
Tire
Tire Size: 7.50R16LT
Number of tires: 6pcs

Photos

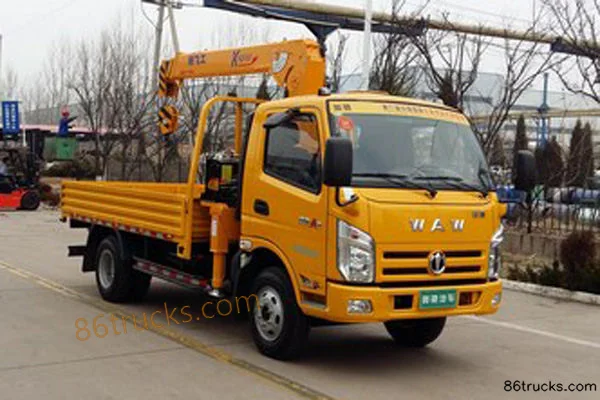

Exterior1

1 photos

FAQ

What is the export price of Feidi D2 Series 116hp 4X2(6 wheels) 3.56m Truck Mounted Crane, and what does it include?

Feidi D2 Series 116hp 4X2(6 wheels) 3.56m Truck Mounted Crane export reference is about From $26,389; MSRP is ¥19M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Feidi D2 Series 116hp 4X2(6 wheels) 3.56m Truck Mounted Crane use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Feidi D2 Series 116hp 4X2(6 wheels) 3.56m Truck Mounted Crane?

Key specs of Feidi D2 Series 116hp 4X2(6 wheels) 3.56m Truck Mounted Crane: Drive: 4x2; Horsepower: 116 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Feidi D2 Series 116hp 4X2(6 wheels) 3.56m Truck Mounted Crane suited for?

Feidi D2 Series 116hp 4X2(6 wheels) 3.56m Truck Mounted Crane is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Feidi D2 Series 116hp 4X2(6 wheels) 3.56m Truck Mounted Crane differ from other variants in the same series?

Feidi D2 Series 116hp 4X2(6 wheels) 3.56m Truck Mounted Crane belongs to Aochi D Series Light Truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Feidi D2 Series 116hp 4X2(6 wheels) 3.56m Truck Mounted Crane?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Feidi D2 Series 116hp 4X2(6 wheels) 3.56m Truck Mounted Crane?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
