Dongfeng Commercial Vehicle Tianjin 210 hp 4X2(6 wheels) 5.6m Truck Mounted Crane
EXW
From $26,111
Export quote
Dongfeng Commercial Vehicle Dongfeng Tianjin Medium
Main model photos
915 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Commercial Vehicle Tianjin 210 hp 4X2(6 wheels) 5.6m Truck Mounted Crane | 4x2 / 210hp / China VI | From $26,111 | |
| Dongfeng Commercial Vehicle Tianjin KS 180hp 4X2(6 wheels) 5.5m Truck-Mounted Crane | 4x2 / 180hp / China V | From $26,056 | |

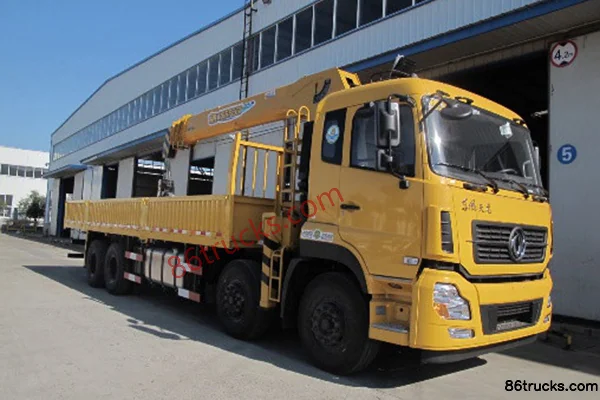

| Dongfeng Commercial Vehicle Tianlong 315hp 8X4(12 wheels) 7.5m truck-mounted crane | 8x4 / 315hp / China V | From $46,250 | |
| Dongfeng Commercial Vehicle Tianjin 180 hp 4X2(6 wheels) 5.6m Truck-Mounted Crane | 4x2 / 180hp / China V | From $46,528 | |
| Dongfeng Commercial Vehicle Tianjin 210 hp 4X2(6 wheels) 5.5m truck-mounted crane | 4x2 / 210hp / China V | From $26,056 |
Dongfeng Commercial Vehicle Tianjin KS 180hp 4X2(6 wheels) 5.5m Truck-Mounted Crane
EXW
From $26,056
Export quote
Dongfeng Commercial Vehicle Tianlong 315hp 8X4(12 wheels) 7.5m truck-mounted crane
EXW
From $46,250
Export quote
Dongfeng Commercial Vehicle Tianjin 180 hp 4X2(6 wheels) 5.6m Truck-Mounted Crane
EXW
From $46,528
Export quote
Dongfeng Commercial Vehicle Tianjin 210 hp 4X2(6 wheels) 5.5m truck-mounted crane
EXW
From $26,056
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Commercial Vehicle Tianjin D530 245 hp 6X4(10 wheels) Truck-mounted Crane | 6x4 / 245hp / China IV | ||
| Dongfeng Commercial Vehicle Tianjin 180 hp 4X2(6 wheels) 6.3-ton Truck-Mounted Crane (Shimei Machine) | 4x2 / 180hp / China IV | From $34,722 |
Series Specs
Basic Info
Cab dimensions: 9×2.55×3.65 / 11.4×2.5×3.86 / 9×2.55×3.73 / 1.196×2.5x3.87 / 9.0×2.5×3.71m
Type: Truck with crane / truck-mounted crane
Drive type: 4X2 / 8X4 / 6X4
Wheelbase: 5000 / 1850+4600+1350 / 5700+1300mm
Rated mass: 7.52 / 7.505 / 12.52 / 6.725 / 9.22 / 6.705ton
GVWR: 18 / 31 / 25 / 16ton
Front/rear suspension: 1.43/2.57 / 1.43/2.47 / 1.5/2.1 / 1.46/3.5m
Energy Type: Diesel
Body Parameters
Other special notes: Max lifting torque 35 t·m, max working radius 18.5 m, operation mode: mid-mount or top-mount control, equipped with double-chamber hydraulic telescopic rear outriggers and hydraulic oil cooler. / 5.7x2.4m cargo box
Crane model: Modified Pafeite SQS-14Ⅲ truck-mounted crane / Shimei Machinery QYS-6.3
Lifting capacity: 14 / 6.3ton
Vehicle certification code: DFH5180JSQBX5 / DFH5180JSQBX1DV / DFC5310JSQA1 / DFC5180JSQBX1DV / DFZ5250JSQA12S
Body Brand: Dongfeng Commercial Vehicle / Pafeite
Engine parameters
Injection System: Common Rail
Engine Brand: Dongfeng
Engine Model: DongfengB6.2NS6B210 / DongfengISB180 50 / DongfengISL9.5-315E51A / DongfengISB210 50 / DongfengISDe245 40 / DongfengISB180 40
Displacement: 6.2 / 5.9 / 9.46 / 6.7L
Emission standard: China VI / China V / China IV
Max output power: 154 / 132 / 232 / 155 / 180kW
Max hp: 210 / 180 / 315 / 245Horsepower
Max torque: 850 / 700 / 1250 / 750 / 950 / 630N·m
Max torque speed: 1100-1700 / 1200-1700 / 1300-1700 / 1400 / 1500rpm
Rated speed: 2300 / 2500 / 1900rpm
Chassis Specs
Chassis Brand: Dongfeng Commercial Vehicle
Chassis Series: Dongfeng Tianjin / Tianjin KS / Dongfeng Tianlong
Chassis Model: DFH1180B5 / DFH1180BX1DV / DFH1310A1 / DFL1160BX5
Frame Dimensions: 300×90×[8+6]mm
rear axle description: 145 / 9T / Rear axle 10-ton / 153
Axle ratio: 5.286 / 4.875 / 4.56 / 4.44
Leaf spring count: 8/10+8 / 9/9/10 / 7/9+6 / 8/9,8/10,9/10
Transmission Parameters
Number of gears: 8 / 12 / 7Gear
Transmission Model: Fast Gear 8-speed / Fast Gear8JS85E / Fast Gear12JSD160TA / Shaanxi Gear 8-speed / Datong DC7J100TA
Cab parameters
Cab: D530 / Dongfeng Tianlong cab / D530 standard cab with single-row sleeper
Tire
Tire Size: 10.00R20 18PR / 11.00R20 / 295/80R22.5,10.00R20 18PR,12R22.5 16PR, 12R22.5 18PR,295/60R22.5 18PR,275/80R22.5 18PR / 295/80R22.5，10.00R20 18PR / 10.00-20 18PR,10.00R20 18PR,11.00-20 18PR,11.00R20 16PR,295/80R22.5 16PR / 9.00R20
Number of tires: 6 / 12 / 10pcs
FAQ
What kind of truck is Dongfeng Commercial Vehicle Dongfeng Tianjin Medium Truck truck-mounted crane?
Dongfeng Commercial Vehicle Dongfeng Tianjin Medium Truck is an export-oriented truck-mounted crane lineup with about 7 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Dongfeng Commercial Vehicle Dongfeng Tianjin Medium?
Dongfeng Commercial Vehicle Dongfeng Tianjin Medium export reference is about $26,056 – $46,528. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Dongfeng Commercial Vehicle Dongfeng Tianjin Medium cover?
Dongfeng Commercial Vehicle Dongfeng Tianjin Medium mainly covers: Drive: 4x2 / 6x4 / 8x4; Horsepower: 180 hp / 210 hp / 245 hp / 315 hp; Emission: China IV / China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Dongfeng Commercial Vehicle Dongfeng Tianjin Medium?
For Dongfeng Commercial Vehicle Dongfeng Tianjin Medium: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is truck-mounted crane typically used for?
truck-mounted crane specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Dongfeng Commercial Vehicle Dongfeng Tianjin Medium include?
Dongfeng Commercial Vehicle Dongfeng Tianjin Medium currently lists about 7 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Dongfeng Commercial Vehicle Dongfeng Tianjin Medium?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
