Dongfeng Commercial Vehicle Tianjin 180 hp 4X2(6 wheels) 6.3-ton Truck-Mounted Crane (Shimei Machine)

Export reference
From $34,722
MSRP ¥25M CNY
Emission: China IV
Fuel: Diesel
Wheelbase:: 5000mm
Cab dimensions:: 9.0×2.5×3.71m
Type:: truck-mounted crane
GVWR:: 16ton
Lifting capacity: 6.3ton
Drive 4X2 (6 wheels)
Horsepower 180
Rated mass: 6.705ton

Overview

The Dongfeng Commercial Vehicle Tianjin 180 hp 4X2(6 wheels) 6.3-ton Truck-Mounted Crane (Shimei Machine) is a truck-mounted crane featuring 6.3ton tank capacity, 16t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 180 hp, China IV emissions and Diesel fuel.

China IV 180 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.0×2.5×3.71m
Type: truck-mounted crane
Drive type: 4X2
Wheelbase: 5000mm
Rated mass: 6.705ton
GVWR: 16ton
Front/rear suspension: 1.43/2.47m
Energy Type: Diesel
Body Parameters
Other special notes: 5.7x2.4m cargo box
Crane model: Shimei Machinery QYS-6.3
Lifting capacity: 6.3ton
Body Brand: Pafeite
Engine parameters
Engine Brand: Dongfeng
Engine Model: DongfengISB180 40
fuel type: Diesel
Displacement: 5.9L
Emission standard: China IV
Max output power: 132kW
Max hp: 180Horsepower
Max torque: 630N·m
Max torque speed: 1500rpm
Rated speed: 2500rpm
Chassis Specs
Chassis Brand: Dongfeng Commercial Vehicle
Chassis Series: Dongfeng Tianjin
Chassis Model: DFL1160BX5
Leaf spring count: 8/10+8
Transmission Parameters
Number of gears: 7Gear
Transmission Model: Datong DC7J100TA
Tire
Tire Size: 9.00R20
Number of tires: 6pcs

Photos

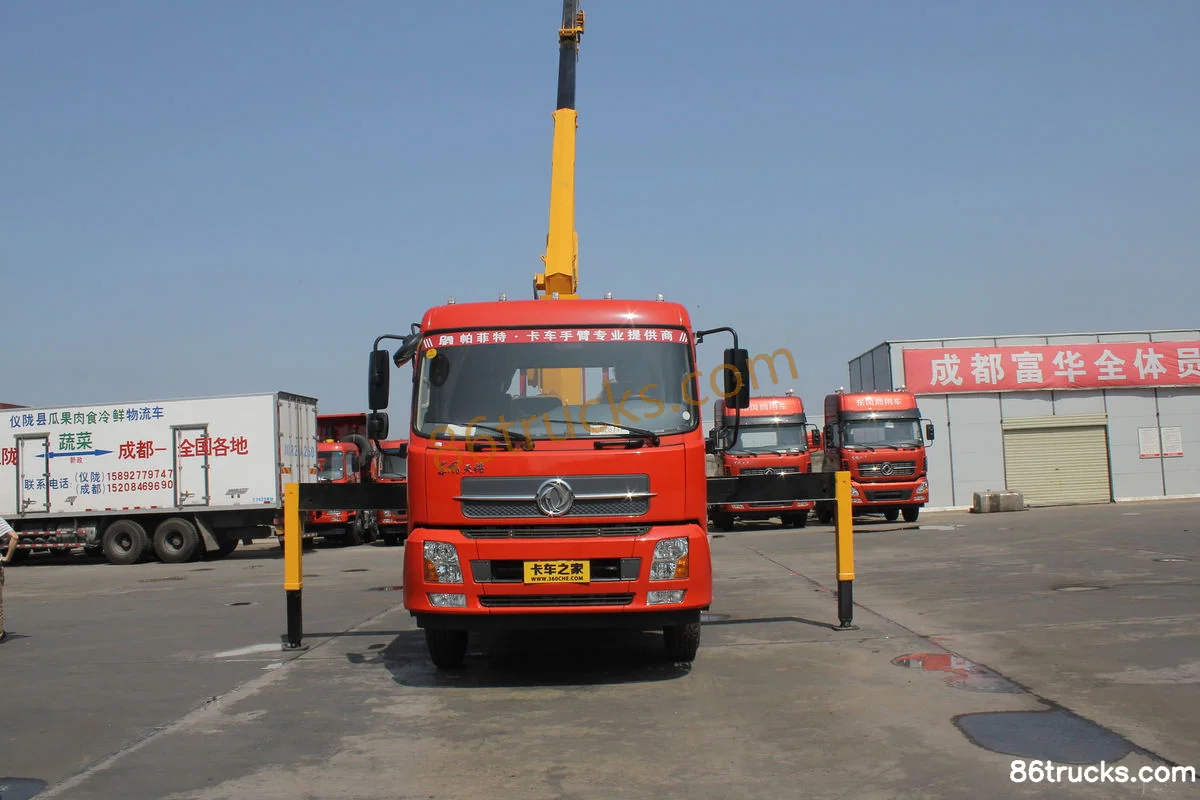

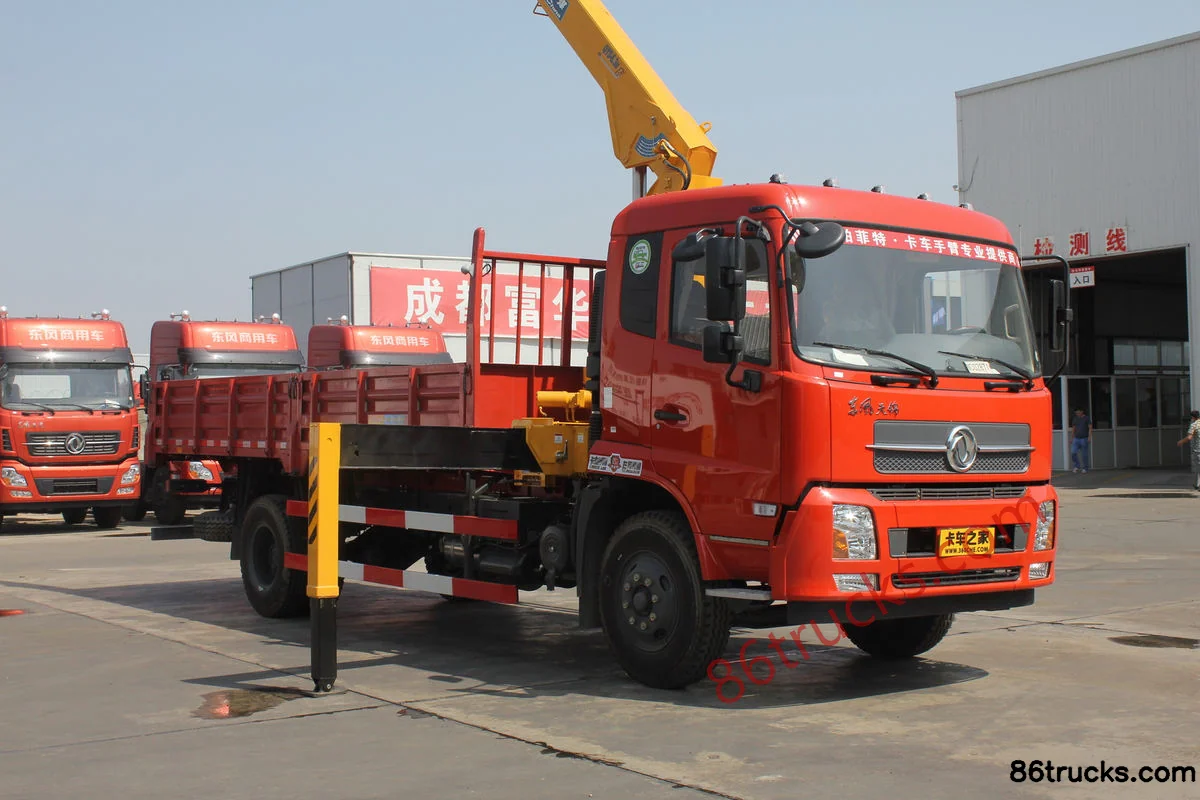

Exterior3

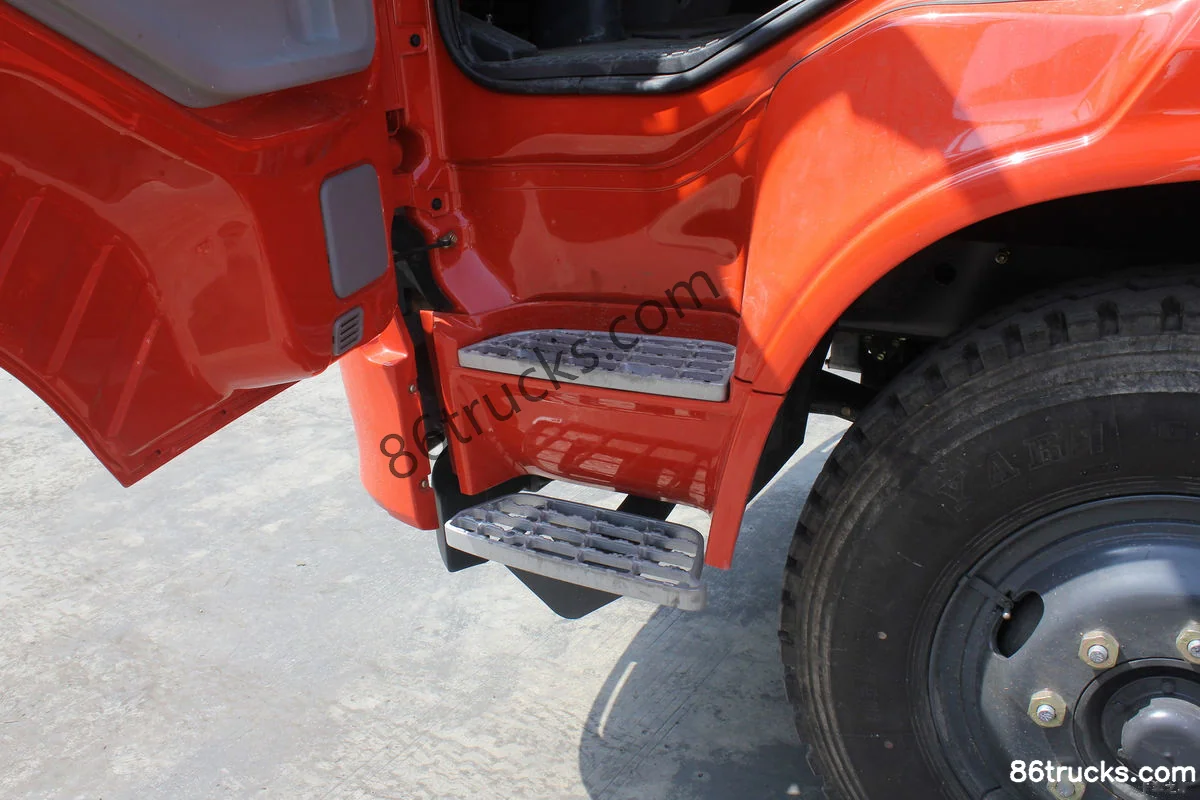

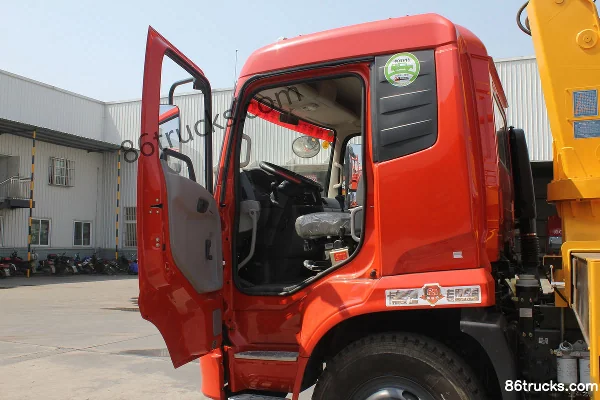

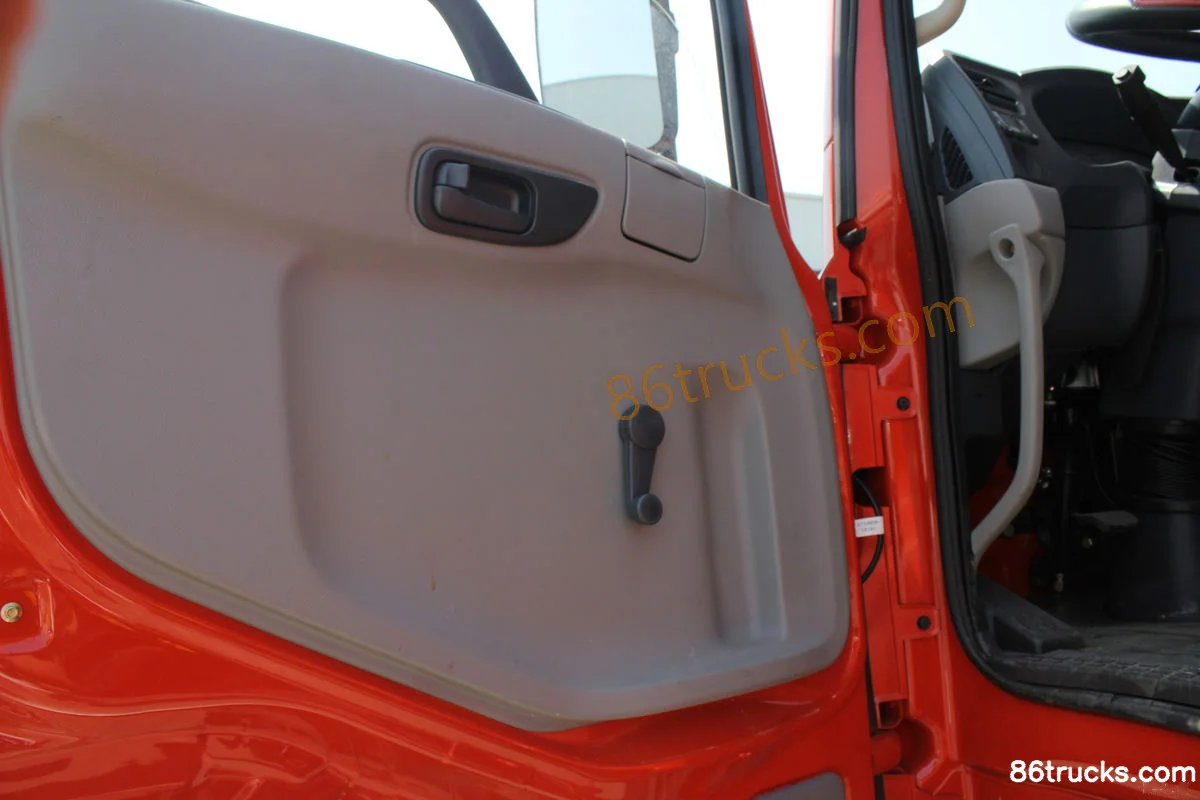

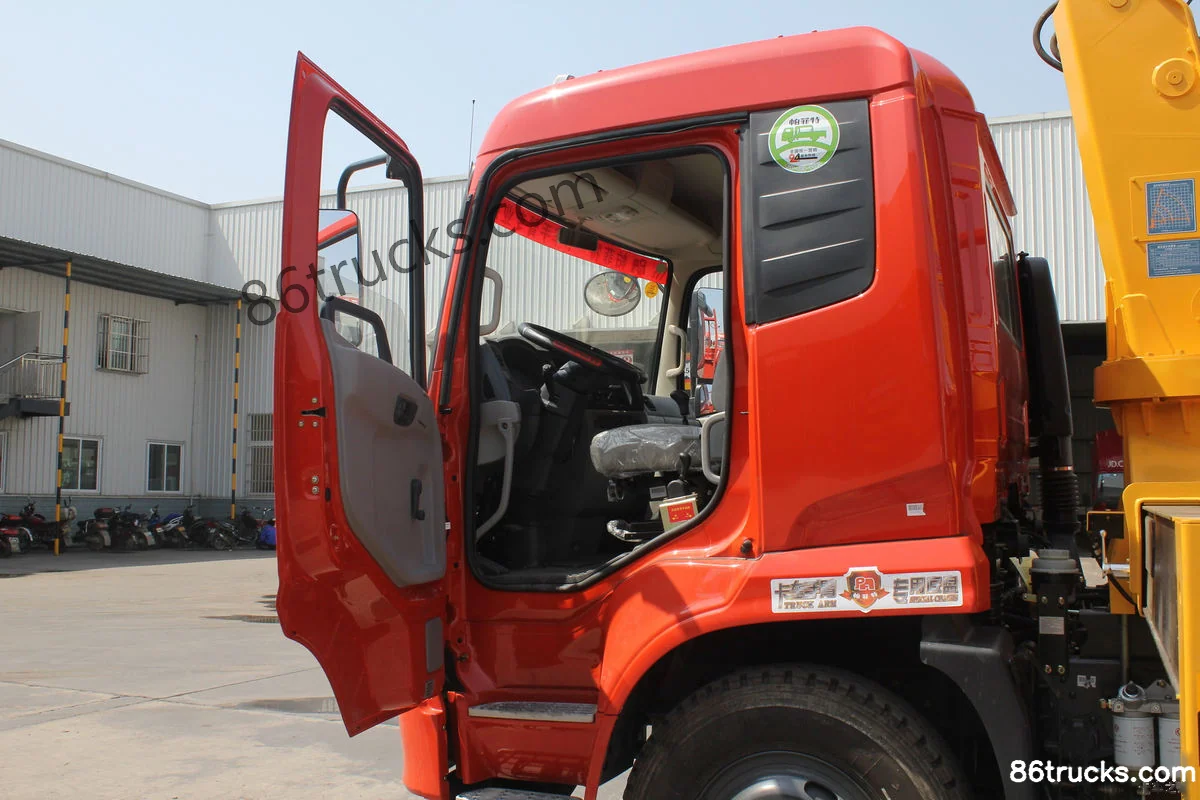

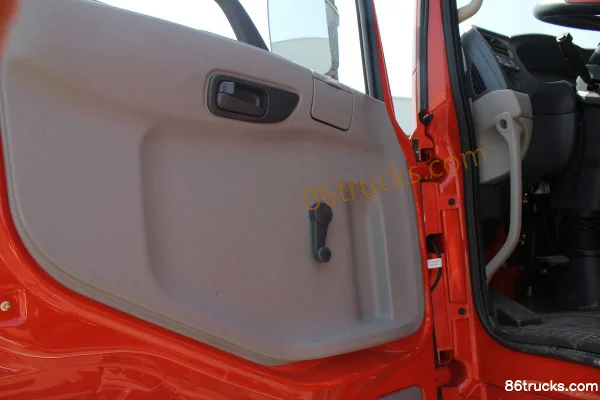

Cab3

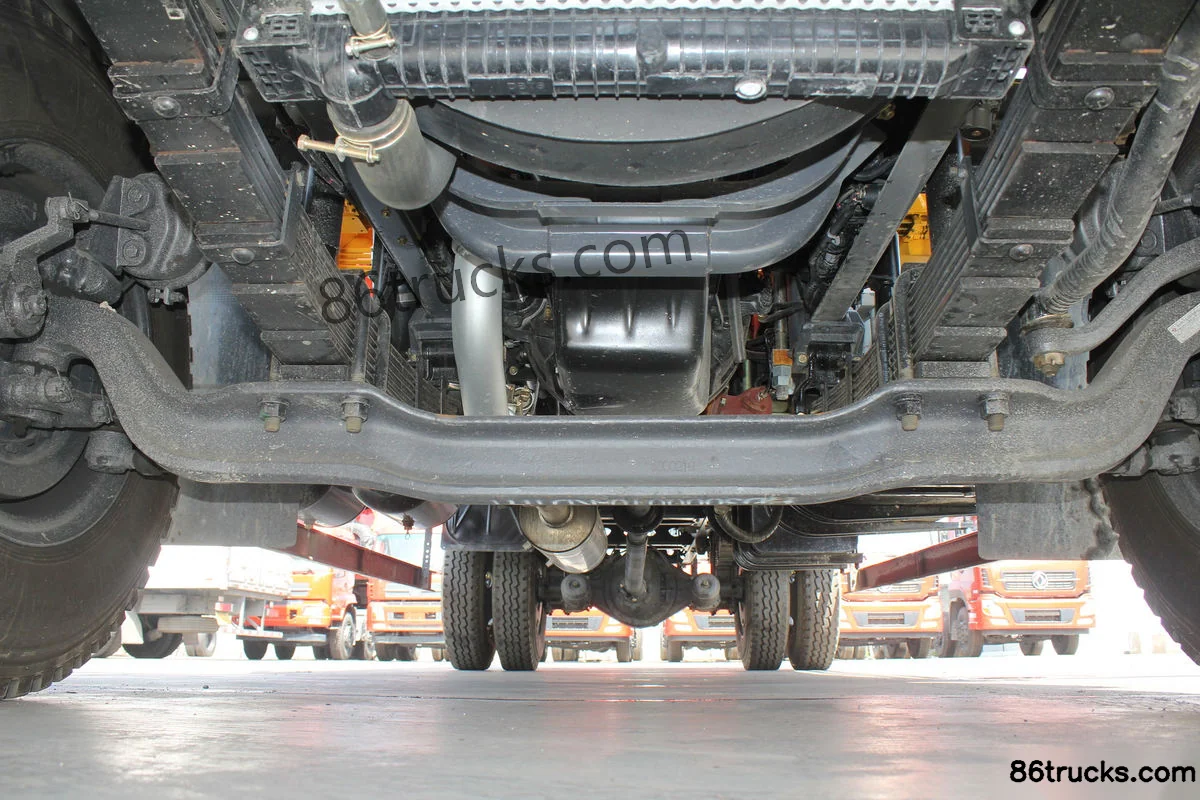

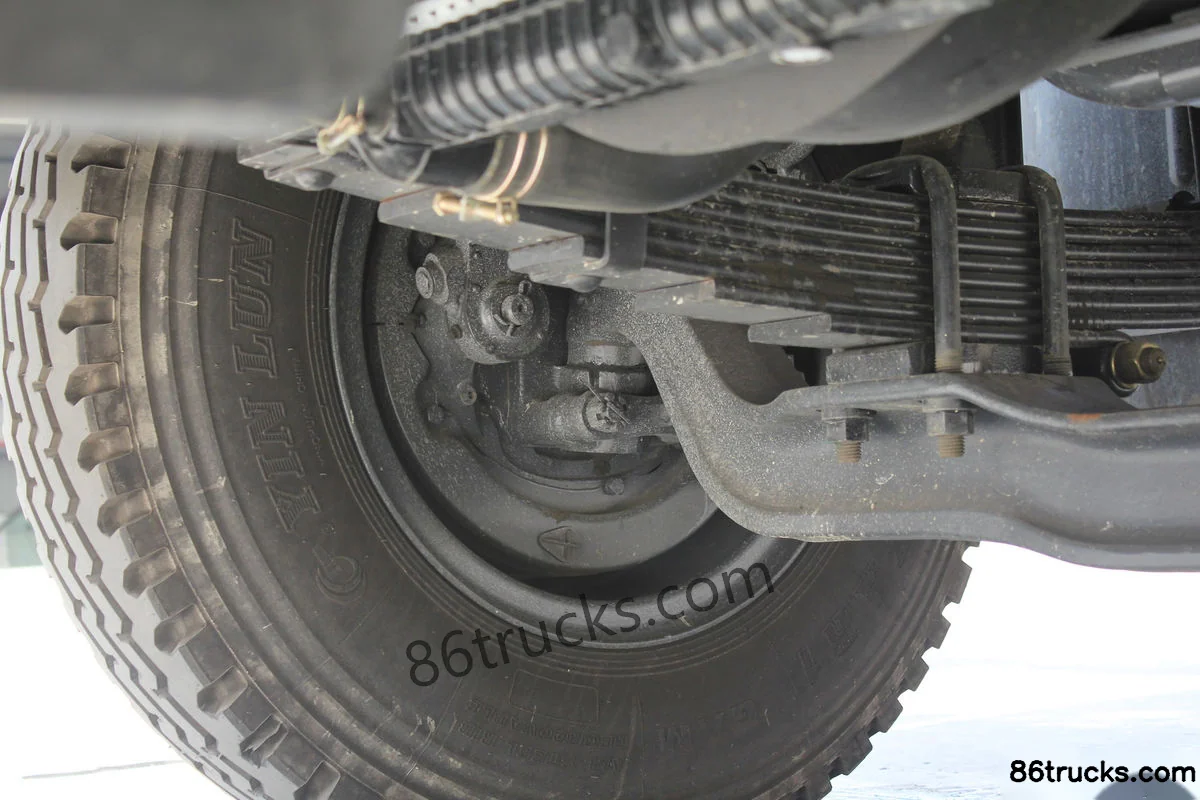

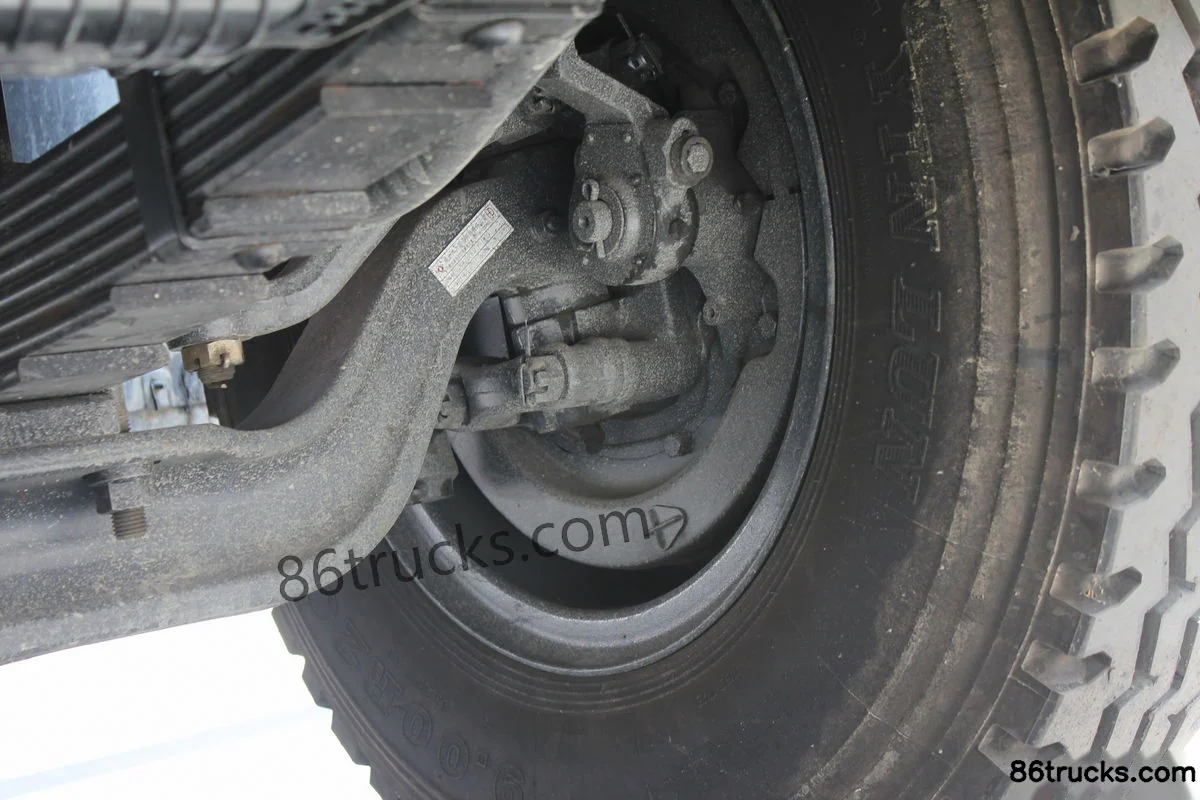

Chassis3

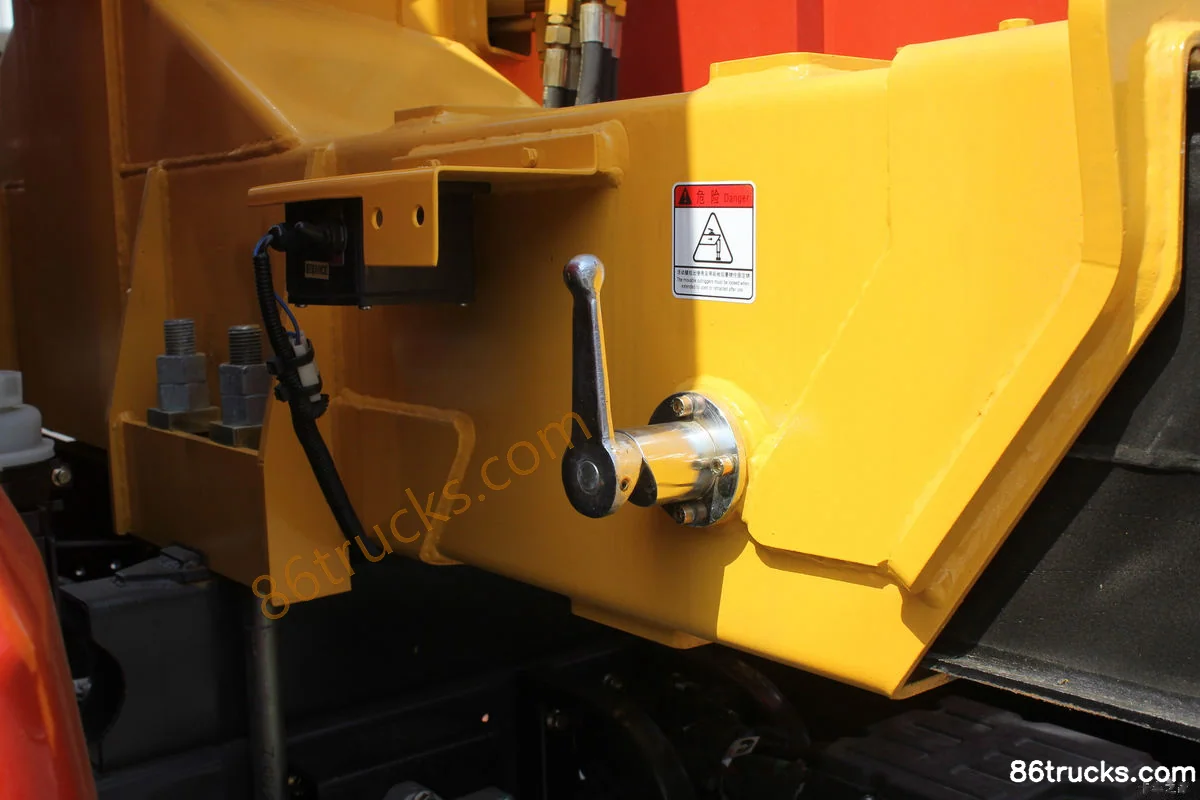

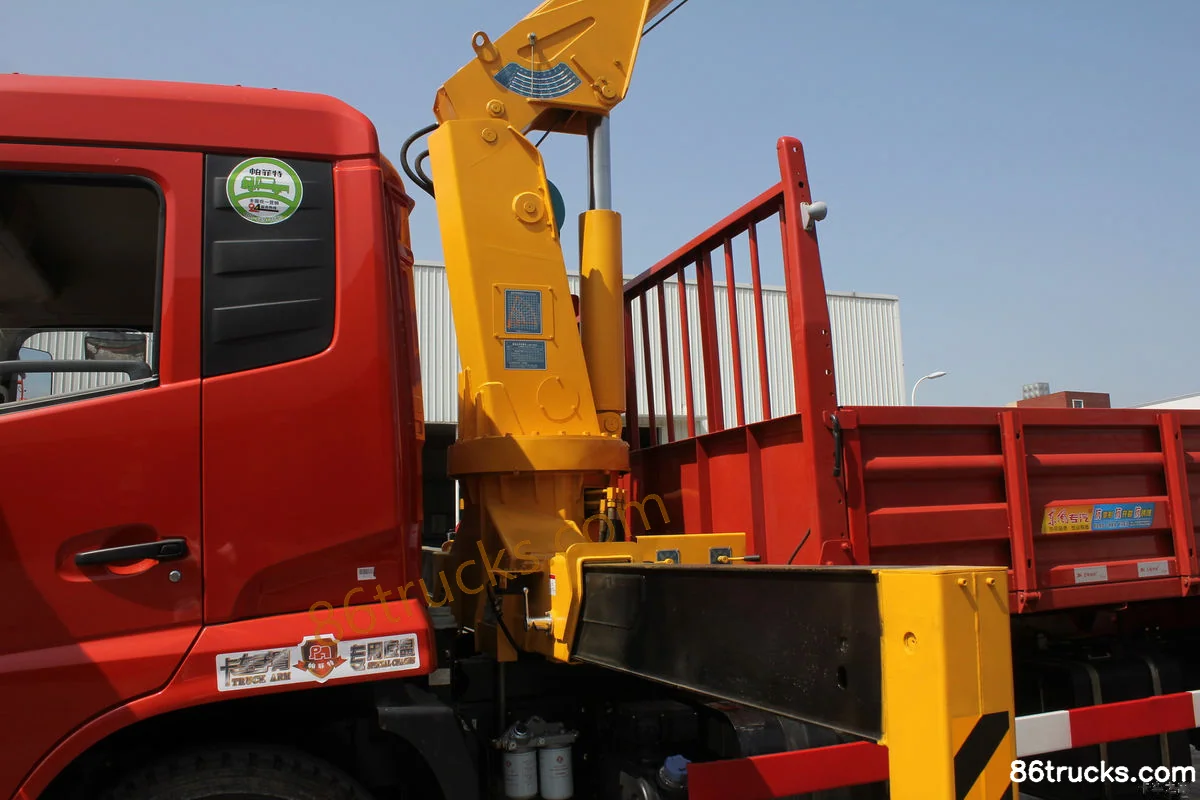

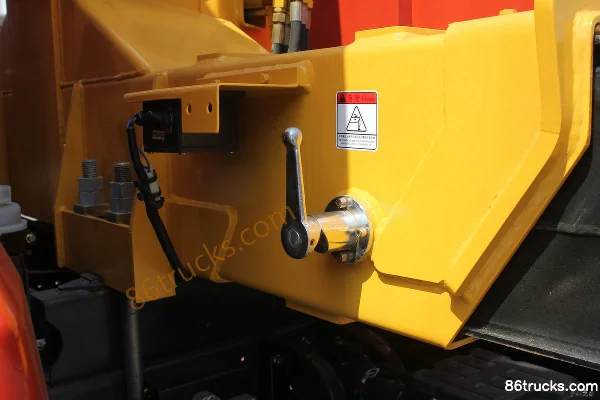

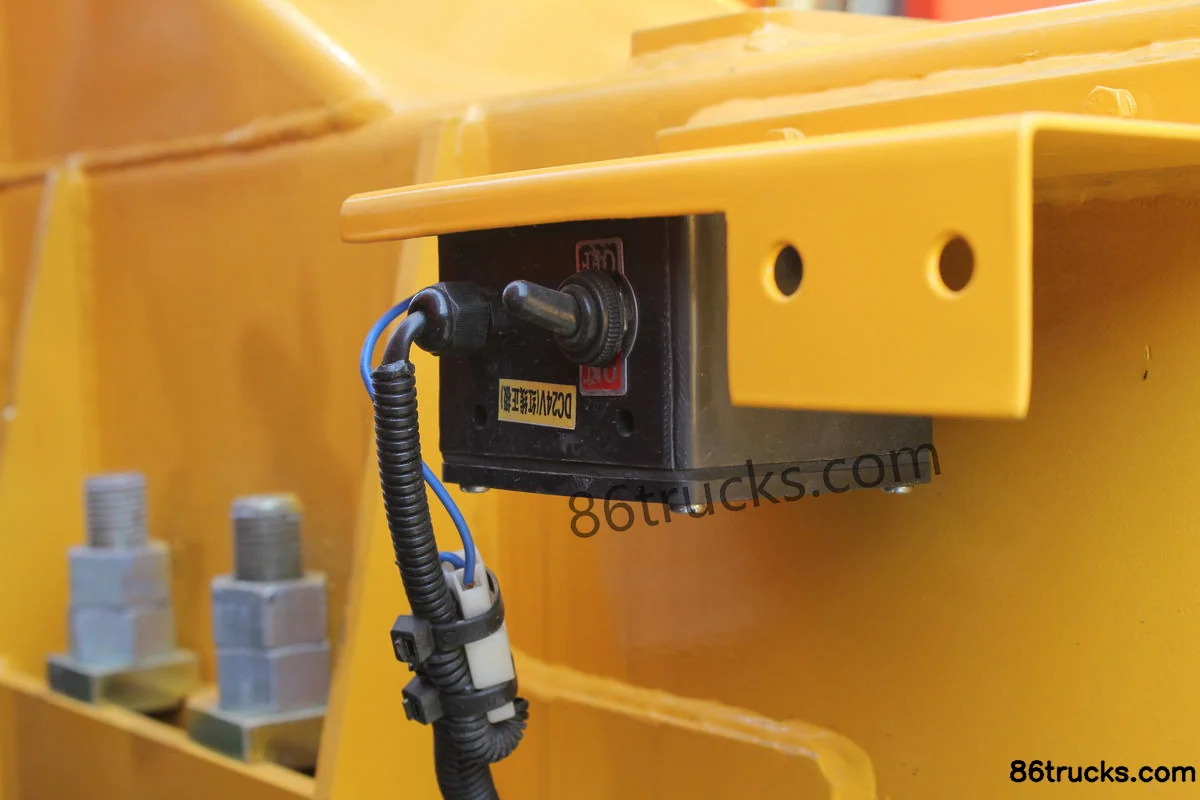

Body3

12 photos

FAQ

What is the export price of Dongfeng Commercial Vehicle Tianjin 180 hp 4X2(6 wheels) 6.3-ton Truck-Mounted Crane (Shimei Machine), and what does it include?

Dongfeng Commercial Vehicle Tianjin 180 hp 4X2(6 wheels) 6.3-ton Truck-Mounted Crane (Shimei Machine) export reference is about From $34,722; MSRP is ¥25M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Commercial Vehicle Tianjin 180 hp 4X2(6 wheels) 6.3-ton Truck-Mounted Crane (Shimei Machine) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Commercial Vehicle Tianjin 180 hp 4X2(6 wheels) 6.3-ton Truck-Mounted Crane (Shimei Machine)?

Key specs of Dongfeng Commercial Vehicle Tianjin 180 hp 4X2(6 wheels) 6.3-ton Truck-Mounted Crane (Shimei Machine): Drive: 4x2; Horsepower: 180 hp; Emission: China IV; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Commercial Vehicle Tianjin 180 hp 4X2(6 wheels) 6.3-ton Truck-Mounted Crane (Shimei Machine) suited for?

Dongfeng Commercial Vehicle Tianjin 180 hp 4X2(6 wheels) 6.3-ton Truck-Mounted Crane (Shimei Machine) is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Dongfeng Commercial Vehicle Tianjin 180 hp 4X2(6 wheels) 6.3-ton Truck-Mounted Crane (Shimei Machine) differ from other variants in the same series?

Dongfeng Commercial Vehicle Tianjin 180 hp 4X2(6 wheels) 6.3-ton Truck-Mounted Crane (Shimei Machine) belongs to Dongfeng Tianjin Medium Truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Commercial Vehicle Tianjin 180 hp 4X2(6 wheels) 6.3-ton Truck-Mounted Crane (Shimei Machine)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Commercial Vehicle Tianjin 180 hp 4X2(6 wheels) 6.3-ton Truck-Mounted Crane (Shimei Machine)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
