Hualing Hanma H6 420hp 6X4(10 wheels) Truck-mounted Crane
EXW
From $41,667
Export quote
Hualing Hanma H6 Heavy Truck truck-mounted crane
Main model photos
299 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Hualing Hanma H6 420hp 6X4(10 wheels) Truck-mounted Crane | 6x4 / 420hp / China V | From $41,667 |
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Hualing Hanma 290 hp 6X4(10 wheels) Truck Mounted Crane | 6x4 / 290hp / China IV | ||
| Hualing Hanma 220 hp 6X2(8 wheels) Truck Mounted Crane | 6x2 / 220hp / China IV |
Hualing Hanma 290 hp 6X4(10 wheels) Truck Mounted Crane
EXW
Export quote

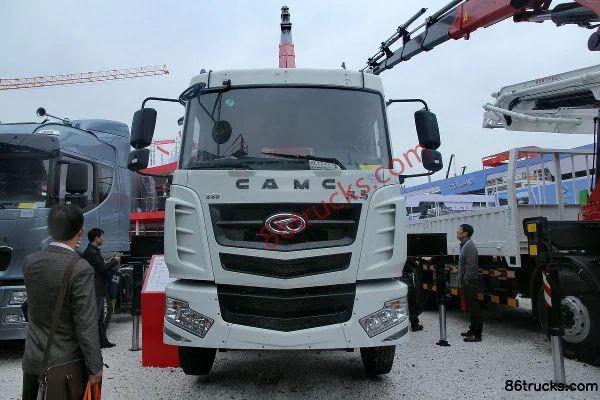

Hualing Hanma 220 hp 6X2(8 wheels) Truck Mounted Crane
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 7.16x2.55x3.85 / 11.96x2.5x3.75m
Type: truck-mounted crane
Drive type: 6X4 / 6X2
Wheelbase: 3600+1350 / 5850+1350 / 1850+5800mm
Rated mass: 9ton
GVWR: 25ton
Front/rear suspension: 1.475/0.84 / 1.37/3.39m
Energy Type: Diesel
Body Parameters
Other special notes: Front axle leaf spring thickened; add rear throttle pedal program; battery bracket, muffler, urea tank etc. positioned per confirmed layout.
Crane model: HSQZ420 / SQZ-12
Lifting capacity: 16 / 12ton
crane self-weight: 5 / 1.4ton
Vehicle certification code: HN5250JQQHB42C6M5 / AH5251JSQ
Body Brand: Hualing
Engine parameters
Engine Brand: Hanma / Yuchai
Engine Model: Hanma CM6D18.420 50 / CAMC HanmaCM6D18.290 40 / Yuchai YC6J220-46
Displacement: 9.84 / 6.494L
Emission standard: China V / China IV
Max output power: 309 / 213 / 162kW
Max hp: 420 / 290 / 220Horsepower
Max torque: 1840 / 1460 / 760N·m
Max torque speed: 1100-1500 / 1000-1400 / 1200-1700rpm
Rated speed: 1900 / 2500rpm
Chassis Specs
Chassis Brand: Hualing
Chassis Series: HanmaH6
Chassis Model: HN1250P27E8M3J
rear axle description: Rear axle: HL457 (4.875) / Rear axle 153 (4.875)
Leaf spring count: 9/12 / 9/9/9+6
Transmission Parameters
Number of gears: 9 / 7Gear
Transmission Model: 9JS119+PTO / 7DC100
Tire
Tire Size: 11.00R20,12.00R20 16PR,12R22.5 / 11.00R20 / 10.00R20
Number of tires: 10 / 8pcs
FAQ
What kind of truck is Hualing Hualing Hanma H6 Heavy Truck truck-mounted crane?
Hualing Hualing Hanma H6 Heavy Truck is an export-oriented truck-mounted crane lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Hualing Hanma H6 Heavy Truck truck-mounted crane?
Hualing Hanma H6 Heavy Truck truck-mounted crane export reference is about From $41,667. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Hualing Hanma H6 Heavy Truck truck-mounted crane cover?
Hualing Hanma H6 Heavy Truck truck-mounted crane mainly covers: Drive: 6x2 / 6x4; Horsepower: 220 hp / 290 hp / 420 hp; Emission: China IV / China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Hualing Hanma H6 Heavy Truck truck-mounted crane?
For Hualing Hanma H6 Heavy Truck truck-mounted crane: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is truck-mounted crane typically used for?
truck-mounted crane specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Hualing Hanma H6 Heavy Truck truck-mounted crane include?
Hualing Hanma H6 Heavy Truck truck-mounted crane currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Hualing Hanma H6 Heavy Truck truck-mounted crane?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
