FAW Jiefang HuVH 120hp 4X2(6 wheels) 3.85m semi-row flatbed truck

Export reference
From $14,903
MSRP ¥10.73M CNY
Horsepower: 120
Emission: China V
Fuel: Diesel
Engine: Dachai495
Transmission: WLY
Curb Weight:: 2.56ton
seating capacity: 3Personnel
Rated payload: 1.74ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The FAW Jiefang HuVH 120hp 4X2(6 wheels) 3.85m semi-row flatbed truck is a Light Truck featuring 3.85m cargo length, stake body cargo body, 3Personnel volume and 1.74t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Dachai495 engine, 120 hp, 4X2 (6 wheels) drive and China V emissions.

China V 120 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA1041P40K2L1E5A84
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3300mm
Box length class: 3.8m
engine: DachaiCA4DC3-12E5
transmission: WLYWLY6TS40
Rear Axle Ratio: 4.875
Cab length: 5.998m
Cab width: 2.22m
Cab height: 2.475m
Front track width: 1650mm
rear track: 1540mm
Curb Weight: 2.56ton
Rated payload: 1.74ton
GVWR: 4.495ton
Max. speed: 110km/h
Origin: Qingdao, Shandong
tonnage class: Light Truck
Approach angle: 21°
departure angle: 17°
market segment: Building materials, agricultural products
Remarks: Front brake: disc brake optional, Φ330 clutch
Front/rear suspension: 1.15/1.548m
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiCA4DC3-12E5
Engine info: Dachai495
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3L
Emission standard: China V
Max output power: 90kW
Max hp: 120Horsepower
Max torque: 360N·m
Max torque speed: 1600-2200rpm
Rated speed: 3200rpm
Engine Type: SCR
Transmission Parameters
Transmission Model: WLYWLY6TS40
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.85m
Cargo box width: 2.1m
Cargo box height: 0.41m
*Cargo box interior width: 2.0999999046326
Cab parameters
Cab: Hu VH flat roof cab with semi-sleeper (double bunk + removable seat headrests)
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: Plastic
Fuel tank capacity: 120L
Chassis Specs
Front axle allowable load: 2050kg
Frame Dimensions: 180×780/216×865mm
rear axle description: 1058 stamped-welded axle
rear axle allowable load: 2445kg
Axle ratio: 4.875
Leaf spring count: 7/10+3
Aluminum wheels:
Suspension (front/rear): Leaf spring
Tire
Tire Size: 7.50R16 6PR
Tire Type: 14-ply
Number of tires: 6pcs
Control configuration
ABS:
Brake assist (EBA/BAS/BA etc.): none
Power steering:
clutch booster:
automatic slack adjuster:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:
Diesel primary filter heating:
Wiper type:
Service brake
Engine brake:
Brake Type: Air brake
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
standard instrument cluster:
LCD instrument cluster: none
lighting configuration
Headlight brand: none
Front fog lamp:
Headlight height adjustment:
Halogen Headlights:
smart configuration
Telematics System:
Cruise control (CCS):
Tire Pressure Monitoring System (TPMS):
Fatigue driving monitoring:
maintenance service
Vehicle Warranty Period: 24 months unlimited mileage
24-hour service hotline:
Rescue service:

Photos

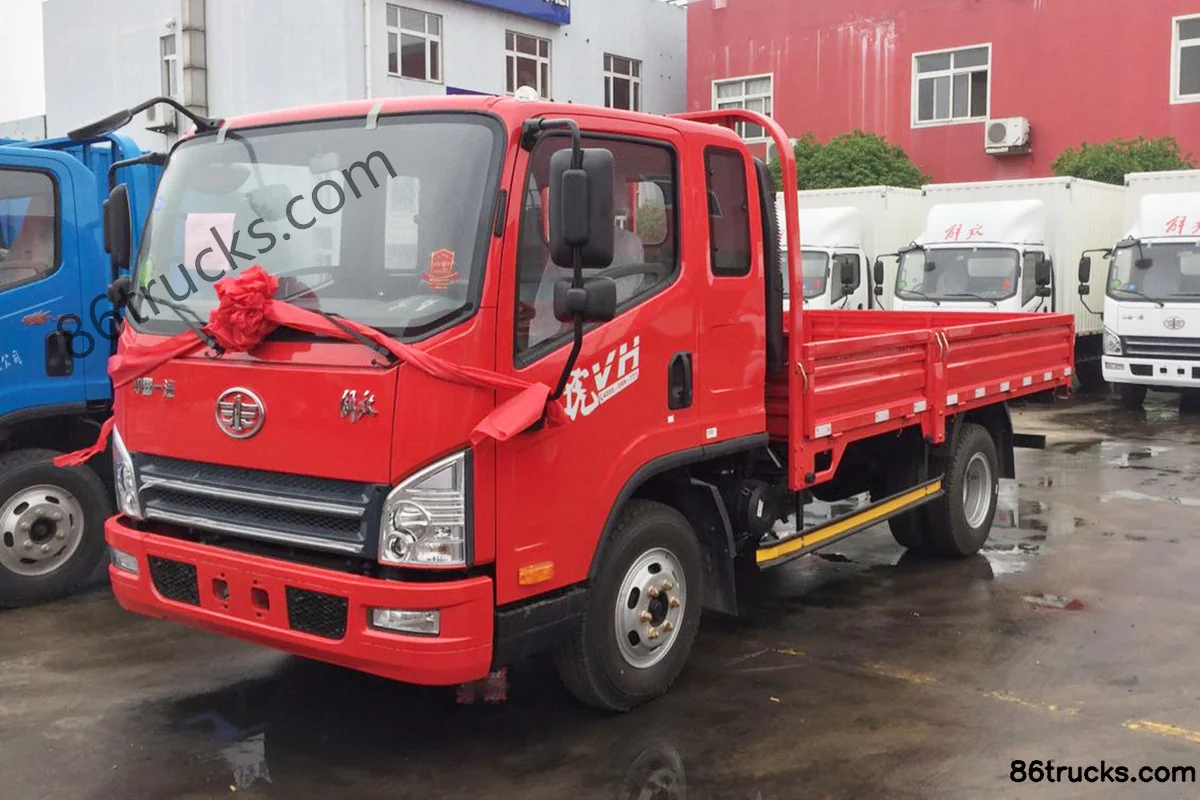

Exterior1

1 photos

FAQ

What is the export price of FAW Jiefang HuVH 120hp 4X2(6 wheels) 3.85m semi-row flatbed truck, and what does it include?

FAW Jiefang HuVH 120hp 4X2(6 wheels) 3.85m semi-row flatbed truck export reference is about From $14,903; MSRP is ¥10.73M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang HuVH 120hp 4X2(6 wheels) 3.85m semi-row flatbed truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang HuVH 120hp 4X2(6 wheels) 3.85m semi-row flatbed truck?

Key specs of FAW Jiefang HuVH 120hp 4X2(6 wheels) 3.85m semi-row flatbed truck: Drive: 4x2; Horsepower: 120 hp; Emission: China V; Fuel: Diesel; Engine: Dachai495; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang HuVH 120hp 4X2(6 wheels) 3.85m semi-row flatbed truck suited for?

FAW Jiefang HuVH 120hp 4X2(6 wheels) 3.85m semi-row flatbed truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang HuVH 120hp 4X2(6 wheels) 3.85m semi-row flatbed truck differ from other variants in the same series?

FAW Jiefang HuVH 120hp 4X2(6 wheels) 3.85m semi-row flatbed truck belongs to FAW Jiefang Hu V Light-duty Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang HuVH 120hp 4X2(6 wheels) 3.85m semi-row flatbed truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang HuVH 120hp 4X2(6 wheels) 3.85m semi-row flatbed truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
