SRM Xinyuan T50EV 2021 Chuangfu Edition 3.5T 3.6m Single Row Pure Electric Van Mini Truck 55.7kWh 4X2(6 wheels)

Export reference
From $26,500
MSRP ¥19.08M CNY
Rated payload:: 1.41ton
Wheelbase:: 3600mm
Cargo box type:: Van body
Model code (announced):: JKC5034XXYD0X0BEV
Type:: enclosed cargo truck
Box length class:: 3.6m
Drive 4X2 (6 wheels)
CLTC range: 280km
Motor 1 Brand: Jingjin
Curb Weight: 1.955ton

Overview

The SRM Xinyuan T50EV 2021 Chuangfu Edition 3.5T 3.6m Single Row Pure Electric Van Mini Truck 55.7kWh 4X2(6 wheels) is a mini truck featuring 280km battery/range, Jingjin motor, 4X2 (6 wheels) drive and 1.41t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JKC5034XXYD0X0BEV
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3600mm
Box length class: 3.6m
Cab length: 5.78m
Cab width: 1.81m
Cab height: 2.5m
CLTC range: 280km
Curb Weight: 1.955ton
Rated payload: 1.41ton
GVWR: 3.495ton
Max. speed: 80km/h
Origin: Chongqing Fuling
tonnage class: mini truck
Version: Chuangfuxing
Energy Type: Electric
electric motor
Motor 1 Brand: Jingjin
Motor 1 Model: TZ154XS309
Max torque: 165N·m
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 40kW
Peak power: 72kW
Battery/Charging
Charging method: Fast charge, slow charge
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 55.7kWh
Energy Density: 146.3
Battery Model: L173TB3
Cargo box parameters
Cargo box type: Van body
Cargo box length: 3.6m
Cargo box width: 1.75m
Cargo box height: 1.6m
Cab parameters
Cab width: 1680mm
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1100kg
rear axle allowable load: 2395kg
Tire
Tire Size: 185R14LT 6PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering: Electric Power Steering
interior configuration
AC control type: Manual
Power Windows:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
GPS/Beidou driving recorder: Yes
Bluetooth / hands-free calling:
lighting configuration
Front fog lamp:
Service brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type

Photos

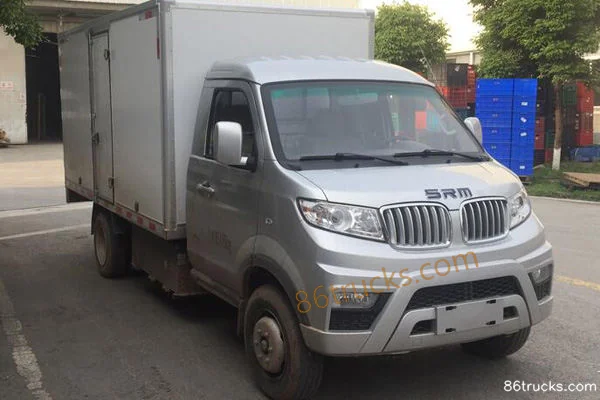

Exterior1

1 photos

FAQ

What is the export price of SRM Xinyuan T50EV 2021 Chuangfu Edition 3.5T 3.6m Single Row Pure Electric Van Mini Truck 55.7kWh 4X2(6 wheels), and what does it include?

SRM Xinyuan T50EV 2021 Chuangfu Edition 3.5T 3.6m Single Row Pure Electric Van Mini Truck 55.7kWh 4X2(6 wheels) export reference is about From $26,500; MSRP is ¥19.08M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of SRM Xinyuan T50EV 2021 Chuangfu Edition 3.5T 3.6m Single Row Pure Electric Van Mini Truck 55.7kWh 4X2(6 wheels)?

Key specs of SRM Xinyuan T50EV 2021 Chuangfu Edition 3.5T 3.6m Single Row Pure Electric Van Mini Truck 55.7kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SRM Xinyuan T50EV 2021 Chuangfu Edition 3.5T 3.6m Single Row Pure Electric Van Mini Truck 55.7kWh 4X2(6 wheels) suited for?

SRM Xinyuan T50EV 2021 Chuangfu Edition 3.5T 3.6m Single Row Pure Electric Van Mini Truck 55.7kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does SRM Xinyuan T50EV 2021 Chuangfu Edition 3.5T 3.6m Single Row Pure Electric Van Mini Truck 55.7kWh 4X2(6 wheels) differ from other variants in the same series?

SRM Xinyuan T50EV 2021 Chuangfu Edition 3.5T 3.6m Single Row Pure Electric Van Mini Truck 55.7kWh 4X2(6 wheels) belongs to SRM T50EV Micro Truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SRM Xinyuan T50EV 2021 Chuangfu Edition 3.5T 3.6m Single Row Pure Electric Van Mini Truck 55.7kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SRM Xinyuan T50EV 2021 Chuangfu Edition 3.5T 3.6m Single Row Pure Electric Van Mini Truck 55.7kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
